porsche 2020 (718 cayman) chain tensioner timing chain parts diagram

103-016 - chain tensioner timing chain

Porsche 2020 (718 Cayman) chain tensioner timing chain Parts Diagram

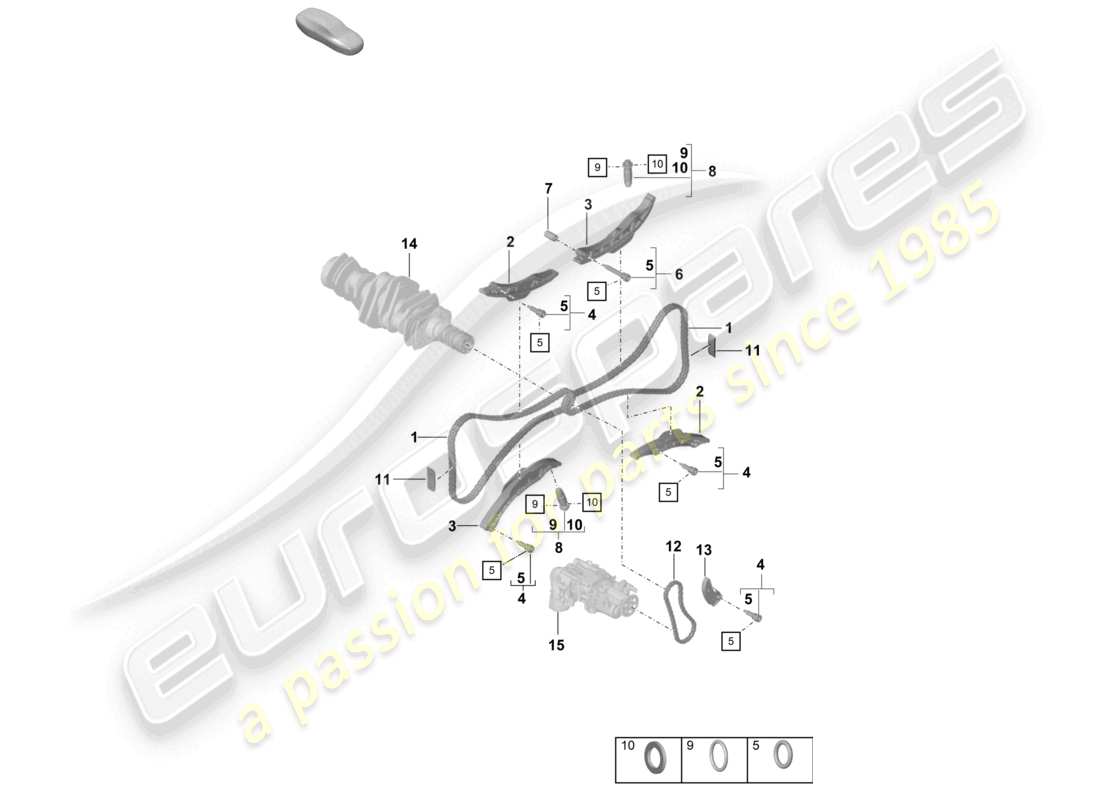

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # -
                                  -
                                  ------------------------------ * CAUTION! NON-APPROVED * PART NUMBERS ARE NOT REPLAC- * EMENT PARTS DUE TO REPAIR * COMPLEXITY. PLEASE OBSERVE * WORKSHOP MANUAL! ------------------------------
                                  # 1
                                  MPN: 0PB109252B
                                  TIMING CHAIN CAMSHAFT CRANKSHAFT
                                  from £125.27
                                  from £125.27
                                  TIMING CHAIN Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: PAA109513
                                  SLIDE RAIL
                                  from £22.98
                                  from £22.98
                                  SLIDE RAIL Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 0PB109509
                                  TENSIONER BLADE
                                  from £25.40
                                  from £25.40
                                  TENSIONER BLADE Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 9A700836500
                                  SOCKET HEAD BOLT M6X10.8X38.2 TENSIONER BLADE
                                  from £9.07
                                  from £9.07
                                  SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: PAF008261
                                  O-RING 15X3.0
                                  from £2.29
                                  from £2.29
                                  This part replaces part number 99970734640
                                  O-RING Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 9A700836600
                                  BOLT WITH WASHER INCLUDED O-RING
                                  from £9.85
                                  from £9.85
                                  BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 9A700829800
                                  SPACER SLEEVE
                                  from £11.36
                                  from £11.36
                                  SPACER SLEEVE Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 0PB109507A
                                  CHAIN TENSIONER WITH: SEAL RING N 013.827.7
                                  from £63.07
                                  from £63.07
                                  CHAIN TENSIONER Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: N 0138277
                                  SEAL RING A22X27 FOR CHAIN TENSIONER
                                  from £1.67
                                  from £1.67
                                  This part replaces part number 90012301121
                                  SEAL RING Genuine Porsche Part - New In stock
                                  # 10
                                  MPN: PAF008646
                                  O-RING 20X1,3 FOR CHAIN TENSIONER
                                  from £7.43
                                  from £7.43
                                  This part replaces part number 99970106640
                                  O-RING Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: 0PB109514
                                  SLIDE RAIL
                                  from £11.65
                                  from £11.65
                                  SLIDE RAIL Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 0PB109229A
                                  TIMING CHAIN OIL PUMP CRANKSHAFT
                                  from £50.25
                                  from £50.25
                                  TIMING CHAIN Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 0PB109508
                                  TENSIONER BLADE
                                  Supersession
                                  Supersession
                                  This part replaces part number 9A110523502
                                  Genuine Porsche Part (no longer available to order)
                                  # 14
                                  -
                                  CRANKSHAFT SEE ILLUSTRATION: 101-006
                                  # 15
                                  -
                                  OIL PUMP SEE ILLUSTRATION: 104-001
