DLZ (3.0 Litre 6 Cyliner Engine (354 Horsepower / 260 Kilowatt with Engine Code: DLZ and installed 05/2018) | DLZB (3.0 Litre 6 Cyliner Engine (354 Horsepower / 260 Kilowatt with Engine Code: DLZB and installed 05/2018) | DGR (2.9 Litre 6 Cyliner Engine (441 Horsepower / 324 Kilowatt with Engine Code: DGR and installed 05/2018) | DGRB (2.9 Litre 6 Cyliner Engine (381 Horsepower / 280 Kilowatt with Engine Code: DGRB and installed 05/2018) | DGR (2.9 Litre 6 Cyliner Engine (441 Horsepower / 324 Kilowatt with Engine Code: DGR and installed 05/2018) | DGRC (2.9 Litre 6 Cyliner Engine (441 Horsepower / 324 Kilowatt with Engine Code: DGRC and installed 05/2018)
porsche 2020 (macan) oil pump parts diagram

104-000 - oil pump

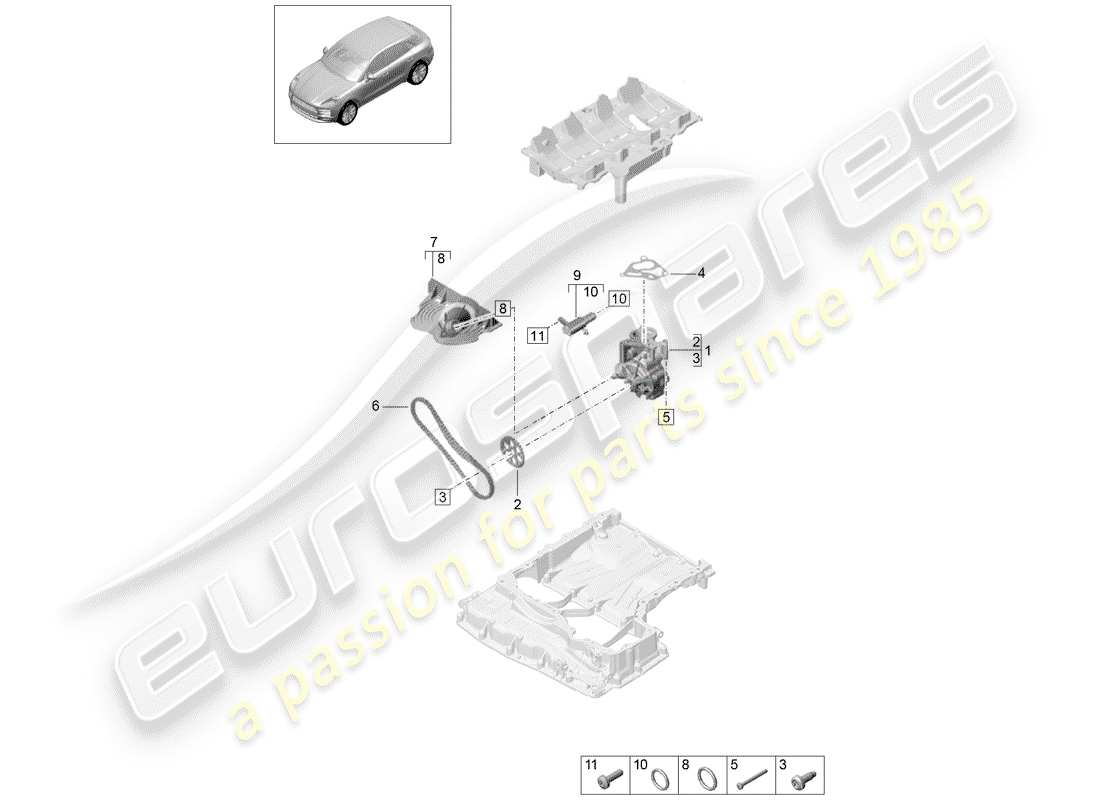

Porsche 2020 (Macan) oil pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 9A711510330
                  oil pump
                  oil pump
                  from £287.61
                  from £287.61
                  oil pump Genuine Porsche Part - New (to order)
                  # 1
                  MPN: PAB115103
                  oil pump
                  from £354.02
                  from £354.02
                  oil pump Genuine Porsche Part - New (to order)
                  # 2
                  MPN: 9A711512110
                  CHAIN SPROCKET
                  from £53.74
                  from £53.74
                  SPROCKET Genuine Porsche Part - New (to order)
                  # 3
                  MPN: 9A700806100
                  Oval-head screw M8X22
                  from £11.00
                  from £11.00
                  OVAL-HEAD SCREW Genuine Porsche Part - New (to order)
                  # 4
                  MPN: 9A710316110
                  SEAL FOR OIL PUMP
                  from £11.80
                  from £11.80
                  SEAL FOR OIL PUMP Genuine Porsche Part - New (to order)
                  # 5
                  MPN: N 10562602
                  ROUND HD. SCREW M6X60
                  from £0.95
                  from £0.95
                  ROUND HD. SCREW Genuine Porsche Part - New (to order)
                  # 6
                  -
                  TIMING CHAIN SEE ILLUSTRATION: 103-150
                  # 7
                  MPN: PAB11515510
                  INTAKE MANIFOLD OIL PUMP
                  INTAKE MANIFOLD OIL PUMP
                  Supersession
                  Supersession
                  Genuine Porsche Part (no longer available to order)
                  # 7
                  MPN: PAB115155B
                  INTAKE MANIFOLD OIL PUMP
                  from £31.00
                  from £31.00
                  This part replaces part number PAB11515510
                  INTAKE MANIFOLD Genuine Porsche Part - New (to order)
                  # 8
                  MPN: N 91069701
                  O-RING 26X2,5
                  from £2.66
                  from £2.66
                  O-RING Genuine Porsche Part - New (to order)
                  O-RING Genuine Lamborghini - New In stock
                  # 9
                  MPN: 9A711539300
                  CONTROL VALVE OIL PUMP
                  CONTROL VALVE OIL PUMP
                  from £74.43
                  from £74.43
                  CONTROL VALVE Genuine Porsche Part - New (to order)
                  # 9
                  MPN: PAB115393
                  CONTROL VALVE OIL PUMP
                  from £88.37
                  from £88.37
                  CONTROL VALVE Genuine Porsche Part - New (to order)
                  # 10
                  MPN: 9A711547500
                  O-RING 14X2
                  from £3.55
                  from £3.55
                  O-RING Genuine Porsche Part - New (to order)
                  # 11
                  MPN: N 10196103
                  Oval socket head bolt M6X18 with hex drive
                  from £0.78
                  from £0.78
                  oval socket head bolt Genuine Porsche Part - New In stock
                  HEXALOBULAR SOCKET M6X18 Genuine Lamborghini - New In stock
