PT2G (4-cylinder SI engine 2.0 l unit 06L.D)
porsche 2020 (macan) oil pump parts diagram

104-010 - oil pump

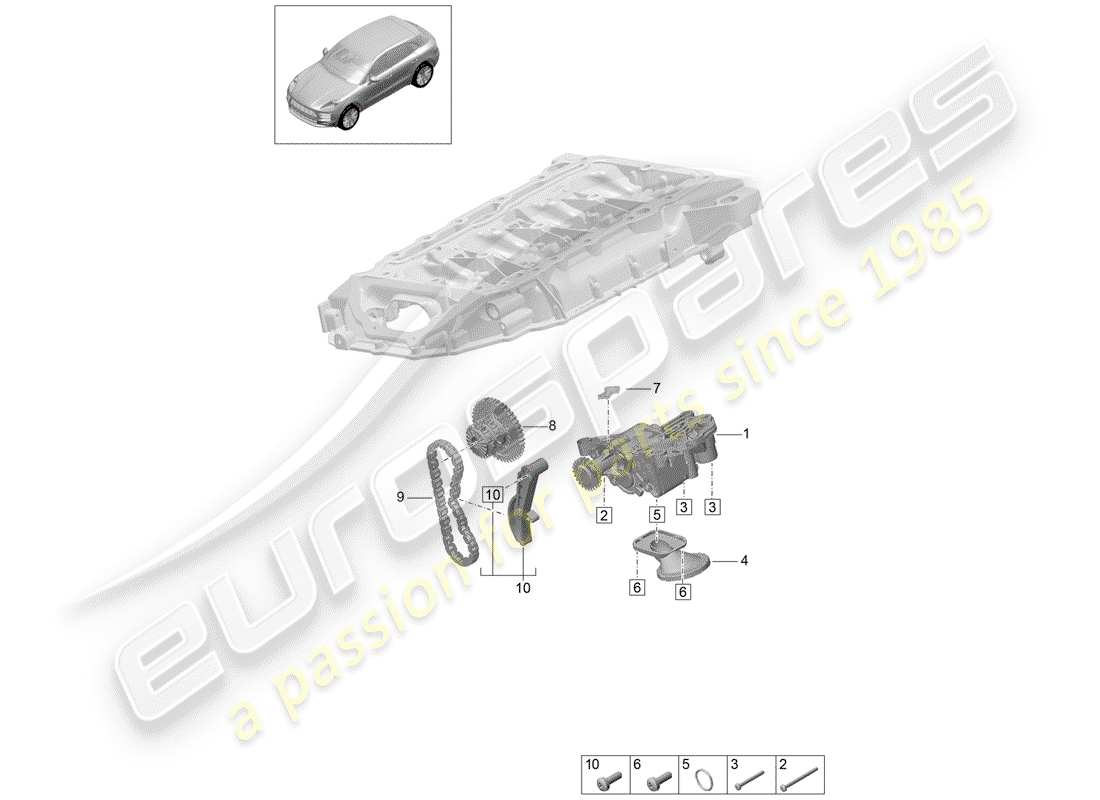

Porsche 2020 (Macan) oil pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 95811510531
                    oil pump with: Chain sprocket also use: 1x 958 115 225 00 1x 958 109 507 10
                    oil pump with: Chain sprocket also use: 1x 958 115 225 00 1x 958 109 507 10
                    from £249.89
                    from £249.89
                    oil pump Genuine Porsche Part - New (to order)
                    # 1
                    MPN: PAB115105A
                    oil pump with: Chain sprocket also use: 1x 958 115 225 00 1x 958 109 507 10
                    from £388.58
                    from £388.58
                    oil pump Genuine Porsche Part - New (to order)
                    # 2
                    MPN: N 91164901
                    Hexagon socket flat M8X65 head bolt
                    from £1.80
                    from £1.80
                    HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                    # 3
                    MPN: N 10736001
                    Hexagon socket flat M8X35 head bolt
                    from £1.00
                    from £1.00
                    HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                    HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
                    # 4
                    MPN: PAC115251
                    SUCTION LINE
                    from £30.71
                    from £30.71
                    SUCTION PIPE Genuine Porsche Part - New (to order)
                    # 5
                    MPN: N 0282222
                    SEAL RING 20X3,15
                    from £4.29
                    from £4.29
                    SEAL RING Genuine Porsche Part - New (to order)
                    # 6
                    MPN: N 10750001
                    Hexagon socket flat M6X16 head bolt
                    from £0.82
                    from £0.82
                    HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                    # 7
                    MPN: PAC115175
                    OIL STRAINER
                    from £8.22
                    from £8.22
                    OIL STRAINER Genuine Porsche Part - New (to order)
                    # 8
                    -
                    CHAIN SPROCKET SEE ILLUSTRATION: 102-010
                    # 9
                    MPN: 95811522500
                    DRIVE CHAIN
                    from £54.53
                    from £54.53
                    DRIVE CHAIN Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 95810950710
                    CHAIN TENSIONER TENSIONING ELEMENT WITH SCREW
                    from £32.93
                    from £32.93
                    TENSIONER - CHAIN Genuine Porsche Part - New (to order)
