PT2B (4-cylinder SI engine 2.0 l unit 06N.B 888evo4)
porsche 2020 (macan) coolant cooling system 1 parts diagram

105-070 - Coolant cooling system 1

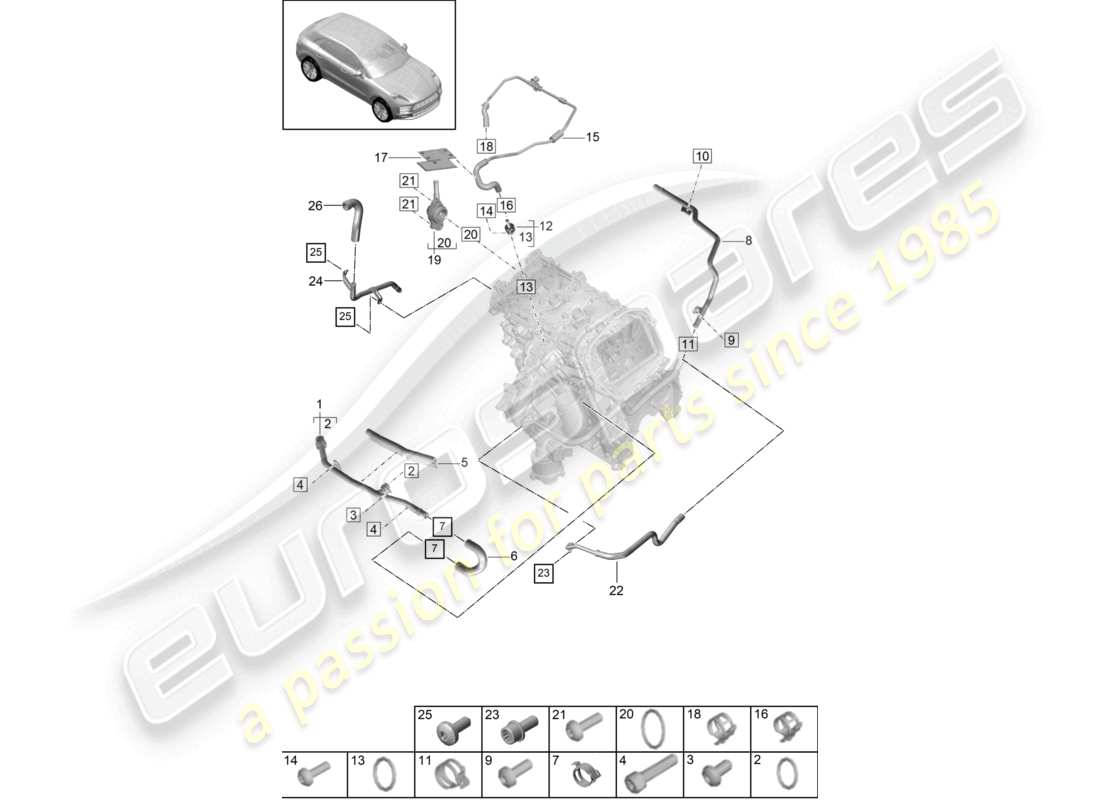

Porsche 2020 (Macan) Coolant cooling system 1 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Key
                                                  Price
                                                  # 1
                                                  MPN: 9A7121085
                                                  COOLANT PIPE
                                                  from £51.77
                                                  from £51.77
                                                  COOLANT PIPE Genuine Porsche Part - New (to order)
                                                  # 2
                                                  MPN: WHT005558
                                                  SEAL RING 14,5X2
                                                  from £1.86
                                                  from £1.86
                                                  SEAL RING Genuine Porsche Part - New (to order)
                                                  # 3
                                                  MPN: N 10335206
                                                  Hexagon socket flat M6X12 head bolt
                                                  from £0.78
                                                  from £0.78
                                                  HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                  HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
                                                  # 4
                                                  MPN: N 10524202
                                                  HEX SOCKET HEAD LOCATING BOLT M10X12
                                                  from £0.78
                                                  from £0.78
                                                  HEX SOCKET HEAD LOCATING BOLT Genuine Porsche Part - New (to order)
                                                  12-POINT SOCKET BOLT Genuine Lamborghini - New (to order)
                                                  # 5
                                                  MPN: 9A7121651
                                                  HEAT REFLECTIVE MAT
                                                  from £9.18
                                                  from £9.18
                                                  HEAT REFLECTIVE MAT Genuine Porsche Part - New (to order)
                                                  # 6
                                                  MPN: 95812105100
                                                  COOLANT HOSE
                                                  from £8.91
                                                  from £8.91
                                                  WATER HOSE Genuine Porsche Part - New (to order)
                                                  # 7
                                                  MPN: N 90686901
                                                  Spring band clamp 23X12
                                                  Spring band clamp 23X12
                                                  from £0.66
                                                  from £0.66
                                                  SPRING CLIP Genuine Porsche Part - New (to order)
                                                  SPRING CLAMP B23X12 Genuine Lamborghini - New In stock
                                                  # 7
                                                  MPN: 99951268309
                                                  HOSE CLAMP B23X12
                                                  from £2.29
                                                  from £2.29
                                                  Hose Clamp - 23 X 12 - D - MJ 2002>> Genuine Porsche Part - New (to order)
                                                  # 8
                                                  MPN: 9A7121075
                                                  COOLANT PIPE
                                                  from £34.09
                                                  from £34.09
                                                  COOLANT PIPE Genuine Porsche Part - New (to order)
                                                  # 9
                                                  MPN: N 10451409
                                                  Hexagon socket flat head M6X16 bolt, self-locking
                                                  from £0.91
                                                  from £0.91
                                                  BOLT, WITH HEX. SOCKET HD. Genuine Porsche Part - New (to order)
                                                  EXAGON SOCKET Genuine Lamborghini - New (to order)
                                                  # 10
                                                  MPN: N 10721401
                                                  oval hd. self-tapp fitt. screw TP6X16
                                                  from £0.47
                                                  from £0.47
                                                  TAPPING SCREW, FILL. HD Genuine Porsche Part - New In stock
                                                  SCREW TP6X16-Q Genuine Lamborghini - New In stock
                                                  # 11
                                                  MPN: 95810651710
                                                  HOSE CLAMP B21X12
                                                  from £5.61
                                                  from £5.61
                                                  HOSE CLAMP Genuine Porsche Part - New (to order)
                                                  # 12
                                                  MPN: 95812114300
                                                  CONNECTION PIECE
                                                  from £5.72
                                                  from £5.72
                                                  ADAPTER Genuine Porsche Part - New (to order)
                                                  # 13
                                                  MPN: WHT005440
                                                  SEAL RING 20X2,5
                                                  from £2.16
                                                  from £2.16
                                                  SEAL RING Genuine Porsche Part - New (to order)
                                                  # 14
                                                  MPN: N 91096801
                                                  Hexagon socket flat M6X20 head bolt
                                                  from £0.87
                                                  from £0.87
                                                  HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                  HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
                                                  # 15
                                                  MPN: PAC121081A
                                                  VENT HOSE UPPER CENTRE
                                                  from £59.24
                                                  from £59.24
                                                  VENT HOSE Genuine Porsche Part - New (to order)
                                                  # 16
                                                  MPN: N 90986501
                                                  SPRING BAND CLAMP 14,5X12
                                                  from £1.13
                                                  from £1.13
                                                  SPRING CLIP Genuine Porsche Part - New (to order)
                                                  SPRING CLAMP Genuine Lamborghini - New (to order)
                                                  # 17
                                                  MPN: PAC133833C
                                                  HEAT INSULATION
                                                  from £14.81
                                                  from £14.81
                                                  heat deflector Genuine Porsche Part - New (to order)
                                                  # 18
                                                  MPN: N 90770201
                                                  Spring band clamp B17X12
                                                  Spring band clamp B17X12
                                                  from £2.43
                                                  from £2.43
                                                  SPRING CLIP Genuine Porsche Part - New (to order)
                                                  SPRING CLAMP B17X12 Genuine Lamborghini - New (to order)
                                                  # 18
                                                  MPN: 99951268609
                                                  HOSE CLAMP B17X12
                                                  from £2.29
                                                  from £2.29
                                                  HOSE CLAMP - B 17 X 12 - FOR - PLUG - AIR DUCT Genuine Porsche Part - New (to order)
                                                  # 19
                                                  MPN: 95812113200
                                                  CONNECTION PIECE
                                                  from £19.01
                                                  from £19.01
                                                  ADAPTER Genuine Porsche Part - New (to order)
                                                  # 20
                                                  MPN: WHT001688
                                                  O-RING 32X3
                                                  from £2.73
                                                  from £2.73
                                                  O-RING Genuine Porsche Part - New (to order)
                                                  # 21
                                                  MPN: N 91096801
                                                  Hexagon socket flat M6X20 head bolt
                                                  from £0.87
                                                  from £0.87
                                                  HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                  HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
                                                  # 22
                                                  MPN: 9A7121492A
                                                  COOLANT PIPE WITH RETURN COOLANT HOSE
                                                  from £47.85
                                                  from £47.85
                                                  COOLANT PIPE WITH COOLANT HOSE Genuine Porsche Part - New (to order)
                                                  # 23
                                                  MPN: N 10619201
                                                  Socket head bolt with M6X15 hexagon socket head
                                                  from £1.32
                                                  from £1.32
                                                  BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                                                  # 24
                                                  MPN: 95B819928
                                                  Coolant pipe rear
                                                  from £31.65
                                                  from £31.65
                                                  water tube Genuine Porsche Part - New (to order)
                                                  # 25
                                                  MPN: N 91096701
                                                  OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                  from £0.78
                                                  from £0.78
                                                  OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                  HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                  # 26
                                                  -
                                                  COOLANT HOSE SEE MAIN GROUP 8
