P1X2 (Rear-wheel drive)
porsche 2025 (macan-e) coolant cooling system for rear-wheel drive parts diagram

155-040 - Coolant cooling system For rear-wheel drive

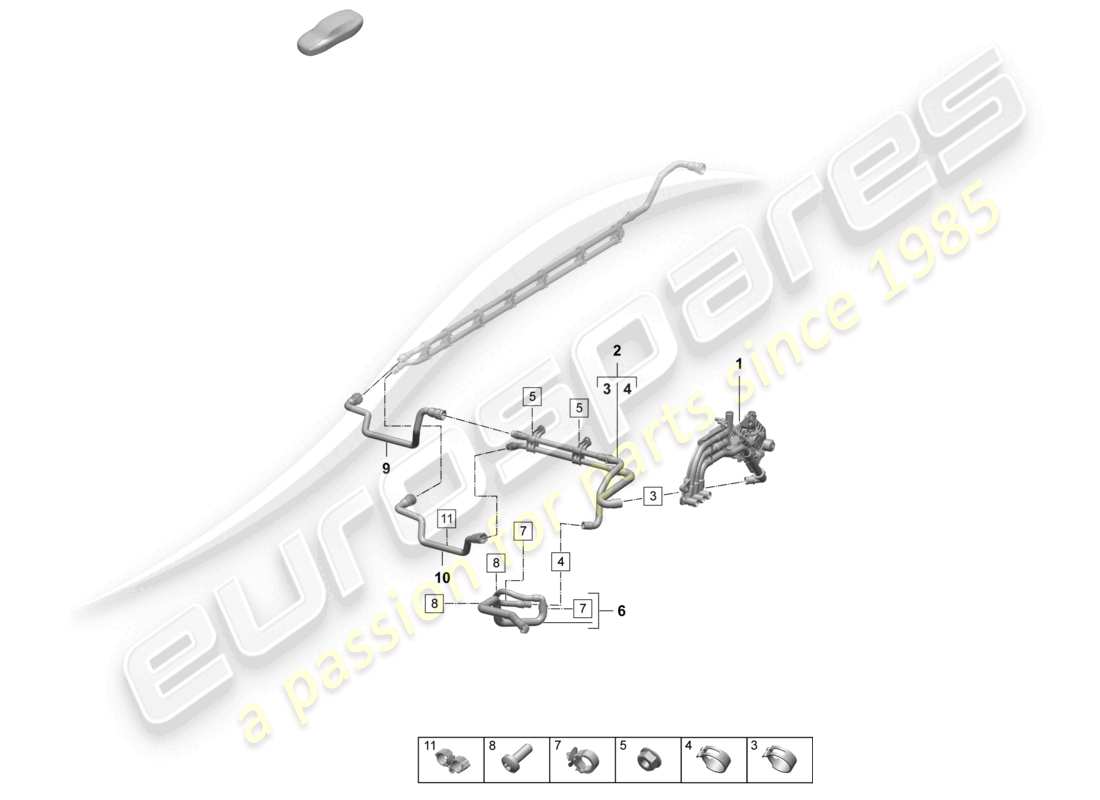

Porsche 2025 (Macan-E) Coolant cooling system For rear-wheel drive Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        -
                        DISTRIBUTOR FOR COOLANT SEE ILLUSTRATION: 155-010
                        # 2
                        MPN: PAD122061
                        COOLANT PIPE WITH COOLANT HOSE
                        from £74.54
                        from £74.54
                        COOLANT PIPE WITH COOLANT HOSE Genuine Porsche Part - New (to order)
                        # 3
                        MPN: PAF912678
                        Spring band clamp B32X12
                        from £8.18
                        from £8.18
                        SPRING BAND CLAMP Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 99951265809
                        HOSE CLAMP B27X12X1,7
                        from £2.29
                        from £2.29
                        HOSE CLAMP Genuine Porsche Part - New In stock
                        # 5
                        MPN: N 01508210
                        HEXAGON COLLAR NUT M6
                        from £0.47
                        from £0.47
                        Genuine Porsche Part (no longer available to order)
                        HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
                        # 6
                        MPN: PAD122058
                        COOLANT HOSE WITH QUICK RELEASE COUPLING
                        from £86.84
                        from £86.84
                        COOLANT HOSE WITH QUICK RELEASE COUPLING Genuine Porsche Part - New (to order)
                        # 7
                        MPN: PAF910947
                        LINE HOLDER
                        from £7.24
                        from £7.24
                        LINE HOLDER Genuine Porsche Part - New (to order)
                        # 8
                        MPN: N 10451405
                        OVAL HEXAGON SOCKET HEAD BOLT M6X16
                        from £0.78
                        from £0.78
                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                        HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                        # 9
                        MPN: PAD122096
                        COOLANT HOSE
                        from £45.43
                        from £45.43
                        COOLANT HOSE Genuine Porsche Part - New (to order)
                        # 10
                        MPN: PAD122073
                        COOLANT HOSE
                        from £48.18
                        from £48.18
                        COOLANT HOSE Genuine Porsche Part - New (to order)
                        # 11
                        MPN: PAF011153
                        LINE HOLDER
                        from £7.45
                        from £7.45
                        LINE HOLDER Genuine Porsche Part - New (to order)
