401-010 - Subframe and assembly mountings

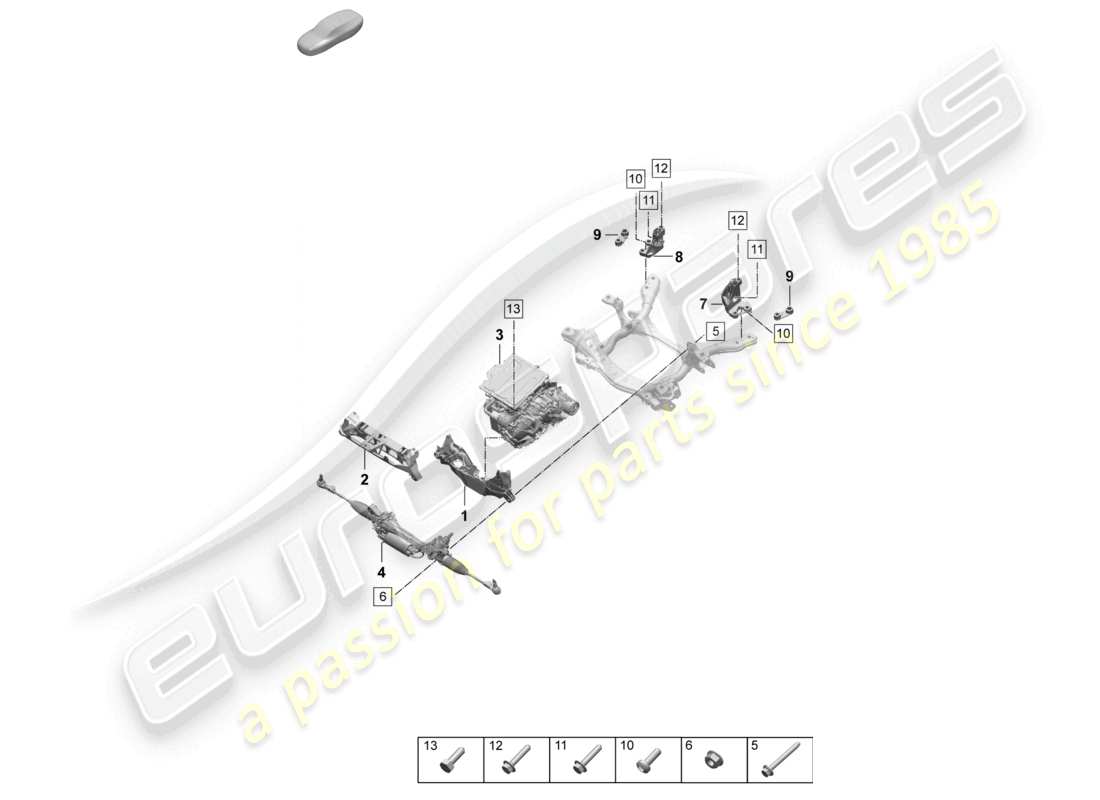

Porsche 2025 (Macan-E) Subframe and assembly mountings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: PAD199215
                  ENGINE BRACKETS
                  P1X1 (Four-wheel drive)
                  from £244.93
                  from £244.93
                  ENGINE BRACKETS Genuine Porsche Part - New (to order)
                  # 3
                  -
                  TRACTION MOTOR FOR ELEC. DRIVE SEE ILLUSTRATION: 151-000
                  # 4
                  -
                  STEERING GEAR SEE ILLUSTRATION: 403-000
                  # 5
                  MPN: PAF010353
                  HEXAGON FLANGE SCREW M14X1,5X138 (COMBI)
                  from £5.78
                  from £5.78
                  HEXAGON FLANGE SCREW (COMBI) Genuine Porsche Part - New (to order)
                  # 6
                  MPN: PAF104018
                  HEXAGON COLLAR NUT M14X1,5
                  from £3.08
                  from £3.08
                  HEXAGON COLLAR NUT Genuine Porsche Part - New (to order)
                  # 7
                  MPN: PAD199603
                  CONSOLE LEFT ENGINE BRACKETS
                  P1X1 (Four-wheel drive)
                  from £66.20
                  from £66.20
                  Console Genuine Porsche Part - New (to order)
                  # 8
                  MPN: PAD199604
                  CONSOLE RIGHT ENGINE BRACKETS
                  P1X1 (Four-wheel drive)
                  from £52.50
                  from £52.50
                  Console Genuine Porsche Part - New (to order)
                  # 10
                  MPN: PAF910491
                  FLAT HEAD MULTI-POINT M8X32 SOCKET BOLT
                  from £1.22
                  from £1.22
                  FLAT HEAD MULTI-POINT SOCKET BOLT Genuine Porsche Part - New (to order)
                  # 11
                  MPN: PAF912963
                  HEXAGON FLANGE SCREW M14X1,5X85 (COMBI)
                  from £5.78
                  from £5.78
                  HEXAGON FLANGE SCREW (COMBI) Genuine Porsche Part - New (to order)
                  # 12
                  MPN: PAF912472
                  HEXAGON FLANGE SCREW M12X1.5X80 (COMBI)
                  from £4.78
                  from £4.78
                  HEXAGON FLANGE SCREW (COMBI) Genuine Porsche Part - New (to order)
                  # 13
                  MPN: PAF912189
                  HEXAGON HEAD BOLT (COMBI) M12X1,5X50
                  from £2.24
                  from £2.24
                  HEXAGON HEAD BOLT (COMBI) Genuine Porsche Part - New (to order)
