P0N5 (Rear-axle steering) | PFM6 (Turbo) | PFN0 (S variant)
porsche 2025 (macan-e) anti-roll bar rear axle parts diagram

502-100 - ANTI-ROLL BAR REAR AXLE

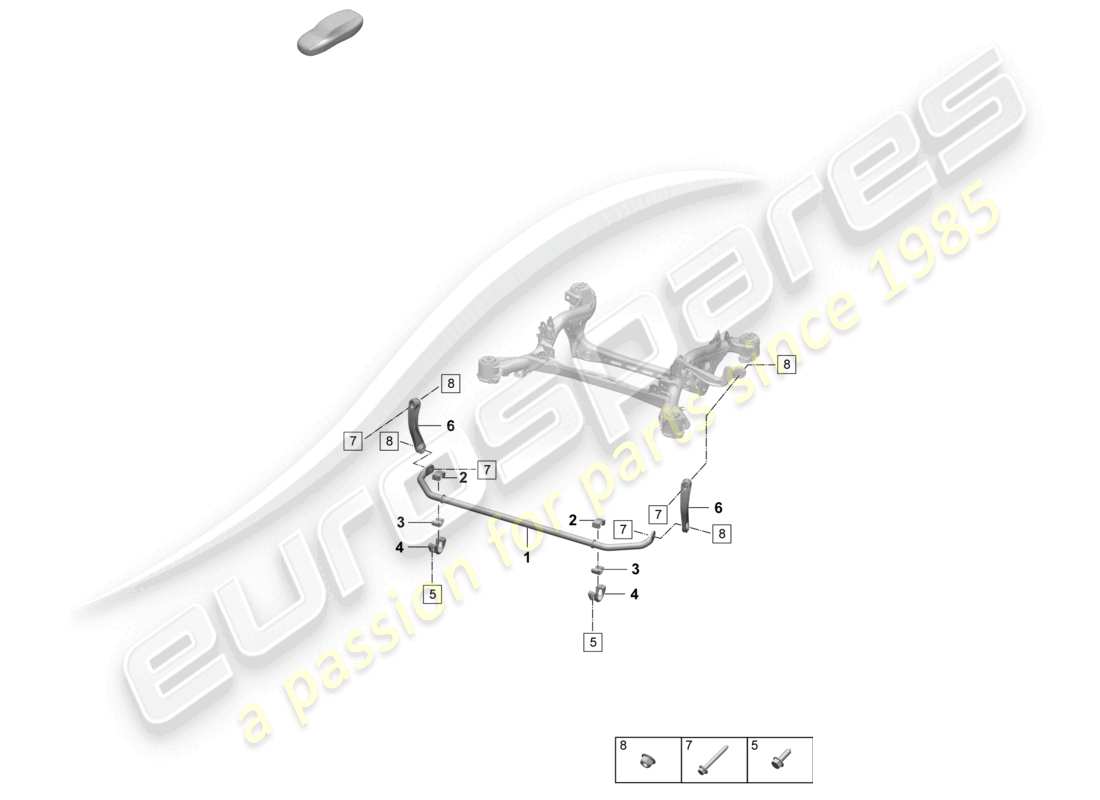

Porsche 2025 (Macan-E) Anti-roll bar Rear axle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: PAC511025A
                  Anti-roll bar also use: 4X N 912 289 01 4X N 102 723 02 4X N 106 756 03
                  from £212.41
                  from £212.41
                  ANTI-ROLL BAR Genuine Porsche Part - New (to order)
                  # 2
                  MPN: PAC511035A
                  ANTI-ROLL BAR BEARING BRACKET UPPER ALSO USE: 2X PAC 511 036 A
                  from £20.86
                  from £20.86
                  ANTI-ROLL BAR BEARING BRACKET Genuine Porsche Part - New (to order)
                  # 3
                  MPN: PAC511036A
                  ANTI-ROLL BAR BEARING BRACKET LOWER ALSO USE: 2X PAC 511 035 A
                  from £20.86
                  from £20.86
                  ANTI-ROLL BAR BEARING BRACKET Genuine Porsche Part - New (to order)
                  # 4
                  MPN: PAC511418
                  CLAMP ALSO USE: 2X N 106 756 03
                  from £15.23
                  from £15.23
                  CLAMP Genuine Porsche Part - New (to order)
                  # 5
                  MPN: N 10675603
                  SHOULDERED BOLT M8X35
                  from £1.45
                  from £1.45
                  SHOULDERED BOLT Genuine Porsche Part - New (to order)
                  # 6
                  MPN: PAC511467B
                  Coupling rod also use: 2X N 912 289 01 2X N 102 723 02
                  from £74.42
                  from £74.42
                  COUPLING ROD Genuine Porsche Part - New (to order)
                  # 7
                  MPN: N 91228901
                  HEXAGON HEAD BOLT (COMBI) M10X70-S1
                  from £2.43
                  from £2.43
                  BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                  HEXAGON HEAD BOLT M10X70-S1 Genuine Lamborghini - New (to order)
                  # 8
                  MPN: N 10272302
                  Hexagon collar nut M10 self-locking
                  from £1.28
                  from £1.28
                  SHOULDERED HEX. NUT, Genuine Porsche Part - New In stock
                  PREV.TORQUE TYPE M10 Genuine Lamborghini - New In stock
