P1LJ, P1ZE (Disc brakes in front (Geomet D))
porsche 2025 (macan-e) disc brake front axle parts diagram

602-200 - Disc Brake Front Axle

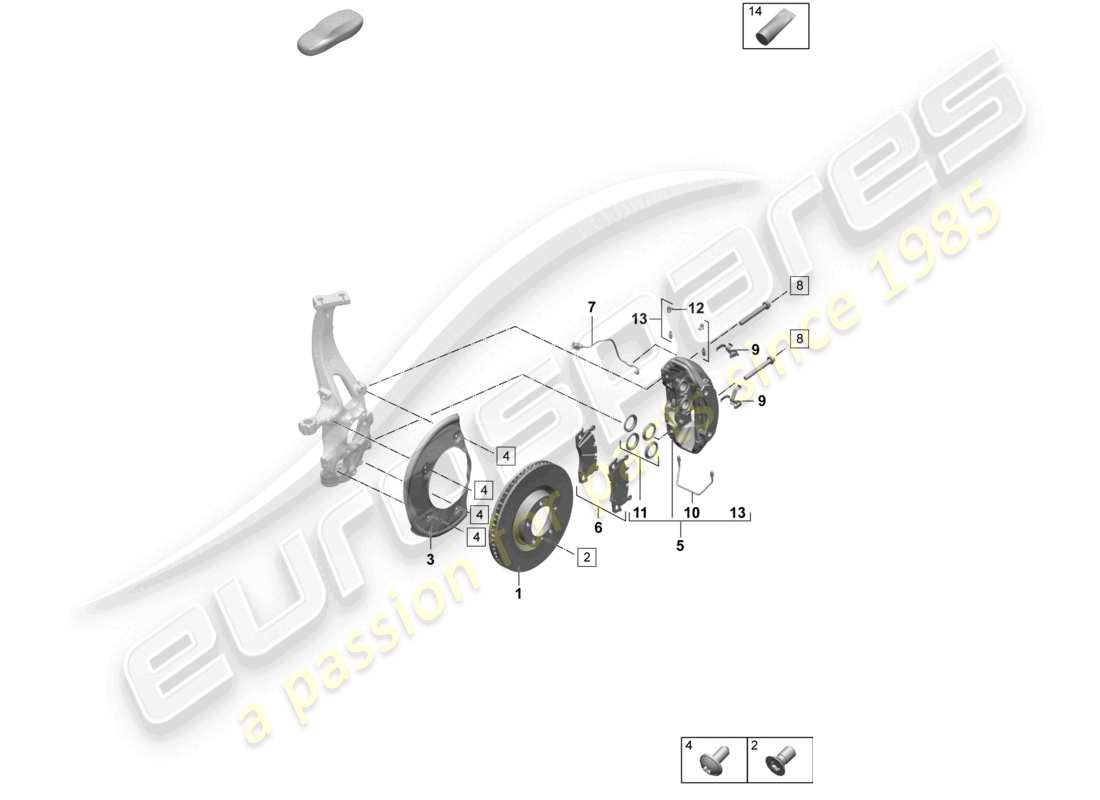

Porsche 2025 (Macan-E) Disc brake front axle Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: PAC615301B
                          BRAKE DISC LEFT ALSO USE: 1X PAC 615 302 B 4X PAF 104 560 2X 95C 615 269 B 1X 95C 698 151 B
                          from £323.01
                          from £323.01
                          BRAKE DISC Genuine Porsche Part - New (to order)
                          # 1
                          MPN: PAC615302B
                          BRAKE DISC RIGHT ALSO USE: 1X PAC 615 301 B 4X PAF 104 560 2X 95C 615 269 B 1X 95C 698 151 B
                          from £323.01
                          from £323.01
                          BRAKE DISC Genuine Porsche Part - New (to order)
                          # 2
                          MPN: PAF104560
                          Hexagon socket head bolt, M6X12 self-locking
                          from £0.73
                          from £0.73
                          HEXAGON SOCKET HEAD BOLT, SELF-LOCKING Genuine Porsche Part - New (to order)
                          # 3
                          MPN: PAC615311F
                          COVER PLATE RIGHT USE IF REQUIRED: 4X N 107 414 02
                          from £36.83
                          from £36.83
                          COVER PLATE Genuine Porsche Part - New (to order)
                          # 3
                          MPN: PAC615312F
                          COVER PLATE RIGHT USE IF REQUIRED: 4X N 107 414 02
                          from £36.83
                          from £36.83
                          COVER PLATE Genuine Porsche Part - New (to order)
                          # 4
                          MPN: N 10741402
                          Hexagon socket flat M6X14 head bolt
                          from £0.78
                          from £0.78
                          HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                          HEXALOBULAR SOCKETM6X14 Genuine Lamborghini - New In stock
                          # 5
                          MPN: 95C615123S
                          CALIPER WITHOUT BRAKE PADS LEFT RED ALSO USE: 2X PAF 004 572 2X 95C 615 269 B 1X 95C 698 151 B 1X 95C 907 253 L
                          P1LJ
                          from £442.73
                          from £442.73
                          CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 95C615124S
                          CALIPER WITHOUT BRAKE PADS RIGHT RED ALSO USE: 2X PAF 004 572 2X 95C 615 269 B 1X 95C 698 151 B 1X 95C 907 253 L
                          P1LJ
                          from £442.73
                          from £442.73
                          CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 95C615123AA
                          CALIPER WITHOUT BRAKE PADS LEFT BLACK EXCLUSIVE FITTINGS ALSO USE: 2X PAF 004 572 2X 95C 615 269 B 1X 95C 698 151 B 1X 95C 907 253 L
                          P1ZE (Disc brakes in front (Geomet D))
                          from £567.24
                          from £567.24
                          CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 95C615124AA
                          CALIPER WITHOUT BRAKE PADS RIGHT BLACK EXCLUSIVE FITTINGS ALSO USE: 2X PAF 004 572 2X 95C 615 269 B 1X 95C 698 151 B 1X 95C 907 253 L
                          P1ZE (Disc brakes in front (Geomet D))
                          from £567.24
                          from £567.24
                          CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                          # 6
                          MPN: 95C698151B
                          1 SET OF BRAKE PADS FOR DISK BRAKE ALSO USE: 4X PAF 004 572 4X 95C 615 269 B 2X 95C 907 253 L BIS KW44/25 B IST DER EINZIGE DER GGF. BLEIBT
                          P1LJ, P1ZE (Disc brakes in front (Geomet D))
                          from £182.71
                          from £182.71
                          1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                          # 7
                          MPN: 95C907253L
                          SENDER WIRE (PAD WEAR INDICATOR)
                          from £27.57
                          from £27.57
                          SENDER WIRE (PAD WEAR INDICATOR) Genuine Porsche Part - New (to order)
                          # 8
                          MPN: PAF004572
                          Socket head bolt with M14X1,5X135 inner multipoint head Fixed calliper
                          from £7.79
                          from £7.79
                          This part replaces part number WHT004572
                          SCREW Genuine Porsche Part - New In stock
                          # 9
                          MPN: 95C615269B
                          RETAINING SPRING
                          from £10.54
                          from £10.54
                          RETAINING SPRING Genuine Porsche Part - New (to order)
                          # 10
                          -
                          CONNECTING LINE NO REPLACEMENT PART INCLUDED IN POSITION: 5
                          # 11
                          MPN: 95C698471B
                          1 SET PROTECTIVE CAPS 38MM CONTAINS: 6 PCS
                          from £13.33
                          from £13.33
                          1 set protective caps Genuine Porsche Part - New (to order)
                          # 12
                          MPN: 211611483
                          DUST CAP CONTAINS: 20 PC
                          from £3.60
                          from £3.60
                          dust cap - D >> - MJ 1983 Genuine Porsche Part - New (to order)
                          DUST CAP Genuine Lamborghini - New (to order)
                          # 13
                          MPN: 8A0615273
                          1 SET BLEEDER VALVES WITH FRONT DUST CAP WITH COVER CAP FIXED CALLIPER
                          from £9.05
                          from £9.05
                          BLEEDER VALVE Genuine Porsche Part - New (to order)
                          BLEEDER SCREW Genuine Lamborghini - New (to order)
                          # 14
                          MPN: 00004330508
                          ASSEMBLY PASTE 100 GRAM
                          from £17.99
                          from £17.99
                          This part replaces part number 00004302000
                          ASSEMBLY PASTE Genuine Porsche Part - New (to order)
