porsche 2025 (macan-e) front end firewall water box parts diagram

801-140 - Front end Firewall water box

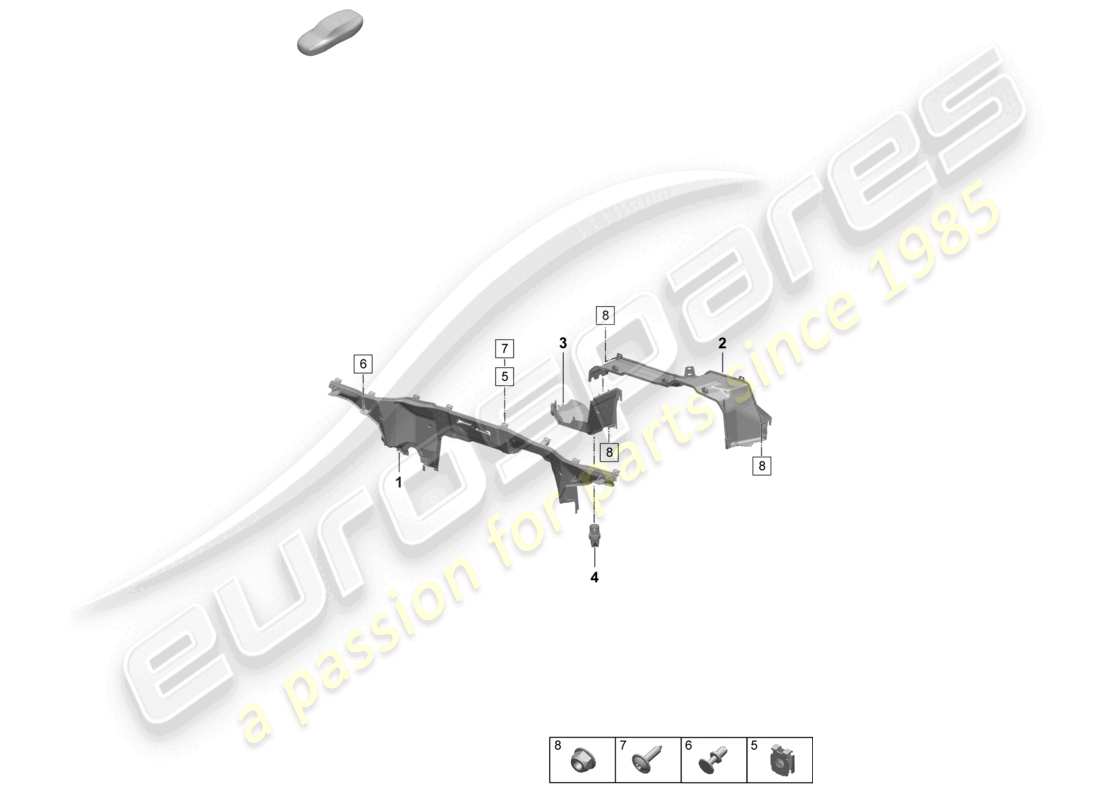

Porsche 2025 (Macan-E) Front end Firewall water box Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: PAD819526B
                  PLENUM CHAMBER COVER FRONT FIREWALL
                  from £37.28
                  from £37.28
                  PLENUM CHAMBER COVER Genuine Porsche Part - New (to order)
                  # 1
                  MPN: PAD819526C
                  PLENUM CHAMBER COVER FRONT FIREWALL
                  from £37.28
                  from £37.28
                  PLENUM CHAMBER COVER Genuine Porsche Part - New (to order)
                  # 2
                  MPN: PAD819525B
                  PLENUM CHAMBER COVER SIDE, LEFT FIREWALL
                  from £37.28
                  from £37.28
                  PLENUM CHAMBER COVER Genuine Porsche Part - New (to order)
                  # 2
                  MPN: PAD819525C
                  PLENUM CHAMBER COVER SIDE, LEFT FIREWALL
                  from £37.28
                  from £37.28
                  PLENUM CHAMBER COVER Genuine Porsche Part - New (to order)
                  # 3
                  MPN: PAD819524B
                  PLENUM CHAMBER COVER SIDE, RIGHT FIREWALL
                  from £37.28
                  from £37.28
                  PLENUM CHAMBER COVER Genuine Porsche Part - New (to order)
                  # 3
                  MPN: PAD819524C
                  PLENUM CHAMBER COVER SIDE, RIGHT FIREWALL
                  from £37.28
                  from £37.28
                  PLENUM CHAMBER COVER Genuine Porsche Part - New (to order)
                  # 4
                  MPN: PAD819419
                  WATER DRAIN VALVE LEFT A. RIGHT SIDE
                  from £5.82
                  from £5.82
                  WATER DRAIN VALVE Genuine Porsche Part - New (to order)
                  # 5
                  MPN: PAF008843
                  SPEED NUT 4,80X20
                  from £3.72
                  from £3.72
                  SPEED NUT Genuine Porsche Part - New (to order)
                  # 6
                  MPN: PAF004750
                  SPREADER RIVET 8,1X13
                  from £0.95
                  from £0.95
                  This part replaces part number WHT004750
                  SPREADER RIVET Genuine Porsche Part - New In stock
                  # 7
                  MPN: 9A700769800
                  PANEL SCREW ST4.8X16-C
                  from £0.78
                  from £0.78
                  This part replaces part number 99907323109 - and 2 more. Click to view details
                  tapping screw Genuine Porsche Part - New In stock
                  # 8
                  MPN: N 90887703
                  HEXAGON FLANGE NUT, M6 SELF-LOCKING
                  from £1.15
                  from £1.15
                  HEXAGON FLANGE NUT, Genuine Porsche Part - New (to order)
                  PREV.TORQUE TYPE M6 Genuine Lamborghini - New (to order)
