porsche 2010 (panamera 970) cover for timing chain sealing flange parts diagram

101-060 - Cover for timing chain Sealing flange

Porsche 2010 (Panamera 970) Cover for timing chain Sealing flange Parts Diagram

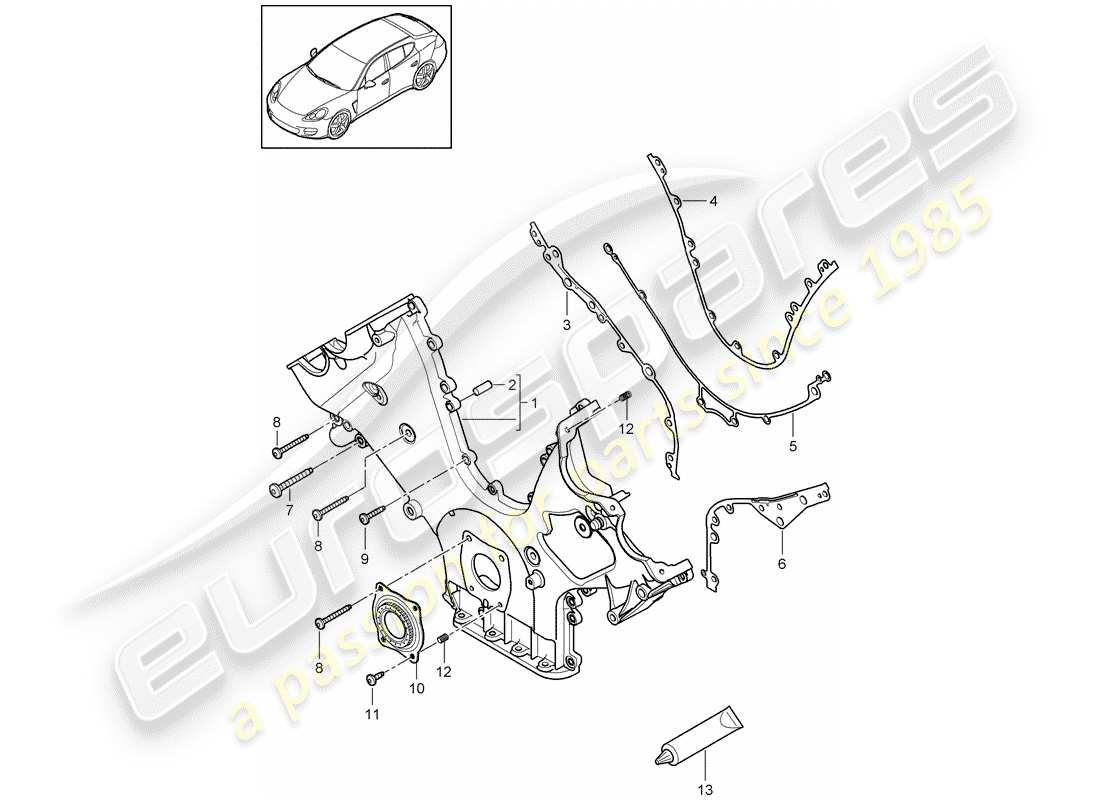

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 1
                MPN: 94810102220
                COVER FOR TIMING CHAIN MAGNESIUM
                from £497.52
                from £497.52
                # 2
                MPN: 90001220430
                CYLINDER PIN 6 X 16
                from £0.47
                from £0.47
                # 3
                MPN: 94810113020
                SEAL
                SEAL
                Supersession
                Supersession
                # 3
                MPN: 94810113021
                SEAL
                SEAL
                Supersession
                Supersession
                # 3
                MPN: 94810113022
                SEAL COVER FOR TIMING CHAIN
                from £12.70
                from £12.70
                This part replaces part number 94810113020 - and 1 more. Click to view details
                # 4
                MPN: 94810112520
                SEAL
                SEAL
                Supersession
                Supersession
                # 4
                MPN: 94810112521
                SEAL COVER FOR TIMING CHAIN
                from £12.70
                from £12.70
                This part replaces part number 94810112520
                # 5
                MPN: 94810112720
                SEAL
                from £8.90
                from £8.90
                # 6
                MPN: 94810112920
                SEAL
                SEAL
                Supersession
                Supersession
                # 6
                MPN: 94810112921
                SEAL
                SEAL
                Supersession
                Supersession
                # 6
                MPN: 94810112922
                SEAL COVER FOR TIMING CHAIN
                from £12.70
                from £12.70
                This part replaces part number 94810112920 - and 1 more. Click to view details
                # 7
                MPN: 99907391330
                FILLISTER HD. BOLT ALUMINIUM M 8 X 55
                FILLISTER HD. BOLT ALUMINIUM M 8 X 55
                # 7
                MPN: 99907391331
                FILLISTER HD. BOLT ALUMINIUM M 8 X 55
                from £2.14
                from £2.14
                # 8
                MPN: 99907391430
                FILLISTER HD. BOLT ALUMINIUM M 6 X 55
                FILLISTER HD. BOLT ALUMINIUM M 6 X 55
                # 8
                MPN: 99907391431
                FILLISTER HD. BOLT ALUMINIUM M 6 X 55
                from £1.90
                from £1.90
                # 9
                MPN: 99907390530
                FILLISTER HD. BOLT ALUMINIUM M 6 X 30
                FILLISTER HD. BOLT ALUMINIUM M 6 X 30
                # 9
                MPN: 99907390531
                FILLISTER HD. BOLT ALUMINIUM M 6 X 30
                from £1.41
                from £1.41
                # 10
                MPN: 94810191020
                SEALING FLANGE WITH: MOUNTING SLEEVE
                from £158.94
                from £158.94
                # 11
                MPN: 99907390330
                FILLISTER HD. BOLT ALUMINIUM M 6 X 20
                FILLISTER HD. BOLT ALUMINIUM M 6 X 20
                # 11
                MPN: 99907390331
                FILLISTER HD. BOLT ALUMINIUM M 6 X 20
                from £0.97
                from £0.97
                # 12
                MPN: 99950408401
                THREADED INSERT M 6 X 12 FOR THREAD REPAIR KIT COVER FOR TIMING CHAIN MAGNESIUM
                from £8.13
                from £8.13
                # 13
                MPN: 00004320435
                sealant 50ml 1 tube for Cover for timing chain
                sealant 50ml 1 tube for Cover for timing chain
                Supersession
                Supersession
                # 13
                MPN: 00004330560
                SEALANT 50ML FOR LOCTITE 5900 COVER FOR TIMING CHAIN
                from £21.87
                from £21.87
                This part replaces part number 00004320435
                # 14
                MPN: N 91097101
                HEXAGON SOCKET HEAD BOLT M6X30 SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1533 210/21
                from £0.95
                from £0.95
                # 15
                MPN: 99902519330
                SHIM SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1533 210/21
                from £1.29
                from £1.29
