porsche 2010 (panamera 970) cover for timing chain sealing flange parts diagram

101-070 - Cover for timing chain Sealing flange

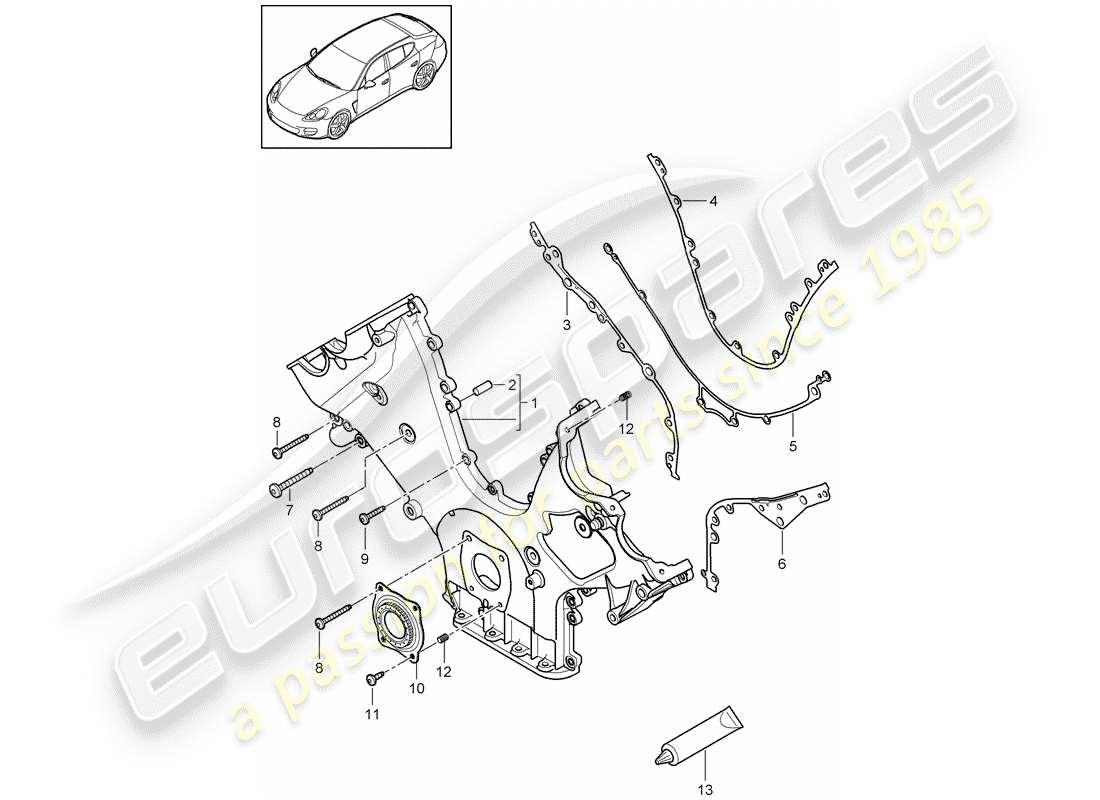

Porsche 2010 (Panamera 970) Cover for timing chain Sealing flange Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 94810102220
                        COVER FOR TIMING CHAIN MAGNESIUM
                        from £497.52
                        from £497.52
                        cover for timing chain Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 90001220430
                        CYLINDER PIN 6 X 16
                        from £0.47
                        from £0.47
                        DOWEL PIN Genuine Porsche Part - New In stock
                        # 3
                        MPN: 94810113020
                        Seal M >>B 03153 M >>V B 01004 M >>B 03288 M >>V B 01224
                        Seal M >>B 03153 M >>V B 01004 M >>B 03288 M >>V B 01224
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 3
                        MPN: 94810113021
                        Seal M B 03154 >>M V B 01005 >>M B 03289 >>M V B 01225 >>D >>- MJ 2013
                        , 4620 (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: 4620 and installed 08/2010-05/2013) | 4620 (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: 4620 and installed 08/2010-05/2013) | 145, 4640 (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: 4640 and installed 08/2010-05/2013) | 4640 (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: 4640 and installed 08/2010-05/2013) | 145
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 3
                        MPN: 94810113022
                        SEAL COVER FOR TIMING CHAIN D - MJ 2014>>
                        from £12.70
                        from £12.70
                        This part replaces part number 94810113020 - and 1 more. Click to view details
                        SEAL Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 94810112520
                        SEAL
                        SEAL
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 4
                        MPN: 94810112521
                        SEAL COVER FOR TIMING CHAIN
                        from £12.70
                        from £12.70
                        This part replaces part number 94810112520
                        SEAL Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 94810112720
                        SEAL
                        from £8.90
                        from £8.90
                        GASKET Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 94810112920
                        Seal M >>B 03153 M >>V B 01004 M >>B 03288 M >>V B 01224
                        Seal M >>B 03153 M >>V B 01004 M >>B 03288 M >>V B 01224
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 6
                        MPN: 94810112921
                        Seal M B 03154 >>M V B 01005 >>M B 03289 >>M V B 01225 >>D >>- MJ 2013
                        Seal M B 03154 >>M V B 01005 >>M B 03289 >>M V B 01225 >>D >>- MJ 2013
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 6
                        MPN: 94810112922
                        SEAL COVER FOR TIMING CHAIN D - MJ 2014>>
                        from £12.70
                        from £12.70
                        This part replaces part number 94810112920 - and 1 more. Click to view details
                        SEAL Genuine Porsche Part - New (to order)
                        # 7
                        MPN: 99907391331
                        FILLISTER HD. BOLT ALUMINIUM M 8 X 55
                        from £2.14
                        from £2.14
                        FILLISTER HD. SCREW Genuine Porsche Part - New In stock
                        # 8
                        MPN: 99907391431
                        FILLISTER HD. BOLT ALUMINIUM M 6 X 55
                        from £1.90
                        from £1.90
                        FILLISTER HD. SCREW Genuine Porsche Part - New In stock
                        # 9
                        MPN: 99907390531
                        FILLISTER HD. BOLT ALUMINIUM M 6 X 30
                        from £1.41
                        from £1.41
                        FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                        # 10
                        MPN: 94810191020
                        SEALING FLANGE WITH: MOUNTING SLEEVE
                        from £158.94
                        from £158.94
                        SEALING FLANGE Genuine Porsche Part - New (to order)
                        # 11
                        MPN: 99907390331
                        FILLISTER HD. BOLT ALUMINIUM M 6 X 20
                        from £0.97
                        from £0.97
                        FILLISTER HD. SCREW Genuine Porsche Part - New In stock
                        # 12
                        MPN: 99950408401
                        THREADED INSERT M 6 X 12 FOR THREAD REPAIR KIT COVER FOR TIMING CHAIN MAGNESIUM
                        from £8.13
                        from £8.13
                        THREADED INSERT Genuine Porsche Part - New (to order)
                        # 13
                        MPN: 00004320435
                        sealant 50ml 1 tube for Cover for timing chain
                        sealant 50ml 1 tube for Cover for timing chain
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 13
                        MPN: 00004330560
                        SEALANT 50ML FOR LOCTITE 5900 COVER FOR TIMING CHAIN
                        from £21.87
                        from £21.87
                        This part replaces part number 00004320435
                        SEALANT Genuine Porsche Part - New (to order)
                        # 14
                        MPN: N 91097101
                        HEXAGON SOCKET HEAD BOLT M6X30 SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1533 210/21
                        from £0.95
                        from £0.95
                        SEMI ROUND BOLT (COMBI) WITH Genuine Porsche Part - New (to order)
                        # 15
                        MPN: 99902519330
                        SHIM SEE TECHNICAL INFORMATION SEE MAIN GROUP 1 (ENGINE) 1533 210/21
                        from £1.29
                        from £1.29
                        spacer washer - 6,4 X 14 X 3 Genuine Porsche Part - New (to order)
