CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016)
porsche 2010 (panamera 970) belt tensioner damper tensioning roller with securing parts idler pulley parts diagram

102-075 - Belt tensioner damper tensioning roller with securing parts idler pulley

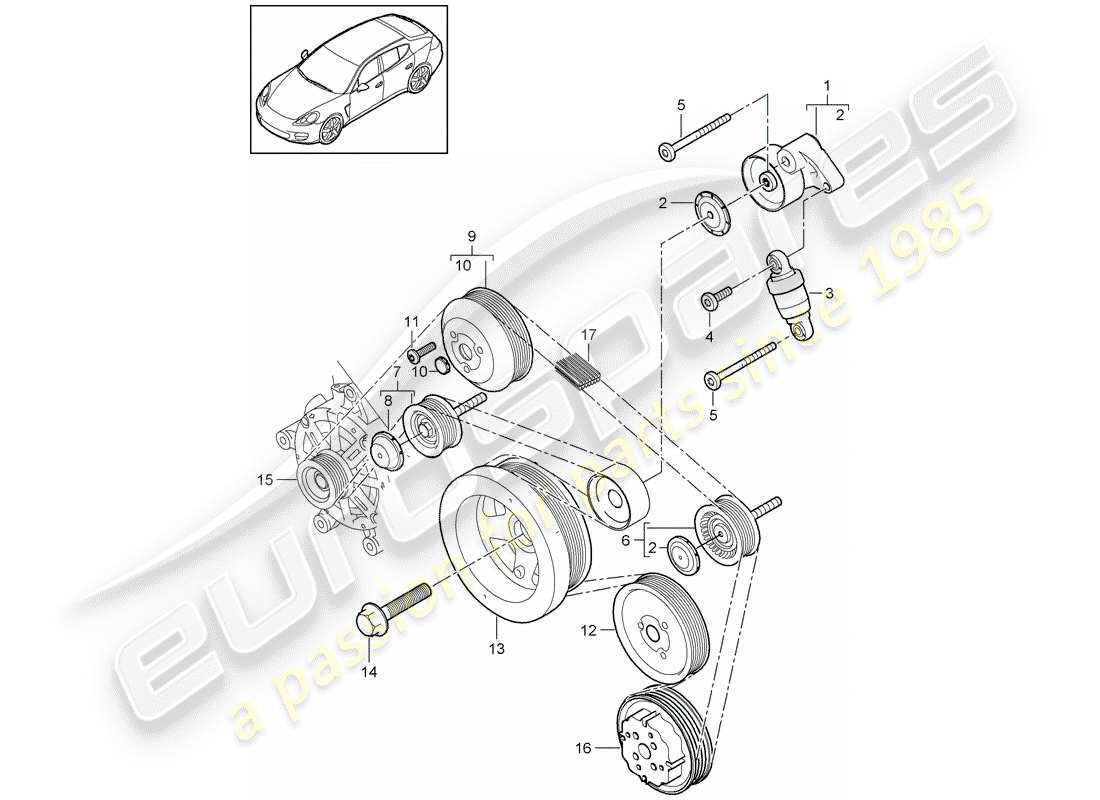

Porsche 2010 (Panamera 970) Belt tensioner damper tensioning roller with securing parts idler pulley Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 94810240375
                              LEVER TENSIONING ROLLER
                              from £92.84
                              from £92.84
                              This part replaces part number 94810240323
                              LEVER Genuine Porsche Part - New (to order)
                              # 2
                              MPN: 94810283900
                              PROTECTIVE CAP
                              from £5.39
                              from £5.39
                              PROTECTIVE CAP Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 94810226175
                              TENSIONER HYDRAULIC SEE TECHNICAL INFORMATION DE 1373 06/14
                              from £125.39
                              from £125.39
                              TENSIONER Genuine Porsche Part - New In stock
                              # 4
                              MPN: 99907324602
                              HEXAGON SOCKET HEAD BOLT M 8 X 33
                              Supersession
                              Supersession
                              Genuine Porsche Part (no longer available to order)
                              # 5
                              MPN: 99907332909
                              TORX SCREW M 8 X 96
                              from £4.52
                              from £4.52
                              TORX SCREW Genuine Porsche Part - New (to order)
                              # 6
                              MPN: 7PP145279
                              idler pulley with bolt and Protective cap
                              idler pulley with bolt and Protective cap
                              RELAY ROLLER WITH BOLT Genuine Porsche Part - New (to order)
                              # 6
                              MPN: 95814527901
                              idler pulley with bolt and Protective cap
                              from £47.89
                              from £47.89
                              RELAY ROLLER WITH BOLT Genuine Porsche Part - New (to order)
                              # 7
                              MPN: 94610211875
                              idler pulley Fastening screw and Protective cap
                              idler pulley Fastening screw and Protective cap
                              RELAY ROLLER Genuine Porsche Part - New (to order)
                              # 7
                              MPN: 94610211876
                              idler pulley Fastening screw and Protective cap
                              from £62.95
                              from £62.95
                              RELAY ROLLER Genuine Porsche Part - New (to order)
                              # 8
                              MPN: 03F903310
                              PROTECTIVE CAP
                              from £3.72
                              from £3.72
                              PROTECTIVE CAP Genuine Porsche Part - New (to order)
                              # 9
                              MPN: 94610609175
                              PULLEY COOLANT PUMP
                              from £51.60
                              from £51.60
                              PULLEY Genuine Porsche Part - New (to order)
                              # 10
                              MPN: 94810641900
                              END CAP
                              from £5.19
                              from £5.19
                              SEALING CAP Genuine Porsche Part - New (to order)
                              # 11
                              MPN: 99907310401
                              HEXAGON SOCKET HEAD BOLT M 8 X 16
                              from £0.89
                              from £0.89
                              TORX SCREW Genuine Porsche Part - New (to order)
                              # 12
                              -
                              PULLEY ELECTRIC POWER STEERING PUMP SEE ILLUSTRATION: 403-045
                              # 13
                              MPN: 94610224175
                              VIBRATION DAMPER CRANKSHAFT M >>0 08224 M >>0 14461
                              , CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016)
                              VIBRATION DAMPER Genuine Porsche Part - New (to order)
                              # 13
                              MPN: 94610224176
                              VIBRATION DAMPER CRANKSHAFT M 0 08225 >>M 0 14462 >>
                              , CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016)
                              from £585.89
                              from £585.89
                              VIBRATION DAMPER Genuine Porsche Part - New (to order)
                              # 14
                              MPN: 94810220210
                              HEXAGON BOLT M 18 X 1,5 X 72,1
                              from £10.36
                              from £10.36
                              SCREW, HEX. HD Genuine Porsche Part - New (to order)
                              # 15
                              -
                              PULLEY ALTERNATOR SEE ILLUSTRATION: 902-005
                              # 16
                              -
                              A/C COMPRESSOR SEE ILLUSTRATION: 813-015
                              # 17
                              MPN: 7PP903137A
                              V-BELT 6 DPK 2880
                              from £97.87
                              from £97.87
                              V-BELT Genuine Porsche Part - New (to order)
