Coolant expansion tank. (CWDA,CWD, CWFA,C)
porsche 2010 (panamera 970) water cooling parts diagram

105-042 - water cooling

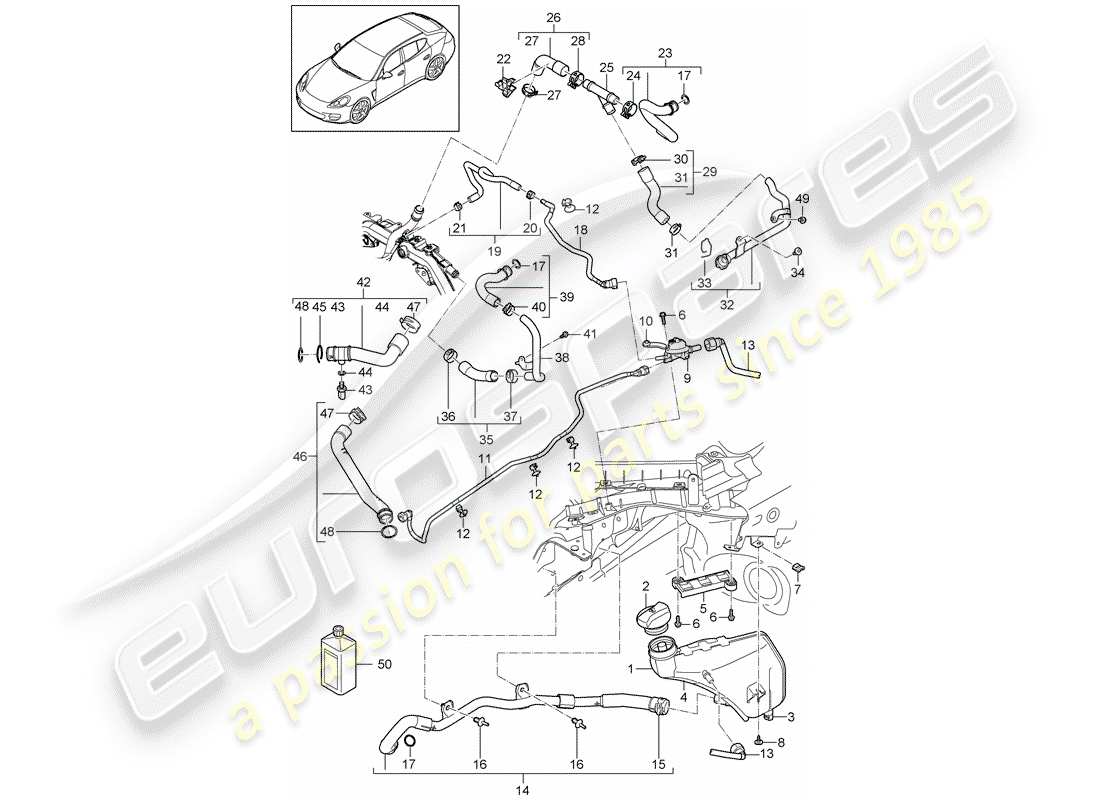

Porsche 2010 (Panamera 970) WATER COOLING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 97010615103
                                  COOLANT EXPANSION TANK
                                  from £118.47
                                  from £118.47
                                  COOLANT EXPANSION TANK Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 95510644720
                                  COVER
                                  from £20.24
                                  from £20.24
                                  COVER Genuine Porsche Part - New In stock
                                  # 3
                                  MPN: 97060650300
                                  WATER LEVEL INDICATOR
                                  from £16.11
                                  from £16.11
                                  WATER LEVEL INDICATOR Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 97010629701
                                  WATER DRAIN HOSE
                                  from £10.61
                                  from £10.61
                                  WATER DRAIN HOSE Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: 97010640501
                                  BRACKET
                                  from £8.64
                                  from £8.64
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 90037818809
                                  SCREW, HEX. HD.
                                  M6X20
                                  from £0.59
                                  from £0.59
                                  SCREW, HEX. HD. - M 6 X 20 Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 99950779509
                                  SPEED NUT
                                  ST4,8
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 8
                                  MPN: 99907322709
                                  tapping screw
                                  ST4,8X19
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 9
                                  MPN: 7P5121671
                                  Bleed valve
                                  Discontinued part
                                  Bleed valve Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 7P5121671A
                                  Bleed valve
                                  from £10.85
                                  from £10.85
                                  Bleed valve Genuine Porsche Part - New In stock
                                  # 10
                                  MPN: 97010644900
                                  BRACKET
                                  Bleed valve
                                  from £4.03
                                  from £4.03
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: 97010631060
                                  breather line
                                  No longer use the part here
                                  breather line Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: 97010631061
                                  breather line
                                  from £59.66
                                  from £59.66
                                  breather line Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 99950712640
                                  BRACKET FOR HOSE
                                  7,8
                                  from £2.29
                                  from £2.29
                                  BRACKET FOR HOSE Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 97010631201
                                  breather line
                                  from £24.80
                                  from £24.80
                                  breather line Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 97010604400
                                  water tube
                                  from £78.71
                                  from £78.71
                                  water tube Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 99951265909
                                  HOSE CLAMP
                                  B28X12
                                  from £1.25
                                  from £1.25
                                  Hose Clamp - 28 X 12 - D - MJ 1999>> - MJ 1999 Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: 99950749740
                                  RIVET
                                  8,0X14,0
                                  from £0.59
                                  from £0.59
                                  rivet - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                  # 17
                                  MPN: 99610680101
                                  O-RING
                                  21,35X3
                                  from £3.79
                                  from £3.79
                                  O-RING Genuine Porsche Part - New (to order)
                                  # 18
                                  MPN: 97010631103
                                  breather line
                                  from £82.72
                                  from £82.72
                                  breather line Genuine Porsche Part - New (to order)
                                  # 19
                                  MPN: 97010642260
                                  VENT HOSE
                                  from £24.32
                                  from £24.32
                                  VENT HOSE Genuine Porsche Part - New (to order)
                                  # 20
                                  MPN: 99951265109
                                  HOSE CLAMP
                                  B15X12
                                  from £0.91
                                  from £0.91
                                  HOSE CLAMP Genuine Porsche Part - New (to order)
                                  # 21
                                  MPN: 99951265009
                                  HOSE CLAMP
                                  B14X12
                                  from £0.91
                                  from £0.91
                                  Hose Clamp - B 14 X 12 Genuine Porsche Part - New In stock
                                  # 22
                                  MPN: 97010621300
                                  BRACKET FOR
                                  BREATHER HOSE
                                  from £3.66
                                  from £3.66
                                  BRACKET FOR Genuine Porsche Part - New (to order)
                                  # 23
                                  MPN: 97010642160
                                  heater hose
                                  RETURN
                                  from £44.74
                                  from £44.74
                                  heater hose Genuine Porsche Part - New (to order)
                                  # 24
                                  MPN: 99951265809
                                  HOSE CLAMP
                                  B27X12
                                  from £2.29
                                  from £2.29
                                  HOSE CLAMP Genuine Porsche Part - New In stock
                                  # 25
                                  MPN: 97010657060
                                  Y-PIECE
                                  Y-PIECE Genuine Porsche Part - New (to order)
                                  # 26
                                  MPN: 97010645160
                                  WATER HOSE
                                  from £69.66
                                  from £69.66
                                  WATER HOSE Genuine Porsche Part - New (to order)
                                  # 27
                                  MPN: 99951266009
                                  HOSE CLAMP
                                  B29X12X1,7
                                  from £2.29
                                  from £2.29
                                  Hose Clamp - B 29 X 12 Genuine Porsche Part - New In stock
                                  # 28
                                  MPN: 99951265809
                                  HOSE CLAMP
                                  B27X12
                                  from £2.29
                                  from £2.29
                                  HOSE CLAMP Genuine Porsche Part - New In stock
                                  # 29
                                  MPN: 97010645060
                                  WATER HOSE
                                  from £44.74
                                  from £44.74
                                  WATER HOSE Genuine Porsche Part - New (to order)
                                  # 30
                                  MPN: 99951265609
                                  HOSE CLAMP
                                  B25X12
                                  from £2.29
                                  from £2.29
                                  Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                  # 31
                                  MPN: 99951268309
                                  HOSE CLAMP
                                  B23X12
                                  from £2.29
                                  from £2.29
                                  Hose Clamp - 23 X 12 - D - MJ 2002>> Genuine Porsche Part - New (to order)
                                  # 32
                                  MPN: 97010644503
                                  water tube
                                  from £164.32
                                  from £164.32
                                  water tube Genuine Porsche Part - New (to order)
                                  # 33
                                  MPN: 99710680204
                                  SPRING CLIP
                                  SPRING CLIP Genuine Porsche Part - New (to order)
                                  # 34
                                  MPN: 99907390230
                                  FILLISTER HD. SCREW
                                  M6X16-PA- | aluminium
                                  FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                  # 35
                                  MPN: 97010642002
                                  heater hose
                                  supply
                                  from £17.49
                                  from £17.49
                                  heater hose Genuine Porsche Part - New (to order)
                                  # 36
                                  MPN: 99951265709
                                  HOSE CLAMP
                                  B26X12
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 37
                                  MPN: 99951265609
                                  HOSE CLAMP
                                  B25X12
                                  from £2.29
                                  from £2.29
                                  Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                  # 38
                                  MPN: 97010641105
                                  HEATER PIPE
                                  supply
                                  from £121.11
                                  from £121.11
                                  HEATER PIPE Genuine Porsche Part - New (to order)
                                  # 39
                                  MPN: 97010642500
                                  heater hose
                                  supply
                                  from £19.25
                                  from £19.25
                                  heater hose Genuine Porsche Part - New (to order)
                                  # 40
                                  MPN: 99951265609
                                  HOSE CLAMP
                                  B25X12
                                  from £2.29
                                  from £2.29
                                  Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                  # 41
                                  MPN: 90037803601
                                  SCREW, HEX. HD.
                                  M6X12
                                  from £0.59
                                  from £0.59
                                  SCREW, HEX. HD. - M 6 X 12 Genuine Porsche Part - New (to order)
                                  # 42
                                  MPN: 97010650260
                                  WATER HOSE
                                  supply
                                  from £35.26
                                  from £35.26
                                  WATER HOSE Genuine Porsche Part - New (to order)
                                  # 43
                                  MPN: 95510612501
                                  TEMPERATURE SENDER
                                  from £53.39
                                  from £53.39
                                  TEMPERATURE SENDER Genuine Porsche Part - New (to order)
                                  # 44
                                  MPN: N 90316801
                                  O-RING
                                  19,6X3,65
                                  from £2.96
                                  from £2.96
                                  O-RING Genuine Porsche Part - New In stock
                                  # 45
                                  MPN: 95510614300
                                  RETAINING SPRING
                                  from £1.78
                                  from £1.78
                                  RETAINING SPRING Genuine Porsche Part - New (to order)
                                  # 46
                                  MPN: 97010650160
                                  WATER HOSE
                                  RETURN
                                  from £35.26
                                  from £35.26
                                  WATER HOSE Genuine Porsche Part - New (to order)
                                  # 47
                                  MPN: 99951266709
                                  HOSE CLAMP
                                  B44X12
                                  from £4.52
                                  from £4.52
                                  Hose Clamp - 44 X 12 - D - MJ 1999>> Genuine Porsche Part - New (to order)
                                  # 48
                                  MPN: 99610680107
                                  O-RING
                                  39,3X3,53
                                  from £3.79
                                  from £3.79
                                  O-RING Genuine Porsche Part - New (to order)
                                  # 49
                                  MPN: 90037803601
                                  SCREW, HEX. HD.
                                  M6X12
                                  from £0.59
                                  from £0.59
                                  SCREW, HEX. HD. - M 6 X 12 Genuine Porsche Part - New (to order)
                                  # 50
                                  MPN: 00004330147
                                  COOLANT ADDITIVE
                                  1,0ltr. | Discontinued part
                                  COOLANT ADDITIVE - 1 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                  # 50
                                  MPN: 00004330515
                                  COOLANT ADDITIVE
                                  1,0ltr.
                                  from £9.85
                                  from £9.85
                                  COOLANT ADDITIVE Genuine Porsche Part - New In stock
                                  # 50
                                  MPN: 00004330148
                                  COOLANT ADDITIVE
                                  20ltr. | Discontinued part
                                  COOLANT ADDITIVE - 20 LTR. - CONTAINER Genuine Porsche Part - New (to order)
                                  # 50
                                  MPN: 00004330516
                                  COOLANT ADDITIVE
                                  20ltr.
                                  from £121.31
                                  from £121.31
                                  COOLANT ADDITIVE Genuine Porsche Part - New (to order)
                                  # 50
                                  MPN: 00004320439
                                  CLEANING SOLUTION
                                  20ltr. | Discontinued part
                                  from £98.88
                                  from £98.88
                                  CLEANING SOLUTION Genuine Porsche Part - New (to order)
                                  # 50
                                  MPN: 00004330564
                                  CLEANING SOLUTION
                                  20ltr.
                                  from £82.13
                                  from £82.13
                                  CLEANING SOLUTION Genuine Porsche Part - New (to order)
