CRCC (3.0 Litre 6 Cyliner Engine (250 Horsepower / 184 Kilowatt with Engine Code: CRCC and installed 05/2011-05/2016) | CRCB (3.0 Litre 6 Cyliner Engine (210 Horsepower / 155 Kilowatt with Engine Code: CRCB and installed 05/2011-05/2016) | CWJA (3.0 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWJA and installed 05/2013-05/2015) CWJA (3.0 Litre 6 Cyliner Engine (300 Horsepower / 221 Kilowatt with Engine Code: CWJA and installed 05/2015-05/2016)
porsche 2010 (panamera 970) intake manifold throttle valve adapter air guide housing parts diagram

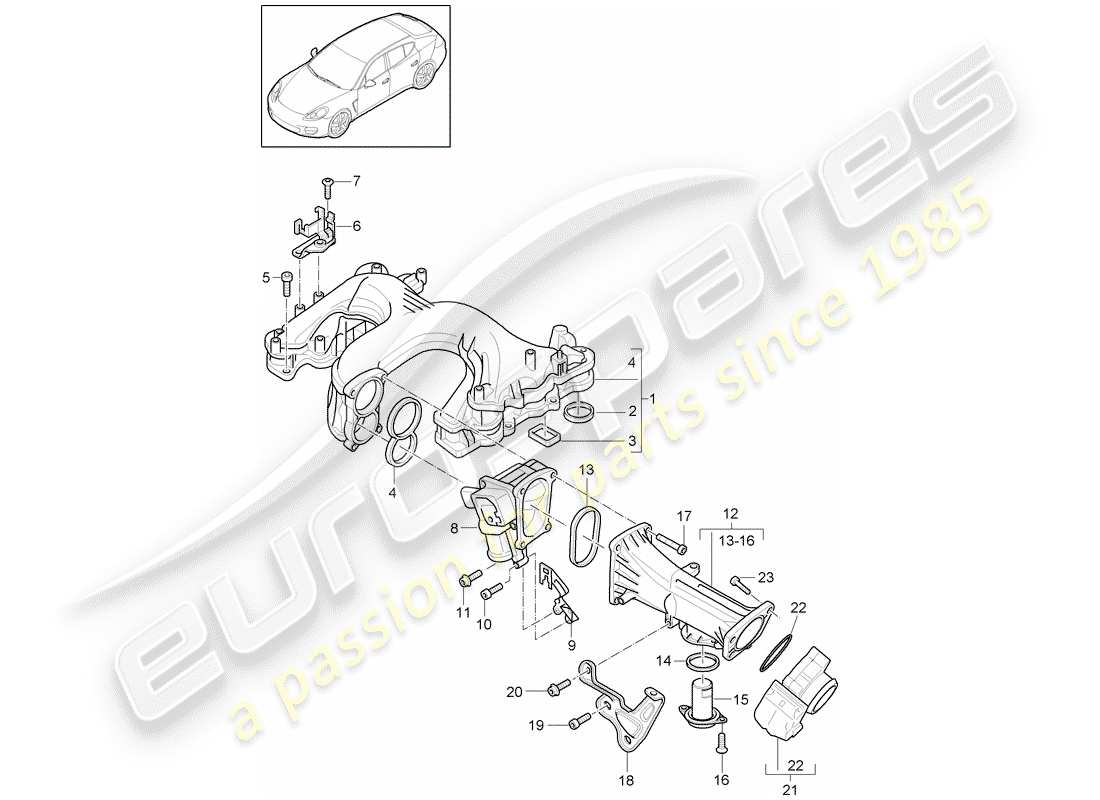

107-057 - Intake manifold throttle valve adapter Air guide housing

Porsche 2010 (Panamera 970) Intake manifold throttle valve adapter Air guide housing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: 95811001600
                                              INTAKE MANIFOLD
                                              from £455.35
                                              from £455.35
                                              INTAKE MANIFOLD Genuine Porsche Part - New (to order)
                                              # 2
                                              MPN: 95811014710
                                              SEAL
                                              from £6.70
                                              from £6.70
                                              GASKET Genuine Porsche Part - New (to order)
                                              # 3
                                              MPN: 95811014800
                                              SEAL
                                              from £6.70
                                              from £6.70
                                              GASKET Genuine Porsche Part - New In stock
                                              # 4
                                              MPN: 95811014400
                                              SEAL
                                              from £16.70
                                              from £16.70
                                              GASKET Genuine Porsche Part - New In stock
                                              # 5
                                              MPN: WHT004917
                                              HEXAGON SOCKET HEAD BOLT M 6 X 28
                                              from £0.99
                                              from £0.99
                                              HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                              # 6
                                              MPN: 95860631110
                                              BRACKET
                                              from £8.14
                                              from £8.14
                                              BRACKET Genuine Porsche Part - New (to order)
                                              # 7
                                              MPN: N 10721401
                                              OVAL HD. SELF-TAPP FITT. SCREW 6 X 16
                                              from £0.47
                                              from £0.47
                                              TAPPING SCREW, FILL. HD Genuine Porsche Part - New In stock
                                              SCREW TP6X16-Q Genuine Lamborghini - New In stock
                                              # 8
                                              MPN: 95860511500
                                              THROTTLE VALVE ADAPTER
                                              from £448.43
                                              from £448.43
                                              THROTTLE BODY Genuine Porsche Part - New (to order)
                                              # 9
                                              MPN: 95811056000
                                              BRACKET
                                              from £6.77
                                              from £6.77
                                              BRACKET Genuine Porsche Part - New (to order)
                                              # 10
                                              MPN: N 91054101
                                              OVAL HEXAGON SOCKET HEAD BOLT M 6 X 25
                                              from £0.65
                                              from £0.65
                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                              HEXALOBULAR SOCKETM6X25-S11 Genuine Lamborghini - New (to order)
                                              # 11
                                              MPN: N 10721401
                                              OVAL HD. SELF-TAPP FITT. SCREW 6 X 16
                                              from £0.47
                                              from £0.47
                                              TAPPING SCREW, FILL. HD Genuine Porsche Part - New In stock
                                              SCREW TP6X16-Q Genuine Lamborghini - New In stock
                                              # 12
                                              MPN: 95811006500
                                              AIR GUIDE HOUSING
                                              from £78.55
                                              from £78.55
                                              AIR GUIDE HOUSING Genuine Porsche Part - New (to order)
                                              # 13
                                              MPN: 95811021520
                                              SEAL
                                              from £12.22
                                              from £12.22
                                              GASKET Genuine Porsche Part - New (to order)
                                              # 14
                                              MPN: 95811114900
                                              SEAL
                                              from £21.65
                                              from £21.65
                                              GASKET Genuine Porsche Part - New (to order)
                                              # 15
                                              MPN: 95811115330
                                              CONNECTING PIPE
                                              from £69.67
                                              from £69.67
                                              CONNECTING PIPE Genuine Porsche Part - New (to order)
                                              # 16
                                              MPN: N 10405604
                                              OVAL HEXAGON SOCKET HEAD BOLT M 6 X 14
                                              from £0.72
                                              from £0.72
                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                              HEXALOBULAR SOCKET M6X14 Genuine Lamborghini - New In stock
                                              # 17
                                              MPN: N 10423903
                                              SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD AM 6 X 60
                                              from £4.52
                                              from £4.52
                                              SOCKET HD. SCREW WITH Genuine Porsche Part - New (to order)
                                              # 18
                                              MPN: 95811066100
                                              BRACKET
                                              from £13.43
                                              from £13.43
                                              BRACKET Genuine Porsche Part - New (to order)
                                              # 19
                                              MPN: N 10411402
                                              HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M 6 X 16
                                              from £0.61
                                              from £0.61
                                              HEXAGON SOCKET OVAL HEAD BOLT Genuine Porsche Part - New (to order)
                                              # 20
                                              MPN: N 10405604
                                              OVAL HEXAGON SOCKET HEAD BOLT M 6 X 14
                                              from £0.72
                                              from £0.72
                                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                              HEXALOBULAR SOCKET M6X14 Genuine Lamborghini - New In stock
                                              # 21
                                              MPN: 95860511510
                                              THROTTLE VALVE ADAPTER
                                              THROTTLE VALVE ADAPTER
                                              THROTTLE BODY Genuine Porsche Part - New (to order)
                                              # 21
                                              MPN: 95860511511
                                              THROTTLE VALVE ADAPTER
                                              from £571.60
                                              from £571.60
                                              THROTTLE BODY Genuine Porsche Part - New (to order)
                                              # 22
                                              MPN: 95511014400
                                              SEAL
                                              from £10.14
                                              from £10.14
                                              GASKET Genuine Porsche Part - New In stock
                                              # 23
                                              MPN: N 91148201
                                              FLAT ROUND HEAD BOLT M 6 X 25
                                              from £0.74
                                              from £0.74
                                              SCREW, ROUND HD Genuine Porsche Part - New (to order)
