P176 (Sports exhaust system) | PXLF (Sports exhaust system)
-part-diagram-202-062.webp)

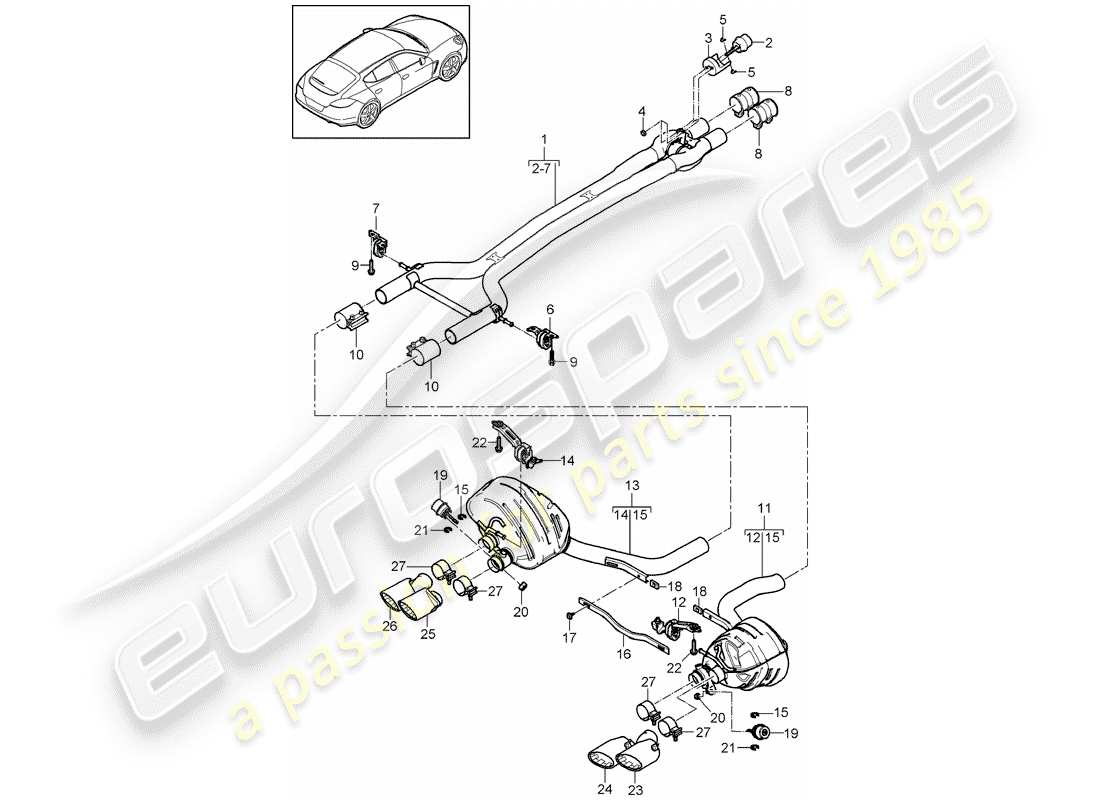

202-062 - exhaust system Sport version Front silencer Rear silencer D - MJ 2014>>
Porsche 2010 (Panamera 970) exhaust system Sport version Front silencer Rear silencer D - MJ 2014>> Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 97011191364
FRONT SILENCER
FRONT SILENCER
# 1
MPN: 97011191365
FRONT SILENCER
CXPA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXPA and installed 05/2013-05/2016) | CXRA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXRA and installed 05/2013-05/2014) CXRA (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXRA and installed 05/2014-05/2016) | CXR (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXR and installed 05/2015-05/2016)
from £882.03
from £882.03
# 1
MPN: 97011191991
FRONT SILENCER
FRONT SILENCER
# 1
MPN: 97011191992
FRONT SILENCER
FRONT SILENCER
from £684.51
from £684.51
# 1
MPN: 97011191993
FRONT SILENCER
CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016) with, P0E1 (Shorter wheelbase)
from £932.45
from £932.45
# 1
MPN: 97011191492
FRONT SILENCER
FRONT SILENCER
# 1
MPN: 97011191493
FRONT SILENCER
CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016) with, P0E2 (Long wheelbase)
# 1
MPN: 97011191924
FRONT SILENCER
CWAA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWAA and installed 05/2013-05/2014) CWAA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CWAA and installed 05/2014-05/2016) | CXNA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CXNA and installed 05/2013-05/2014) CXNA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CXNA and installed 05/2014-05/2016)
# 1
MPN: 97011191901
FRONT SILENCER
FRONT SILENCER
# 1
MPN: 97011191902
FRONT SILENCER
FRONT SILENCER
# 1
MPN: 97011191903
FRONT SILENCER
CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016)
from £971.59
from £971.59
# 2
MPN: 00004330281
VACUUM UNIT
CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
from £65.22
from £65.22
# 3
-
GUARD PLATE NO REPLACEMENT PART USE ITEM: 1
CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
# 4
MPN: 97011154700
LOCKNUT M6
CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
from £1.99
from £1.99
# 5
MPN: 7PP253080
Securing ring 3,5
CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
from £1.59
from £1.59
# 6
MPN: 97011115202
BRACKET RIGHT
from £29.52
from £29.52
# 7
MPN: 97011115302
BRACKET LEFT
from £29.52
from £29.52
# 8
MPN: 95511122012
CLAMPING SLEEVE 60X95
CWAA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWAA and installed 05/2013-05/2014) CWAA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CWAA and installed 05/2014-05/2016) | CXNA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CXNA and installed 05/2013-05/2014) CXNA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CXNA and installed 05/2014-05/2016) | CXPA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXPA and installed 05/2013-05/2016) | CXR (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXR and installed 05/2015-05/2016) | CXRA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXRA and installed 05/2013-05/2014) CXRA (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXRA and installed 05/2014-05/2016)
from £29.17
from £29.17
# 8
MPN: 95511122021
CLAMPING SLEEVE 65X95
CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016) | CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016)
from £29.17
from £29.17
# 9
MPN: N 90921002
HEXAGON BOLT M8X22
from £1.00
from £1.00
This part replaces part number N 90921001
# 10
MPN: 95811122020
CLAMPING SLEEVE 55X88
CWAA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWAA and installed 05/2013-05/2014) CWAA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CWAA and installed 05/2014-05/2016) | CXNA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CXNA and installed 05/2013-05/2014) CXNA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CXNA and installed 05/2014-05/2016)
from £30.18
from £30.18
# 10
MPN: 95811122010
CLAMPING SLEEVE 65X88
CXPA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXPA and installed 05/2013-05/2016) | CXRA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXRA and installed 05/2013-05/2014) CXRA (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXRA and installed 05/2014-05/2016) | CXR (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXR and installed 05/2015-05/2016) | CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016) | CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016)
Supersession
Supersession
# 11
MPN: 97011191262
Rear silencer right but without: Tailpipe
Rear silencer right but without: Tailpipe
from £684.32
from £684.32
# 11
MPN: 97011191263
Rear silencer right but without: Tailpipe
CXPA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXPA and installed 05/2013-05/2016) | CXRA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXRA and installed 05/2013-05/2014) CXRA (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXRA and installed 05/2014-05/2016) | CXR (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXR and installed 05/2015-05/2016)
from £972.79
from £972.79
# 11
MPN: 97011191294
Rear silencer right but without: Tailpipe
Rear silencer right but without: Tailpipe
from £787.09
from £787.09
# 11
MPN: 97011191295
Rear silencer right but without: Tailpipe
CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
from £1,060.01
from £1,060.01
# 11
MPN: 97011191822
Rear silencer right but without: Tailpipe
Rear silencer right but without: Tailpipe
from £760.29
from £760.29
# 11
MPN: 97011191823
Rear silencer right but without: Tailpipe
CWAA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWAA and installed 05/2013-05/2014) CWAA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CWAA and installed 05/2014-05/2016) | CXNA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CXNA and installed 05/2013-05/2014) CXNA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CXNA and installed 05/2014-05/2016)
from £1,075.82
from £1,075.82
# 11
MPN: 97011192621
Rear silencer right but without: Tailpipe
Rear silencer right but without: Tailpipe
# 11
MPN: 97011191262
Rear silencer right but without: Tailpipe
Rear silencer right but without: Tailpipe
from £684.32
from £684.32
# 11
MPN: 97011191263
Rear silencer right but without: Tailpipe
CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016)
from £972.79
from £972.79
# 12
MPN: 97011115000
BRACKET RIGHT
P without XLF
from £32.53
from £32.53
# 12
MPN: 97011115400
BRACKET RIGHT
PXLF (Sports exhaust system)
from £20.72
from £20.72
# 13
MPN: 97011191162
Rear silencer left but without: Tailpipe
Rear silencer left but without: Tailpipe
from £743.99
from £743.99
# 13
MPN: 97011191163
Rear silencer left but without: Tailpipe
CXPA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXPA and installed 05/2013-05/2016) | CXRA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXRA and installed 05/2013-05/2014) CXRA (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXRA and installed 05/2014-05/2016) | CXR (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXR and installed 05/2015-05/2016)
from £972.79
from £972.79
# 13
MPN: 97011191194
Rear silencer left but without: Tailpipe
Rear silencer left but without: Tailpipe
from £787.09
from £787.09
# 13
MPN: 97011191195
Rear silencer left but without: Tailpipe
CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
from £1,060.01
from £1,060.01
# 13
MPN: 97011191722
Rear silencer left but without: Tailpipe
Rear silencer left but without: Tailpipe
from £760.29
from £760.29
# 13
MPN: 97011191723
Rear silencer left but without: Tailpipe
CWAA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWAA and installed 05/2013-05/2014) CWAA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CWAA and installed 05/2014-05/2016) | CXNA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CXNA and installed 05/2013-05/2014) CXNA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CXNA and installed 05/2014-05/2016)
from £1,050.28
from £1,050.28
# 13
MPN: 97011192521
Rear silencer left but without: Tailpipe
Rear silencer left but without: Tailpipe
# 13
MPN: 97011192351
Rear silencer left but without: Tailpipe
Rear silencer left but without: Tailpipe
# 13
MPN: 97011192352
Rear silencer left but without: Tailpipe
CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016)
from £945.31
from £945.31
# 14
MPN: 97011115100
BRACKET LEFT
P without XLF
from £34.71
from £34.71
# 14
MPN: 97011115500
BRACKET LEFT
PXLF (Sports exhaust system)
from £20.72
from £20.72
# 15
MPN: 7PP253080
Securing ring 3,5
from £1.59
from £1.59
# 16
MPN: 97011122101
TRANSVERSE STRUT
from £22.23
from £22.23
# 17
MPN: N 90879702
HEXAGON BOLT M8X25
from £2.97
from £2.97
# 18
MPN: 97011136000
NUT, SQUARE M8
from £6.16
from £6.16
# 19
MPN: 97011150901
VACUUM UNIT
VACUUM UNIT
# 19
MPN: 7PP253835
VACUUM UNIT
from £94.27
from £94.27
# 20
MPN: 97011154700
LOCKNUT M6
from £1.99
from £1.99
# 21
MPN: 7PP253080
Securing ring 3,5
from £1.59
from £1.59
# 22
MPN: N 90968602
SOCKET HEAD BOLT WITH INNER M8X40 MULTIPOINT HEAD
from £1.90
from £1.90
# 23
MPN: 97011168850
TAILPIPE RIGHT OUTER
TAILPIPE RIGHT OUTER
# 23
MPN: 97011168851
TAILPIPE RIGHT OUTER
TAILPIPE RIGHT OUTER
# 23
MPN: 97011168852
TAILPIPE RIGHT OUTER
CWAA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWAA and installed 05/2013-05/2014) CWAA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CWAA and installed 05/2014-05/2016) | CXNA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CXNA and installed 05/2013-05/2014) CXNA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CXNA and installed 05/2014-05/2016) | CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016) | CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
from £266.53
from £266.53
# 23
MPN: 97011168860
TAILPIPE RIGHT OUTER
TAILPIPE RIGHT OUTER
# 23
MPN: 97011168861
TAILPIPE RIGHT OUTER
TAILPIPE RIGHT OUTER
from £180.14
from £180.14
# 23
MPN: 97011168862
TAILPIPE RIGHT OUTER
CXPA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXPA and installed 05/2013-05/2016) | CXRA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXRA and installed 05/2013-05/2014) CXRA (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXRA and installed 05/2014-05/2016) | CXR (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXR and installed 05/2015-05/2016)
from £266.53
from £266.53
# 24
MPN: 97011168650
TAILPIPE RIGHT INNER
TAILPIPE RIGHT INNER
# 24
MPN: 97011168651
TAILPIPE RIGHT INNER
CWAA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWAA and installed 05/2013-05/2014) CWAA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CWAA and installed 05/2014-05/2016) | CXNA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CXNA and installed 05/2013-05/2014) CXNA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CXNA and installed 05/2014-05/2016) | CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016) | CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
# 24
MPN: 97011168660
TAILPIPE RIGHT INNER
TAILPIPE RIGHT INNER
# 24
MPN: 97011168661
TAILPIPE RIGHT INNER
TAILPIPE RIGHT INNER
# 24
MPN: 97011168662
TAILPIPE RIGHT INNER
CXPA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXPA and installed 05/2013-05/2016) | CXRA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXRA and installed 05/2013-05/2014) CXRA (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXRA and installed 05/2014-05/2016) | CXR (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXR and installed 05/2015-05/2016)
from £266.53
from £266.53
# 25
MPN: 97011168750
TAILPIPE LEFT INNER
TAILPIPE LEFT INNER
# 25
MPN: 97011168751
TAILPIPE LEFT INNER
TAILPIPE LEFT INNER
from £180.14
from £180.14
# 25
MPN: 97011168752
TAILPIPE LEFT INNER
CWAA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWAA and installed 05/2013-05/2014) CWAA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CWAA and installed 05/2014-05/2016) | CXNA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CXNA and installed 05/2013-05/2014) CXNA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CXNA and installed 05/2014-05/2016) | CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016) | CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
from £266.53
from £266.53
# 25
MPN: 97011168760
TAILPIPE LEFT INNER
TAILPIPE LEFT INNER
# 25
MPN: 97011168761
TAILPIPE LEFT INNER
TAILPIPE LEFT INNER
from £180.14
from £180.14
# 25
MPN: 97011168762
TAILPIPE LEFT INNER
CXPA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXPA and installed 05/2013-05/2016) | CXRA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXRA and installed 05/2013-05/2014) CXRA (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXRA and installed 05/2014-05/2016) | CXR (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXR and installed 05/2015-05/2016)
from £266.53
from £266.53
# 26
MPN: 97011168550
TAILPIPE LEFT OUTER
TAILPIPE LEFT OUTER
# 26
MPN: 97011168551
TAILPIPE LEFT OUTER
TAILPIPE LEFT OUTER
from £185.55
from £185.55
# 26
MPN: 97011168552
TAILPIPE LEFT OUTER
CWAA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWAA and installed 05/2013-05/2014) CWAA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CWAA and installed 05/2014-05/2016) | CXNA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CXNA and installed 05/2013-05/2014) CXNA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CXNA and installed 05/2014-05/2016) | CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016) | CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
from £266.53
from £266.53
# 26
MPN: 97011168560
TAILPIPE LEFT OUTER
TAILPIPE LEFT OUTER
# 26
MPN: 97011168561
TAILPIPE LEFT OUTER
TAILPIPE LEFT OUTER
# 26
MPN: 97011168562
TAILPIPE LEFT OUTER
CXPA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXPA and installed 05/2013-05/2016) | CXRA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXRA and installed 05/2013-05/2014) CXRA (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXRA and installed 05/2014-05/2016) | CXR (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXR and installed 05/2015-05/2016)
from £266.53
from £266.53
# 27
MPN: 95811124000
CLAMP
from £16.71
from £16.71

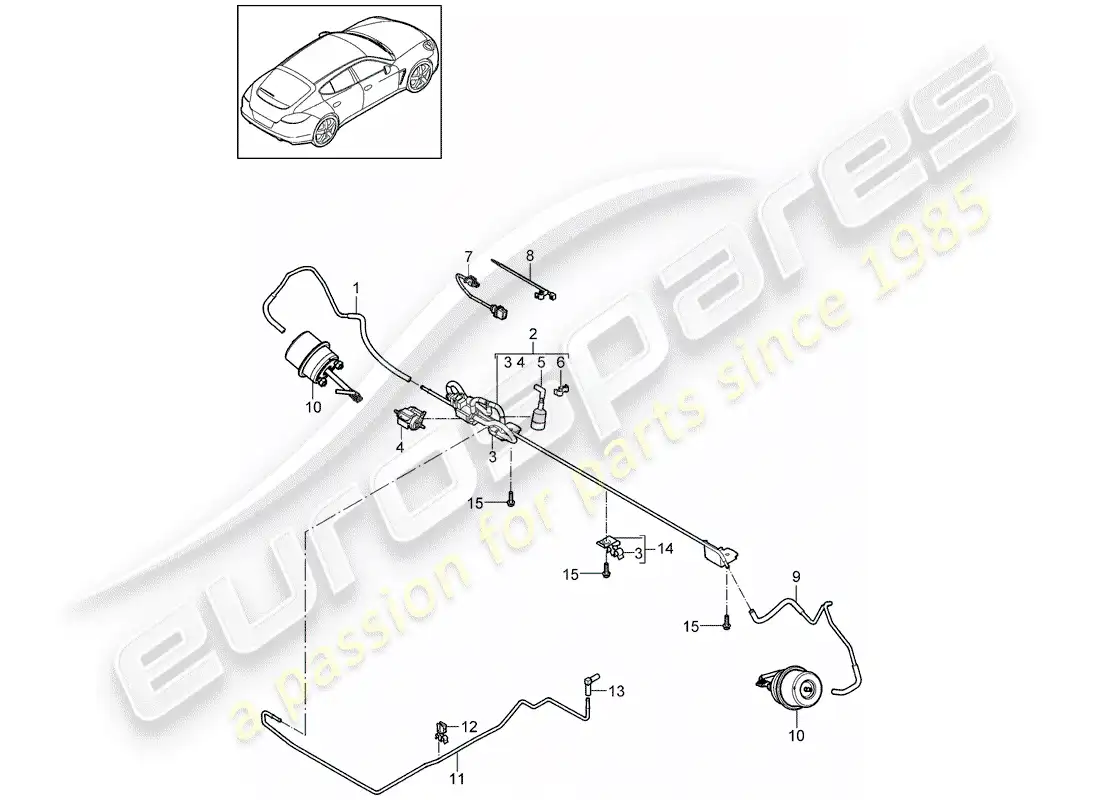

-part-diagram-202-065.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM SPORT VERSION AND TURBO S CONTROL LINE PARTS DIAGRAM")
-part-diagram-202-070.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER PARTS DIAGRAM")

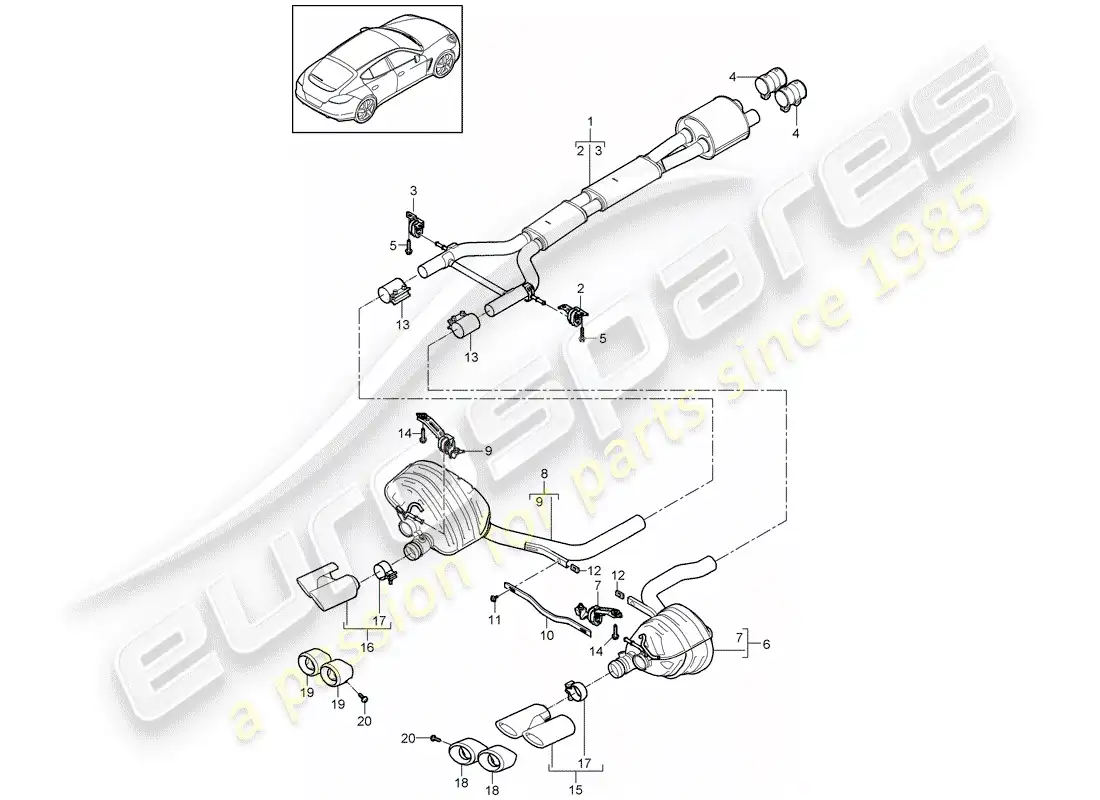

-part-diagram-202-075.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER PARTS DIAGRAM")

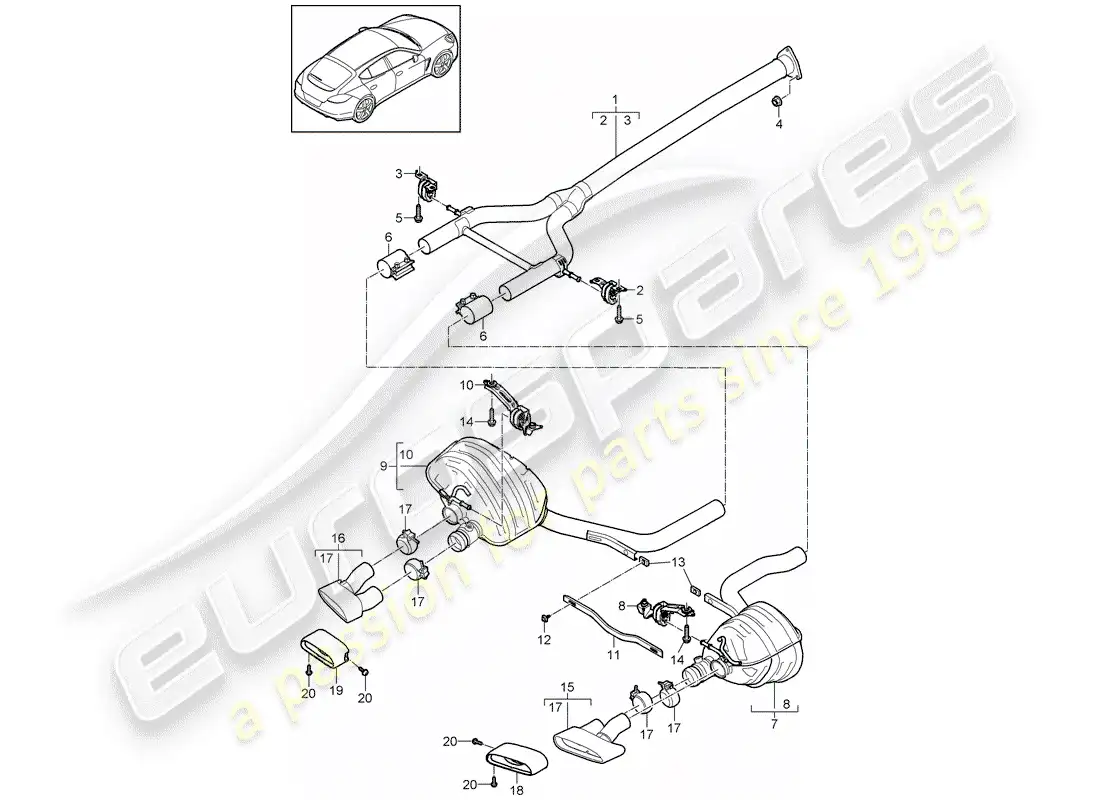

-part-diagram-202-080.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM EXHAUST PIPE REAR SILENCER PARTS DIAGRAM")
-part-diagram-202-085.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER PARTS DIAGRAM")
-part-diagram-202-090.webp "PORSCHE 2010 (PANAMERA 970) OIL PIPE FOR EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-092.webp "PORSCHE 2010 (PANAMERA 970) OIL PIPE FOR EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-095.webp "PORSCHE 2010 (PANAMERA 970) COOLANT PIPE FOR EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-096.webp "PORSCHE 2010 (PANAMERA 970) COOLANT PIPE FOR EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-202-097.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 2010 (PANAMERA 970) COUPLING PARTS DIAGRAM")
-part-diagram-301-010.webp "PORSCHE 2010 (PANAMERA 970) COUPLING FOR VEHICLES WITH HYBRID DRIVE PARTS DIAGRAM")
-part-diagram-301-020.webp "PORSCHE 2010 (PANAMERA 970) CONTROL AND REGULATING UNIT HYDRAULIC ELECTRIC MOTOR PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 2010 (PANAMERA 970) MANUAL GEARBOX READY FOR INSTALLATION PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 2010 (PANAMERA 970) MANUAL GEARBOX INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 2010 (PANAMERA 970) FRONT AXLE DIFFERENTIAL ENGINE BRACKETS READY FOR INSTALLATION PARTS DIAGRAM")
-part-diagram-305-010.webp "PORSCHE 2010 (PANAMERA 970) FRONT AXLE DIFFERENTIAL ENGINE BRACKETS INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-305-020.webp "PORSCHE 2010 (PANAMERA 970) CARDAN SHAFT PARTS DIAGRAM")
-part-diagram-305-030.webp "PORSCHE 2010 (PANAMERA 970) REAR AXLE DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-305-040.webp "PORSCHE 2010 (PANAMERA 970) REAR AXLE DIFFERENTIAL PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 2010 (PANAMERA 970) MOUNTING PARTS FOR ENGINE AND TRANSMISSION TRANSMISSION CARRIER PARTS DIAGRAM")
-part-diagram-306-010.webp "PORSCHE 2010 (PANAMERA 970) MOUNTING PARTS FOR ENGINE AND TRANSMISSION TRANSMISSION CARRIER PARTS DIAGRAM")
-part-diagram-306-020.webp "PORSCHE 2010 (PANAMERA 970) MOUNTING PARTS FOR ENGINE AND TRANSMISSION TRANSMISSION CARRIER PARTS DIAGRAM")
-part-diagram-320-000.webp "PORSCHE 2010 (PANAMERA 970) 7-SPEED DUAL CLUTCH GEARBOX - PDK - PARTS DIAGRAM")
-part-diagram-320-005.webp "PORSCHE 2010 (PANAMERA 970) 8-SPEED AUTOMATIC GEARBOX TIPTRONIC PARTS DIAGRAM")
-part-diagram-320-010.webp "PORSCHE 2010 (PANAMERA 970) 7-SPEED DUAL CLUTCH GEARBOX - PDK - INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-320-015.webp "PORSCHE 2010 (PANAMERA 970) TIPTRONIC GEARBOX ACCESSORIES PARTS DIAGRAM")
-part-diagram-320-020.webp "PORSCHE 2010 (PANAMERA 970) GEARBOX TIPTRONIC INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-360-000.webp "PORSCHE 2010 (PANAMERA 970) - PDK - GEARBOX GEAR OIL COOLER OIL PIPE PARTS DIAGRAM")
-part-diagram-360-010.webp "PORSCHE 2010 (PANAMERA 970) TIPTRONIC GEAR OIL COOLER OIL PIPE PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 2010 (PANAMERA 970) SUPPORT FRAME CROSS MEMBER GUARD PLATE PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 2010 (PANAMERA 970) WISHBONE HEADLIGHT RANGE CONTROL ADAPTIVE SUSPENSION PARTS DIAGRAM")
-part-diagram-401-010.webp "PORSCHE 2010 (PANAMERA 970) WHEEL CARRIER WHEEL HUB PARTS DIAGRAM")
-part-diagram-401-020.webp "PORSCHE 2010 (PANAMERA 970) DRIVE SHAFT D >>- MJ 2010 PARTS DIAGRAM")
-part-diagram-401-021.webp "PORSCHE 2010 (PANAMERA 970) DRIVE SHAFT D - MJ 2011>>- MJ 2013 PARTS DIAGRAM")
-part-diagram-401-022.webp "PORSCHE 2010 (PANAMERA 970) DRIVE SHAFT D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 2010 (PANAMERA 970) SUSPENSION SUSPENSION STRUT, COMPLETE PARTS DIAGRAM")
-part-diagram-402-002.webp "PORSCHE 2010 (PANAMERA 970) SUSPENSION SUSPENSION STRUT, COMPLETE STEEL PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 2010 (PANAMERA 970) SUSPENSION SUSPENSION STRUT COMPLETE AIR SPRING PARTS DIAGRAM")
-part-diagram-402-010.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-402-012.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-402-015.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-402-017.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-402-020.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR VALVE BLOCK JUNCTION PRESSURE LINE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-402-022.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR VALVE BLOCK JUNCTION PRESSURE LINE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-402-025.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR PRESSURE LINE RETURN LINE UNDERBODY D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-402-027.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR PRESSURE LINE RETURN LINE UNDERBODY D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING STEERING GEAR D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-403-002.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING STEERING GEAR D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-403-010.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING PRESSURE LINE OIL COOLER D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-403-012.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING PRESSURE LINE OIL COOLER D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-403-015.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING PRESSURE LINE OIL COOLER D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-403-016.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING PRESSURE LINE OIL COOLER D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-403-017.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING PRESSURE LINE PUMP FOR POWER STEERING ELECTRIC D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-403-018.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING PRESSURE LINE PUMP FOR POWER STEERING ELECTRIC D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-403-040.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING VANE PUMP OIL CONTAINER D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-403-042.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING VANE PUMP OIL CONTAINER D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-403-045.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING TANDEM VANE PUMP OIL CONTAINER PRESSURE HOSE - PDCC - D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-403-047.webp "PORSCHE 2010 (PANAMERA 970) POWER STEERING TANDEM VANE PUMP OIL CONTAINER PRESSURE HOSE - PDCC - D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-403-050.webp "PORSCHE 2010 (PANAMERA 970) STEERING WHEEL STEERING COLUMN INTERMEDIATE STEERING SHAFT D >>- MJ 2010 PARTS DIAGRAM")
-part-diagram-403-051.webp "PORSCHE 2010 (PANAMERA 970) STEERING WHEEL STEERING COLUMN INTERMEDIATE STEERING SHAFT D - MJ 2011>>- MJ 2013 PARTS DIAGRAM")
-part-diagram-403-053.webp "PORSCHE 2010 (PANAMERA 970) STEERING WHEEL STEERING COLUMN INTERMEDIATE STEERING SHAFT D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-403-060.webp "PORSCHE 2010 (PANAMERA 970) AIRBAG D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-403-062.webp "PORSCHE 2010 (PANAMERA 970) AIRBAG D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 2010 (PANAMERA 970) REAR AXLE WHEEL CARRIER WISHBONE TRACK ROD WHEEL HUB STONE CHIP GUARD PARTS DIAGRAM")
-part-diagram-501-010.webp "PORSCHE 2010 (PANAMERA 970) REAR AXLE SUSPENSION SUB-FRAME LEVEL SENSOR PARTS DIAGRAM")
-part-diagram-501-020.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-501-022.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-501-025.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR HOSE PARTS DIAGRAM")
-part-diagram-501-030.webp "PORSCHE 2010 (PANAMERA 970) ANTI-ROLL BAR VALVE BLOCK PRESSURE LINE RETURN LINE PARTS DIAGRAM")
-part-diagram-501-040.webp "PORSCHE 2010 (PANAMERA 970) DRIVE SHAFT D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-501-042.webp "PORSCHE 2010 (PANAMERA 970) DRIVE SHAFT D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-501-045.webp "PORSCHE 2010 (PANAMERA 970) DRIVE SHAFT D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-501-047.webp "PORSCHE 2010 (PANAMERA 970) DRIVE SHAFT D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 2010 (PANAMERA 970) SUSPENSION SUSPENSION STRUT, COMPLETE PARTS DIAGRAM")
-part-diagram-502-010.webp "PORSCHE 2010 (PANAMERA 970) SUSPENSION SHOCK ABSORBERS PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 2010 (PANAMERA 970) WHEELS/TYRES PARTS DIAGRAM")
-part-diagram-601-010.webp "PORSCHE 2010 (PANAMERA 970) TYRE PRESSURE CONTROL SYSTEM D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-601-012.webp "PORSCHE 2010 (PANAMERA 970) TYRE PRESSURE CONTROL SYSTEM D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE FRONT AXLE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-602-002.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE FRONT AXLE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-602-005.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE FRONT AXLE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-602-007.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE FRONT AXLE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-602-010.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE FRONT AXLE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-602-012.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE FRONT AXLE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE REAR AXLE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-603-002.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE REAR AXLE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-603-005.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE REAR AXLE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-603-007.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE REAR AXLE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-603-010.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE REAR AXLE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-603-012.webp "PORSCHE 2010 (PANAMERA 970) DISC BRAKE REAR AXLE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-603-030.webp "PORSCHE 2010 (PANAMERA 970) PARKING BRAKE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-603-032.webp "PORSCHE 2010 (PANAMERA 970) PARKING BRAKE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 2010 (PANAMERA 970) BRAKE MASTER CYLINDER BRAKE SERVO VACUUM LINE PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 2010 (PANAMERA 970) BRAKE LINE FRONT END PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 2010 (PANAMERA 970) BRAKE LINE FRONT AXLE PARTS DIAGRAM")
-part-diagram-604-015.webp "PORSCHE 2010 (PANAMERA 970) BRAKE LINE UNDERBODY REAR AXLE PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 2010 (PANAMERA 970) HYDRAULIC UNIT ANTI-LOCKING BRAKE SYST. -ABS- PARTS DIAGRAM")
-part-diagram-606-000.webp "PORSCHE 2010 (PANAMERA 970) ADAPTIVE SUSPENSION COMPRESSOR PRESSURE ACCUMULATOR ACCELERATOR SENSOR PARTS DIAGRAM")
-part-diagram-606-010.webp "PORSCHE 2010 (PANAMERA 970) ADAPTIVE SUSPENSION AIR LINE PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 2010 (PANAMERA 970) SELECTOR MECHANISM MANUAL GEARBOX D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 2010 (PANAMERA 970) SELECTOR LEVER - PDK - TIPTRONIC GEARBOX PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 2010 (PANAMERA 970) BRAKE AND CLUTCH PEDALS CLUSTER MANUAL GEARBOX D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 2010 (PANAMERA 970) BRAKE PEDAL - PDK - TIPTRONIC GEARBOX PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 2010 (PANAMERA 970) HYDRAULIC COUPLING ACTUATION CLUTCH MASTER CYLINDER HYDRAULIC CLUTCH PIPE PARTS DIAGRAM")
-part-diagram-702-015.webp "PORSCHE 2010 (PANAMERA 970) ACCELERATOR PEDAL THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 2010 (PANAMERA 970) CAR BODY PARTS DIAGRAM")
-part-diagram-801-002.webp "PORSCHE 2010 (PANAMERA 970) BUNGS PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 2010 (PANAMERA 970) FRONT END PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 2010 (PANAMERA 970) FRONT END INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 2010 (PANAMERA 970) DOME STRUT PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 2010 (PANAMERA 970) FLOOR ASSEMBLY PARTS DIAGRAM")
-part-diagram-801-035.webp "PORSCHE 2010 (PANAMERA 970) REAR END PARTS DIAGRAM")
-part-diagram-801-040.webp "PORSCHE 2010 (PANAMERA 970) WING PARTS DIAGRAM")
-part-diagram-801-045.webp "PORSCHE 2010 (PANAMERA 970) ROOF SCUTTLE PARTS DIAGRAM")
-part-diagram-801-050.webp "PORSCHE 2010 (PANAMERA 970) SIDE PART INNER PARTS DIAGRAM")
-part-diagram-801-055.webp "PORSCHE 2010 (PANAMERA 970) SIDE PART OUTER PARTS DIAGRAM")
-part-diagram-801-070.webp "PORSCHE 2010 (PANAMERA 970) TRIM UNDERBODY PARTS DIAGRAM")
-part-diagram-801-072.webp "PORSCHE 2010 (PANAMERA 970) TRIMS HEAT INSULATION UNDERBODY PARTS DIAGRAM")
-part-diagram-801-075.webp "PORSCHE 2010 (PANAMERA 970) TRIM WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 2010 (PANAMERA 970) BUMPER FRONT D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-802-001.webp "PORSCHE 2010 (PANAMERA 970) BUMPER FRONT D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-802-002.webp "PORSCHE 2010 (PANAMERA 970) BUMPER FRONT 2ND GENERATION D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-802-003.webp "PORSCHE 2010 (PANAMERA 970) BUMPER FRONT TURBO AND GTS 2ND GENERATION D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-802-007.webp "PORSCHE 2010 (PANAMERA 970) BUMPER CARRIER FRONT 2ND GENERATION PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 2010 (PANAMERA 970) CARRIER COOLER FOR COOLANT PARTS DIAGRAM")
-part-diagram-802-011.webp "PORSCHE 2010 (PANAMERA 970) CARRIER COOLER FOR COOLANT 2. GENERATION PARTS DIAGRAM")
-part-diagram-802-020.webp "PORSCHE 2010 (PANAMERA 970) BUMPER REAR D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-802-021.webp "PORSCHE 2010 (PANAMERA 970) BUMPER REAR 2. GENERATION D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 2010 (PANAMERA 970) COVER FRONT PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 2010 (PANAMERA 970) COVER REAR PARTS DIAGRAM")
-part-diagram-803-007.webp "PORSCHE 2010 (PANAMERA 970) REAR SPOILER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 2010 (PANAMERA 970) DOOR SHELL FRONT GASKETS PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 2010 (PANAMERA 970) DOOR HANDLES FRONT AND REAR DOOR LOCK PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 2010 (PANAMERA 970) DOOR SHELL REAR GASKETS PARTS DIAGRAM")
-part-diagram-804-030.webp "PORSCHE 2010 (PANAMERA 970) WINDOW REGULATOR FRONT ASSEMBLY CARRIER PARTS DIAGRAM")
-part-diagram-804-040.webp "PORSCHE 2010 (PANAMERA 970) WINDOW REGULATOR REAR ASSEMBLY CARRIER PARTS DIAGRAM")
-part-diagram-804-050.webp "PORSCHE 2010 (PANAMERA 970) ROLLER BLIND REAR DOOR PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 2010 (PANAMERA 970) WINDSCREEN REAR WINDOW SIDE WINDOW D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 2010 (PANAMERA 970) WINDSCREEN SIDE WINDOW REAR WINDOW D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 2010 (PANAMERA 970) FLOORING PARTS DIAGRAM")
-part-diagram-807-002.webp "PORSCHE 2010 (PANAMERA 970) FLOORING FOR VERSION: LONG PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 2010 (PANAMERA 970) DOOR PANEL FRONT D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-807-006.webp "PORSCHE 2010 (PANAMERA 970) DOOR PANEL FRONT 2. GENERATION D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 2010 (PANAMERA 970) DOOR PANEL REAR D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-807-011.webp "PORSCHE 2010 (PANAMERA 970) DOOR PANEL REAR 2. GENERATION D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-807-012.webp "PORSCHE 2010 (PANAMERA 970) DOOR PANEL REAR 2. GENERATION D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-807-015.webp "PORSCHE 2010 (PANAMERA 970) ROOF TRIM ACCESSORIES SUN VIZORS PARTS DIAGRAM")
-part-diagram-807-018.webp "PORSCHE 2010 (PANAMERA 970) SUN VIZORS D >>- MJ 2014 PARTS DIAGRAM")
-part-diagram-807-019.webp "PORSCHE 2010 (PANAMERA 970) SUN VIZORS D - MJ 2015>> PARTS DIAGRAM")
-part-diagram-807-020.webp "PORSCHE 2010 (PANAMERA 970) A-PILLAR FRONT SILL TRIM STRIP PARTS DIAGRAM")
-part-diagram-807-025.webp "PORSCHE 2010 (PANAMERA 970) TRIM REAR B-PILLAR SILL TRIM STRIP PARTS DIAGRAM")
-part-diagram-807-030.webp "PORSCHE 2010 (PANAMERA 970) TRIM WHEEL HOUSING PARTS DIAGRAM")
-part-diagram-807-035.webp "PORSCHE 2010 (PANAMERA 970) LUGGAGE COMPARTMENT TRIM SIDE PARTS DIAGRAM")
-part-diagram-807-037.webp "PORSCHE 2010 (PANAMERA 970) TRIMS SIDE LUGGAGE COMPARTMENT FOR VEHICLES WITH HYBRID DRIVE D - MJ 2012>> PARTS DIAGRAM")
-part-diagram-807-040.webp "PORSCHE 2010 (PANAMERA 970) LUGGAGE BOOT TRIMS LOWER PARTS DIAGRAM")
-part-diagram-807-042.webp "PORSCHE 2010 (PANAMERA 970) LUGGAGE BOOT TRIMS LOWER FOR VEHICLES WITH HYBRID DRIVE D - MJ 2012>> PARTS DIAGRAM")
-part-diagram-807-045.webp "PORSCHE 2010 (PANAMERA 970) COVER TRAY HAT ROLLER BLIND SKI BAG PARTS DIAGRAM")
-part-diagram-807-050.webp "PORSCHE 2010 (PANAMERA 970) TRIMS REAR LID PARTS DIAGRAM")
-part-diagram-807-070.webp "PORSCHE 2010 (PANAMERA 970) SOUND ABSORBER ENGINE BAY FRONT END COVER PANEL PARTS DIAGRAM")
-part-diagram-807-072.webp "PORSCHE 2010 (PANAMERA 970) SOUND ABSORBER PASSENGER COMPARTMENT FRONT END UNDERBODY PARTS DIAGRAM")
-part-diagram-807-074.webp "PORSCHE 2010 (PANAMERA 970) SOUND ABSORBER REAR PASSENGER COMPARTMENT PARTS DIAGRAM")
-part-diagram-807-076.webp "PORSCHE 2010 (PANAMERA 970) SOUND ABSORBER TRIM FOR LUGGAGE COMPARTMENT REAR END PARTS DIAGRAM")
-part-diagram-807-080.webp "PORSCHE 2010 (PANAMERA 970) SOUND ABSORBER REAR END FOR VEHICLES WITH HYBRID DRIVE PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 2010 (PANAMERA 970) DASHBOARD UPPER PART WITH: FASTENERS PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 2010 (PANAMERA 970) ACCESSORIES DASHBOARD UPPER PART PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 2010 (PANAMERA 970) INSTRUMENT PANEL TRIM LOWER (DRIVERS SIDE) PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 2010 (PANAMERA 970) INSTRUMENT PANEL TRIM LOWER (PASSENGER SIDE) PARTS DIAGRAM")
-part-diagram-809-020.webp "PORSCHE 2010 (PANAMERA 970) RETAINING FRAME DASHBOARD PARTS DIAGRAM")
-part-diagram-809-025.webp "PORSCHE 2010 (PANAMERA 970) CENTRE CONSOLE FRONT PARTS DIAGRAM")
-part-diagram-809-030.webp "PORSCHE 2010 (PANAMERA 970) CENTRE CONSOLE REAR PARTS DIAGRAM")
-part-diagram-809-035.webp "PORSCHE 2010 (PANAMERA 970) CENTRE CONSOLE CENTER VERSION BUSINESS PARTS DIAGRAM")
-part-diagram-809-040.webp "PORSCHE 2010 (PANAMERA 970) CENTRE CONSOLE REAR VERSION BUSINESS D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-809-043.webp "PORSCHE 2010 (PANAMERA 970) CENTRE CONSOLE REAR VERSION BUSINESS D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-809-050.webp "PORSCHE 2010 (PANAMERA 970) INTERIOR MIRROR EXTERIOR MIRROR ACCESSORIES PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 2010 (PANAMERA 970) INSCRIPTIONS/LETTERING STONE GUARD FILM PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 2010 (PANAMERA 970) SIDE MEMBER TRIM PARTS DIAGRAM")
-part-diagram-810-010.webp "PORSCHE 2010 (PANAMERA 970) TRIM PARTS DIAGRAM")
-part-diagram-810-015.webp "PORSCHE 2010 (PANAMERA 970) ROOF CHANNEL PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 2010 (PANAMERA 970) SLIDING/TILTING ROOF PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 2010 (PANAMERA 970) THREE-POINT SAFETY BELT FRONT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 2010 (PANAMERA 970) THREE-POINT SAFETY BELT REAR PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 2010 (PANAMERA 970) COOLANT PIPE SUPPLY PIPE RETURN LINE PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 2010 (PANAMERA 970) COOLANT PIPE SUPPLY PIPE RETURN LINE WATER BOX AUXILIARY HEATER PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 2010 (PANAMERA 970) AIR DISTRIBUTION HOUSING PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 2010 (PANAMERA 970) COMPRESSOR PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 2010 (PANAMERA 970) CONDENSER PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 2010 (PANAMERA 970) REFRIGERANT CIRCUIT PARTS DIAGRAM")
-part-diagram-813-027.webp "PORSCHE 2010 (PANAMERA 970) REFRIGERANT CIRCUIT DIESEL PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 2010 (PANAMERA 970) AIR GUIDE PARTS DIAGRAM")
-part-diagram-813-035.webp "PORSCHE 2010 (PANAMERA 970) WATER BOX PARTS DIAGRAM")
-part-diagram-813-040.webp "PORSCHE 2010 (PANAMERA 970) COOLING SYSTEM HYBRID AUXILIARY HEATER FRONT D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-813-045.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM FRONT BATTERY HYBRID D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-813-050.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM CENTER BATTERY HYBRID AND SUSPENSION SUB-FRAME D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-813-055.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM REAR BATTERY HYBRID D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-813-060.webp "PORSCHE 2010 (PANAMERA 970) REFRIGERANT CIRCUIT HYBRID PARTS DIAGRAM")
-part-diagram-813-061.webp "PORSCHE 2010 (PANAMERA 970) REFRIGERANT CIRCUIT FRONT BATTERY HYBRID EVAPORATOR D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-813-063.webp "PORSCHE 2010 (PANAMERA 970) REFRIGERANT LINE HYBRID WHEEL HOUSING AND UNDERBODY PARTS DIAGRAM")
-part-diagram-813-065.webp "PORSCHE 2010 (PANAMERA 970) AIR GUIDE BATTERY AND EVAPORATOR PARTS DIAGRAM")
-part-diagram-813-080.webp "PORSCHE 2010 (PANAMERA 970) AUXILIARY HEATER PARTS DIAGRAM")
-part-diagram-817-000.webp "PORSCHE 2010 (PANAMERA 970) SEAT FRONT (COMPLETE) NO LONGER AVAILABLE COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-002.webp "PORSCHE 2010 (PANAMERA 970) FOAM PART SEAT AND BACKREST COVER STANDARD SEAT COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-004.webp "PORSCHE 2010 (PANAMERA 970) BACKREST SHELL BACKREST FRAME COMFORT SEAT STANDARD SEAT PARTS DIAGRAM")
-part-diagram-817-005.webp "PORSCHE 2010 (PANAMERA 970) BACKREST FRAME BACKREST SHELL WITH: FOLDING TABLE PARTS DIAGRAM")
-part-diagram-817-006.webp "PORSCHE 2010 (PANAMERA 970) SEAT FRAME COMFORT SEAT STANDARD SEAT SEE TECHNICAL INFORMATION GR. 7 NR. 7209 (49/16) PARTS DIAGRAM")
-part-diagram-817-007.webp "PORSCHE 2010 (PANAMERA 970) SEAT AND BACKREST SURFACE VENTED COOLING AIR CONTROLS STANDARD SEAT COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-010.webp "PORSCHE 2010 (PANAMERA 970) SPORTS SEAT FRONT (COMPLETE) NICHT LIEFERBAR PARTS DIAGRAM")
-part-diagram-817-012.webp "PORSCHE 2010 (PANAMERA 970) FOAM PART SEAT AND BACKREST COVER SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-014.webp "PORSCHE 2010 (PANAMERA 970) BACKREST SHELL BACKREST FRAME SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-016.webp "PORSCHE 2010 (PANAMERA 970) SEAT FRAME SPORTS SEAT SEE TECHNICAL INFORMATION GR. 7 NR. 7209 (49/16) PARTS DIAGRAM")
-part-diagram-817-018.webp "PORSCHE 2010 (PANAMERA 970) ELECTRICAL PARTS FRONT SEATS PARTS DIAGRAM")
-part-diagram-817-020.webp "PORSCHE 2010 (PANAMERA 970) LCD SCREEN FOR VEHICLES WITH REAR SEAT ENTERTAINMENT 'RSE' FASTENERS PARTS DIAGRAM")
-part-diagram-817-022.webp "PORSCHE 2010 (PANAMERA 970) WIRING LOOMS STANDARD SEAT FRONT COMFORT SEAT SPORTS SEAT AIRBAG LUMBAR FOR VEHICLES W/ SEAT VENTILAT. PARTS DIAGRAM")
-part-diagram-817-024.webp "PORSCHE 2010 (PANAMERA 970) SEAT CUSHION DRIVE UNIT FOR HEIGHT ADJUSTMENT TRIM ACCESSORIES SEAT SUPPORT PARTS DIAGRAM")
-part-diagram-817-040.webp "PORSCHE 2010 (PANAMERA 970) SEAT AND BACKREST COVER REAR FOAM PART STANDARD SEAT COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-041.webp "PORSCHE 2010 (PANAMERA 970) SEAT AND BACKREST COVER PREMIUM FOAM PART COMFORT SEAT PARTS DIAGRAM")
-part-diagram-817-042.webp "PORSCHE 2010 (PANAMERA 970) SEAT AND BACKREST COVER FOAM PART SPORTS SEAT STANDARD SEAT PARTS DIAGRAM")
-part-diagram-817-048.webp "PORSCHE 2010 (PANAMERA 970) SEAT AND BACKREST COVER PREMIUM FOAM PART SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-053.webp "PORSCHE 2010 (PANAMERA 970) SEAT AND BACKREST COVER PREMIUM FOAM PART BUSINESS PARTS DIAGRAM")
-part-diagram-817-054.webp "PORSCHE 2010 (PANAMERA 970) FOAM PART LONG SEAT AND BACKREST COVER PREMIUM BUSINESS PARTS DIAGRAM")
-part-diagram-817-055.webp "PORSCHE 2010 (PANAMERA 970) SIDE PART REAR PADDED UPHOLSTERY PARTS DIAGRAM")
-part-diagram-817-057.webp "PORSCHE 2010 (PANAMERA 970) LUMBAR SUPPORT ADJUSTMENT BACK SEAT BACKREST ACCESSORIES CONTROL AND REGULATING UNIT ELECTRIC DRIVE SEAT CUSHION PARTS DIAGRAM")
-part-diagram-817-060.webp "PORSCHE 2010 (PANAMERA 970) ARMREST CENTER BACK SEAT BACKREST PARTS DIAGRAM")
-part-diagram-817-062.webp "PORSCHE 2010 (PANAMERA 970) BACK SEAT BACKREST TRIM ACCESSORIES PARTS DIAGRAM")
-part-diagram-898-000.webp "PORSCHE 2010 (PANAMERA 970) 1 SET OF LOCK CYLINDERS WITH HANDHELD TRANS. & EMERG. KEY COMPRISING: LOCK FOR GLOVE BOX BRACKET DOOR HANDLE, EXTERIOR EMERGENCY KEY HANDHELD TRANSMITTER PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 2010 (PANAMERA 970) IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-901-003.webp "PORSCHE 2010 (PANAMERA 970) CONTROL UNITS ENGINE GEARBOX CONNECTION F LOCK CONTROL UNIT TOW HITCH PARKING AID CONTROL UNIT FOR GATEWAY -PDCC- REAR LID FUEL PUMP WITH START/STOP TECHNOLOGY ELECTRONIC PARKING BRAKE PARTS DIAGRAM")
-part-diagram-901-004.webp "PORSCHE 2010 (PANAMERA 970) CONTROL UNITS FRONT END REAR END IGNITION/STARTER SWITCH HANDHELD TRANSMITTER RECEIVER UNIT AUXILIARY HEATER AERIAL LASER DISTANCE CONTROL LANE CHANGE SYSTEM AND LANE DEPARTURE WARNING PARTS DIAGRAM")
-part-diagram-901-010.webp "PORSCHE 2010 (PANAMERA 970) ELECTRIC MOTOR FOR VEHICLES WITH HYBRID DRIVE PARTS DIAGRAM")
-part-diagram-901-020.webp "PORSCHE 2010 (PANAMERA 970) POWER AND CONTROL ELECTRONICS- FOR ELECTRIC DRIVE FOR VEHICLES WITH HYBRID DRIVE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-901-021.webp "PORSCHE 2010 (PANAMERA 970) POWER AND CONTROL ELECTRONICS- FOR ELECTRIC DRIVE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-901-030.webp "PORSCHE 2010 (PANAMERA 970) WIRING LOOMS FOR VEHICLES WITH HYBRID DRIVE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-901-031.webp "PORSCHE 2010 (PANAMERA 970) WIRING LOOMS HYBRID D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-901-035.webp "PORSCHE 2010 (PANAMERA 970) HEATER UNIT BATTERY CHARGER BATTERY D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-901-040.webp "PORSCHE 2010 (PANAMERA 970) BATTERY FOR VEHICLES WITH HYBRID DRIVE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-901-045.webp "PORSCHE 2010 (PANAMERA 970) BATTERY FOR VEHICLES WITH HYBRID DRIVE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-901-046.webp "PORSCHE 2010 (PANAMERA 970) BATTERY MODULE HYBRID MODULE BATTERY SEE TECHNICAL INFORMATION 139/20 PARTS DIAGRAM")
-part-diagram-901-050.webp "PORSCHE 2010 (PANAMERA 970) CENTRAL CONTROL UNIT CHARGER UNIVERSAL CHARGING STATION USE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 2010 (PANAMERA 970) CENTRAL ELECTRICS FUSE BOX PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 2010 (PANAMERA 970) STARTER ALTERNATOR BATTERY POTENTIAL DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-902-008.webp "PORSCHE 2010 (PANAMERA 970) WIRING LOOMS ENGINE PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 2010 (PANAMERA 970) WIRING LOOMS PASSENGER COMPARTMENT AND PART SECTION WIRING HARNESS PARTS DIAGRAM")
-part-diagram-902-012.webp "PORSCHE 2010 (PANAMERA 970) WIRING LOOMS BUMPER FRONT END BONNET ANTI-LOCKING BRAKE SYST. -ABS- BRAKE PAD WEAR DISPLAY FRONT AXLE CONNECTION F LOCK CONTROL UNIT PDCC REAR AXLE PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 2010 (PANAMERA 970) WIRING LOOMS DOORS CENTRE CONSOLE CONTROL UNITS DOOR PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 2010 (PANAMERA 970) WIRING LOOMS REAR SPOILER ROOF TRIM REAR LID ANTI-LOCKING BRAKE SYST. -ABS- BRAKE PAD WEAR DISPLAY REAR AXLE PARTS DIAGRAM")
-part-diagram-902-050.webp "PORSCHE 2010 (PANAMERA 970) FIBRE OPTIC WAVE CONDUCTOR PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 2010 (PANAMERA 970) FANFARE SIGNAL HORN ALARM HORN PARTS DIAGRAM")
-part-diagram-903-004.webp "PORSCHE 2010 (PANAMERA 970) INTERIOR LIGHT LUGGAGE COMPARTMENT LAMP DOOR WARNING LIGHT FOOTWELL LIGHT LIGHT EXTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 2010 (PANAMERA 970) MULTIPLE SWITCH CONTROL PANEL AIR CONDITIONING CONTROL SWITCH PARTS DIAGRAM")
-part-diagram-903-006.webp "PORSCHE 2010 (PANAMERA 970) CONSOLE ROOF SEE WORKSHOP MANUAL PARTS DIAGRAM")
-part-diagram-903-007.webp "PORSCHE 2010 (PANAMERA 970) CONSOLE ROOF SEE WORKSHOP MANUAL PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 2010 (PANAMERA 970) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 2010 (PANAMERA 970) WINDSCREEN WIPER SYSTEM, COMPL RAIN SENSOR PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 2010 (PANAMERA 970) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 2010 (PANAMERA 970) WINDSCREEN WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-904-020.webp "PORSCHE 2010 (PANAMERA 970) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 2010 (PANAMERA 970) HEADLIGHTS TURN SIGNAL REPEATER FOG LIGHTS PARTS DIAGRAM")
-part-diagram-905-001.webp "PORSCHE 2010 (PANAMERA 970) HEADLIGHTS TURN SIGNAL REPEATER FOG LIGHTS PARTS DIAGRAM")
-part-diagram-905-002.webp "PORSCHE 2010 (PANAMERA 970) HEADLIGHTS TURN SIGNAL REPEATER FOG LIGHTS PARTS DIAGRAM")
-part-diagram-905-003.webp "PORSCHE 2010 (PANAMERA 970) LED HEADLIGHT TURN SIGNAL REPEATER FOG LIGHTS D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 2010 (PANAMERA 970) REAR LIGHT LICENCE PLATE LIGHT ADDITIONAL BRAKE LIGHT PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 2010 (PANAMERA 970) COMBI-INSTRUMENT STOPWATCH D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-906-001.webp "PORSCHE 2010 (PANAMERA 970) COMBI-INSTRUMENT STOPWATCH D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-906-002.webp "PORSCHE 2010 (PANAMERA 970) COMBI-INSTRUMENT EXCLUSIVE PROGRAMME PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 2010 (PANAMERA 970) RADIO UNIT NAVIGATION SYSTEM TV REVERSING CAMERA MULTIMEDIA INTERFACE PARTS DIAGRAM")
-part-diagram-911-001.webp "PORSCHE 2010 (PANAMERA 970) ELECTRIC PARTS FOR NAVIGATION SYSTEM PREPARATION JAPAN PARTS DIAGRAM")
-part-diagram-911-002.webp "PORSCHE 2010 (PANAMERA 970) AERIAL AMPLIFIER CONNECTING LINE AERIAL VIDEO CONNECTION PARTS DIAGRAM")
-part-diagram-911-003.webp "PORSCHE 2010 (PANAMERA 970) CONNECTING LINE AERIAL AUDIO/VIDEO CONNECTION PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 2010 (PANAMERA 970) LOUDSPEAKER PARTS DIAGRAM")
-part-diagram-911-010.webp "PORSCHE 2010 (PANAMERA 970) TELEPHONE AMPLIFIERS AERIAL AMPLIFIER CONNECTING LINE AERIAL AUDIO/VIDEO CONNECTION PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 2010 (PANAMERA 970) TOOL JACK PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 2010 (PANAMERA 970) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 2010 (PANAMERA 970) TOW HITCH PARTS DIAGRAM")
-part-diagram-003-010.webp "PORSCHE 2010 (PANAMERA 970) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-003-020.webp "PORSCHE 2010 (PANAMERA 970) SIGNS/NOTICES D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-003-025.webp "PORSCHE 2010 (PANAMERA 970) SIGNS/NOTICES D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 2010 (PANAMERA 970) PAINT TOUCH-UP APPLICATOR PAINTS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 2010 (PANAMERA 970) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE - PDK - FLYWHEEL MANUAL GEARBOX A/C COMPRESSOR PARTS DIAGRAM")
-part-diagram-101-002.webp "PORSCHE 2010 (PANAMERA 970) BASE ENGINE SHORT BLOCK PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 2010 (PANAMERA 970) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE - PDK - A/C COMPRESSOR PARTS DIAGRAM")
-part-diagram-101-007.webp "PORSCHE 2010 (PANAMERA 970) BASE ENGINE SHORT BLOCK PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 2010 (PANAMERA 970) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE - PDK - FLYWHEEL MANUAL GEARBOX A/C COMPRESSOR PARTS DIAGRAM")
-part-diagram-101-012.webp "PORSCHE 2010 (PANAMERA 970) BASE ENGINE SHORT BLOCK PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 2010 (PANAMERA 970) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE - PDK - A/C COMPRESSOR PARTS DIAGRAM")
-part-diagram-101-016.webp "PORSCHE 2010 (PANAMERA 970) BASE ENGINE SHORT BLOCK PARTS DIAGRAM")
-part-diagram-101-017.webp "PORSCHE 2010 (PANAMERA 970) REPLACEMENT ENGINE BUT WITHOUT: CLUTCH PLATE - PDK - A/C COMPRESSOR PARTS DIAGRAM")
-part-diagram-101-018.webp "PORSCHE 2010 (PANAMERA 970) BASE ENGINE SHORT BLOCK PARTS DIAGRAM")
-part-diagram-101-020.webp "PORSCHE 2010 (PANAMERA 970) REPLACEMENT ENGINE PARTS DIAGRAM")
-part-diagram-101-022.webp "PORSCHE 2010 (PANAMERA 970) BASE ENGINE COMPRISING: VALVE COVER CYLINDER HEAD CRANKCASE HOUSING CRANK DRIVE OIL SUMP PARTS DIAGRAM")
-part-diagram-101-025.webp "PORSCHE 2010 (PANAMERA 970) REPLACEMENT ENGINE PARTS DIAGRAM")
-part-diagram-101-027.webp "PORSCHE 2010 (PANAMERA 970) BASE ENGINE COMPRISING: VALVE COVER CYLINDER HEAD CRANKCASE HOUSING CRANK DRIVE OIL SUMP PARTS DIAGRAM")
-part-diagram-101-030.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-035.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-040.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-042.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-045.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-047.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-050.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-055.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-101-060.webp "PORSCHE 2010 (PANAMERA 970) COVER FOR TIMING CHAIN SEALING FLANGE PARTS DIAGRAM")
-part-diagram-101-070.webp "PORSCHE 2010 (PANAMERA 970) COVER FOR TIMING CHAIN SEALING FLANGE PARTS DIAGRAM")
-part-diagram-101-080.webp "PORSCHE 2010 (PANAMERA 970) COVER FOR TIMING CHAIN SEALING FLANGE PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 2010 (PANAMERA 970) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-010.webp "PORSCHE 2010 (PANAMERA 970) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-012.webp "PORSCHE 2010 (PANAMERA 970) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-015.webp "PORSCHE 2010 (PANAMERA 970) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-020.webp "PORSCHE 2010 (PANAMERA 970) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-030.webp "PORSCHE 2010 (PANAMERA 970) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-035.webp "PORSCHE 2010 (PANAMERA 970) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-040.webp "PORSCHE 2010 (PANAMERA 970) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-041.webp "PORSCHE 2010 (PANAMERA 970) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-042.webp "PORSCHE 2010 (PANAMERA 970) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-045.webp "PORSCHE 2010 (PANAMERA 970) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-050.webp "PORSCHE 2010 (PANAMERA 970) PISTON 1 SET: PISTON RINGS PARTS DIAGRAM")
-part-diagram-102-060.webp "PORSCHE 2010 (PANAMERA 970) BELT TENSIONER DAMPER V-BELT PARTS DIAGRAM")
-part-diagram-102-070.webp "PORSCHE 2010 (PANAMERA 970) BELT TENSIONER DAMPER V-BELT PARTS DIAGRAM")
-part-diagram-102-075.webp "PORSCHE 2010 (PANAMERA 970) BELT TENSIONER DAMPER TENSIONING ROLLER WITH SECURING PARTS IDLER PULLEY PARTS DIAGRAM")
-part-diagram-102-080.webp "PORSCHE 2010 (PANAMERA 970) BELT TENSIONER DAMPER IDLER PULLEY V-BELT PARTS DIAGRAM")
-part-diagram-102-090.webp "PORSCHE 2010 (PANAMERA 970) BELT TENSIONER DAMPER V-BELT PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 2010 (PANAMERA 970) CYLINDER HEAD VACUUM PUMP PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 2010 (PANAMERA 970) CYLINDER HEAD VACUUM PUMP PARTS DIAGRAM")
-part-diagram-103-006.webp "PORSCHE 2010 (PANAMERA 970) CYLINDER HEAD VACUUM PUMP PARTS DIAGRAM")
-part-diagram-103-007.webp "PORSCHE 2010 (PANAMERA 970) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 2010 (PANAMERA 970) CYLINDER HEAD PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 2010 (PANAMERA 970) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-020.webp "PORSCHE 2010 (PANAMERA 970) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-021.webp "PORSCHE 2010 (PANAMERA 970) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-022.webp "PORSCHE 2010 (PANAMERA 970) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-025.webp "PORSCHE 2010 (PANAMERA 970) VALVE COVER PARTS DIAGRAM")
-part-diagram-103-030.webp "PORSCHE 2010 (PANAMERA 970) ENGINE COVER PARTS DIAGRAM")
-part-diagram-103-035.webp "PORSCHE 2010 (PANAMERA 970) ENGINE COVER PARTS DIAGRAM")
-part-diagram-103-040.webp "PORSCHE 2010 (PANAMERA 970) ENGINE COVER PARTS DIAGRAM")
-part-diagram-103-045.webp "PORSCHE 2010 (PANAMERA 970) CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-050.webp "PORSCHE 2010 (PANAMERA 970) CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-051.webp "PORSCHE 2010 (PANAMERA 970) CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-052.webp "PORSCHE 2010 (PANAMERA 970) CAMSHAFT, VALVES PARTS DIAGRAM")
-part-diagram-103-055.webp "PORSCHE 2010 (PANAMERA 970) CAMSHAFT, VALVES COVER PARTS DIAGRAM")
-part-diagram-103-060.webp "PORSCHE 2010 (PANAMERA 970) TIMING CHAIN SLIDE RAIL CHAIN TENSIONER PARTS DIAGRAM")
-part-diagram-103-070.webp "PORSCHE 2010 (PANAMERA 970) TIMING CHAIN SLIDE RAIL CHAIN TENSIONER PARTS DIAGRAM")
-part-diagram-103-072.webp "PORSCHE 2010 (PANAMERA 970) TIMING CHAIN SLIDE RAIL CHAIN TENSIONER PARTS DIAGRAM")
-part-diagram-103-075.webp "PORSCHE 2010 (PANAMERA 970) TIMING CHAIN SLIDE RAIL CHAIN TENSIONER PARTS DIAGRAM")
-part-diagram-103-080.webp "PORSCHE 2010 (PANAMERA 970) TIMING CHAIN SLIDE RAIL CHAIN TENSIONER CHAIN SPROCKET PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 2010 (PANAMERA 970) OIL BAFFLE PLATE OIL PUMP PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 2010 (PANAMERA 970) OIL BAFFLE PLATE OIL PUMP PARTS DIAGRAM")
-part-diagram-104-020.webp "PORSCHE 2010 (PANAMERA 970) OIL BAFFLE PLATE OIL PUMP PARTS DIAGRAM")
-part-diagram-104-030.webp "PORSCHE 2010 (PANAMERA 970) OIL-CONDUCTING HOUSING OIL FILTER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-104-040.webp "PORSCHE 2010 (PANAMERA 970) OIL-CONDUCTING HOUSING OIL FILTER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-104-042.webp "PORSCHE 2010 (PANAMERA 970) OIL-CONDUCTING HOUSING OIL FILTER HEAT EXCHANGER PARTS DIAGRAM")
-part-diagram-104-045.webp "PORSCHE 2010 (PANAMERA 970) OIL-CONDUCTING HOUSING OIL PUMP OIL SUMP PARTS DIAGRAM")
-part-diagram-104-050.webp "PORSCHE 2010 (PANAMERA 970) OIL-CONDUCTING HOUSING OIL PUMP VACUUM PUMP OIL SUMP PARTS DIAGRAM")
-part-diagram-104-060.webp "PORSCHE 2010 (PANAMERA 970) INTAKE MANIFOLD OIL SUMP PARTS DIAGRAM")
-part-diagram-104-070.webp "PORSCHE 2010 (PANAMERA 970) INTAKE MANIFOLD OIL SUMP PARTS DIAGRAM")
-part-diagram-104-072.webp "PORSCHE 2010 (PANAMERA 970) INTAKE MANIFOLD OIL SUMP PARTS DIAGRAM")
-part-diagram-104-075.webp "PORSCHE 2010 (PANAMERA 970) OIL FILTER CONSOLE OIL COOLER PARTS DIAGRAM")
-part-diagram-104-080.webp "PORSCHE 2010 (PANAMERA 970) OIL FILTER FLANGE OIL COOLER PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 2010 (PANAMERA 970) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-002.webp "PORSCHE 2010 (PANAMERA 970) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 2010 (PANAMERA 970) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 2010 (PANAMERA 970) COOLANT PUMP PARTS DIAGRAM")
-part-diagram-105-015.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM 1 PARTS DIAGRAM")
-part-diagram-105-020.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM 1 PARTS DIAGRAM")
-part-diagram-105-025.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-030.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-032.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM 2 PARTS DIAGRAM")
-part-diagram-105-035.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM COOLER FOR COOLANT PARTS DIAGRAM")
-part-diagram-105-040.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK PARTS DIAGRAM")
-part-diagram-105-042.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK PARTS DIAGRAM")
-part-diagram-105-045.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK PARTS DIAGRAM")
-part-diagram-105-050.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-055.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-105-056.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-105-057.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-060.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM ADDITIONAL COOLANT PUMP VACUUM LINE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-105-061.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM ADDITIONAL COOLANT PUMP D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-105-062.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM ELECTRIC DRIVE D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-105-063.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM ELECTRIC DRIVE D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-105-065.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM COOLANT EXPANSION TANK PARTS DIAGRAM")
-part-diagram-105-070.webp "PORSCHE 2010 (PANAMERA 970) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-080.webp "PORSCHE 2010 (PANAMERA 970) AIR GUIDE COOLANT COOLING SYSTEM D >>- MJ 2013 PARTS DIAGRAM")
-part-diagram-105-095.webp "PORSCHE 2010 (PANAMERA 970) AIR GUIDE COOLANT COOLING SYSTEM D - MJ 2014>> PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 2010 (PANAMERA 970) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-005.webp "PORSCHE 2010 (PANAMERA 970) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-010.webp "PORSCHE 2010 (PANAMERA 970) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-020.webp "PORSCHE 2010 (PANAMERA 970) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-025.webp "PORSCHE 2010 (PANAMERA 970) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-030.webp "PORSCHE 2010 (PANAMERA 970) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-106-040.webp "PORSCHE 2010 (PANAMERA 970) AIR FILTER WITH CONNECTING PARTS PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 2010 (PANAMERA 970) THROTTLE VALVE ADAPTER TANK VENTILATION PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 2010 (PANAMERA 970) THROTTLE VALVE ADAPTER TANK VENTILATION PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 2010 (PANAMERA 970) TANK VENTILATION PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING VENTILATION PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING VENTILATION PARTS DIAGRAM")
-part-diagram-107-021.webp "PORSCHE 2010 (PANAMERA 970) CRANKCASE HOUSING VENTILATION PARTS DIAGRAM")
-part-diagram-107-022.webp "PORSCHE 2010 (PANAMERA 970) THROTTLE VALVE ADAPTER TANK VENTILATION VACUUM LINE PARTS DIAGRAM")
-part-diagram-107-024.webp "PORSCHE 2010 (PANAMERA 970) BREATHER LINE CRANKCASE HOUSING PARTS DIAGRAM")
-part-diagram-107-026.webp "PORSCHE 2010 (PANAMERA 970) BREATHER LINE CRANKCASE HOUSING PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 2010 (PANAMERA 970) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 2010 (PANAMERA 970) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-036.webp "PORSCHE 2010 (PANAMERA 970) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-037.webp "PORSCHE 2010 (PANAMERA 970) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 2010 (PANAMERA 970) FUEL COLLECTION PIPE HIGH-PRESSURE INJECTOR HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 2010 (PANAMERA 970) INTAKE AIR DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-107-050.webp "PORSCHE 2010 (PANAMERA 970) INTAKE AIR DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-107-052.webp "PORSCHE 2010 (PANAMERA 970) INTAKE AIR DISTRIBUTOR THROTTLE VALVE ADAPTER PARTS DIAGRAM")
-part-diagram-107-055.webp "PORSCHE 2010 (PANAMERA 970) COMPRESSOR PARTS DIAGRAM")
-part-diagram-107-057.webp "PORSCHE 2010 (PANAMERA 970) INTAKE MANIFOLD THROTTLE VALVE ADAPTER AIR GUIDE HOUSING PARTS DIAGRAM")
-part-diagram-107-060.webp "PORSCHE 2010 (PANAMERA 970) CHARGE AIR COOLER PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-061.webp "PORSCHE 2010 (PANAMERA 970) PRESSURE PIPE VACUUM LINE PARTS DIAGRAM")
-part-diagram-107-062.webp "PORSCHE 2010 (PANAMERA 970) CHARGE AIR COOLER PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-065.webp "PORSCHE 2010 (PANAMERA 970) CHARGE AIR COOLER PRESSURE PIPE PARTS DIAGRAM")
-part-diagram-107-070.webp "PORSCHE 2010 (PANAMERA 970) PRESSURE PIPE CONTROL LINE PARTS DIAGRAM")
-part-diagram-107-075.webp "PORSCHE 2010 (PANAMERA 970) PRESSURE PIPE CONTROL LINE PARTS DIAGRAM")
-part-diagram-107-080.webp "PORSCHE 2010 (PANAMERA 970) CONTROL LINE PRESSURE LINE PARTS DIAGRAM")
-part-diagram-107-085.webp "PORSCHE 2010 (PANAMERA 970) VACUUM RESERVOIR CONTROL LINE PRESSURE LINE PARTS DIAGRAM")
-part-diagram-108-000.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST PURIFICATION SYSTEM W. SECONDARY AIR INJECTION PARTS DIAGRAM")
-part-diagram-108-005.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST PURIFICATION SYSTEM W. SECONDARY AIR INJECTION PARTS DIAGRAM")
-part-diagram-108-010.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST PURIFICATION SYSTEM W. SECONDARY AIR INJECTION PARTS DIAGRAM")
-part-diagram-108-020.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST GAS RECIRCULATION VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE ENGINE SUPPORT PARTS DIAGRAM")
-part-diagram-109-010.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE ENGINE SUPPORT PARTS DIAGRAM")
-part-diagram-109-015.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE ENGINE SUPPORT PARTS DIAGRAM")
-part-diagram-109-020.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE CONSOLE FOR ENGINE MOUNTING ENGINE MOUNTING PARTS DIAGRAM")
-part-diagram-109-030.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE CONSOLE FOR ENGINE MOUNTING ENGINE MOUNTING PARTS DIAGRAM")
-part-diagram-109-040.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE CONSOLE FOR ENGINE MOUNTING ENGINE MOUNTING PARTS DIAGRAM")
-part-diagram-109-045.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE CONSOLE FOR ENGINE MOUNTING ENGINE MOUNTING PARTS DIAGRAM")
-part-diagram-109-050.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE CONSOLE FOR ENGINE MOUNTING ENGINE MOUNTING PARTS DIAGRAM")
-part-diagram-109-055.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE CONSOLE FOR ENGINE MOUNTING ENGINE MOUNTING PARTS DIAGRAM")
-part-diagram-109-060.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE CONSOLE FOR ENGINE MOUNTING ENGINE MOUNTING PARTS DIAGRAM")
-part-diagram-109-070.webp "PORSCHE 2010 (PANAMERA 970) ENGINE LIFTING TACKLE LOWER PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 2010 (PANAMERA 970) FUEL TANK WITH ATTACHMENTS PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 2010 (PANAMERA 970) FUEL TANK WITH ATTACHMENTS PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 2010 (PANAMERA 970) FUEL TANK FUEL PUMP SUCTION JET PUMP PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 2010 (PANAMERA 970) FUEL TANK FUEL PUMP SUCTION JET PUMP PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 2010 (PANAMERA 970) FUEL SYSTEM FUEL LINE UNDERBODY PARTS DIAGRAM")
-part-diagram-201-025.webp "PORSCHE 2010 (PANAMERA 970) FUEL LINE FUEL FILTER UNDERBODY PARTS DIAGRAM")
-part-diagram-201-030.webp "PORSCHE 2010 (PANAMERA 970) FUEL SYSTEM FUEL LINE ENGINE BAY PARTS DIAGRAM")
-part-diagram-201-032.webp "PORSCHE 2010 (PANAMERA 970) FUEL SYSTEM FUEL LINE ENGINE BAY PARTS DIAGRAM")
-part-diagram-201-035.webp "PORSCHE 2010 (PANAMERA 970) FUEL SYSTEM FUEL LINE ENGINE BAY PARTS DIAGRAM")
-part-diagram-201-040.webp "PORSCHE 2010 (PANAMERA 970) ACTIVATED CHARCOAL CONTAINER PARTS DIAGRAM")
-part-diagram-201-050.webp "PORSCHE 2010 (PANAMERA 970) ACTIVATED CHARCOAL CONTAINER PARTS DIAGRAM")
-part-diagram-201-060.webp "PORSCHE 2010 (PANAMERA 970) ACTIVATED CHARCOAL CONTAINER AIR FILTER PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM EXHAUST MANIFOLDS CATALYTIC CONVERTER LAMBDA PROBE PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM EXHAUST GAS TURBOCHARGER CATALYTIC CONVERTER LAMBDA PROBE PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM EXHAUST MANIFOLDS CATALYTIC CONVERTER LAMBDA PROBE PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM EXHAUST GAS TURBOCHARGER CATALYTIC CONVERTER LAMBDA PROBE PARTS DIAGRAM")
-part-diagram-202-022.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM EXHAUST MANIFOLDS PARTS DIAGRAM")
-part-diagram-202-025.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM EXHAUST PIPE WITH CATALYST PARTS DIAGRAM")
-part-diagram-202-030.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM EXHAUST MANIFOLDS PARTS DIAGRAM")

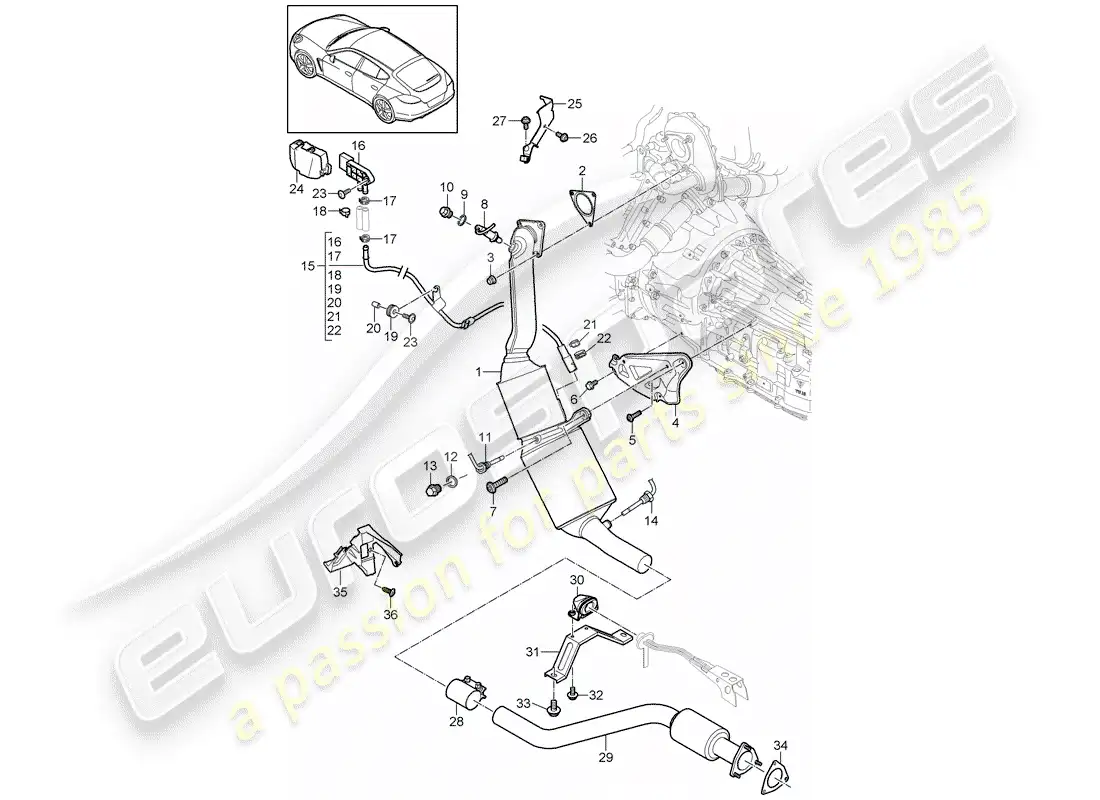

-part-diagram-202-035.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM EXHAUST PIPE WITH CATALYST DIESEL PARTICULATE FILTER CONTROL LINE PARTS DIAGRAM")

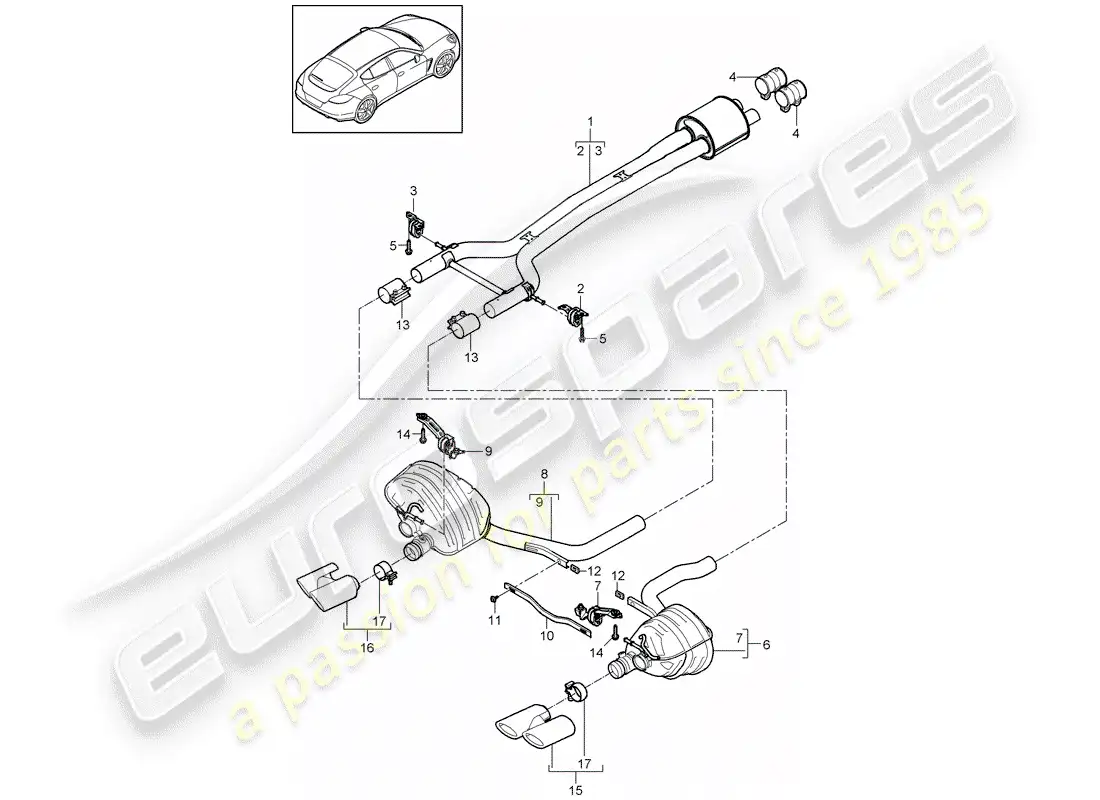

-part-diagram-202-040.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER PARTS DIAGRAM")

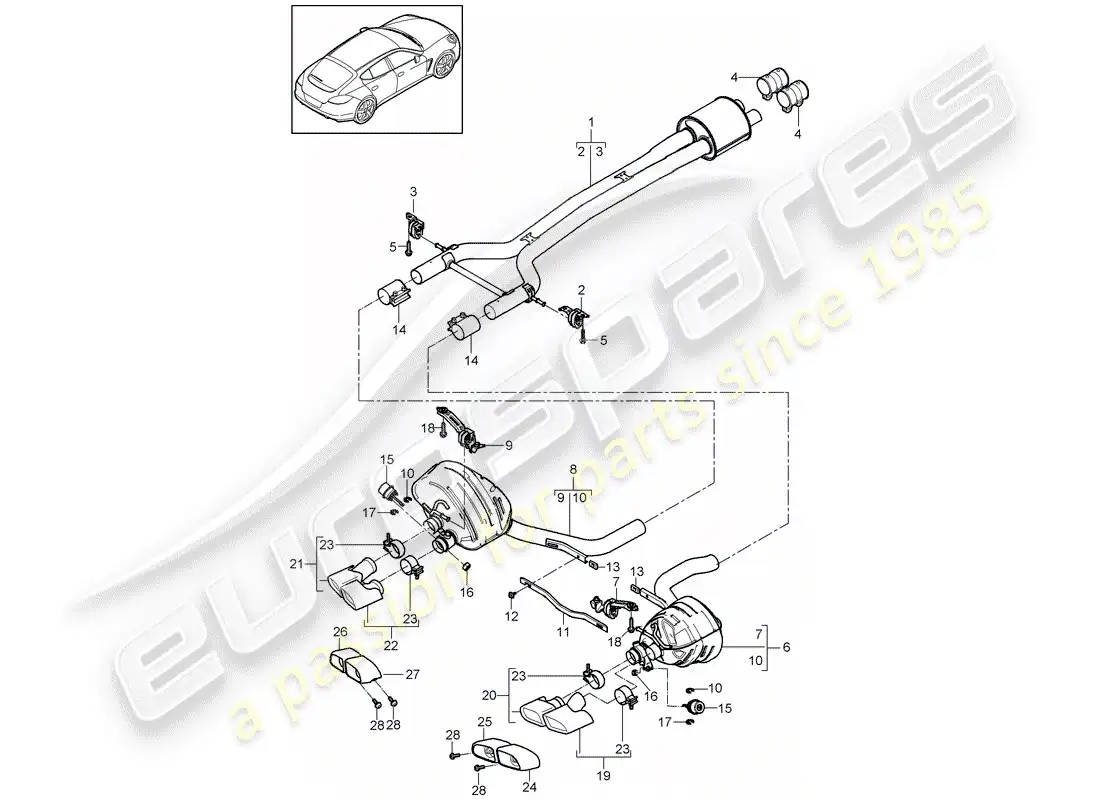

-part-diagram-202-050.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM FRONT SILENCER REAR SILENCER PARTS DIAGRAM")

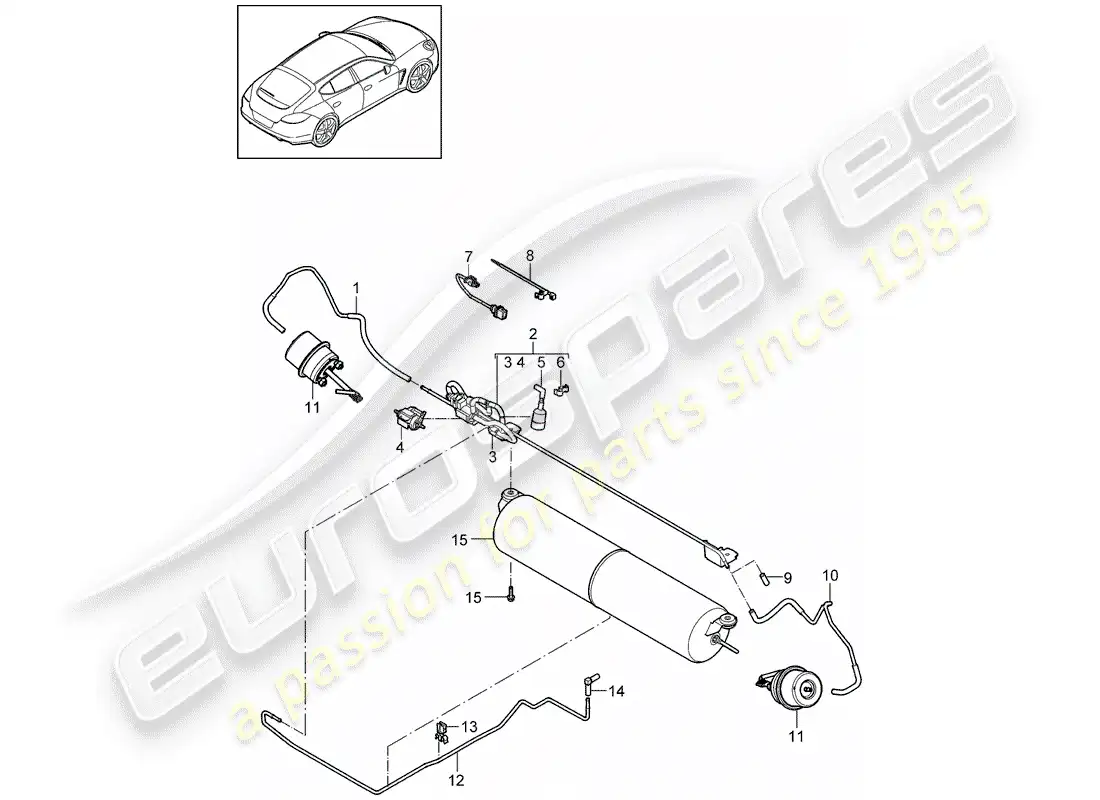

-part-diagram-202-055.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM CONTROL LINE PARTS DIAGRAM")

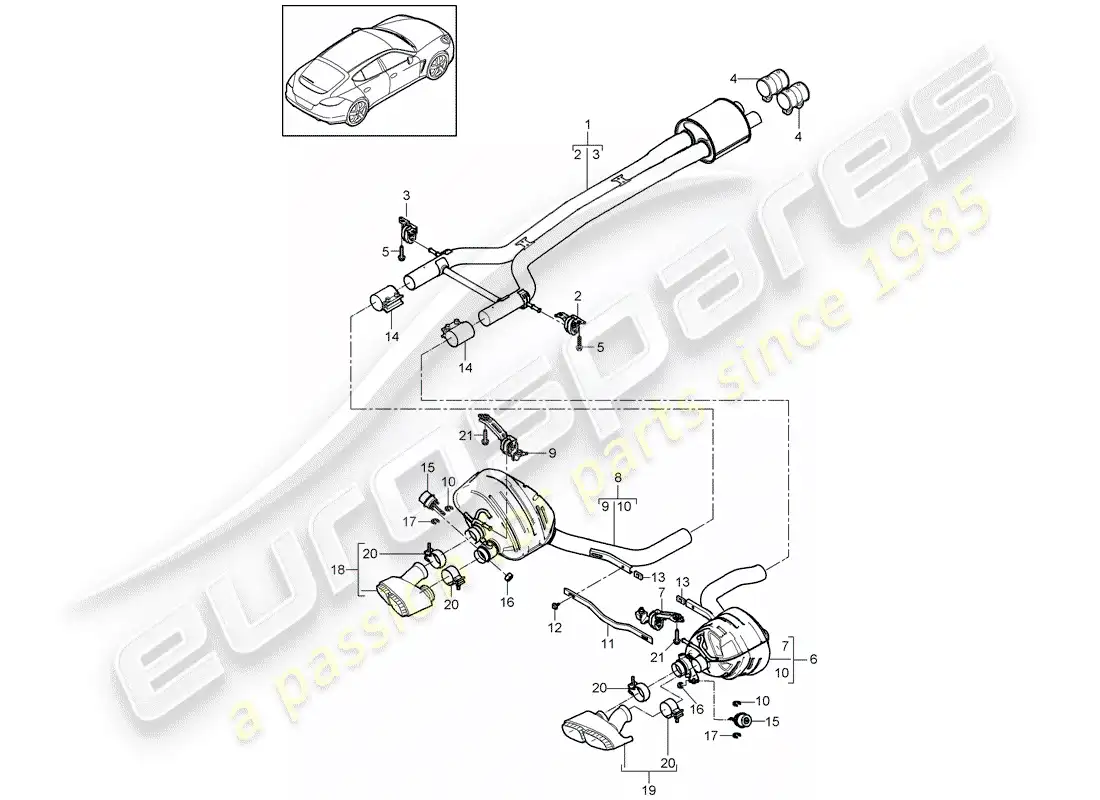

-part-diagram-202-060.webp "PORSCHE 2010 (PANAMERA 970) EXHAUST SYSTEM SPORT VERSION FRONT SILENCER REAR SILENCER D >>- MJ 2013 PARTS DIAGRAM")
