P176 (Sports exhaust system) | PXLF (Sports exhaust system)
porsche 2010 (panamera 970) exhaust system sport version and turbo s control line parts diagram

202-065 - exhaust system Sport version and TURBO S Control line

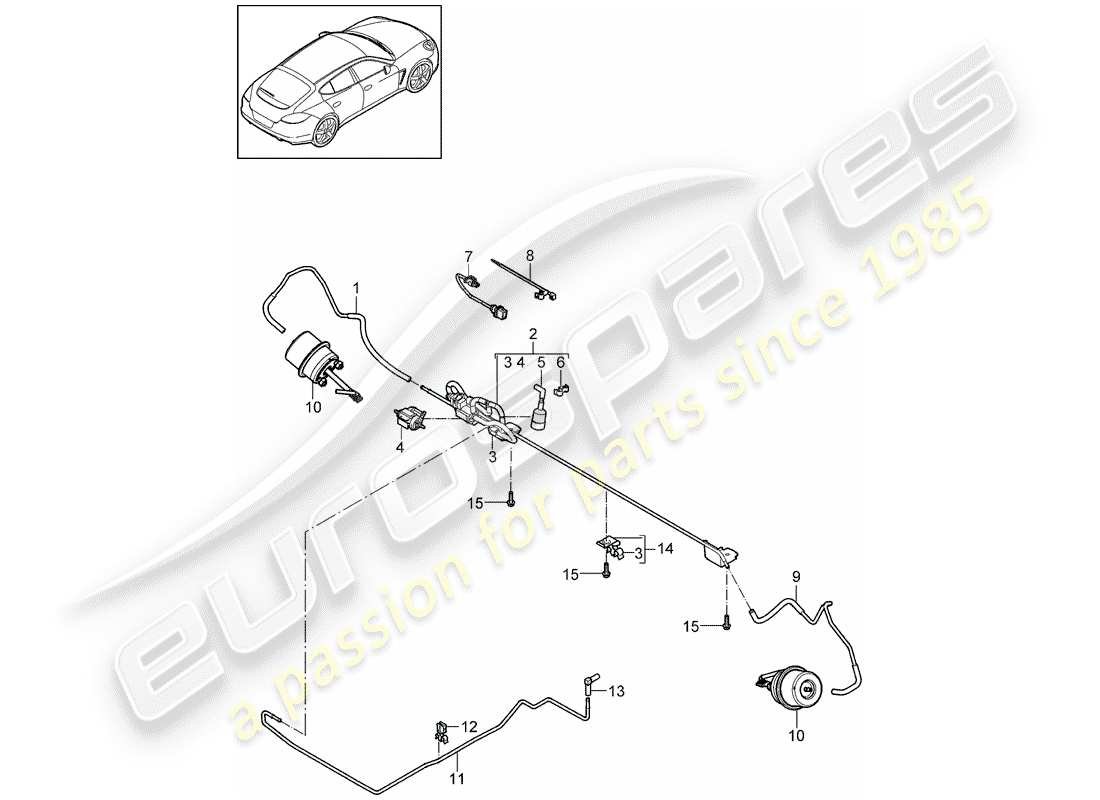

Porsche 2010 (Panamera 970) exhaust system Sport version and TURBO S Control line Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 97011131651
                        CONTROL LINE LEFT
                        from £54.24
                        from £54.24
                        control line Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 97011131251
                        Change-over valve Included Control line
                        Change-over valve Included Control line
                        Change-over valve Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 97011131252
                        CHANGE-OVER VALVE INCLUDED CONTROL LINE NOTE: SEE TECHNICAL INFORMATION GROUP: 2 2637 88/16
                        Change-over valve Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 95551164500
                        CLIP
                        from £1.18
                        from £1.18
                        CLIP Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 95551164500
                        CLIP
                        P475 (PASM electronic damper control)
                        from £1.18
                        from £1.18
                        CLIP Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 7PP906283F
                        CHANGE-OVER VALVE NOTE: SEE TECHNICAL INFORMATION GROUP: 2 2637 88/16
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        Genuine Lamborghini (no longer available to order)
                        # 5
                        MPN: 298941749
                        FILTER ELEMENT NOTE: SEE TECHNICAL INFORMATION GROUP: 2 2637 88/16
                        from £40.74
                        from £40.74
                        FILTER Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 99950799740
                        BRACKET 6,0 / 9,5 NOTE: SEE TECHNICAL INFORMATION GROUP: 2 2637 88/16
                        from £0.97
                        from £0.97
                        BRACKET Genuine Porsche Part - New (to order)
                        # 7
                        MPN: 99161294400
                        WIRE SET ADAPTER NOTE: SEE TECHNICAL INFORMATION GROUP: 2 2637 88/16
                        from £43.20
                        from £43.20
                        harness Genuine Porsche Part - New (to order)
                        # 8
                        MPN: N 10741501
                        CABLE TIES A05-4.5 X 140 X C01-6 NOTE: SEE TECHNICAL INFORMATION GROUP: 2 2637 88/16
                        from £1.36
                        from £1.36
                        TIE WRAP Genuine Porsche Part - New (to order)
                        # 9
                        MPN: 97011131751
                        CONTROL LINE RIGHT
                        from £54.24
                        from £54.24
                        control line Genuine Porsche Part - New (to order)
                        # 10
                        -
                        VACUUM UNIT SEE ILLUSTRATION, ITEM: 202-060,15
                        # 11
                        MPN: 97011131352
                        CONTROL LINE CENTER
                        from £47.99
                        from £47.99
                        control line Genuine Porsche Part - New (to order)
                        # 12
                        MPN: 99950717640
                        LINE HOLDER 6,0
                        from £2.86
                        from £2.86
                        LINE HOLDER Genuine Porsche Part - New (to order)
                        # 13
                        MPN: 97011131850
                        ELBOW FITTING
                        from £22.26
                        from £22.26
                        ELBOW Genuine Porsche Part - New (to order)
                        # 14
                        MPN: 97011131550
                        RETAINING BAR
                        4820 (4.8 Litre 8 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: 4820 and installed 08/2009-05/2013) | 4840 (4.8 Litre 8 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: 4840 and installed 08/2009-05/2013) 4840 (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: 4840 and installed 05/2012-05/2013) | CXPA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXPA and installed 05/2013-05/2016) | CXRA (4.8 Litre 8 Cyliner Engine (440 Horsepower / 324 Kilowatt with Engine Code: CXRA and installed 05/2013-05/2014) CXRA (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXRA and installed 05/2014-05/2016) | CXR (4.8 Litre 8 Cyliner Engine (429 Horsepower / 316 Kilowatt with Engine Code: CXR and installed 05/2015-05/2016) | CWDA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWDA and installed 05/2013-05/2016) | CWD (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: CWD and installed 05/2014-05/2016) | CWFA (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWFA and installed 05/2013-05/2014) | CWF (3.0 Litre 6 Cyliner Engine (319 Horsepower / 235 Kilowatt with Engine Code: CWF and installed 05/2013-05/2016) with, P475 (PASM electronic damper control)
                        from £19.56
                        from £19.56
                        RETAINER Genuine Porsche Part - New (to order)
                        # 14
                        MPN: 97011131550
                        RETAINING BAR
                        4620 (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: 4620 and installed 08/2010-05/2013) | 4640 (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: 4640 and installed 08/2010-05/2013) | CWAA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CWAA and installed 05/2013-05/2014) CWAA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CWAA and installed 05/2014-05/2016) | CXNA (3.6 Litre 6 Cyliner Engine (299 Horsepower / 220 Kilowatt with Engine Code: CXNA and installed 05/2013-05/2014) CXNA (3.6 Litre 6 Cyliner Engine (310 Horsepower / 228 Kilowatt with Engine Code: CXNA and installed 05/2014-05/2016) with, P029 (Standard chassis)
                        from £19.56
                        from £19.56
                        RETAINER Genuine Porsche Part - New (to order)
                        # 14
                        -
                        BRACKET PRESSURE ACCUMULATOR SEE ILLUSTRATION: 606-000
                        P350 (Air suspension) | P351 (Air suspension with PDCC)
                        # 15
                        MPN: N 10721401
                        OVAL HD. SELF-TAPP FITT. SCREW 6 X 16
                        P475 (PASM electronic damper control)
                        from £0.47
                        from £0.47
                        TAPPING SCREW, FILL. HD Genuine Porsche Part - New In stock
                        SCREW TP6X16-Q Genuine Lamborghini - New In stock
                        # 15
                        -
                        FILLISTER HD. BOLT 6 X 35 SEE ILLUSTRATION: 606-000
                        P350 (Air suspension) | P351 (Air suspension with PDCC)
