porsche 2010 (panamera 970) oil pipe for exhaust gas turbocharger parts diagram

202-090 - Oil pipe for Exhaust gas turbocharger

Porsche 2010 (Panamera 970) Oil pipe for Exhaust gas turbocharger Parts Diagram

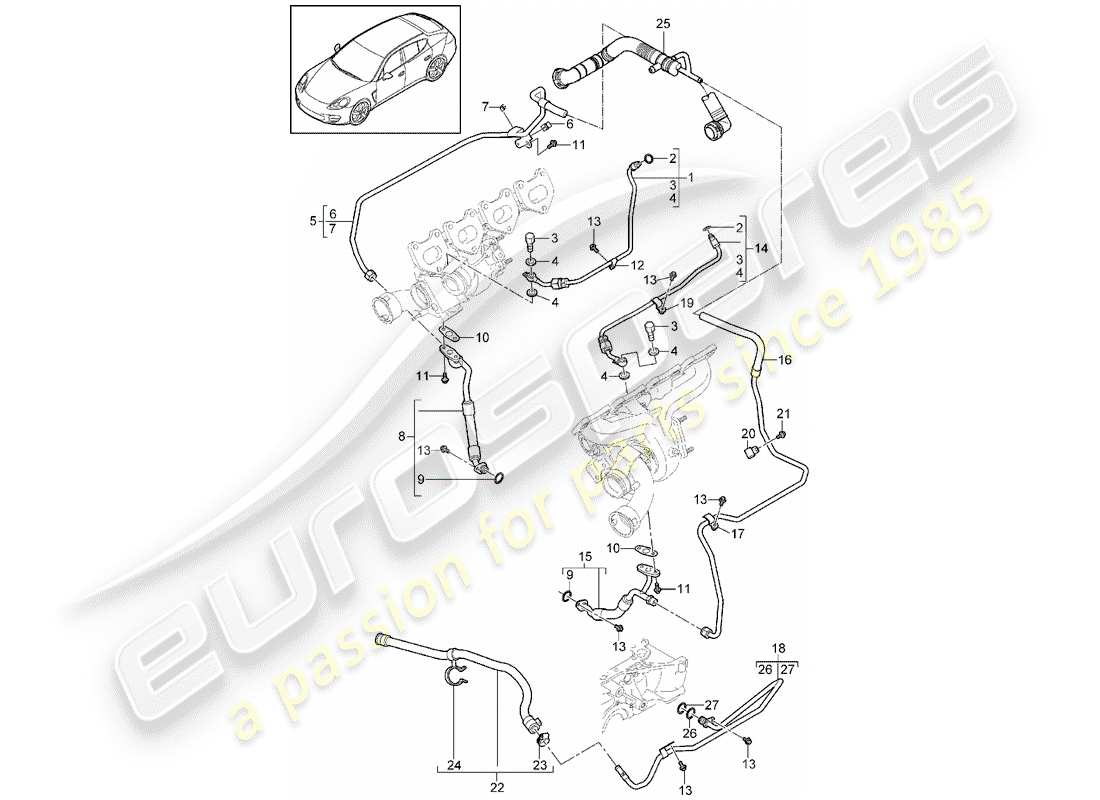

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: 94810708670
                                          Pressure line Cylinders 1-4 Included Non-return valve
                                          Pressure line Cylinders 1-4 Included Non-return valve
                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                          # 1
                                          MPN: 94810708671
                                          PRESSURE LINE CYLINDERS 1-4 INCLUDED O-RING AND NON-RETURN VALVE
                                          from £116.68
                                          from £116.68
                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                          # 2
                                          MPN: 99970776340
                                          O-RING 5,8 X 1,7
                                          from £4.52
                                          from £4.52
                                          O-RING Genuine Porsche Part - New (to order)
                                          # 3
                                          MPN: 99913402201
                                          BANJO BOLT M 12 X 1,5
                                          from £12.08
                                          from £12.08
                                          BANJO BOLT Genuine Porsche Part - New (to order)
                                          # 4
                                          MPN: 90012300530
                                          SEAL RING A 12 X 16
                                          SEAL RING A 12 X 16
                                          from £0.91
                                          from £0.91
                                          seal ring - A 12X16 AL Genuine Porsche Part - New (to order)
                                          # 4
                                          MPN: 90012300520
                                          SEAL RING A 12 X 16
                                          from £0.59
                                          from £0.59
                                          SEAL RING - A 8 X 11,5 Genuine Porsche Part - New In stock
                                          # 5
                                          MPN: 94810709073
                                          BREATHER LINE CYLINDERS 1-4 M >>B 00769
                                          breather line Genuine Porsche Part - New (to order)
                                          # 5
                                          MPN: 94810709270
                                          OIL PIPE CYLINDERS 1-4
                                          OIL PIPE CYLINDERS 1-4
                                          OIL PIPE Genuine Porsche Part - New (to order)
                                          # 5
                                          MPN: 94810709271
                                          OIL PIPE CYLINDERS 1-4 M B 00770 >>
                                          from £273.94
                                          from £273.94
                                          OIL PIPE Genuine Porsche Part - New (to order)
                                          # 6
                                          MPN: 99965139440
                                          CABLE HOLDER 6,0
                                          from £0.91
                                          from £0.91
                                          CABLE HOLDER Genuine Porsche Part - New (to order)
                                          # 7
                                          MPN: 99965139207
                                          CABLE HOLDER 9,5 - 10,5
                                          from £0.59
                                          from £0.59
                                          CABLE HOLDER Genuine Porsche Part - New (to order)
                                          # 8
                                          MPN: 94810708870
                                          OIL PIPE CYLINDERS 1-4 M >>B 00769
                                          OIL PIPE Genuine Porsche Part - New (to order)
                                          # 9
                                          MPN: 99970756840
                                          O-RING 12 X 3
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 10
                                          MPN: 94810712350
                                          SEAL
                                          from £3.36
                                          from £3.36
                                          GASKET Genuine Porsche Part - New In stock
                                          # 11
                                          MPN: 90038500901
                                          HEXAGON HEAD BOLT BM 6 X 16
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 12
                                          MPN: 99951174100
                                          CLAMP 8 X 15
                                          from £5.09
                                          from £5.09
                                          CLAMP Genuine Porsche Part - New (to order)
                                          # 13
                                          MPN: 90038504101
                                          HEXAGON HEAD BOLT BM 6 X 12
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 14
                                          MPN: 94810708770
                                          Pressure line Cylinder 5-8 Included Non-return valve
                                          Pressure line Cylinder 5-8 Included Non-return valve
                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                          # 14
                                          MPN: 94810708771
                                          PRESSURE LINE CYLINDER 5-8 INCLUDED O-RING AND NON-RETURN VALVE
                                          from £116.68
                                          from £116.68
                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                          # 15
                                          MPN: 94810708971
                                          OIL PIPE CYLINDER 5-8 M >>B 00769
                                          OIL PIPE Genuine Porsche Part - New (to order)
                                          # 16
                                          MPN: 94810709172
                                          BREATHER LINE CYLINDER 5-8 M >>B 00769
                                          breather line Genuine Porsche Part - New (to order)
                                          # 16
                                          MPN: 94810709370
                                          Oil pipe Cylinder 5-8
                                          Oil pipe Cylinder 5-8
                                          OIL PIPE Genuine Porsche Part - New (to order)
                                          # 16
                                          MPN: 94810709371
                                          OIL PIPE CYLINDER 5-8 M B 00770 >>
                                          from £206.77
                                          from £206.77
                                          OIL PIPE Genuine Porsche Part - New (to order)
                                          # 17
                                          MPN: 99951126501
                                          CLAMP 10 - 10 X 15
                                          from £18.59
                                          from £18.59
                                          CLAMP Genuine Porsche Part - New (to order)
                                          # 18
                                          MPN: 94810726075
                                          Ventilation pipe Included O-ring
                                          Ventilation pipe Included O-ring
                                          from £98.82
                                          from £98.82
                                          VENTILATION PIPE Genuine Porsche Part - New (to order)
                                          # 18
                                          MPN: 94810726076
                                          VENTILATION PIPE BUT WITHOUT: O-RING ALSO USE: 1X 999 707 711 40 1X 999 707 669 40
                                          from £115.42
                                          from £115.42
                                          VENTILATION PIPE Genuine Porsche Part - New (to order)
                                          # 19
                                          MPN: 99951126501
                                          CLAMP 10 - 10 X 15
                                          from £18.59
                                          from £18.59
                                          CLAMP Genuine Porsche Part - New (to order)
                                          # 20
                                          MPN: 99951111603
                                          CLAMP 10 X 15
                                          CLAMP 10 X 15
                                          from £4.52
                                          from £4.52
                                          CLAMP - SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                          # 20
                                          MPN: N 0206517
                                          CLAMP 10 X 15
                                          from £1.13
                                          from £1.13
                                          CLAMP Genuine Porsche Part - New (to order)
                                          HOLDING CLIP Genuine Lamborghini - New In stock
                                          # 21
                                          MPN: 90037803601
                                          HEXAGON BOLT M 6 X 12
                                          from £0.59
                                          from £0.59
                                          SCREW, HEX. HD. - M 6 X 12 Genuine Porsche Part - New (to order)
                                          # 22
                                          MPN: 97011025971
                                          VENT HOSE
                                          from £53.46
                                          from £53.46
                                          VENT HOSE Genuine Porsche Part - New (to order)
                                          # 23
                                          MPN: 99951248900
                                          HOSE CLIP 15,7 - 18,5
                                          from £4.52
                                          from £4.52
                                          HOSE CLIP Genuine Porsche Part - New (to order)
                                          # 24
                                          MPN: 99950717540
                                          LINE HOLDER 11,5 / 20,0
                                          from £0.65
                                          from £0.65
                                          LINE HOLDER Genuine Porsche Part - New (to order)
                                          # 25
                                          -
                                          BREATHER LINE SEE ILLUSTRATION, ITEM: 107-015,5
                                          # 26
                                          MPN: 99970771140
                                          O-RING 10 X 3
                                          from £3.28
                                          from £3.28
                                          O-RING Genuine Porsche Part - New (to order)
                                          # 27
                                          MPN: 99970766940
                                          O-RING 10 X 3
                                          from £3.28
                                          from £3.28
                                          O-RING Genuine Porsche Part - New (to order)
