C7000 (7C Gearbox with Transmission Code: C7000 and installed 08/10-05/13) | C7005 (7C Gearbox with Transmission Code: C7005 and installed 08/09-05/13) | C7030 (7C Gearbox with Transmission Code: C7030 and installed 08/10-05/13) | C7035 (7C Gearbox with Transmission Code: C7035 and installed 08/09-05/13) | C7050 (7C Gearbox with Transmission Code: C7050 and installed 08/09-05/13) | C7001 (7C Gearbox with Transmission Code: C7001 and installed 05/13-05/16) | C7031 (7C Gearbox with Transmission Code: C7031 and installed 05/13-05/16) | C7051 (7C Gearbox with Transmission Code: C7051 and installed 05/13-05/16)
porsche 2010 (panamera 970) - pdk - gearbox gear oil cooler oil pipe parts diagram

360-000 - - PDK - Gearbox Gear oil cooler Oil pipe

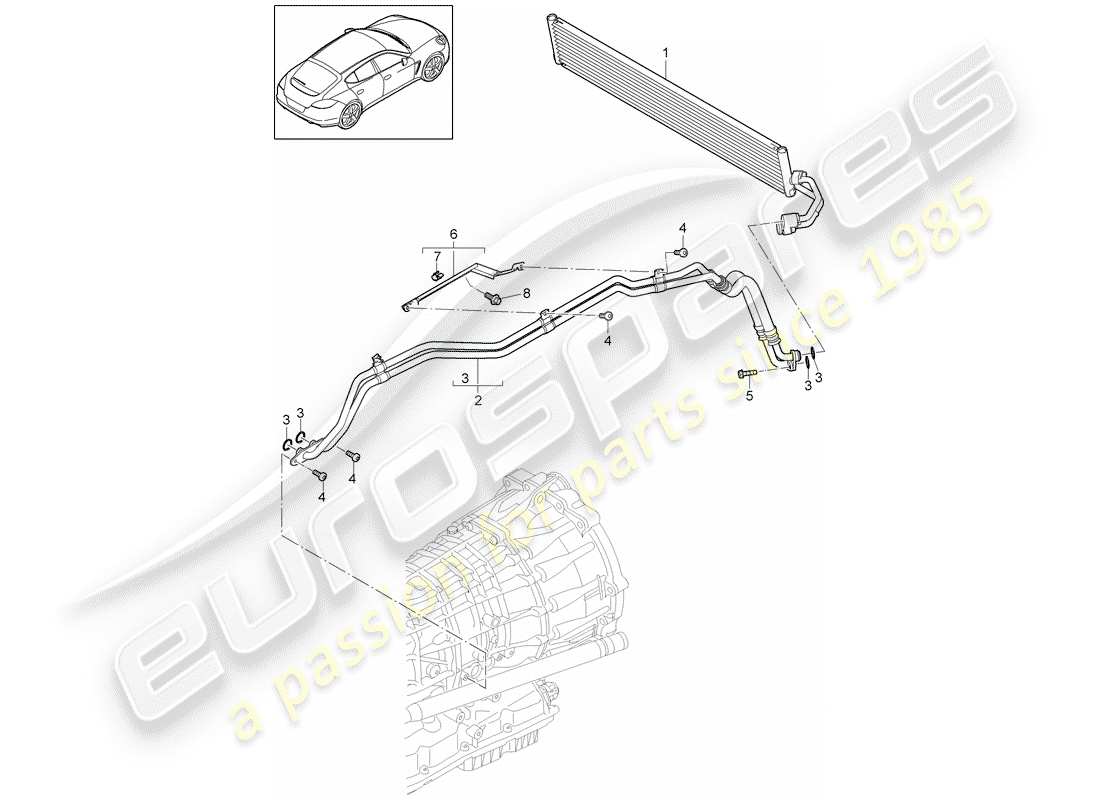

Porsche 2010 (Panamera 970) - PDK - Gearbox Gear oil cooler Oil pipe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 97030701502
          GEAR OIL COOLER
          GEAR OIL COOLER
          GEAR OIL COOLER Genuine Porsche Part - New (to order)
          # 1
          MPN: 97030701503
          GEAR OIL COOLER
          GEAR OIL COOLER
          GEAR OIL COOLER Genuine Porsche Part - New (to order)
          # 1
          MPN: 97030701505
          GEAR OIL COOLER
          from £403.32
          from £403.32
          GEAR OIL COOLER Genuine Porsche Part - New (to order)
          # 2
          MPN: 97030708201
          OIL PIPE (COMPLETE)
          from £227.15
          from £227.15
          OIL PIPE Genuine Porsche Part - New (to order)
          # 3
          MPN: 99970764740
          O-RING 15 X 3,6
          O-RING 15 X 3,6
          from £3.48
          from £3.48
          O-RING Genuine Porsche Part - New (to order)
          # 3
          MPN: 9A700819800
          O-RING 15 X 3,6
          from £2.08
          from £2.08
          O-RING Genuine Porsche Part - New In stock
          # 4
          MPN: 99907310301
          FLAT ROUND HEAD BOLT M 6 X 16
          from £0.91
          from £0.91
          SCREW, ROUND HD Genuine Porsche Part - New (to order)
          # 5
          MPN: N 90842402
          HEXAGON HEAD BOLT (COMBI) M 6 X 22
          from £0.69
          from £0.69
          BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
          # 6
          MPN: 97010641600
          BRACKET
          C7000 (7C Gearbox with Transmission Code: C7000 and installed 08/10-05/13) | C7005 (7C Gearbox with Transmission Code: C7005 and installed 08/09-05/13) | C7030 (7C Gearbox with Transmission Code: C7030 and installed 08/10-05/13) | C7035 (7C Gearbox with Transmission Code: C7035 and installed 08/09-05/13) | C7001 (7C Gearbox with Transmission Code: C7001 and installed 05/13-05/16) | C7031 (7C Gearbox with Transmission Code: C7031 and installed 05/13-05/16)
          from £15.56
          from £15.56
          BRACKET Genuine Porsche Part - New (to order)
          # 6
          MPN: 94810742071
          BRACKET
          C7050 (7C Gearbox with Transmission Code: C7050 and installed 08/09-05/13) | C7051 (7C Gearbox with Transmission Code: C7051 and installed 05/13-05/16)
          from £34.81
          from £34.81
          BRACKET Genuine Porsche Part - New (to order)
          # 7
          MPN: 94811121300
          CLIP
          C7050 (7C Gearbox with Transmission Code: C7050 and installed 08/09-05/13) | C7051 (7C Gearbox with Transmission Code: C7051 and installed 05/13-05/16)
          from £1.25
          from £1.25
          CLAMP Genuine Porsche Part - New (to order)
          # 8
          MPN: 90038504401
          TORX SCREW BM 8 X 16
          from £2.29
          from £2.29
          TORX SCREW Genuine Porsche Part - New (to order)
