P351 (Air suspension with PDCC) | P355 (Air suspension and PASM, PDCC Comfort)
porsche 2010 (panamera 970) anti-roll bar valve block junction pressure line d - mj 2014>> parts diagram

402-022 - Anti-roll bar Valve block Junction Pressure line D - MJ 2014>>

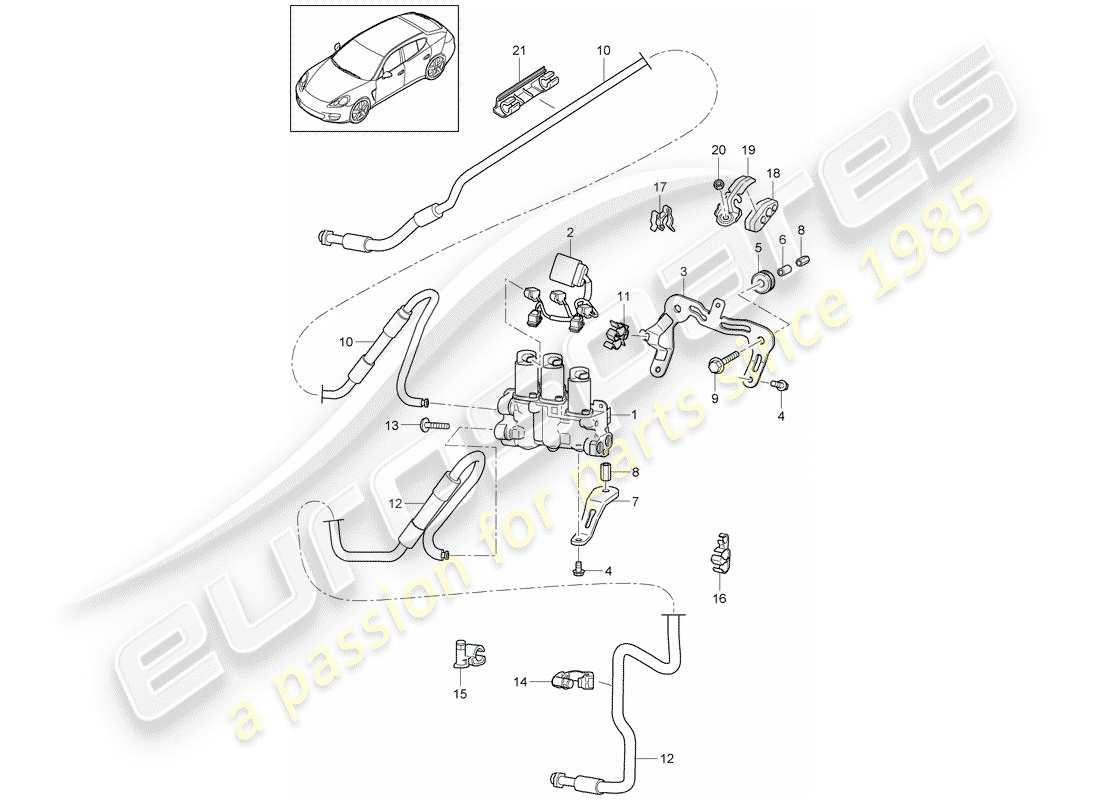

Porsche 2010 (Panamera 970) Anti-roll bar Valve block Junction Pressure line D - MJ 2014>> Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: 97035907506
                                              VALVE BLOCK
                                              VALVE BLOCK Genuine Porsche Part - New (to order)
                                              # 2
                                              MPN: 97061289800
                                              WIRE SET VALVE BLOCK
                                              from £39.66
                                              from £39.66
                                              harness Genuine Porsche Part - New (to order)
                                              # 3
                                              MPN: 97035932101
                                              BRACKET UPPER
                                              from £60.41
                                              from £60.41
                                              BRACKET Genuine Porsche Part - New (to order)
                                              # 4
                                              MPN: 90037803601
                                              HEXAGON BOLT M 6 X 12
                                              from £0.59
                                              from £0.59
                                              SCREW, HEX. HD. - M 6 X 12 Genuine Porsche Part - New (to order)
                                              # 5
                                              MPN: 96435663500
                                              RUBBER BUSH
                                              from £8.77
                                              from £8.77
                                              rubber isolator - D - MJ 2004>> Genuine Porsche Part - New (to order)
                                              # 6
                                              MPN: 95534363300
                                              BEARING BUSH
                                              from £1.65
                                              from £1.65
                                              BUSHING Genuine Porsche Part - New (to order)
                                              # 7
                                              MPN: 97035912302
                                              BRACKET LOWER
                                              from £31.20
                                              from £31.20
                                              BRACKET Genuine Porsche Part - New (to order)
                                              # 8
                                              MPN: 99950006601
                                              RIVETTED CAP NUT M 6
                                              from £0.91
                                              from £0.91
                                              RIVETTED CAP NUT Genuine Porsche Part - New (to order)
                                              # 9
                                              MPN: 90007548201
                                              HEXAGON BOLT M 6 X 30
                                              from £0.91
                                              from £0.91
                                              SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                              # 10
                                              MPN: 97035923505
                                              PRESSURE LINE
                                              from £316.24
                                              from £316.24
                                              PRESSURE LINE Genuine Porsche Part - New (to order)
                                              # 11
                                              MPN: 99965134740
                                              BRACKET
                                              from £2.14
                                              from £2.14
                                              BRACKET Genuine Porsche Part - New (to order)
                                              # 12
                                              MPN: 97035922504
                                              RETURN LINE
                                              RETURN LINE Genuine Porsche Part - New (to order)
                                              # 13
                                              MPN: 99907340701
                                              Screw M 8 X 25
                                              from £1.39
                                              from £1.39
                                              SCREW Genuine Porsche Part - New (to order)
                                              # 14
                                              MPN: 99950715640
                                              BRACKET
                                              from £3.18
                                              from £3.18
                                              BRACKET Genuine Porsche Part - New (to order)
                                              # 15
                                              MPN: 99950782740
                                              HOSE BRACKET
                                              from £2.29
                                              from £2.29
                                              BRACKET FOR HOSE Genuine Porsche Part - New (to order)
                                              # 16
                                              MPN: 97035937102
                                              CLIP
                                              from £5.93
                                              from £5.93
                                              CLIP Genuine Porsche Part - New (to order)
                                              # 17
                                              MPN: 99950786840
                                              CABLE HOLDER 8,0 / 12,0
                                              from £1.39
                                              from £1.39
                                              CABLE HOLDER Genuine Porsche Part - New (to order)
                                              # 18
                                              MPN: 97035937500
                                              RUBBER GROMMET
                                              from £4.29
                                              from £4.29
                                              RUBBER GROMMET Genuine Porsche Part - New (to order)
                                              # 19
                                              MPN: 97035932702
                                              BRACKET PDCC
                                              from £34.49
                                              from £34.49
                                              BRACKET Genuine Porsche Part - New (to order)
                                              # 20
                                              MPN: 99904903101
                                              HEXAGON NUT T 5
                                              from £0.82
                                              from £0.82
                                              HEX. NUT Genuine Porsche Part - New (to order)
                                              # 21
                                              MPN: 97035936300
                                              BRACKET FOR PRESSURE LINE
                                              from £11.56
                                              from £11.56
                                              BRACKET FOR PRESSURE LINE Genuine Porsche Part - New (to order)
                                              # 22
                                              MPN: 99970388350
                                              RUBBER BUSH
                                              from £10.86
                                              from £10.86
                                              RUBBER ISOLATOR Genuine Porsche Part - New (to order)
