TURBO, TURBO S, CWBA (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWBA and installed 05/2013-05/2016) | CWB (4.8 Litre 8 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: CWB and installed 05/2015-05/2016) | CWCA (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWCA and installed 05/2013-05/2016) | CWC (4.8 Litre 8 Cyliner Engine (569 Horsepower / 419 Kilowatt with Engine Code: CWC and installed 05/2015-05/2016)
porsche 2010 (panamera 970) disc brake rear axle d - mj 2014>> parts diagram

603-007 - Disc brake Rear axle D - MJ 2014>>

Porsche 2010 (Panamera 970) Disc brake Rear axle D - MJ 2014>> Parts Diagram

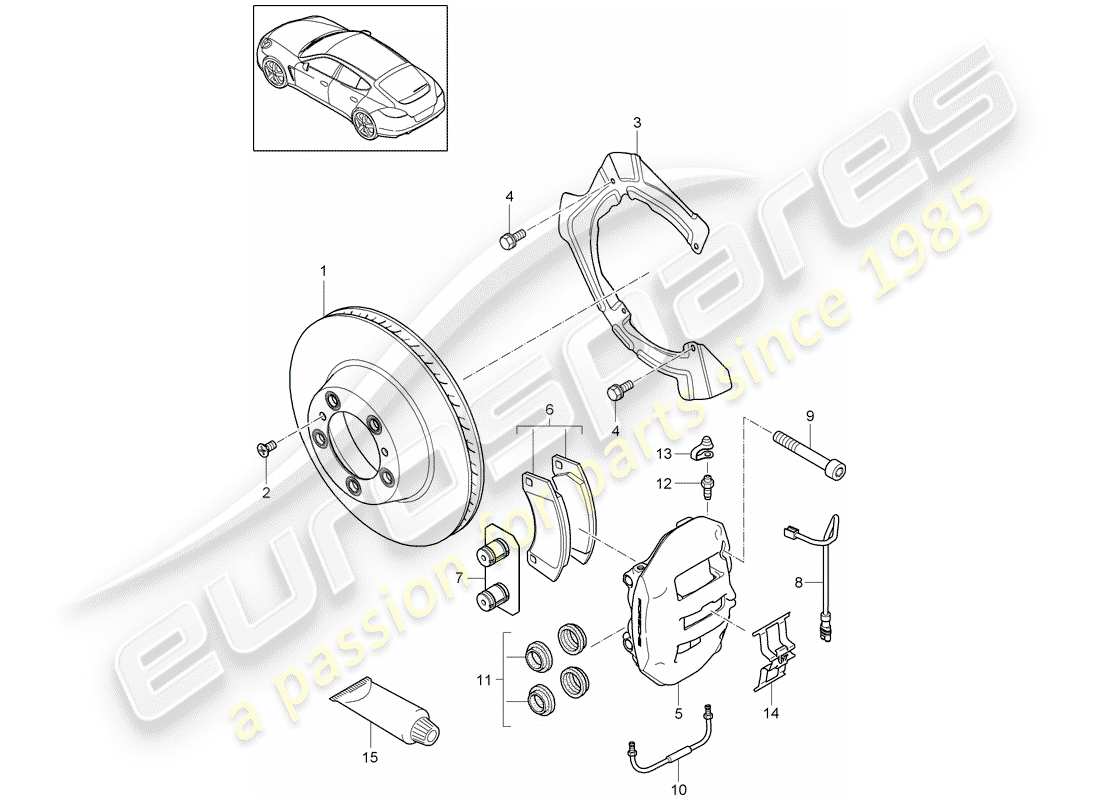

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 298615601B
                    BRAKE DISC LEFT REAR ALSO USE: 1X 298 615 602 B 1X 970 352 949 05
                    P without 450, P without 016
                    from £205.06
                    from £205.06
                    BRAKE DISC Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 298615602B
                    BRAKE DISC RIGHT REAR ALSO USE: 1X 298 615 601 B 1X 970 352 949 05
                    P without 450, P without 016
                    from £205.06
                    from £205.06
                    BRAKE DISC Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 298615601
                    Brake disc left rear also use: 1x 298 615 602 1x 991 352 948 03
                    Brake disc left rear also use: 1x 298 615 602 1x 991 352 948 03
                    BRAKE DISC Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 298615601C
                    BRAKE DISC LEFT REAR ALSO USE: 1X 298 615 602 C 1X 991 352 948 03
                    P450 (Ceramic brake (PCCB))
                    BRAKE DISC Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 298615602
                    Brake disc right rear also use: 1x 298 615 601 1x 991 352 948 03
                    Brake disc right rear also use: 1x 298 615 601 1x 991 352 948 03
                    BRAKE DISC Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 298615602C
                    BRAKE DISC RIGHT REAR ALSO USE: 1X 298 615 601 C 1X 991 352 948 03
                    P450 (Ceramic brake (PCCB))
                    BRAKE DISC Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 90026904703
                    countersunk bolt M6X12
                    countersunk bolt M6X12
                    from £0.50
                    from £0.50
                    SCREW, COUNTERSUNK HD Genuine Porsche Part - New (to order)
                    # 2
                    MPN: N 10456004
                    Hexagon socket head bolt, M6X12 self-locking
                    from £0.47
                    from £0.47
                    HEXAGON SOCKET HEAD BOLT, Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 97035280101
                    COVER PLATE LEFT
                    from £23.75
                    from £23.75
                    COVER PLATE Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 97035280201
                    COVER PLATE RIGHT
                    from £23.75
                    from £23.75
                    COVER PLATE Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 97035280533
                    COVER PLATE LEFT
                    from £141.42
                    from £141.42
                    COVER PLATE Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 97035280633
                    COVER PLATE RIGHT
                    P450 (Ceramic brake (PCCB))
                    from £141.42
                    from £141.42
                    COVER PLATE Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 99921711601
                    HEXAGON BOLT M 6 X 16
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 5
                    MPN: 00004311039
                    REPAIR SET FOR REAR AXLE FIXED CALLIPER RED COMPRISING: FIXED CALLIPER 1X LEFT FIXED CALLIPER 1X RIGHT F >>97-EL080 184
                    P without 450
                    from £614.52
                    from £614.52
                    REPAIR SET FOR Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 298615149B
                    FIXED CALLIPER LEFT RED F 97-EL080 185>>
                    P without 450
                    FIXED CALLIPER Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 00004311040
                    REPAIR SET FOR REAR AXLE FIXED CALLIPER YELLOW COMPRISING: FIXED CALLIPER 1X LEFT FIXED CALLIPER 1X RIGHT F >>97-EL070 482
                    P450 (Ceramic brake (PCCB))
                    from £682.79
                    from £682.79
                    REPAIR SET FOR Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 97035242534
                    CALIPER WITHOUT BRAKE PADS LEFT YELLOW F 97-EL070 483>>
                    P450 (Ceramic brake (PCCB))
                    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 298615150B
                    FIXED CALLIPER RIGHT YELLOW F 97-EL080 185>>
                    P without 450
                    FIXED CALLIPER Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 97035242634
                    CALIPER WITHOUT BRAKE PADS RIGHT YELLOW F 97-EL070 483>>
                    P450 (Ceramic brake (PCCB))
                    CALLIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 97035294905
                    1 set of brake pads for rear disk brake comprising: Brake lining 4x also use: Fasteners
                    P without 450, P without 016
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 6
                    MPN: 97035294908
                    1 set of brake pads for rear disk brake comprising: Brake lining 4x also use: Fasteners
                    P without 450, P without 016
                    from £152.14
                    from £152.14
                    This part replaces part number 97035294904 - and 1 more. Click to view details
                    1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 97035294908
                    1 set of brake pads for rear disk brake comprising: Brake lining 4x also use: Fasteners
                    P without 450, P without 016
                    from £152.14
                    from £152.14
                    This part replaces part number 97035294904 - and 1 more. Click to view details
                    1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 97035294703
                    1 set of brake pads for rear disk brake comprising: Brake lining 4x also use: Fasteners
                    1 set of brake pads for rear disk brake comprising: Brake lining 4x also use: Fasteners
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 6
                    MPN: 99135294803
                    1 set of brake pads for rear disk brake comprising: Brake lining 4x also use: Fasteners
                    P450 (Ceramic brake (PCCB))
                    from £420.58
                    from £420.58
                    1 SET OF BRAKE PADS FOR DISC Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99135294804
                    1 set of brake pads for rear disk brake comprising: Brake lining 4x also use: Fasteners
                    P450 (Ceramic brake (PCCB))
                    from £456.06
                    from £456.06
                    This part replaces part number 97035294703
                    1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 97035208600
                    DAMPING PLATE
                    from £13.56
                    from £13.56
                    DAMPING PLATE Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 95861236550
                    SENDER WIRE (PAD WEAR INDICATOR)
                    P without 450
                    from £19.57
                    from £19.57
                    SENDER WIRE Genuine Porsche Part - New In stock
                    # 8
                    MPN: 97060914500
                    SENDER WIRE (PAD WEAR INDICATOR)
                    P450 (Ceramic brake (PCCB))
                    from £25.36
                    from £25.36
                    SENDER WIRE Genuine Porsche Part - New (to order)
                    # 9
                    MPN: 99906704001
                    SOCKET HEAD BOLT M 12 X 1,5 X 95
                    from £12.92
                    from £12.92
                    SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 97035296100
                    connecting line
                    connecting line Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 99635191500
                    REPAIR SET 1 SET PROTECTIVE CAPS 32 MM COMPRISING: 1 SET PROTECTIVE CAPS 4X FOR FIXED CALLIPER 1X
                    from £13.98
                    from £13.98
                    repair kit - Protection caps - 32 MM $ - D - MJ 2004>> Genuine Porsche Part - New (to order)
                    # 12
                    MPN: 8A0615273
                    1 SET BLEEDER VALVES WITH DUST CAP
                    from £9.05
                    from £9.05
                    BLEEDER VALVE Genuine Porsche Part - New (to order)
                    BLEEDER SCREW Genuine Lamborghini - New (to order)
                    # 13
                    MPN: 211611483
                    DUST CAP CONTAINS: 20 PC
                    from £3.60
                    from £3.60
                    dust cap - D >> - MJ 1983 Genuine Porsche Part - New (to order)
                    DUST CAP Genuine Lamborghini - New (to order)
                    # 14
                    MPN: 97035295900
                    SPRING
                    from £39.59
                    from £39.59
                    SPRING Genuine Porsche Part - New (to order)
                    # 15
                    MPN: 00004311700
                    BRAKE CYLINDER PASTE 1 TUBE 50 GRAM
                    brake cylinder paste - Discontinued part Genuine Porsche Part - New (to order)
                    # 15
                    MPN: 00004302000
                    ASSEMBLY PASTE 1 TUBE 100 GRAM
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
