V8, P0E1 (Shorter wheelbase) | P0E2 (Long wheelbase)
porsche 2010 (panamera 970) bumper front turbo and gts 2nd generation d - mj 2014>> parts diagram

802-003 - bumper front Turbo and GTS 2nd generation D - MJ 2014>>

Porsche 2010 (Panamera 970) bumper front Turbo and GTS 2nd generation D - MJ 2014>> Parts Diagram

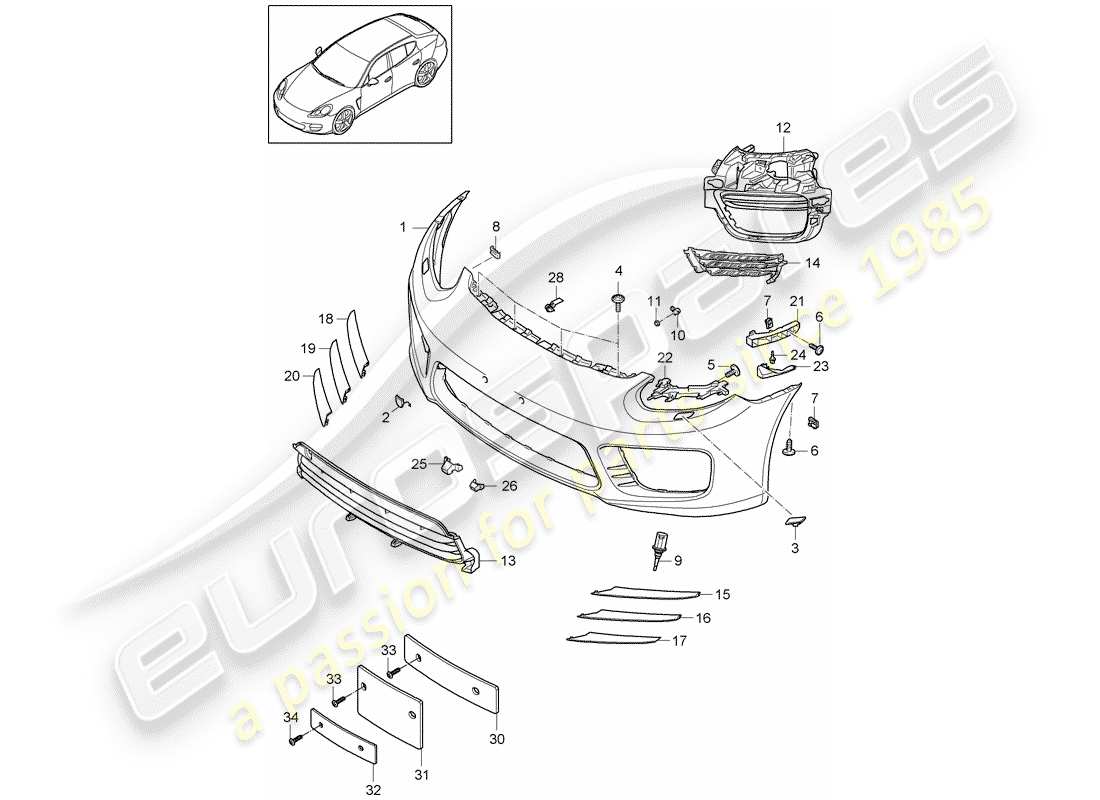

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 97050591134
                                  TRIM PRIMED WITH: PARKING AID CAMERA
                                  GTS, P015 (Special model: Panamera 4 GTS) | P633 (ParkAssist (front and rear) plus real Topview) | P636 (Park distance control in front and rear) | P638 (ParkAssist, front, rear and reversing camera) | P without 553
                                  from £664.12
                                  from £664.12
                                  LINING Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 97050591134
                                  TRIM PRIMED WITH: PARKING AID CAMERA
                                  Turbo, P without 553
                                  from £664.12
                                  from £664.12
                                  LINING Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 97050591136
                                  TRIM PRIMED
                                  GTS, P015 (Special model: Panamera 4 GTS) | P without 633, P without 636, P without 638
                                  from £657.90
                                  from £657.90
                                  LINING Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 970505703021E0
                                  COVER FOR TOWING EYE - BLACK
                                  from £13.59
                                  from £13.59
                                  This part replaces part number 97050570302
                                  COVER FOR TOWING EYE BLACK Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 970505703021E0
                                  COVER FOR TOWING EYE - BLACK
                                  P015 (Special model: Panamera 4 GTS)
                                  from £13.59
                                  from £13.59
                                  This part replaces part number 97050570302
                                  COVER FOR TOWING EYE BLACK Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 97050573100G2X
                                  COVER LEFT HEADLIGHT WASHER SYSTEM - PRIMED
                                  P288 (Headlamp washer)
                                  from £18.72
                                  from £18.72
                                  This part replaces part number 97050573100
                                  COVER left -headlight washer system (PR:288) primed Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 97050573200G2X
                                  COVER RIGHT HEADLIGHT WASHER SYSTEM - PRIMED
                                  P288 (Headlamp washer)
                                  from £18.72
                                  from £18.72
                                  This part replaces part number 97050573200
                                  COVER right - headlight washer system (PR:288) primed Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 99907344801
                                  Hexagon socket head bolt for Trim
                                  from £3.22
                                  from £3.22
                                  HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: 99907398130
                                  FILLISTER HD. BOLT M 6X14 RETAINING STRIP HEADLIGHTS
                                  FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 99907322709
                                  PANEL SCREW ST4,8X19-C
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 7
                                  MPN: 99950779509
                                  PANEL NUT ST 4,8
                                  Supersession
                                  Supersession
                                  Genuine Porsche Part (no longer available to order)
                                  # 8
                                  MPN: 97050571900
                                  FIXING FOR BUMPER COVER
                                  from £14.20
                                  from £14.20
                                  FIXING Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 95850553500
                                  SENSOR MODULE FOR OUTSIDE TEMPERATURE INDICATOR
                                  from £27.94
                                  from £27.94
                                  SENSOR MODULE Genuine Porsche Part - New (to order)
                                  # 10
                                  MPN: 5Q0919275 G2X
                                  SENSOR PARKING AID - PRIMED
                                  Supersession
                                  Supersession
                                  This part replaces part number 5Q0919275
                                  Genuine Porsche Part (no longer available to order)
                                  # 11
                                  MPN: 5Q0919133
                                  SEAL RING SENSOR PARKING AID
                                  from £0.47
                                  from £0.47
                                  Genuine Porsche Part (no longer available to order)
                                  GASKET ENTKOPPLUNGSRING Genuine Lamborghini - New In stock
                                  # 12
                                  MPN: 970505663011E0
                                  RETAINING FRAME LEFT SIDE - BLACK
                                  P015 (Special model: Panamera 4 GTS)
                                  from £54.22
                                  from £54.22
                                  This part replaces part number 97050566301
                                  Black Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 970505663011E0
                                  RETAINING FRAME LEFT SIDE - BLACK
                                  P without 015
                                  from £54.22
                                  from £54.22
                                  This part replaces part number 97050566301
                                  Black Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 970505664011E0
                                  RETAINING FRAME RIGHT SIDE - BLACK
                                  P015 (Special model: Panamera 4 GTS)
                                  from £54.22
                                  from £54.22
                                  This part replaces part number 97050566401
                                  Black Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 970505664011E0
                                  RETAINING FRAME RIGHT SIDE - BLACK
                                  P without 015
                                  from £54.22
                                  from £54.22
                                  This part replaces part number 97050566401
                                  Black Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 970505541081E0
                                  RETAINING FRAME - BLACK CENTER
                                  P015 (Special model: Panamera 4 GTS)
                                  from £106.07
                                  from £106.07
                                  This part replaces part number 97050554108
                                  Black Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 970505541081E0
                                  RETAINING FRAME - BLACK CENTER
                                  from £106.07
                                  from £106.07
                                  This part replaces part number 97050554108
                                  Black Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 970505541091E0
                                  RETAINING FRAME - BLACK CENTER
                                  P015 (Special model: Panamera 4 GTS) | P456 (Automatic distance control (ACC)) | P without 633
                                  from £120.51
                                  from £120.51
                                  This part replaces part number 97050554109
                                  Black Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 970505541091E0
                                  RETAINING FRAME - BLACK CENTER
                                  P456 (Automatic distance control (ACC)) | P without 633
                                  from £120.51
                                  from £120.51
                                  This part replaces part number 97050554109
                                  Black Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 970505541121E0
                                  RETAINING FRAME - BLACK CENTER
                                  P015 (Special model: Panamera 4 GTS) | P633 (ParkAssist (front and rear) plus real Topview) | P without 456
                                  from £351.74
                                  from £351.74
                                  This part replaces part number 97050554112
                                  Black Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 970505541121E0
                                  RETAINING FRAME - BLACK CENTER
                                  P633 (ParkAssist (front and rear) plus real Topview) | P without 456
                                  from £351.74
                                  from £351.74
                                  This part replaces part number 97050554112
                                  Black Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 970505541131E0
                                  RETAINING FRAME - BLACK CENTER 1E0
                                  P015 (Special model: Panamera 4 GTS) | P456 (Automatic distance control (ACC)) | P633 (ParkAssist (front and rear) plus real Topview)
                                  from £351.74
                                  from £351.74
                                  This part replaces part number 97050554113
                                  Black Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 970505541131E0
                                  RETAINING FRAME - BLACK CENTER
                                  P456 (Automatic distance control (ACC)) | P633 (ParkAssist (front and rear) plus real Topview)
                                  from £351.74
                                  from £351.74
                                  This part replaces part number 97050554113
                                  Black Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 97050557100
                                  MULTI-PLATE HOUSING LEFT SIDE
                                  from £150.67
                                  from £150.67
                                  DISC CARRIER Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 97050557100
                                  MULTI-PLATE HOUSING LEFT SIDE
                                  P015 (Special model: Panamera 4 GTS)
                                  from £150.67
                                  from £150.67
                                  DISC CARRIER Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 97050557200
                                  MULTI-PLATE HOUSING RIGHT SIDE
                                  from £150.67
                                  from £150.67
                                  DISC CARRIER Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 97050557200
                                  MULTI-PLATE HOUSING RIGHT SIDE
                                  P015 (Special model: Panamera 4 GTS)
                                  from £150.67
                                  from £150.67
                                  DISC CARRIER Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 970505513001E0
                                  DISC LEFT RETAINING FRAME UPPER - BLACK
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551300
                                  Black Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 970505513018Z8
                                  DISC LEFT RETAINING FRAME UPPER D - MJ 2015>>- BRILLIANT SILVER
                                  P0E2 (Long wheelbase)
                                  from £295.85
                                  from £295.85
                                  This part replaces part number 97050551301
                                  BRILLIANT SILVER Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 970505513001E0
                                  DISC LEFT RETAINING FRAME UPPER - BLACK
                                  P015 (Special model: Panamera 4 GTS)
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551300
                                  Black Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: 970505515001E0
                                  DISC LEFT RETAINING FRAME CENTER - BLACK
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551500
                                  Black Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: 970505515018Z8
                                  DISC LEFT RETAINING FRAME CENTER D - MJ 2015>>- BRILLIANT SILVER
                                  P0E2 (Long wheelbase)
                                  from £295.85
                                  from £295.85
                                  This part replaces part number 97050551501
                                  BRILLIANT SILVER Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: 970505515001E0
                                  DISC LEFT RETAINING FRAME CENTER - BLACK
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551500
                                  Black Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: 970505517001E0
                                  DISC LEFT RETAINING FRAME LOWER - BLACK
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551700
                                  Black Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: 970505517018Z8
                                  DISC LEFT RETAINING FRAME LOWER D - MJ 2015>>- BRILLIANT SILVER
                                  P0E2 (Long wheelbase)
                                  from £295.85
                                  from £295.85
                                  This part replaces part number 97050551701
                                  BRILLIANT SILVER Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: 970505517001E0
                                  DISC LEFT RETAINING FRAME LOWER - BLACK
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551700
                                  Black Genuine Porsche Part - New (to order)
                                  # 18
                                  MPN: 970505514001E0
                                  DISC RIGHT RETAINING FRAME UPPER - BLACK
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551400
                                  Black Genuine Porsche Part - New (to order)
                                  # 18
                                  MPN: 970505514018Z8
                                  DISC RIGHT RETAINING FRAME UPPER D - MJ 2015>>- BRILLIANT SILVER
                                  P0E2 (Long wheelbase)
                                  from £293.01
                                  from £293.01
                                  This part replaces part number 97050551401
                                  BRILLIANT SILVER Genuine Porsche Part - New (to order)
                                  # 18
                                  MPN: 970505514001E0
                                  DISC RIGHT RETAINING FRAME UPPER - BLACK
                                  P015 (Special model: Panamera 4 GTS)
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551400
                                  Black Genuine Porsche Part - New (to order)
                                  # 19
                                  MPN: 970505516001E0
                                  DISC RIGHT RETAINING FRAME CENTER - BLACK
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551600
                                  Black Genuine Porsche Part - New (to order)
                                  # 19
                                  MPN: 970505516018Z8
                                  DISC RIGHT RETAINING FRAME CENTER D - MJ 2015>>- BRILLIANT SILVER
                                  P0E2 (Long wheelbase)
                                  from £293.01
                                  from £293.01
                                  This part replaces part number 97050551601
                                  BRILLIANT SILVER Genuine Porsche Part - New (to order)
                                  # 19
                                  MPN: 970505516001E0
                                  DISC RIGHT RETAINING FRAME CENTER - BLACK
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551600
                                  Black Genuine Porsche Part - New (to order)
                                  # 20
                                  MPN: 970505518001E0
                                  DISC RIGHT RETAINING FRAME LOWER - BLACK
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551800
                                  Black Genuine Porsche Part - New (to order)
                                  # 20
                                  MPN: 970505518018Z8
                                  DISC RIGHT RETAINING FRAME LOWER D - MJ 2015>>- BRILLIANT SILVER
                                  P0E2 (Long wheelbase)
                                  from £293.01
                                  from £293.01
                                  This part replaces part number 97050551801
                                  BRILLIANT SILVER Genuine Porsche Part - New (to order)
                                  # 20
                                  MPN: 970505518001E0
                                  DISC RIGHT RETAINING FRAME LOWER - BLACK
                                  from £81.82
                                  from £81.82
                                  This part replaces part number 97050551800
                                  Black Genuine Porsche Part - New (to order)
                                  # 21
                                  MPN: 97050553503
                                  retaining strip left side
                                  from £20.57
                                  from £20.57
                                  RETAINING STRIP Genuine Porsche Part - New (to order)
                                  # 21
                                  MPN: 97050553601
                                  retaining strip right side
                                  from £20.57
                                  from £20.57
                                  RETAINING STRIP Genuine Porsche Part - New (to order)
                                  # 22
                                  MPN: 97050553700
                                  RETAINING STRIP LEFT HEADLIGHT RECESS
                                  from £31.24
                                  from £31.24
                                  RETAINING STRIP Genuine Porsche Part - New (to order)
                                  # 22
                                  MPN: 97050553800
                                  RETAINING STRIP RIGHT HEADLIGHT RECESS
                                  from £31.24
                                  from £31.24
                                  RETAINING STRIP Genuine Porsche Part - New (to order)
                                  # 23
                                  MPN: 97050532700
                                  CORNER PART LEFT
                                  from £25.02
                                  from £25.02
                                  CORNER PANEL Genuine Porsche Part - New (to order)
                                  # 23
                                  MPN: 97050532800
                                  CORNER PART RIGHT
                                  from £25.02
                                  from £25.02
                                  CORNER PANEL Genuine Porsche Part - New (to order)
                                  # 24
                                  MPN: 99919010430
                                  POP RIVET A 3,2 X 7,9
                                  from £0.59
                                  from £0.59
                                  pop-rivet - D >> - MJ 1990 - Discontinued part Genuine Porsche Part - New In stock
                                  # 25
                                  MPN: 970505735011E0
                                  HOUSING CAMERA - BLACK
                                  P633 (ParkAssist (front and rear) plus real Topview)
                                  from £15.91
                                  from £15.91
                                  This part replaces part number 97050573501
                                  Black Genuine Porsche Part - New (to order)
                                  # 25
                                  MPN: 970505735011E0
                                  HOUSING CAMERA - BLACK
                                  P015 (Special model: Panamera 4 GTS) | P633 (ParkAssist (front and rear) plus real Topview)
                                  from £15.91
                                  from £15.91
                                  This part replaces part number 97050573501
                                  Black Genuine Porsche Part - New (to order)
                                  # 26
                                  MPN: 97050574501
                                  RETAINING PLATE CAMERA
                                  P633 (ParkAssist (front and rear) plus real Topview)
                                  from £16.95
                                  from £16.95
                                  RETAINING PLATE Genuine Porsche Part - New (to order)
                                  # 26
                                  MPN: 97050574501
                                  RETAINING PLATE CAMERA
                                  P015 (Special model: Panamera 4 GTS) | P633 (ParkAssist (front and rear) plus real Topview)
                                  from £16.95
                                  from £16.95
                                  RETAINING PLATE Genuine Porsche Part - New (to order)
                                  # 27
                                  MPN: 99991912109
                                  FILLISTER HD. BOLT 5,0X16,0-Q
                                  from £0.59
                                  from £0.59
                                  fillister hd. screw - M 5X16 Genuine Porsche Part - New (to order)
                                  # 28
                                  MPN: 99950727840
                                  BRACKET FOR HOSE HEADLIGHT WASHER SYSTEM
                                  from £1.43
                                  from £1.43
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 30
                                  MPN: 970701051101E0
                                  LICENCE PLATE HOLDER - BLACK
                                  from £41.94
                                  from £41.94
                                  This part replaces part number 97070105110 - and 1 more. Click to view details
                                  LICENSE PLATE BRACKET Black Genuine Porsche Part - New (to order)
                                  # 30
                                  MPN: 970701051151E0
                                  LICENCE PLATE HOLDER - BLACK
                                  P211 (Licence plate holder version 3)
                                  from £41.94
                                  from £41.94
                                  This part replaces part number 97070105115
                                  LICENSE PLATE BRACKET (PR:211) Black Genuine Porsche Part - New (to order)
                                  # 31
                                  MPN: 970701051131E0
                                  LICENCE PLATE HOLDER - BLACK
                                  P209 (Licence plate holder version 1)
                                  from £41.94
                                  from £41.94
                                  This part replaces part number 97070105113
                                  Black Genuine Porsche Part - New (to order)
                                  # 31
                                  MPN: 970701051181E0
                                  LICENCE PLATE HOLDER - BLACK
                                  P209 (Licence plate holder version 1)
                                  from £41.94
                                  from £41.94
                                  This part replaces part number 97070105118
                                  Black Genuine Porsche Part - New (to order)
                                  # 31
                                  MPN: 970701051141E0
                                  LICENCE PLATE HOLDER - BLACK
                                  P075 (Chinese version)
                                  from £41.94
                                  from £41.94
                                  This part replaces part number 97070105114
                                  Black Genuine Porsche Part - New (to order)
                                  # 31
                                  MPN: 970701051191E0
                                  LICENCE PLATE HOLDER - BLACK
                                  P075 (Chinese version)
                                  from £41.55
                                  from £41.55
                                  This part replaces part number 97070105119
                                  Black Genuine Porsche Part - New (to order)
                                  # 32
                                  MPN: 970701051121E0
                                  LICENCE PLATE HOLDER - BLACK
                                  P210 (Licence plate holder version 2)
                                  from £41.94
                                  from £41.94
                                  This part replaces part number 97070105112
                                  Black Genuine Porsche Part - New (to order)
                                  # 32
                                  MPN: 970701051171E0
                                  LICENCE PLATE HOLDER - BLACK
                                  P210 (Licence plate holder version 2)
                                  from £41.94
                                  from £41.94
                                  This part replaces part number 97070105117
                                  Black Genuine Porsche Part - New (to order)
                                  # 33
                                  MPN: 99991924301
                                  Securing bolt for registration no. 5,0X13,0 Licence plate holder
                                  from £2.30
                                  from £2.30
                                  Securing bolt for Genuine Porsche Part - New (to order)
                                  # 34
                                  MPN: 99991924201
                                  OVAL-HEAD SCREW 5,0X28,0 LICENCE PLATE HOLDER
                                  from £4.52
                                  from £4.52
                                  SCREW Genuine Porsche Part - New (to order)
