porsche 2010 (panamera 970) coolant cooling system rear battery hybrid d - mj 2014>> parts diagram

813-055 - Coolant cooling system rear Battery Hybrid D - MJ 2014>>

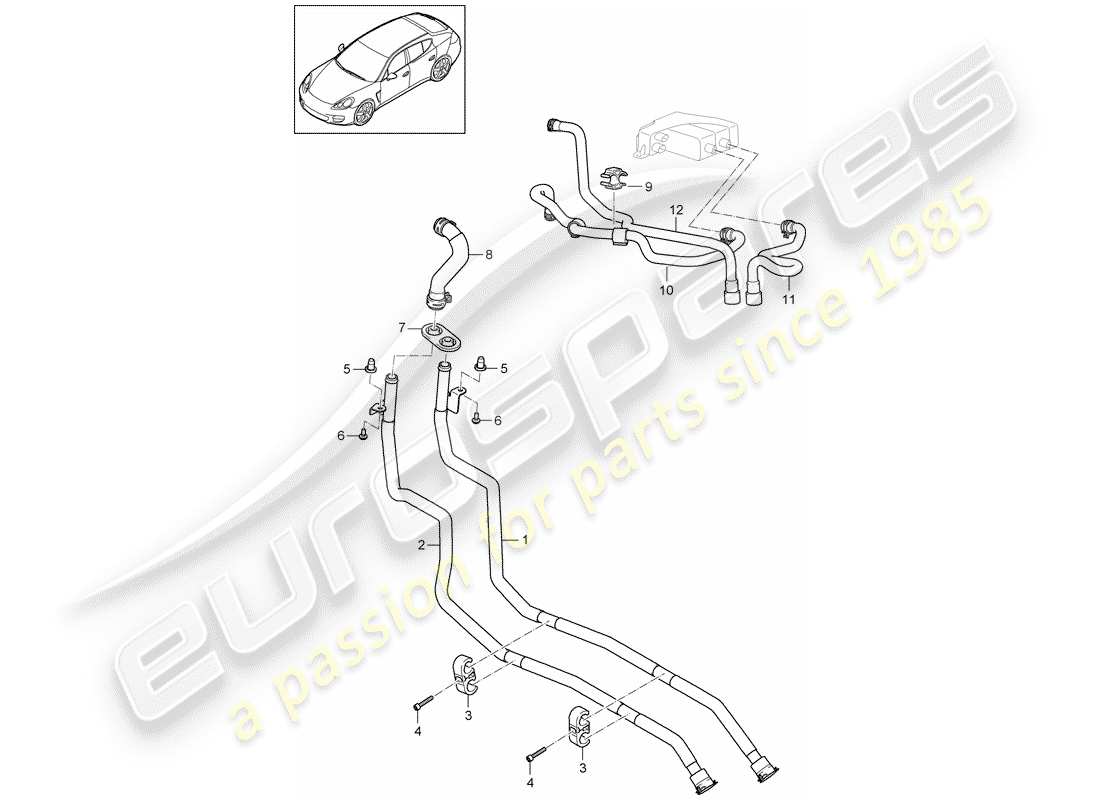

Porsche 2010 (Panamera 970) Coolant cooling system rear Battery Hybrid D - MJ 2014>> Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: 97057272300
                            WATER PIPE FEED
                            from £69.86
                            from £69.86
                            WATER PIPE Genuine Porsche Part - New (to order)
                            # 2
                            MPN: 97057272500
                            WATER PIPE RETURN
                            from £69.86
                            from £69.86
                            WATER PIPE Genuine Porsche Part - New (to order)
                            # 3
                            MPN: 95557205501
                            CLIP D=19/19
                            from £4.95
                            from £4.95
                            CLIP Genuine Porsche Part - New (to order)
                            # 4
                            MPN: 90038702301
                            SOCKET HEAD BOLT M 6X30
                            from £2.04
                            from £2.04
                            SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                            # 5
                            MPN: 99950010901
                            RIVETTED CAP NUT M 6/0,6-3
                            from £2.29
                            from £2.29
                            RIVETTED CAP NUT Genuine Porsche Part - New (to order)
                            # 6
                            MPN: 99907318901
                            flat round head bolt M 6X12
                            from £0.91
                            from £0.91
                            SCREW, ROUND HD Genuine Porsche Part - New (to order)
                            # 7
                            MPN: 97057276500
                            GROMMET
                            from £9.05
                            from £9.05
                            GROMMET Genuine Porsche Part - New (to order)
                            # 8
                            MPN: 97057273800
                            COOLANT HOSE RETURN CHARGER
                            from £15.53
                            from £15.53
                            WATER HOSE Genuine Porsche Part - New (to order)
                            # 9
                            MPN: 97057270700
                            SPACER SLEEVE
                            from £6.50
                            from £6.50
                            SPACER SLEEVE Genuine Porsche Part - New (to order)
                            # 10
                            MPN: 97057273200
                            COOLANT HOSE AUXILIARY HEATER
                            from £44.49
                            from £44.49
                            WATER HOSE Genuine Porsche Part - New (to order)
                            # 11
                            MPN: 97057273400
                            COOLANT HOSE BATTERY
                            from £36.22
                            from £36.22
                            WATER HOSE Genuine Porsche Part - New (to order)
                            # 12
                            MPN: 97057273600
                            COOLANT HOSE CHARGER
                            from £42.18
                            from £42.18
                            WATER HOSE Genuine Porsche Part - New (to order)
                            # 13
                            MPN: 99950779340
                            HOSE BRACKET 23,0-C
                            from £2.29
                            from £2.29
                            BRACKET FOR HOSE - 23 MM - D - MJ 2002>> Genuine Porsche Part - New (to order)
