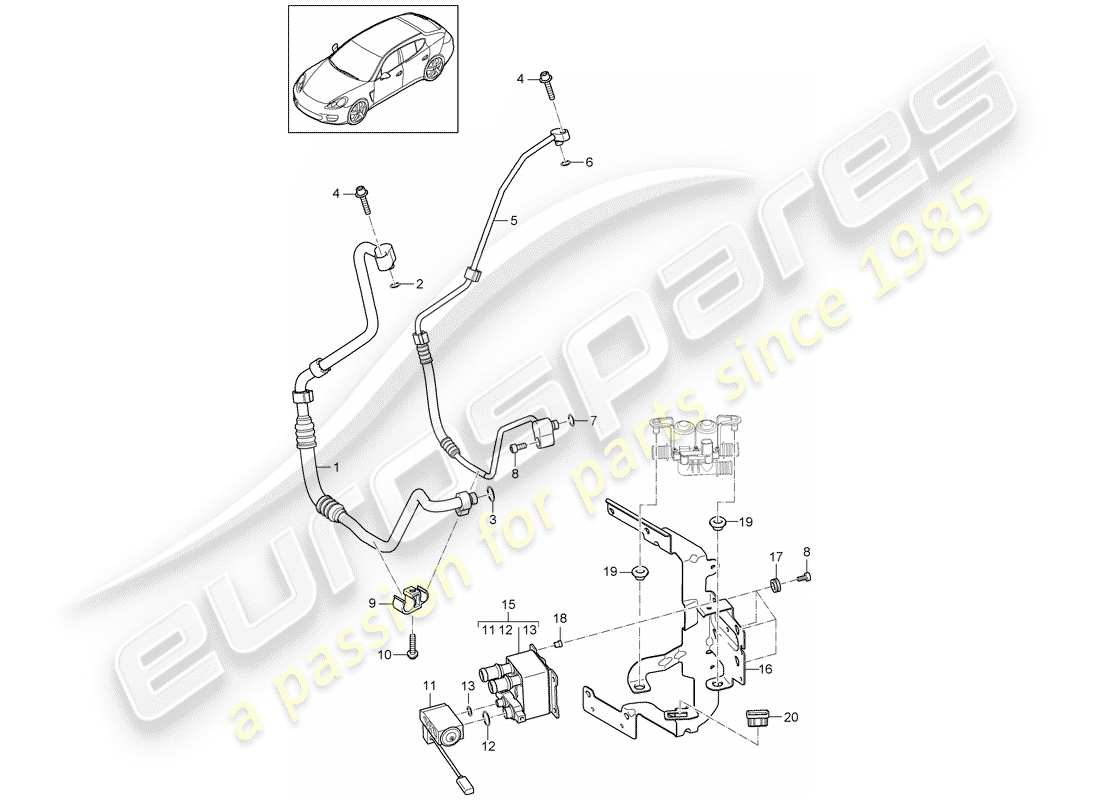

porsche 2010 (panamera 970) refrigerant circuit front battery hybrid evaporator d - mj 2014>> parts diagram

813-061 - refrigerant circuit front Battery Hybrid evaporator D - MJ 2014>>

Porsche 2010 (Panamera 970) refrigerant circuit front Battery Hybrid evaporator D - MJ 2014>> Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 97057352101
                                      SUCTION LINE EVAPORATOR
                                      from £68.47
                                      from £68.47
                                      SUCTION PIPE Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: 99970755741
                                      O-RING SUCTION LINE 13,7X2,5
                                      from £2.29
                                      from £2.29
                                      O-RING - 11.00X2.50 Genuine Porsche Part - New (to order)
                                      # 3
                                      MPN: 99970755841
                                      O-RING 13,7X2,5
                                      from £4.52
                                      from £4.52
                                      O-RING - 13,70X2,50N Genuine Porsche Part - New (to order)
                                      # 4
                                      MPN: 90038733701
                                      BOLT WITH WASHER M6X30
                                      from £0.65
                                      from £0.65
                                      BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                      # 5
                                      MPN: 97057351100
                                      PRESSURE LINE EVAPORATOR
                                      from £47.39
                                      from £47.39
                                      PRESSURE LINE Genuine Porsche Part - New (to order)
                                      # 6
                                      MPN: 99970753141
                                      O-RING PRESSURE LINE 7,5X2,0
                                      from £2.29
                                      from £2.29
                                      O-RING - 7,50X2,00 Genuine Porsche Part - New (to order)
                                      # 7
                                      MPN: 99970743340
                                      O-RING PRESSURE LINE 9,5X2,6
                                      from £5.17
                                      from £5.17
                                      O-RING Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: N 91168701
                                      HEXALOBULAR FLANGE SCREW M6X18
                                      from £1.58
                                      from £1.58
                                      HEXALOBULAR FLANGE SCREW Genuine Porsche Part - New (to order)
                                      HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
                                      # 9
                                      MPN: WHT006919
                                      BRACKET 10,0/16,0
                                      from £1.68
                                      from £1.68
                                      BRACKET Genuine Porsche Part - New (to order)
                                      # 10
                                      MPN: N 10721401
                                      OVAL HD. SELF-TAPP FITT. SCREW
                                      from £0.47
                                      from £0.47
                                      TAPPING SCREW, FILL. HD Genuine Porsche Part - New In stock
                                      SCREW TP6X16-Q Genuine Lamborghini - New In stock
                                      # 11
                                      MPN: 97057347700
                                      EXPANSION VALVE EVAPORATOR
                                      from £122.08
                                      from £122.08
                                      EXPANSION VALVE Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: 95557232500
                                      O-ring Expansion valve
                                      O-ring Expansion valve
                                      from £0.50
                                      from £0.50
                                      O-RING Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: 95557374910
                                      O-ring Expansion valve
                                      from £4.77
                                      from £4.77
                                      O-RING Genuine Porsche Part - New (to order)
                                      # 13
                                      MPN: 95557374906
                                      O-ring Expansion valve
                                      from £4.77
                                      from £4.77
                                      O-RING Genuine Porsche Part - New (to order)
                                      # 15
                                      MPN: 97057348100
                                      evaporator
                                      from £245.09
                                      from £245.09
                                      evaporator Genuine Porsche Part - New (to order)
                                      # 16
                                      MPN: 97057351501
                                      BRACKET EVAPORATOR
                                      from £37.04
                                      from £37.04
                                      BRACKET Genuine Porsche Part - New (to order)
                                      # 17
                                      MPN: 95557209500
                                      RUBBER GROMMET
                                      from £1.14
                                      from £1.14
                                      RUBBER GROMMET Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: 1T0805179A
                                      SLEEVE 7,5X1,5-A
                                      from £1.93
                                      from £1.93
                                      SLEEVE Genuine Porsche Part - New (to order)
                                      # 19
                                      MPN: 97057381100
                                      GUIDE PIECE DECOUPLING ELEMENT
                                      GUIDE PIECE Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 97057381300
                                      GUIDE PIECE DECOUPLING ELEMENT
                                      from £1.78
                                      from £1.78
                                      GUIDE PIECE Genuine Porsche Part - New (to order)
