porsche 2010 (panamera 970) electric motor for vehicles with hybrid drive parts diagram

901-010 - Electric motor For vehicles with hybrid drive

Porsche 2010 (Panamera 970) Electric motor For vehicles with hybrid drive Parts Diagram

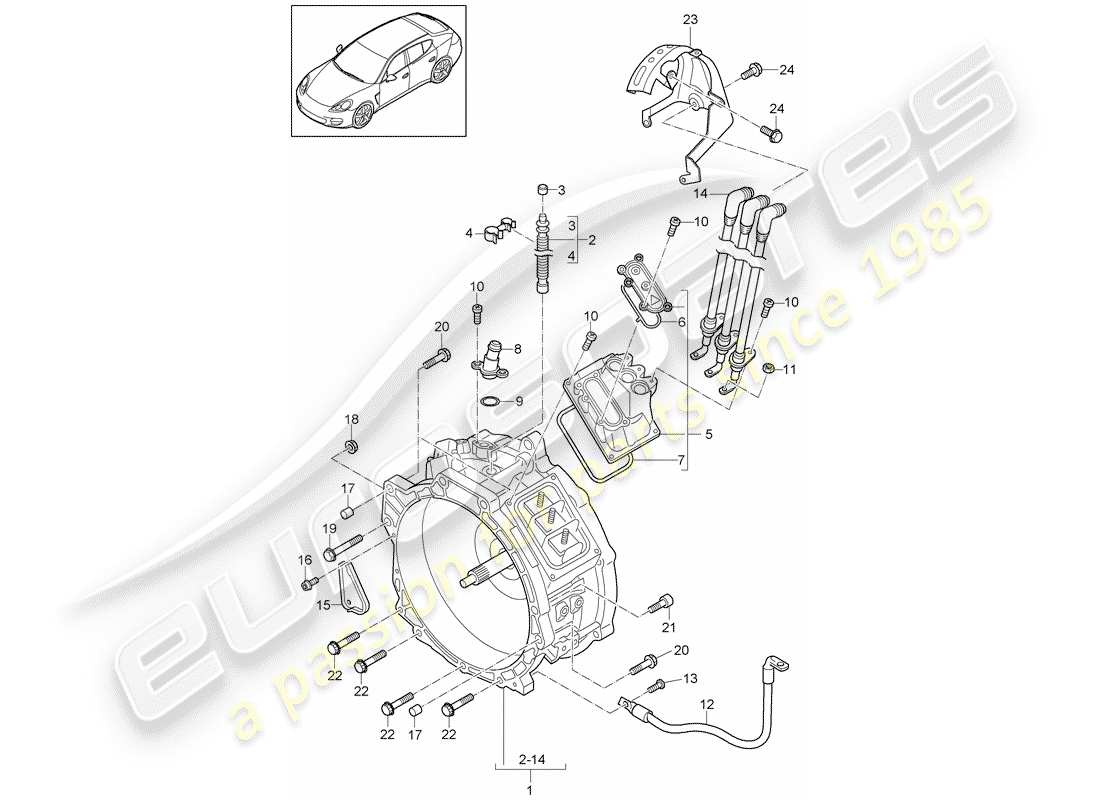

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 97011701001
                                                    ELECTRIC MOTOR F >>97-CL041 051 F >>A7-CL045 409 SEE TECHNICAL INFORMATION 106/19
                                                    from £11,709.80
                                                    from £11,709.80
                                                    AS HYBRID MODULE Genuine Porsche Part - New (to order)
                                                    # 1
                                                    MPN: 970117010 X
                                                    ELECTRIC MOTOR F >>97-CL041 051 F >>A7-CL045 409 SEE TECHNICAL INFORMATION 106/19
                                                    from £2,226.51
                                                    from £2,226.51
                                                    electric motor Genuine Porsche Part - New (to order)
                                                    # 1
                                                    MPN: 95862415202
                                                    ELECTRIC MOTOR SEE TECHNICAL INFORMATION 106/19 D >>- MJ 2013
                                                    from £3,513.47
                                                    from £3,513.47
                                                    ELECTRIC MOTOR FOR DRIVING MECHANISM Genuine Porsche Part - New (to order)
                                                    # 1
                                                    MPN: 958624152CX
                                                    ELECTRIC MOTOR SEE TECHNICAL INFORMATION 106/19 D >>- MJ 2013
                                                    from £3,689.15
                                                    from £3,689.15
                                                    This part replaces part number 958624152AX
                                                    electric motor Genuine Porsche Part - New (to order)
                                                    # 1
                                                    MPN: 97011701013
                                                    ELECTRIC MOTOR D - MJ 2014>>SEE TECHNICAL INFORMATION 106/19
                                                    from £4,053.94
                                                    from £4,053.94
                                                    electric motor Genuine Porsche Part - New (to order)
                                                    # 1
                                                    MPN: 970117010FX
                                                    ELECTRIC MOTOR D - MJ 2014>>SEE TECHNICAL INFORMATION 106/19
                                                    from £2,304.70
                                                    from £2,304.70
                                                    electric motor Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 95830164700
                                                    breather line
                                                    from £34.34
                                                    from £34.34
                                                    breather line Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 014301485
                                                    CAP FOR VENTING THE GEARBOX
                                                    from £3.49
                                                    from £3.49
                                                    CAP FOR TRANSMISSION BREATHER Genuine Porsche Part - New (to order)
                                                    # 4
                                                    MPN: N 10563801
                                                    BRACKET
                                                    from £5.56
                                                    from £5.56
                                                    BRACKET Genuine Porsche Part - New (to order)
                                                    # 5
                                                    MPN: 95862415250
                                                    REPAIR SET CONNECTION AND JUNCTION BOX
                                                    from £63.59
                                                    from £63.59
                                                    repair kit Genuine Porsche Part - New (to order)
                                                    # 6
                                                    MPN: 95862411100
                                                    SEAL UPPER
                                                    from £10.06
                                                    from £10.06
                                                    GASKET Genuine Porsche Part - New (to order)
                                                    # 7
                                                    MPN: 95862411200
                                                    SEAL LOWER
                                                    from £7.01
                                                    from £7.01
                                                    GASKET Genuine Porsche Part - New (to order)
                                                    # 8
                                                    MPN: 95862462300
                                                    COOLANT CONNECTION
                                                    from £31.50
                                                    from £31.50
                                                    COOLING WATER SOCKET Genuine Porsche Part - New (to order)
                                                    # 9
                                                    MPN: 95862444700
                                                    O-RING
                                                    from £3.01
                                                    from £3.01
                                                    O-RING Genuine Porsche Part - New (to order)
                                                    # 10
                                                    MPN: N 10124306
                                                    Hexagon socket flat M6X20 head bolt
                                                    from £0.87
                                                    from £0.87
                                                    This part replaces part number 99907334401 - and 1 more. Click to view details
                                                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                    HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
                                                    # 11
                                                    MPN: N 10609201
                                                    HEXAGON COLLAR NUT M8
                                                    from £0.53
                                                    from £0.53
                                                    shouldered hex. nut Genuine Porsche Part - New (to order)
                                                    HEXAGON FLANGE NUT M8 Genuine Lamborghini - New In stock
                                                    # 12
                                                    MPN: 97061131902
                                                    EARTH LINE
                                                    from £35.92
                                                    from £35.92
                                                    GROUND STRAP Genuine Porsche Part - New (to order)
                                                    # 12
                                                    MPN: 97061131940
                                                    EARTH LINE D - MJ 2014>>
                                                    from £36.11
                                                    from £36.11
                                                    GROUND STRAP Genuine Porsche Part - New (to order)
                                                    # 13
                                                    MPN: N 91189601
                                                    FLAT HEAD MULTI-POINT M8X18 SOCKET BOLT
                                                    from £11.13
                                                    from £11.13
                                                    Flat head multi-point Genuine Porsche Part - New (to order)
                                                    # 14
                                                    -
                                                    WIRE SET SEE ILLUSTRATION: 901-030 D >>- MJ 2013
                                                    # 14
                                                    -
                                                    WIRE SET SEE ILLUSTRATION: 901-031 D - MJ 2014>>
                                                    # 15
                                                    MPN: 95810164800
                                                    COVER
                                                    from £19.44
                                                    from £19.44
                                                    COVER Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: N 91096701
                                                    OVAL HEXAGON SOCKET HEAD BOLT M6X16
                                                    from £0.78
                                                    from £0.78
                                                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New In stock
                                                    HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
                                                    # 17
                                                    MPN: 95510113901
                                                    DOWEL SLEEVE
                                                    from £3.64
                                                    from £3.64
                                                    SLEEVE Genuine Porsche Part - New (to order)
                                                    # 18
                                                    MPN: N 91095501
                                                    HEXAGON COLLAR NUT M10
                                                    from £0.65
                                                    from £0.65
                                                    shouldered hex. nut Genuine Porsche Part - New (to order)
                                                    HEXAGON FLANGE NUT Genuine Lamborghini - New In stock
                                                    # 19
                                                    MPN: N 91105601
                                                    Hex collared bolt M10X85
                                                    from £2.51
                                                    from £2.51
                                                    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                                                    HEXAGON FLANGE M10X85 Genuine Lamborghini - New In stock
                                                    # 20
                                                    MPN: N 91030102
                                                    MULTI-POINT SOCKET HEAD BOLT AM12X70 WITH COLLAR
                                                    from £3.79
                                                    from £3.79
                                                    BOLT, HEX. HD. WITH Genuine Porsche Part - New (to order)
                                                    # 21
                                                    MPN: N 10565102
                                                    Socket head bolt with M12X60 hexagon socket head
                                                    from £2.79
                                                    from £2.79
                                                    BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                                                    # 22
                                                    MPN: N 91150701
                                                    12-EDGE FLANGE SCREW M10X60
                                                    from £2.76
                                                    from £2.76
                                                    12-edge FLANGE SCREW Genuine Porsche Part - New (to order)
                                                    12-POINT FLANGE M10X60 Genuine Lamborghini - New (to order)
                                                    # 23
                                                    MPN: 97061026701
                                                    COVER FOR CABLE GUIDE
                                                    from £54.09
                                                    from £54.09
                                                    CABLE COVER Genuine Porsche Part - New (to order)
                                                    # 24
                                                    MPN: 99921711601
                                                    HEXAGON BOLT M8X20
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 25
                                                    MPN: 95870169710
                                                    WARNING SIGN FOR HYBRID VEHICLES
                                                    from £3.53
                                                    from £3.53
                                                    WARNING SIGN FOR HYBRID Genuine Porsche Part - New (to order)
