porsche 2010 (panamera 970) windscreen wiper system, compl rain sensor parts diagram

904-000 - Windscreen wiper system, compl Rain sensor

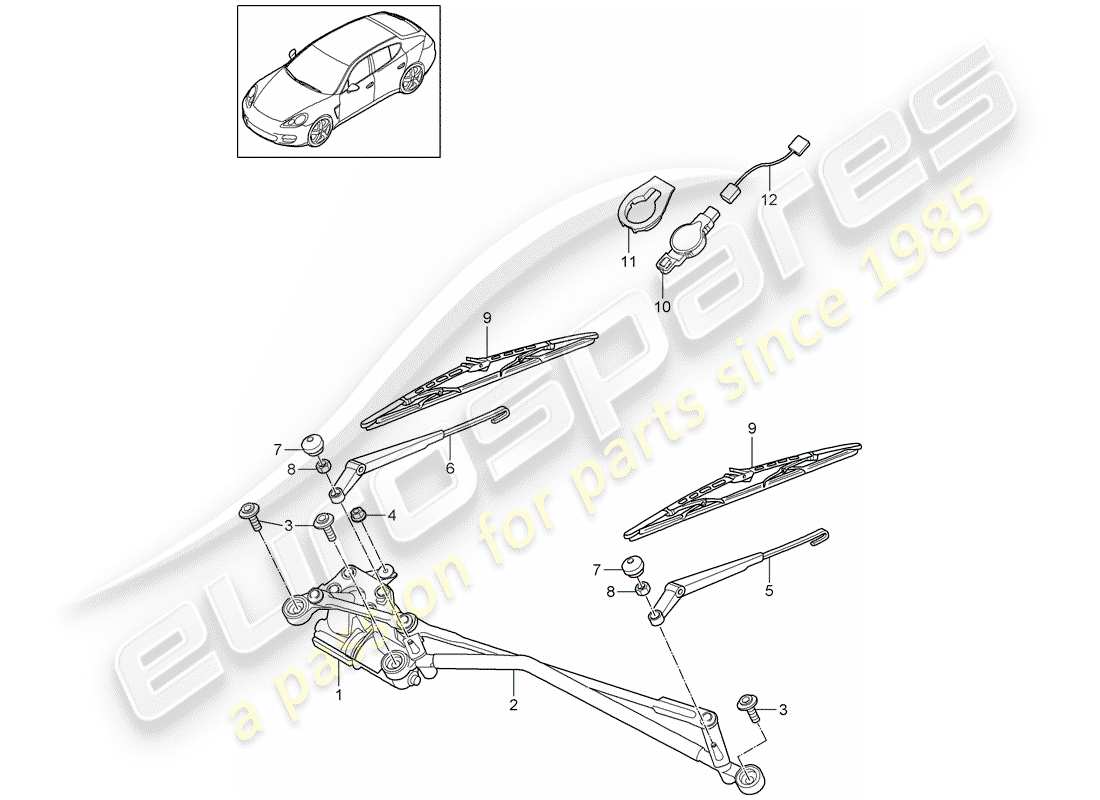

Porsche 2010 (Panamera 970) Windscreen wiper system, compl Rain sensor Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 97062410501
          Wiper motor lhd Included Fasteners
          Wiper motor lhd Included Fasteners
          wiper motor Genuine Porsche Part - New (to order)
          # 1
          MPN: 97062410502
          Wiper motor lhd Included Fasteners
          Wiper motor lhd Included Fasteners
          wiper motor Genuine Porsche Part - New (to order)
          # 1
          MPN: 97062410503
          WIPER MOTOR LHD INCLUDED FASTENERS D >>- MJ 2013
          P098 (Left-hand drive version)
          from £282.30
          from £282.30
          wiper motor Genuine Porsche Part - New (to order)
          # 1
          MPN: 97062410505
          WIPER MOTOR LHD INCLUDED FASTENERS D - MJ 2014>>
          P098 (Left-hand drive version)
          from £282.30
          from £282.30
          wiper motor Genuine Porsche Part - New (to order)
          # 1
          MPN: 97062410601
          WIPER MOTOR RHD
          WIPER MOTOR RHD
          wiper motor Genuine Porsche Part - New (to order)
          # 1
          MPN: 97062410603
          WIPER MOTOR RHD
          P099 (Right-hand drive version)
          from £282.30
          from £282.30
          wiper motor Genuine Porsche Part - New (to order)
          # 1
          MPN: 97062410605
          WIPER MOTOR RHD D - MJ 2014>>
          P099 (Right-hand drive version)
          from £282.30
          from £282.30
          wiper motor Genuine Porsche Part - New (to order)
          # 2
          MPN: 97062823501
          Crank drive lhd
          Crank drive lhd
          CRANK DRIVE Genuine Porsche Part - New (to order)
          # 2
          MPN: 97062823503
          Crank drive lhd
          P098 (Left-hand drive version)
          from £341.36
          from £341.36
          CRANK DRIVE Genuine Porsche Part - New (to order)
          # 2
          MPN: 97062823600
          Crank drive rhd
          Crank drive rhd
          CRANK DRIVE Genuine Porsche Part - New (to order)
          # 2
          MPN: 97062823603
          Crank drive rhd
          P099 (Right-hand drive version)
          from £364.95
          from £364.95
          CRANK DRIVE Genuine Porsche Part - New (to order)
          # 3
          MPN: N 10535502
          HEXAGON SOCKET HEAD BOLT (COMBI) M 6 X 30
          from £1.00
          from £1.00
          hexagon socket head Genuine Porsche Part - New (to order)
          HEXALOBULAR SOCKET SCREW W.WAS ER Genuine Lamborghini - New (to order)
          # 4
          MPN: 99907607801
          HEXAGON NUT M 6
          from £0.91
          from £0.91
          hex. nut - M 6 Genuine Porsche Part - New In stock
          # 5
          MPN: 97062802701
          Wiper arm lhd (drivers side)
          Wiper arm lhd (drivers side)
          WIPER ARM Genuine Porsche Part - New (to order)
          # 5
          MPN: 97062802702
          Wiper arm lhd (drivers side)
          P098 (Left-hand drive version)
          from £89.33
          from £89.33
          WIPER ARM Genuine Porsche Part - New (to order)
          # 5
          MPN: 97062802801
          WIPER ARM RHD (DRIVERS SIDE)
          P099 (Right-hand drive version)
          from £57.81
          from £57.81
          WIPER ARM Genuine Porsche Part - New (to order)
          # 5
          MPN: 97062815101
          WIPER ARM LHD (DRIVERS SIDE) D - MJ 2014>>
          P098 (Left-hand drive version)
          from £89.33
          from £89.33
          WIPER ARM Genuine Porsche Part - New (to order)
          # 5
          MPN: 97062815201
          WIPER ARM RHD (DRIVERS SIDE) D - MJ 2014>>
          P099 (Right-hand drive version)
          from £105.37
          from £105.37
          WIPER ARM Genuine Porsche Part - New (to order)
          # 6
          MPN: 97062802900
          WIPER ARM LHD (PASSENGER SIDE)
          P098 (Left-hand drive version)
          WIPER ARM Genuine Porsche Part - New (to order)
          # 6
          MPN: 97062802901
          WIPER ARM LHD (PASSENGER SIDE)
          P098 (Left-hand drive version)
          from £89.33
          from £89.33
          WIPER ARM Genuine Porsche Part - New (to order)
          # 6
          MPN: 97062803000
          WIPER ARM RHD (PASSENGER SIDE)
          P099 (Right-hand drive version)
          Supersession
          Supersession
          Genuine Porsche Part (no longer available to order)
          # 6
          MPN: 97062816101
          WIPER ARM LHD (PASSENGER SIDE) D - MJ 2014>>
          P098 (Left-hand drive version)
          from £89.33
          from £89.33
          WIPER ARM Genuine Porsche Part - New (to order)
          # 6
          MPN: 97062816201
          WIPER ARM RHD (PASSENGER SIDE) D - MJ 2014>>
          P099 (Right-hand drive version)
          from £89.33
          from £89.33
          WIPER ARM Genuine Porsche Part - New (to order)
          # 7
          MPN: 97062830500
          CAP
          CAP Genuine Porsche Part - New (to order)
          # 8
          MPN: N 10261311
          HEXAGON NUT M 10
          from £1.15
          from £1.15
          HEX. NUT Genuine Porsche Part - New In stock
          HEXAGON FLANGE NUT M10 Genuine Lamborghini - New In stock
          # 9
          MPN: 97062890100
          1 set: wiper blades front (drivers side) (passenger side)
          from £59.97
          from £59.97
          1 SET OF WIPER BLADES Genuine Porsche Part - New (to order)
          # 9
          MPN: 97062890300
          1 SET: WIPER BLADES FRONT LHD (DRIVERS SIDE) D - MJ 2014>>
          P098 (Left-hand drive version)
          from £59.97
          from £59.97
          1 SET OF WIPER BLADES Genuine Porsche Part - New (to order)
          # 9
          MPN: 97062890400
          1 SET: WIPER BLADES FRONT RHD (DRIVERS SIDE) D - MJ 2014>>
          P099 (Right-hand drive version)
          from £59.97
          from £59.97
          1 SET OF WIPER BLADES Genuine Porsche Part - New (to order)
          # 10
          MPN: 7P0955559B
          RAIN SENSOR
          RAIN SENSOR
          RAIN SENSOR Genuine Porsche Part - New (to order)
          # 10
          MPN: 7P0955559D
          RAIN AND HUMIDITY SENSOR
          RAIN AND HUMIDITY SENSOR
          RAIN AND HUMIDITY SENSOR Genuine Porsche Part - New (to order)
          # 10
          MPN: 7P0955559E
          RAIN AND HUMIDITY SENSOR
          P268 (Rain sensor)
          RAIN AND HUMIDITY SENSOR Genuine Porsche Part - New (to order)
          # 10
          MPN: 00004320765
          ADHESIVE FILM RAIN SENSOR
          ADHESIVE FILM RAIN SENSOR
          ADHESIVE FILM Genuine Porsche Part - New (to order)
          # 10
          MPN: 4E0955609
          GEL FOIL FOR RAIN SENSOR (SELF-ADHESIVE) RAIN SENSOR
          P268 (Rain sensor)
          GEL FILM FOR RAIN SENSOR Genuine Porsche Part - New (to order)
          # 11
          -
          STICKY PAD CONTAINED IN: WINDSCREEN
          P268 (Rain sensor)
          # 12
          MPN: 97061270800
          WIRE SET RAIN SENSOR
          P268 (Rain sensor)
          from £27.19
          from £27.19
          harness Genuine Porsche Part - New (to order)
          # 12
          MPN: 97061270850
          WIRE SET RAIN SENSOR D - MJ 2014>>
          P268 (Rain sensor) | P631 (Traffic sign recognition) | P632 (PDLS+ dynamic high beam) | P852 (PDLS+ High beam assist)
          from £27.19
          from £27.19
          harness Genuine Porsche Part - New (to order)
