porsche 2012 (panamera 970) oil pipe parts diagram

202-092 - OIL PIPE

Porsche 2012 (Panamera 970) OIL PIPE Parts Diagram

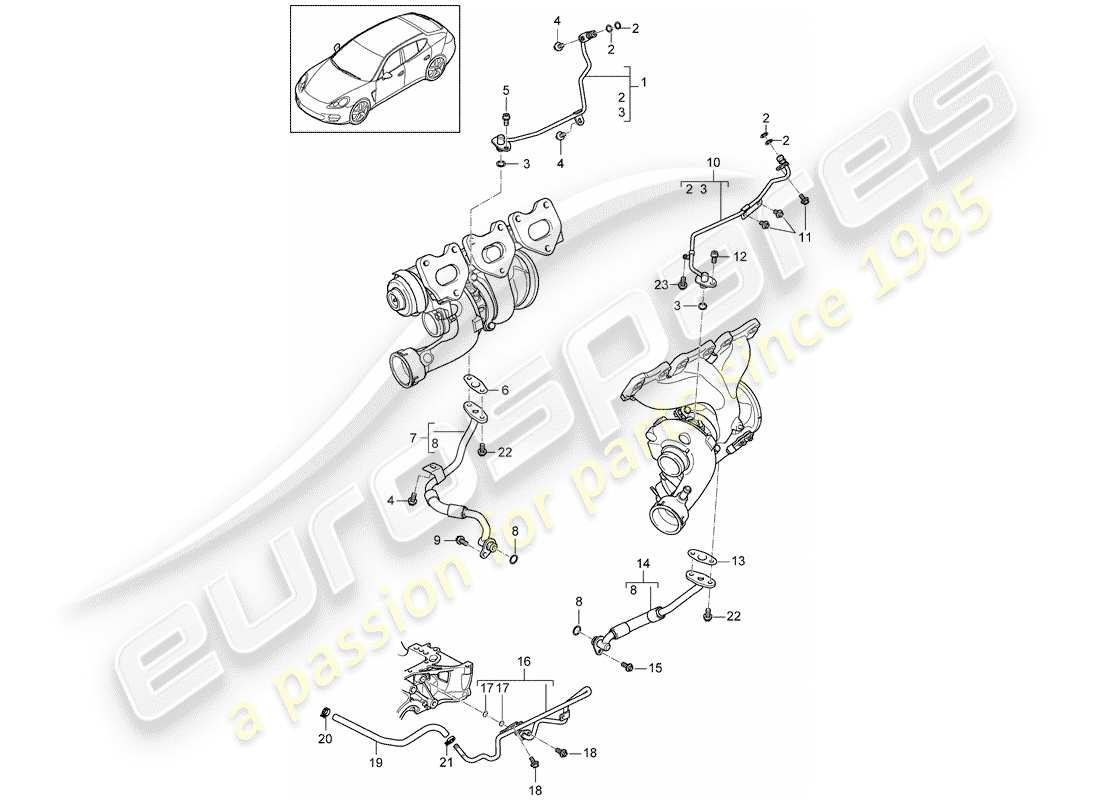

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: 94610708660
      PRESSURE LINE
      CYLINDERS 1-3
      from £108.26
      from £108.26
      PRESSURE LINE Genuine Porsche Part - New (to order)
      # 2
      MPN: 99970761340
      O-RING
      8,00X2,5 | No longer use the part here
      from £3.94
      from £3.94
      O-RING Genuine Porsche Part - New (to order)
      # 2
      MPN: 99970761341
      O-RING
      8,00X2,5
      from £5.99
      from £5.99
      O-RING Genuine Porsche Part - New (to order)
      # 3
      MPN: 99970760340
      O-RING
      10X3-N- | No longer use the part here
      from £2.29
      from £2.29
      O-RING Genuine Porsche Part - New (to order)
      # 3
      MPN: 99970760341
      O-RING
      10X3-N-
      from £3.35
      from £3.35
      O-RING Genuine Porsche Part - New (to order)
      # 4
      MPN: 90038504101
      HEXAGON HEAD BOLT
      BM6X12
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 5
      MPN: N 10544703
      SOCKET HEAD BOLT WITH INNER
      M6X10 | hex round head
      from £0.61
      from £0.61
      SOCKET HEAD BOLT WITH INNER Genuine Porsche Part - New (to order)
      HEXALOBULAR SOCKETM6X10 Genuine Lamborghini - New In stock
      # 6
      MPN: 94810712350
      GASKET
      from £3.36
      from £3.36
      GASKET Genuine Porsche Part - New In stock
      # 7
      MPN: 94610708861
      OIL PIPE
      cylinders 1-3 |
      M >> CWD 005 189 |
      M >> CWF 005 337
      OIL PIPE Genuine Porsche Part - New (to order)
      # 7
      MPN: 94610708863
      OIL PIPE
      cylinders 1-3 | M CWD 005 190>> | M CWF 005 338>>
      OIL PIPE Genuine Porsche Part - New (to order)
      # 8
      MPN: 99970756840
      O-RING
      12X3-N-
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 9
      MPN: 90038500901
      TORX SCREW
      BM6X16
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 10
      MPN: 94610708760
      PRESSURE LINE
      cylinders 4-6 |
      M >> CWD 008 266
      PRESSURE LINE Genuine Porsche Part - New (to order)
      # 10
      MPN: 94610708762
      PRESSURE LINE
      cylinders 4-6 | M CWD 008 267>>
      PRESSURE LINE Genuine Porsche Part - New (to order)
      # 11
      MPN: 90038504101
      HEXAGON HEAD BOLT
      BM6X12
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 12
      MPN: N 10544703
      SOCKET HEAD BOLT WITH INNER
      M6X10 | hex round head
      from £0.61
      from £0.61
      SOCKET HEAD BOLT WITH INNER Genuine Porsche Part - New (to order)
      HEXALOBULAR SOCKETM6X10 Genuine Lamborghini - New In stock
      # 13
      MPN: 94810712350
      GASKET
      from £3.36
      from £3.36
      GASKET Genuine Porsche Part - New In stock
      # 14
      MPN: 94610708960
      OIL PIPE
      cylinders 4-6 | Discontinued part
      OIL PIPE Genuine Porsche Part - New (to order)
      # 14
      MPN: 94610708962
      OIL PIPE
      cylinders 4-6 | Discontinued part
      OIL PIPE Genuine Porsche Part - New (to order)
      # 14
      MPN: 94610708963
      OIL PIPE
      CYLINDERS 4-6
      from £253.42
      from £253.42
      OIL PIPE Genuine Porsche Part - New (to order)
      # 15
      MPN: 90038500901
      TORX SCREW
      BM6X16
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 16
      MPN: 94610726067
      VENTILATION PIPE
      cylinders 4-6 (PR:339)
      from £92.11
      from £92.11
      VENTILATION PIPE Genuine Porsche Part - New (to order)
      # 16
      MPN: 94610726061
      VENTILATION PIPE
      cylinders 1-3 (PR:338)
      from £92.11
      from £92.11
      VENTILATION PIPE Genuine Porsche Part - New (to order)
      # 17
      MPN: 99970760340
      O-RING
      10X3-N-
      from £2.29
      from £2.29
      O-RING Genuine Porsche Part - New (to order)
      # 18
      MPN: 90038504101
      HEXAGON HEAD BOLT
      BM6X12
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 18
      MPN: 99907390331
      FILLISTER HD. SCREW
      M6X20 | aluminium (PR:338)
      from £0.97
      from £0.97
      FILLISTER HD. SCREW Genuine Porsche Part - New In stock
      # 19
      MPN: 97011025960
      VENT HOSE
      No longer use the part here (PR:339)
      VENT HOSE Genuine Porsche Part - New (to order)
      # 19
      MPN: 97011025961
      VENT HOSE
      (PR:339)
      from £49.04
      from £49.04
      VENT HOSE Genuine Porsche Part - New (to order)
      # 19
      MPN: 97011025965
      VENT HOSE
      No longer use the part here (PR:338)
      VENT HOSE Genuine Porsche Part - New (to order)
      # 19
      MPN: 97011025966
      VENT HOSE
      (PR:338)
      from £49.04
      from £49.04
      VENT HOSE Genuine Porsche Part - New (to order)
      # 20
      MPN: 99951248900
      HOSE CLIP
      15,3-18,5
      from £4.52
      from £4.52
      HOSE CLIP Genuine Porsche Part - New (to order)
      # 21
      MPN: 95520147900
      HOSE CLAMP
      B16X12
      from £1.31
      from £1.31
      HOSE CLAMP Genuine Porsche Part - New (to order)
      # 22
      MPN: 90038504101
      HEXAGON HEAD BOLT
      BM6X12 |
      M >> CWD 006 774 |
      M >> CWF 008 840
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 22
      MPN: 99907360101
      SCREW, ROUND HD.
      M6X14 | M CWD 006 775>> | M CWF 008 841>>
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
      # 23
      MPN: 99907360101
      SCREW, ROUND HD.
      M6X14
      Supersession
      Supersession
      Genuine Porsche Part (no longer available to order)
