Tandem pump | oil container | pressure hose | - PDCC -. D >> - MJ 2013 (4620,4640, 4820,4840, 4870+ PR:3)
porsche 2012 (panamera 970) power steering parts diagram

403-045 - POWER STEERING

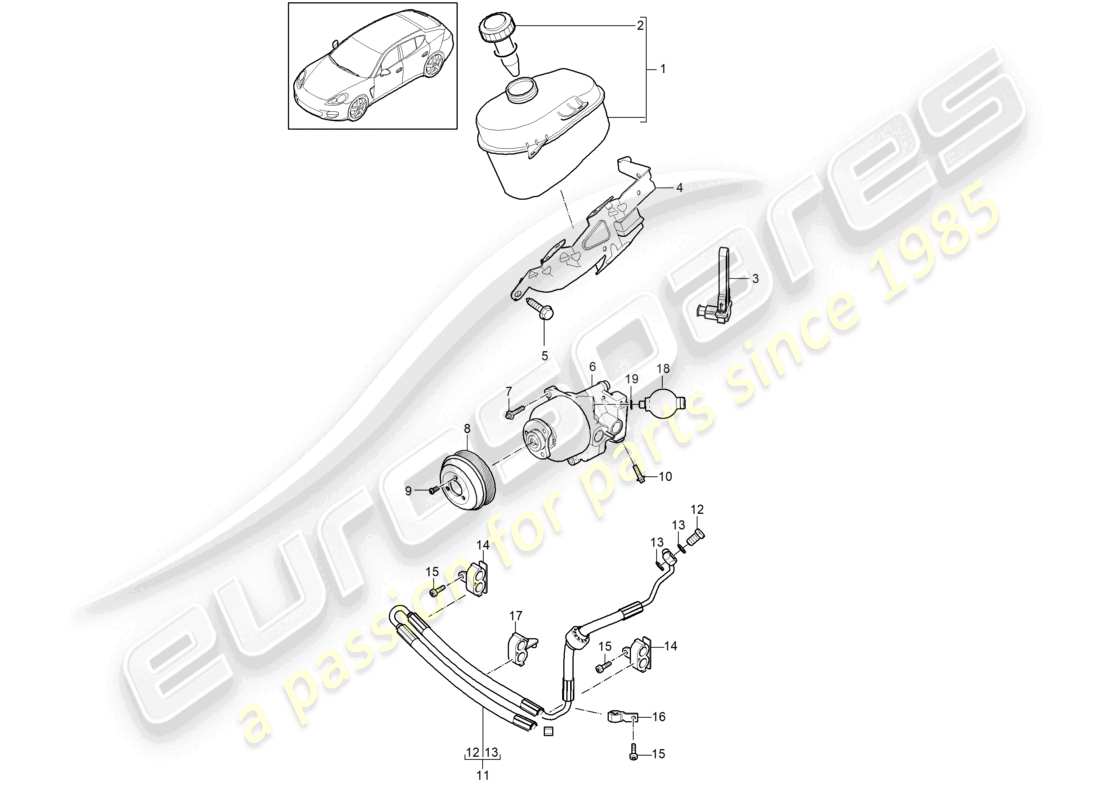

Porsche 2012 (Panamera 970) POWER STEERING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 97035907100
              OIL CONTAINER
              power steering | No longer use the part here
              OIL CONTAINER Genuine Porsche Part - New (to order)
              # 1
              MPN: 97035907101
              OIL CONTAINER
              POWER STEERING
              from £112.13
              from £112.13
              OIL CONTAINER Genuine Porsche Part - New (to order)
              # 2
              MPN: 97035917300
              THREADED COVER
              oil container | Discontinued part
              THREADED COVER Genuine Porsche Part - New (to order)
              # 2
              MPN: 97035917301
              THREADED COVER
              oil container | No longer use the part here
              THREADED COVER Genuine Porsche Part - New (to order)
              # 2
              MPN: 97035917302
              THREADED COVER
              OIL CONTAINER
              from £16.12
              from £16.12
              THREADED COVER Genuine Porsche Part - New (to order)
              # 3
              MPN: 97060621700
              OIL LEVEL SENSOR
              from £36.66
              from £36.66
              OIL LEVEL SENSOR Genuine Porsche Part - New (to order)
              # 4
              MPN: 97034735104
              BRACKET FOR FLUID CONTAINER
              BRACKET FOR FLUID CONTAINER Genuine Porsche Part - New (to order)
              # 5
              MPN: 90037803601
              SCREW, HEX. HD.
              M 6 X 12
              from £0.59
              from £0.59
              SCREW, HEX. HD. - M 6 X 12 Genuine Porsche Part - New (to order)
              # 6
              MPN: 97035905101
              TANDEM PUMP
              Discontinued part (4820,4840, 4870)
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 6
              MPN: 97035905102
              TANDEM PUMP
              (4820,4840, 4870)
              from £1,145.32
              from £1,145.32
              TANDEM PUMP Genuine Porsche Part - New (to order)
              # 6
              MPN: 97035905151
              TANDEM PUMP
              (4620,4640)
              from £1,786.97
              from £1,786.97
              TANDEM PUMP Genuine Porsche Part - New (to order)
              # 7
              MPN: 90038504201
              TORX SCREW
              M 8 X 35
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 8
              MPN: 95514721920
              PULLEY
              from £39.46
              from £39.46
              PULLEY Genuine Porsche Part - New (to order)
              # 9
              MPN: 99907310401
              TORX SCREW
              No longer use the part here
              from £0.89
              from £0.89
              TORX SCREW Genuine Porsche Part - New (to order)
              # 9
              MPN: WHT001702
              SCREW
              M 8 X 16
              from £0.61
              from £0.61
              SCREW Genuine Porsche Part - New (to order)
              # 10
              MPN: 90038500101
              TORX SCREW
              M 8 X 20
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 11
              MPN: 97035923702
              PRESSURE HOSE
              (4820,4840, 4870)
              PRESSURE HOSE Genuine Porsche Part - New (to order)
              # 11
              MPN: 97035923903
              PRESSURE HOSE
              (4620,4640)
              from £471.58
              from £471.58
              PRESSURE HOSE Genuine Porsche Part - New (to order)
              # 12
              MPN: N 0210747
              BANJO BOLT
              from £8.68
              from £8.68
              banjo bolt - LL10 Genuine Porsche Part - New (to order)
              # 13
              MPN: N 0138494
              SEAL RING
              from £1.77
              from £1.77
              SEAL RING Genuine Porsche Part - New In stock
              WASHER Genuine Lamborghini - New In stock
              # 14
              MPN: 97035936700
              BRACKET
              outer | sub-frame
              from £10.99
              from £10.99
              BRACKET Genuine Porsche Part - New (to order)
              # 15
              MPN: 99907315209
              FILLISTER HD. SCREW
              M 6 X 18
              from £2.29
              from £2.29
              fillister hd. screw - M 6 X 18 - D - MJ 1998>> Genuine Porsche Part - New (to order)
              # 16
              MPN: 97035936100
              BRACKET FOR PRESSURE LINE
              PRESSURE HOSE
              from £10.99
              from £10.99
              BRACKET FOR PRESSURE LINE Genuine Porsche Part - New (to order)
              # 17
              MPN: 97035936500
              BRACKET
              center
              from £8.12
              from £8.12
              BRACKET Genuine Porsche Part - New (to order)
              # -
              -
              PENTOSIN
