P650 (Electrical sliding roof)
porsche 2012 (panamera 970) sliding/tilting roof parts diagram

811-000 - sliding/tilting roof

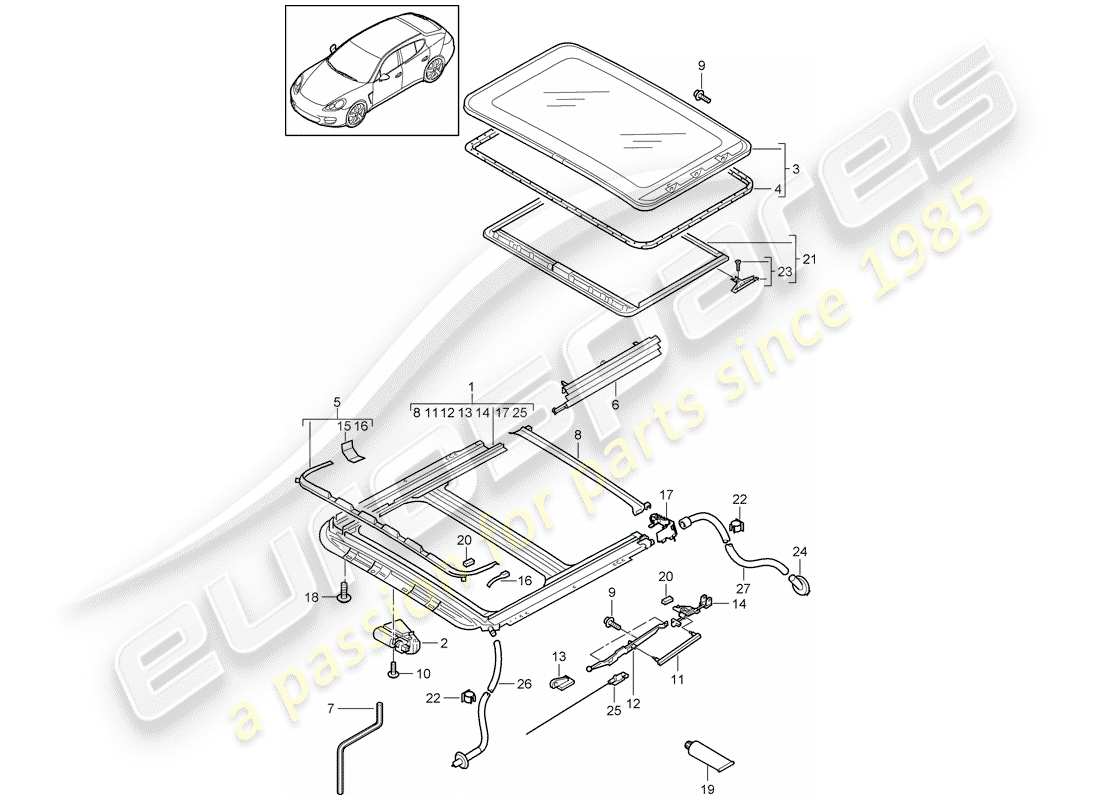

Porsche 2012 (Panamera 970) Sliding/tilting roof Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 1
                                                      MPN: 97056408100
                                                      FRAME (COMPLETE)
                                                      from £704.99
                                                      from £704.99
                                                      Frame Genuine Porsche Part - New (to order)
                                                      # 2
                                                      MPN: 97062421104
                                                      drive unit
                                                      Driving mechanism Genuine Porsche Part - New (to order)
                                                      # 3
                                                      MPN: 97056421100
                                                      GLASS ROOF WITH: SEAL
                                                      from £603.12
                                                      from £603.12
                                                      glass roof Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 97056421500
                                                      SEAL
                                                      from £278.01
                                                      from £278.01
                                                      GASKET Genuine Porsche Part - New (to order)
                                                      # 5
                                                      MPN: 97056416100
                                                      WIND DEFLECTOR (COMPLETE)
                                                      from £263.39
                                                      from £263.39
                                                      WIND DEFLECTOR Genuine Porsche Part - New (to order)
                                                      # 6
                                                      MPN: 95556400500
                                                      BELLOWS LEFT
                                                      from £20.82
                                                      from £20.82
                                                      BELLOWS Genuine Porsche Part - New (to order)
                                                      # 6
                                                      MPN: 95556400600
                                                      BELLOWS RIGHT
                                                      from £20.82
                                                      from £20.82
                                                      BELLOWS Genuine Porsche Part - New (to order)
                                                      # 7
                                                      -
                                                      TOOL EMERGENCY OPERATION SEE ILLUSTRATION: 001-000
                                                      # 8
                                                      MPN: 97056472100
                                                      WATER DEFLECTOR STRIP (COMPLETE)
                                                      from £42.04
                                                      from £42.04
                                                      WATER DEFLECTOR STRIP Genuine Porsche Part - New (to order)
                                                      # 9
                                                      MPN: 95556400910
                                                      SOCKET HEAD BOLT GLASS ROOF M5
                                                      from £7.41
                                                      from £7.41
                                                      SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                                                      # 10
                                                      MPN: 95556401000
                                                      SCREW FOR ELECTRIC DRIVE
                                                      from £3.02
                                                      from £3.02
                                                      SCREW Genuine Porsche Part - New (to order)
                                                      # 11
                                                      MPN: 95556401100
                                                      DISTANCE PIECE
                                                      from £5.28
                                                      from £5.28
                                                      SPACER Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 95556401210
                                                      GATE GUIDE RIGHT
                                                      from £93.66
                                                      from £93.66
                                                      GUIDE Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 95556401310
                                                      GATE GUIDE LEFT
                                                      from £93.66
                                                      from £93.66
                                                      GUIDE Genuine Porsche Part - New (to order)
                                                      # 13
                                                      MPN: 95556401400
                                                      GUIDE RIGHT FRONT
                                                      from £64.53
                                                      from £64.53
                                                      GUIDE Genuine Porsche Part - New (to order)
                                                      # 13
                                                      MPN: 95556401500
                                                      GUIDE LEFT FRONT
                                                      from £64.53
                                                      from £64.53
                                                      GUIDE Genuine Porsche Part - New (to order)
                                                      # 14
                                                      MPN: 95556401600
                                                      LOCKING SEGMENT RIGHT REAR
                                                      from £64.53
                                                      from £64.53
                                                      LOCKING SEGMENT Genuine Porsche Part - New (to order)
                                                      # 14
                                                      MPN: 95556401700
                                                      LOCKING SEGMENT LEFT REAR
                                                      from £43.47
                                                      from £43.47
                                                      LOCKING SEGMENT Genuine Porsche Part - New (to order)
                                                      # 15
                                                      MPN: 95556401800
                                                      INSTALLATION KIT MOUNTING 2X FOR WIND DEFLECTOR
                                                      from £31.37
                                                      from £31.37
                                                      INSTALLATION KIT Genuine Porsche Part - New (to order)
                                                      # 16
                                                      MPN: 95556401900
                                                      LEAF SPRING
                                                      from £33.15
                                                      from £33.15
                                                      FLAT SPRING Genuine Porsche Part - New (to order)
                                                      # 17
                                                      MPN: 97056462100
                                                      COVER LEFT CORNER PART
                                                      from £6.00
                                                      from £6.00
                                                      COVER Genuine Porsche Part - New (to order)
                                                      # 17
                                                      MPN: 97056462200
                                                      COVER RIGHT CORNER PART
                                                      from £6.00
                                                      from £6.00
                                                      COVER Genuine Porsche Part - New (to order)
                                                      # 18
                                                      MPN: 99907327902
                                                      FILLISTER HD. BOLT FRAME
                                                      from £0.78
                                                      from £0.78
                                                      This part replaces part number 99907313002
                                                      FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                                      # 19
                                                      MPN: 00004320756
                                                      GREASE 50 ML POLYLUB GLY 151
                                                      from £27.33
                                                      from £27.33
                                                      GREASE Genuine Porsche Part - New (to order)
                                                      # 20
                                                      MPN: 95556402301
                                                      DAMPER INSTALLATION KIT
                                                      from £56.50
                                                      from £56.50
                                                      DAMPER Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 970564341006F2
                                                      ROOF FRAME FABRIC - BLACK -BF
                                                      P592 (Standard rooflining, fabric)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434100
                                                      Black Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 970564341009F1
                                                      ROOF FRAME FABRIC - PLATINUM GREY -AB,AC,DG,DL, PC,NA,CB,CC, EC,BB
                                                      P592 (Standard rooflining, fabric)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434100
                                                      PLATINUM GREY Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 970564341007F3
                                                      ROOF FRAME FABRIC - LUXOR BEIGE -UB,UC,PK,PL
                                                      P592 (Standard rooflining, fabric)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434100
                                                      LUXOR BEIGE Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 970564341008F4
                                                      ROOF FRAME FABRIC - CREAM -BC,BD,BE,DS, DT
                                                      P592 (Standard rooflining, fabric)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434100
                                                      Cream Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 970564341005F6
                                                      ROOF FRAME FABRIC - CEDAR -NC,BN
                                                      P592 (Standard rooflining, fabric)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434100
                                                      CEDAR Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 97056434100CH6
                                                      ROOF FRAME FABRIC - SADDLE BROWN -SB,DN
                                                      P592 (Standard rooflining, fabric)
                                                      from £451.66
                                                      from £451.66
                                                      This part replaces part number 97056434100
                                                      SADDLE BROWN Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 970564341012W0
                                                      ROOF FRAME ALCANTARA - BLACK -AB,AC,GK,GS, GA,NA,BF
                                                      P594 (Alcantara rooflining)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434101
                                                      Black Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 970564341018U3
                                                      ROOF FRAME ALCANTARA - PLATINUM GREY -DG,DL,GD,PC, GP,NA
                                                      P594 (Alcantara rooflining)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434101
                                                      PLATINUM GREY Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 970564341019U1
                                                      ROOF FRAME ALCANTARA - LUXOR BEIGE -UB,UC,GU,PK, PL
                                                      P594 (Alcantara rooflining)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434101
                                                      LUXOR BEIGE Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 970564341018U9
                                                      ROOF FRAME ALCANTARA - CREAM -BC,BD,BE,DS, DT
                                                      P594 (Alcantara rooflining)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434101
                                                      Cream Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 970564341018T5
                                                      ROOF FRAME ALCANTARA - CEDAR -NC,BN
                                                      P594 (Alcantara rooflining)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434101
                                                      CEDAR Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 97056434101OP2
                                                      ROOF FRAME ALCANTARA - SADDLE BROWN -SB,GH,DN
                                                      P594 (Alcantara rooflining)
                                                      from £460.59
                                                      from £460.59
                                                      This part replaces part number 97056434101
                                                      SADDLE BROWN Genuine Porsche Part - New (to order)
                                                      # 22
                                                      MPN: 97056470100
                                                      HOSE BRACKET WATER DRAINAGE HOSE
                                                      from £0.91
                                                      from £0.91
                                                      BRACKET FOR HOSE Genuine Porsche Part - New (to order)
                                                      # 23
                                                      MPN: 97056491100
                                                      GLIDE PIECE INSTALLATION KIT COMPRISING: GLIDE PIECE 4X SCREW 4X
                                                      GUIDE PIECE Genuine Porsche Part - New (to order)
                                                      # 24
                                                      MPN: 95556403500
                                                      DRAIN TUBE
                                                      from £5.40
                                                      from £5.40
                                                      DRAIN TUBE GROMMET Genuine Porsche Part - New (to order)
                                                      # 25
                                                      MPN: 95556402900
                                                      PULL CABLE GUIDE WITH:
                                                      from £151.06
                                                      from £151.06
                                                      CABLE GUIDE Genuine Porsche Part - New (to order)
                                                      # 26
                                                      MPN: 97056430102
                                                      WATER DRAINAGE HOSE FRONT
                                                      from £16.60
                                                      from £16.60
                                                      WATER DRAIN HOSE Genuine Porsche Part - New (to order)
                                                      # 27
                                                      MPN: 97056430301
                                                      WATER DRAINAGE HOSE REAR
                                                      from £16.60
                                                      from £16.60
                                                      WATER DRAIN HOSE Genuine Porsche Part - New (to order)
                                                      # 27
                                                      MPN: 97056430700
                                                      WATER DRAINAGE HOSE REAR
                                                      from £52.98
                                                      from £52.98
                                                      WATER DRAINAGE HOSE Genuine Porsche Part - New (to order)
