103-070 - TIMING CHAIN

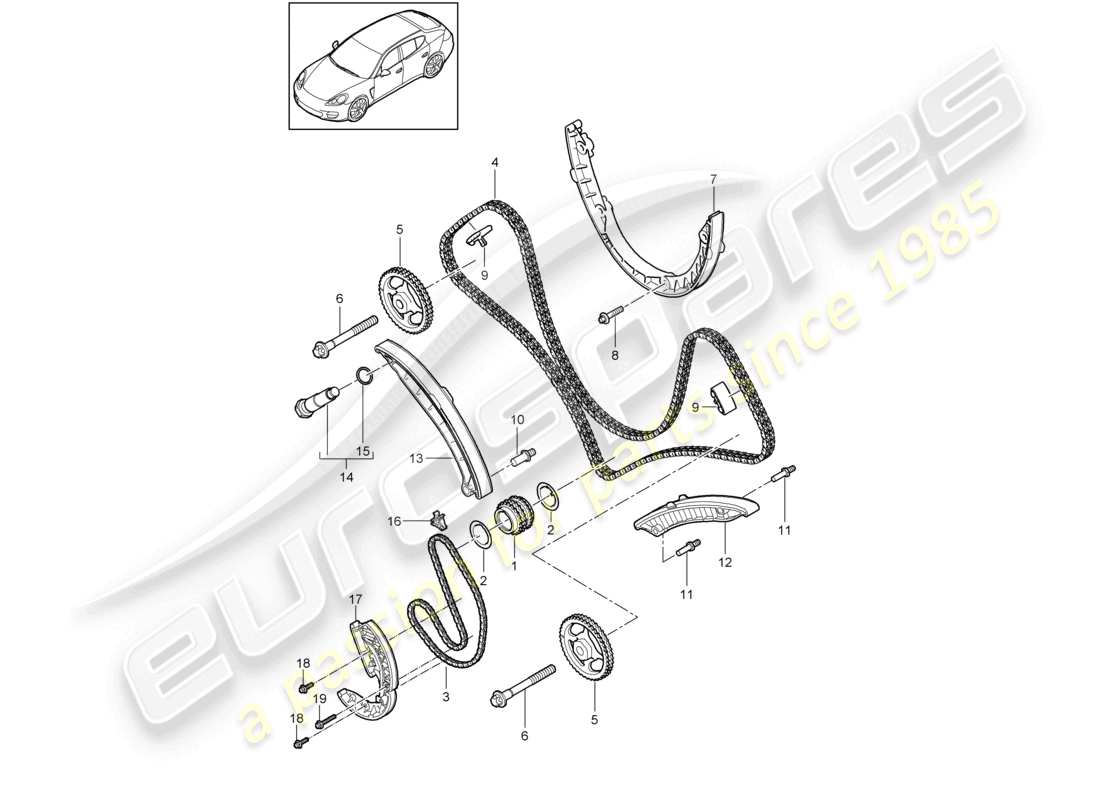

Porsche 2013 (Panamera 970) TIMING CHAIN Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 94810223111
                SPROCKET
                crankshaft
                from £156.39
                from £156.39
                SPROCKET Genuine Porsche Part - New (to order)
                # 2
                MPN: 94810223000
                SPACER WASHER
                from £22.43
                from £22.43
                SPACER WASHER Genuine Porsche Part - New (to order)
                # 3
                MPN: 94610725200
                DRIVE CHAIN
                oil pump | Discontinued part
                DRIVE CHAIN Genuine Porsche Part - New (to order)
                # 3
                MPN: 94610725201
                DRIVE CHAIN
                oil pump
                from £85.11
                from £85.11
                DRIVE CHAIN Genuine Porsche Part - New (to order)
                # 4
                MPN: 94810516910
                DRIVE CHAIN
                from £214.76
                from £214.76
                DRIVE CHAIN Genuine Porsche Part - New (to order)
                # 5
                MPN: 94810518111
                SPROCKET
                outlet | camshaft
                from £55.31
                from £55.31
                SPROCKET Genuine Porsche Part - New (to order)
                # 6
                MPN: 94810525400
                HEXAGON HEAD BOLT
                M 12 X 1,5 X 110
                from £6.12
                from £6.12
                HEXAGON HEAD BOLT Genuine Porsche Part - New In stock
                # 7
                MPN: 94810502312
                GUIDE RAIL
                from £58.26
                from £58.26
                GUIDE RAIL Genuine Porsche Part - New (to order)
                # 8
                MPN: 90038504201
                TORX SCREW
                BM 8 X 35
                Supersession
                Supersession
                Genuine Porsche Part (no longer available to order)
                # 9
                MPN: 94810516612
                GUIDE RAIL
                Supersession
                Supersession
                Genuine Porsche Part (no longer available to order)
                # 10
                MPN: 99901502201
                THREADED BOLT
                M 10 X 25
                from £4.52
                from £4.52
                THREADED BOLT Genuine Porsche Part - New (to order)
                # 11
                MPN: 99901502101
                THREADED BOLT
                M 8 X 25
                from £2.17
                from £2.17
                THREADED BOLT Genuine Porsche Part - New (to order)
                # 12
                MPN: 94610506800
                GUIDE RAIL
                camshaft | crankshaft
                Supersession
                Supersession
                Genuine Porsche Part (no longer available to order)
                # 13
                MPN: 94810506510
                TENSIONER BLADE
                Supersession
                Supersession
                Genuine Porsche Part (no longer available to order)
                # 14
                MPN: 94610518000
                TENSIONER - CHAIN
                from £151.92
                from £151.92
                TENSIONER - CHAIN Genuine Porsche Part - New (to order)
                # 16
                MPN: 94610725300
                GUIDE PIECE
                from £14.19
                from £14.19
                GUIDE PIECE Genuine Porsche Part - New (to order)
                # 17
                MPN: 94610725800
                TENSIONER - CHAIN
                Discontinued part
                TENSIONER - CHAIN Genuine Porsche Part - New (to order)
                # 17
                MPN: 94610725801
                TENSIONER - CHAIN
                from £100.52
                from £100.52
                TENSIONER - CHAIN Genuine Porsche Part - New (to order)
                # 18
                MPN: 90038501901
                TORX SCREW
                BM 6 X 20 |
                M >> D 05386 |
                M >> D 04624 ( 4620 4640)
                Supersession
                Supersession
                Genuine Porsche Part (no longer available to order)
                # 18
                MPN: 99907334401
                SCREW, ROUND HD.
                M 6 X 20 | M D 05387 >> | M D 04625 >> |
                D >> - MJ 2013 ( 4620 4640)
                Supersession
                Supersession
                Genuine Porsche Part (no longer available to order)
                # 18
                MPN: 99907334401
                SCREW, ROUND HD.
                M 6 X 20 |
                D - MJ 2014>>
                Supersession
                Supersession
                Genuine Porsche Part (no longer available to order)
                # 19
                MPN: 90038527001
                HEXAGON HEAD BOLT
                BM 6 X 35 |
                M >> D 05386 |
                M >> D 04624 ( 4620 4640)
                HEXAGON HEAD BOLT - M 6 X 35 Genuine Porsche Part - New (to order)
                # 19
                MPN: 99907357001
                SCREW, ROUND HD.
                M 6 X 35 | M D 05387 >> | M D 04625 >> |
                D >> - MJ 2013 ( 4620 4640)
                from £2.12
                from £2.12
                SCREW, ROUND HD Genuine Porsche Part - New (to order)
                # 19
                MPN: 99907357001
                SCREW, ROUND HD.
                M 6 X 35 |
                D - MJ 2014>>
                from £2.12
                from £2.12
                SCREW, ROUND HD Genuine Porsche Part - New (to order)
