P1BK (Air suspension with levelling system and height adjustment (PASM))
porsche 2020 (panamera 971-1) air spring parts diagram

402-010 - air spring

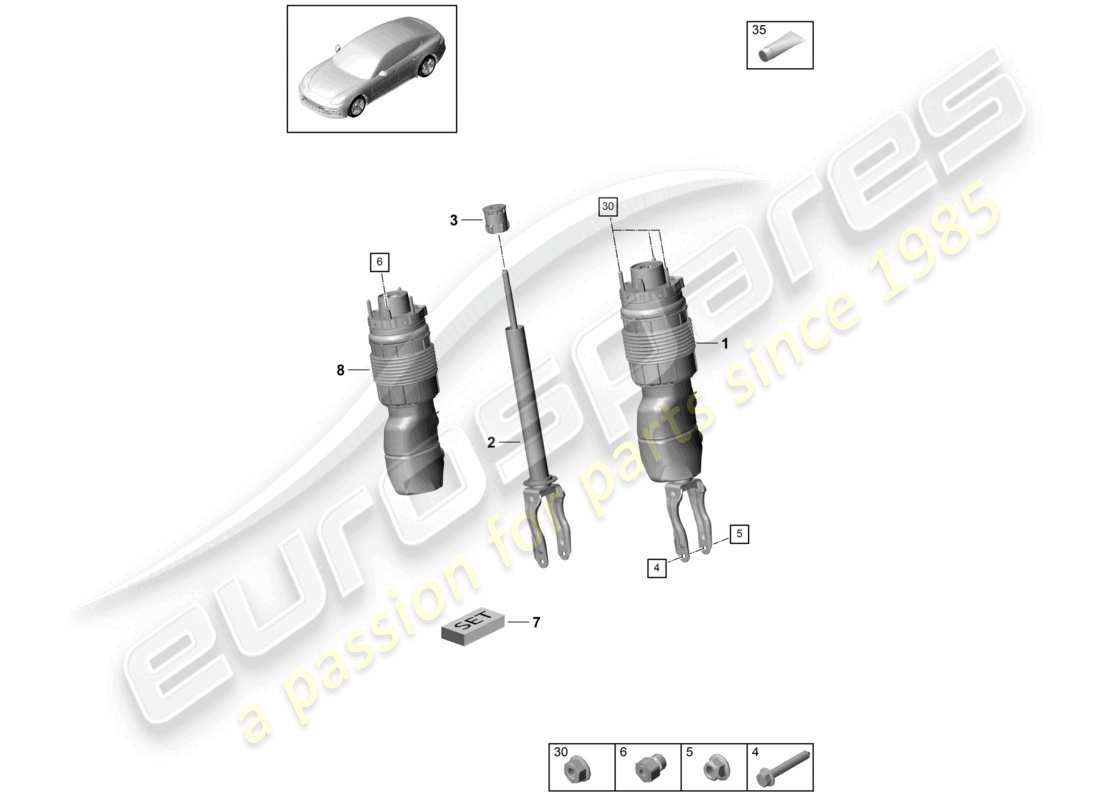

Porsche 2020 (Panamera 971-1) air spring Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 971616037G
                    SUSPENSION STRUT COMPLETE LEFT
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 1
                    MPN: 971 616 037 K
                    SUSPENSION STRUT COMPLETE LEFT
                    SUSPENSION STRUT COMPLETE LEFT Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 971616038G
                    SUSPENSION STRUT COMPLETE RIGHT
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 1
                    MPN: 971 616 038 K
                    SUSPENSION STRUT COMPLETE RIGHT
                    SUSPENSION STRUT COMPLETE RIGHT Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 971413031D
                    SUSPENSION STRUT, COMPLETE ALSO USE: 2X 971 413 047 C D >>- 05.05.2019
                    SUSPENSION STRUT, COMPLETE Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 971413031F
                    SUSPENSION STRUT, COMPLETE ALSO USE: 2X 971 413 047 C D - 06.05.2019>>
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 3
                    MPN: 971413047C
                    CAP SUSPENSION STRUT, COMPLETE
                    from £9.36
                    from £9.36
                    CAP Genuine Porsche Part - New (to order)
                    # 4
                    MPN: N 10628301
                    Hex collared bolt M12X90
                    from £3.35
                    from £3.35
                    BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                    HEXAGON FLANGE BOLT Genuine Lamborghini - New (to order)
                    # 5
                    MPN: N 10402904
                    HEXAGON COLLAR NUT M12
                    from £2.14
                    from £2.14
                    Genuine Porsche Part (no longer available to order)
                    PREV.TORQUE TYPE M12X1.5 Genuine Lamborghini - New (to order)
                    # 6
                    MPN: 971616751
                    AIR PRESSURE CONNECTION AIR LINE
                    from £13.37
                    from £13.37
                    AIR CONNECTION Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 971698425
                    REPAIR SET FOR AIR SPRING
                    from £20.18
                    from £20.18
                    REPAIR KIT FOR AIR SPRING Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 971616051F
                    SPRING CYLINDER LEFT
                    PE0A (No campaign version, basic equipment) | PE8A (Turbo S version)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 8
                    MPN: 971616052F
                    spring cylinder right
                    PE0A (No campaign version, basic equipment) | PE8A (Turbo S version)
                    from £764.98
                    from £764.98
                    SPRING CYLINDER Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 971616051G
                    SPRING CYLINDER LEFT
                    PE0W (GTS version)
                    from £1,100.52
                    from £1,100.52
                    SPRING CYLINDER Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 971616052G
                    spring cylinder right
                    PE0W (GTS version)
                    from £1,100.52
                    from £1,100.52
                    SPRING CYLINDER Genuine Porsche Part - New (to order)
                    # 30
                    MPN: N 10261311
                    HEXAGON NUT M10
                    from £1.15
                    from £1.15
                    HEX. NUT Genuine Porsche Part - New In stock
                    HEXAGON FLANGE NUT M10 Genuine Lamborghini - New In stock
                    # 35
                    MPN: 00004320468
                    GREASE FOR O-RING
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
