porsche panamera 970 (2016) engine cover parts diagram

103-030 - ENGINE COVER

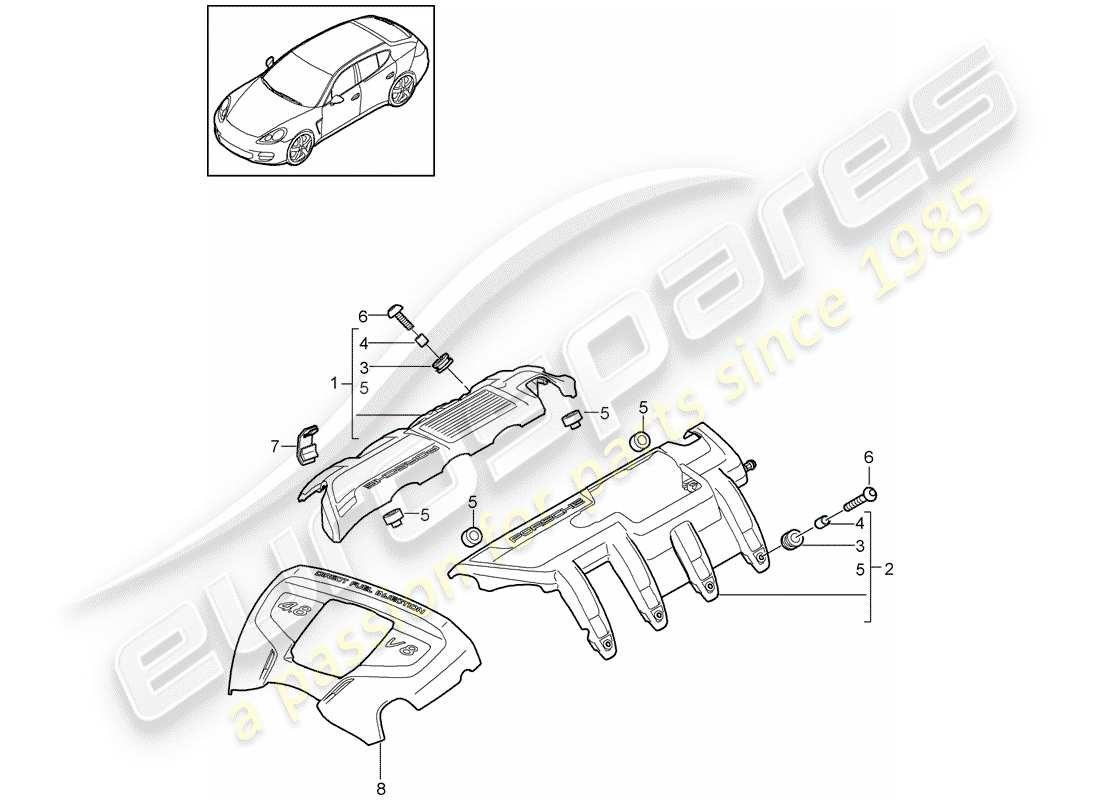

Porsche Panamera 970 (2016) ENGINE COVER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 7PP103908
        COVER
        cylinders 1-4 | ignition coil | No longer use the part here
        COVER Genuine Porsche Part - New (to order)
        # 1
        MPN: 7PP103908B
        COVER
        cylinders 1-4 | ignition coil | discontinued part (4820,4840, CXPA,CXRA, CXR)
        COVER Genuine Porsche Part - New (to order)
        # 1
        MPN: 7PP103908C
        COVER
        cylinders 1-4 | ignition coil (4820,4840, CXPA,CXRA, CXR)
        from £84.29
        from £84.29
        COVER Genuine Porsche Part - New (to order)
        # 1
        MPN: 7PP103908B
        COVER
        cylinders 1-4 | ignition coil | discontinued part (4870,CWBA, CWB+ PR:-X80,-016)
        COVER Genuine Porsche Part - New (to order)
        # 1
        MPN: 7PP103908C
        COVER
        cylinders 1-4 | ignition coil (4870,CWBA, CWB+ PR:-X80,-016)
        from £84.29
        from £84.29
        COVER Genuine Porsche Part - New (to order)
        # 1
        MPN: 7PP103908A
        COVER
        cylinders 1-4 | ignition coil (4870,CWCA, CWC+ PR:X80,016)
        COVER Genuine Porsche Part - New (to order)
        # 2
        MPN: 7PP103907
        COVER
        cylinders 5-8 | ignition coil (4820,4840, CXPA,CXRA, CXR)
        COVER Genuine Porsche Part - New (to order)
        # 2
        MPN: 7PP103907
        COVER
        cylinders 5-8 | ignition coil (4870,CWBA, CWB+ PR:-X80,-016)
        COVER Genuine Porsche Part - New (to order)
        # 2
        MPN: 7PP103907A
        COVER
        cylinders 5-8 | ignition coil (4870,CWCA, CWC+ PR:X80,016)
        from £185.23
        from £185.23
        COVER Genuine Porsche Part - New (to order)
        # 3
        MPN: 95511063800
        GROMMET
        from £3.20
        from £3.20
        GROMMET Genuine Porsche Part - New (to order)
        # 4
        MPN: 7L5103825A
        SLEEVE
        from £3.62
        from £3.62
        SLEEVE Genuine Porsche Part - New (to order)
        # 5
        MPN: 07C103226A
        PUSH-ON CONNECTOR
        from £5.10
        from £5.10
        PUSH-ON CONNECTOR Genuine Porsche Part - New (to order)
        # 6
        MPN: WHT003425
        TORX SCREW
        M 5 X 16
        from £0.47
        from £0.47
        This part replaces part number 95510525500
        TORX SCREW Genuine Porsche Part - New In stock
        # 7
        MPN: 7PP972487
        CAP
        (PR:-165,-7MM)
        from £2.67
        from £2.67
        CAP Genuine Porsche Part - New (to order)
        # 7
        MPN: 97060530500
        GROMMET
        Connector | secondary air pump (PR:165,7MM)
        from £7.26
        from £7.26
        GROMMET Genuine Porsche Part - New (to order)
        # 8
        MPN: 7PP130114
        ENGINE COVER
        (4820,4840, CXPA,CXRA, CXR)
        from £82.40
        from £82.40
        ENGINE COVER Genuine Porsche Part - New (to order)
        # 8
        MPN: 7PP130114
        ENGINE COVER
        (4870,CWBA, CWB+ PR:-X80,-016)
        from £82.40
        from £82.40
        ENGINE COVER Genuine Porsche Part - New (to order)
        # 8
        MPN: 7PP130114A
        ENGINE COVER
        (4870,CWCA, CWC+ PR:X80,016)
        from £538.37
        from £538.37
        ENGINE COVER Genuine Porsche Part - New (to order)
