porsche panamera 970 (2016) retaining frame parts diagram

809-020 - retaining frame

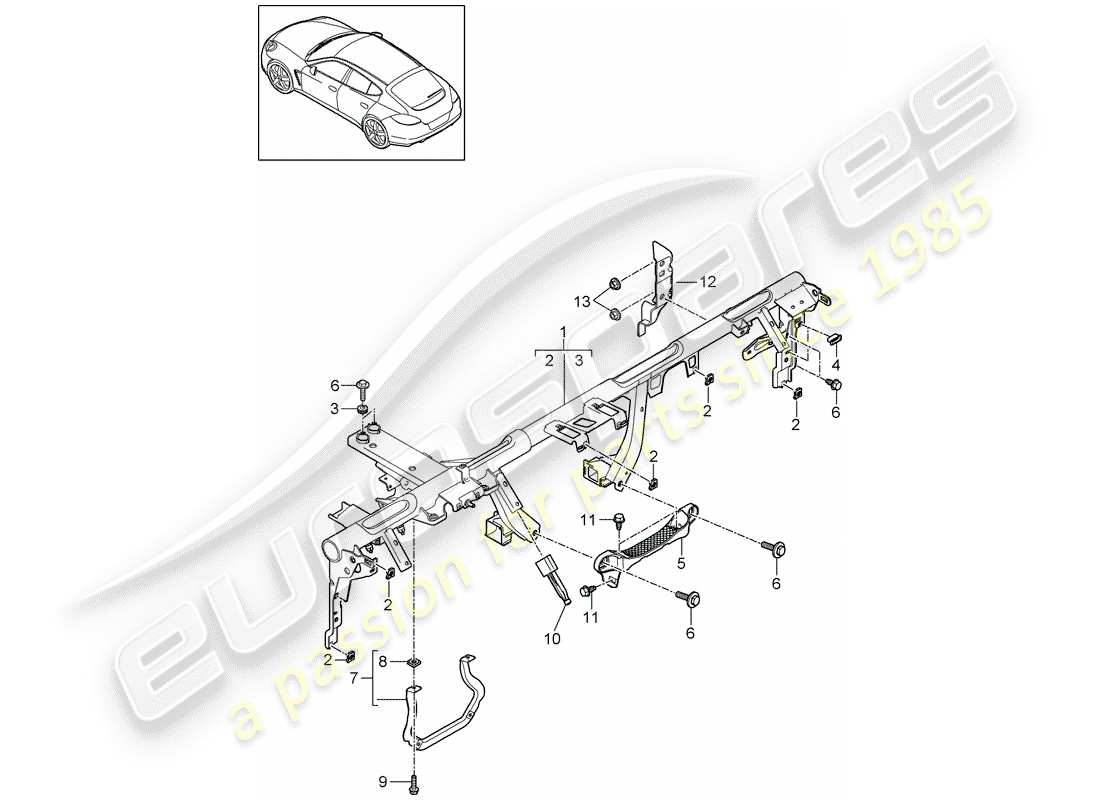

Porsche Panamera 970 (2016) RETAINING FRAME Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 1
    MPN: 97055206300
    retaining frame
    lhd (PR:098)
    from £509.39
    from £509.39
    retaining frame Genuine Porsche Part - New (to order)
    # 1
    MPN: 97055206303
    retaining frame
    rhd (PR:099)
    from £509.39
    from £509.39
    retaining frame Genuine Porsche Part - New (to order)
    # 2
    MPN: 99950770201
    SPEED NUT
    M5
    from £2.29
    from £2.29
    speed nut - M 5 - D - MJ 2002>> Genuine Porsche Part - New (to order)
    # 3
    MPN: 95553134601
    SPACER
    from £19.20
    from £19.20
    SPACER Genuine Porsche Part - New (to order)
    # 4
    MPN: 97055289300
    GROMMET
    retaining frame
    from £2.79
    from £2.79
    GROMMET Genuine Porsche Part - New (to order)
    # 5
    MPN: 97055271500
    BRACKET
    lhd | tunnel (PR:098)
    from £37.89
    from £37.89
    BRACKET Genuine Porsche Part - New (to order)
    # 5
    MPN: 97055271501
    BRACKET
    rhd | tunnel (PR:099)
    from £37.89
    from £37.89
    BRACKET Genuine Porsche Part - New (to order)
    # 6
    MPN: 90007547901
    BOLT WITH WASHER
    M 8 X 40
    from £10.72
    from £10.72
    BOLT WITH WASHER Genuine Porsche Part - New (to order)
    # 7
    MPN: 97055248100
    RETAINING PLATE
    dashboard | Lower part | (drivers side)
    from £15.22
    from £15.22
    RETAINING PLATE Genuine Porsche Part - New (to order)
    # 8
    MPN: 99950706703
    SPEED NUT
    M5
    from £0.65
    from £0.65
    SPEED NUT - M 5 Genuine Porsche Part - New (to order)
    # 9
    MPN: 99907349801
    FILLISTER HD. SCREW
    M5 X 20
    from £0.47
    from £0.47
    FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
    # 11
    MPN: 90038500101
    TORX SCREW
    BM8 X 20
    Supersession
    Supersession
    Genuine Porsche Part (no longer available to order)
    # 12
    MPN: 97055240701
    BRACKET FOR DASHBOARD
    left | A-pillar
    from £37.89
    from £37.89
    BRACKET FOR DASHBOARD Genuine Porsche Part - New (to order)
    # 12
    MPN: 97055240801
    BRACKET FOR DASHBOARD
    right | A-pillar
    from £37.89
    from £37.89
    BRACKET FOR DASHBOARD Genuine Porsche Part - New (to order)
    # 13
    MPN: 99907606502
    SHOULDERED NUT
    M8
    from £0.91
    from £0.91
    SHOULDERED NUT Genuine Porsche Part - New (to order)
    # 14
    MPN: 99907506509
    SCREW, HEX. HD.
    M8 X 35
    from £2.29
    from £2.29
    SCREW, HEX. HD Genuine Porsche Part - New (to order)
