porsche 2020 (taycan 9j1-1) hydraulic unit anti-locking brake syst. -abs- parts diagram

605-000 - Hydraulic unit anti-locking brake syst. -abs-

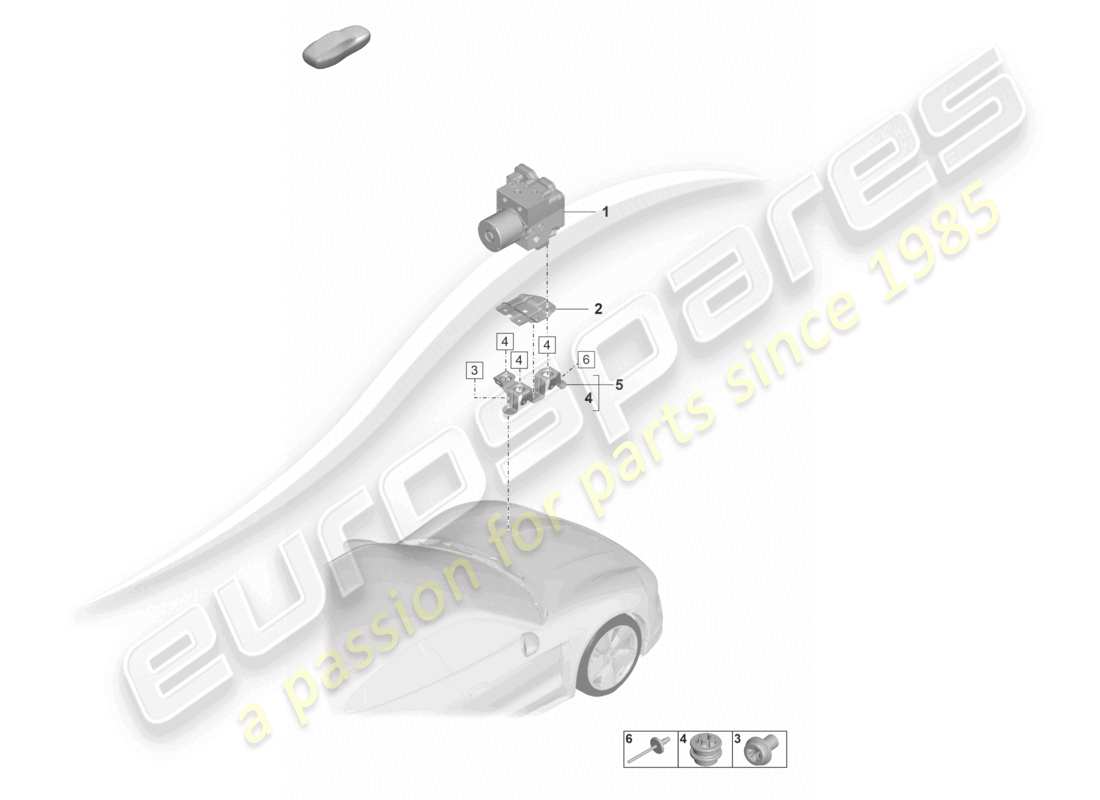

Porsche 2020 (Taycan 9J1-1) Hydraulic unit anti-locking brake syst. -abs- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: 9J1614095KY
            hydraulic unit
            hydraulic unit
            from £1,705.12
            from £1,705.12
            hydraulic unit Genuine Porsche Part - New (to order)
            # 1
            MPN: 9J1614095MY
            Hydraulic unit D - 05.05.2020>>- 07.07.2020
            from £1,562.20
            from £1,562.20
            hydraulic unit Genuine Porsche Part - New (to order)
            # 1
            MPN: 9J1614095NY
            Hydraulic unit D - 08.07.2020>>- 25.08.2021
            Hydraulic unit D - 08.07.2020>>- 25.08.2021
            from £1,736.88
            from £1,736.88
            hydraulic unit Genuine Porsche Part - New (to order)
            # 1
            MPN: 9J1614095QY
            HYDRAULIC UNIT MODIFY IN WORKSHOP: WITH SOFTWARE: 0150 SOFTWARE UPDATE D >>- MJ 2022
            from £1,705.12
            from £1,705.12
            hydraulic unit Genuine Porsche Part - New (to order)
            # 1
            MPN: 9J1614095RY
            HYDRAULIC UNIT D - MJ 2022>>
            from £1,588.95
            from £1,588.95
            hydraulic unit Genuine Porsche Part - New (to order)
            # 2
            MPN: 971614513A
            BRACKET HYDRAULIC UNIT
            from £18.31
            from £18.31
            BRACKET Genuine Porsche Part - New (to order)
            # 3
            MPN: N 90691601
            SOCKET HEAD BOLT WITH HEXAGON M10X1X17 SOCKET HEAD (COMBINATION)
            from £2.70
            from £2.70
            BOLT, WITH HEX. SOCKET HD. Genuine Porsche Part - New (to order)
            # 4
            MPN: 95835517710
            STOP BUFFER
            from £0.94
            from £0.94
            JOUNCE BUMPER Genuine Porsche Part - New (to order)
            # 5
            MPN: 9J1614135
            BRACKET FOR ABS UNIT HYDRAULIC UNIT ALSO USE: 958 355 177 10
            from £23.73
            from £23.73
            BRACKET FOR ABS UNIT Genuine Porsche Part - New (to order)
            # 6
            MPN: N 90287601
            POP RIVET
            from £4.67
            from £4.67
            POP-RIVET Genuine Porsche Part - New (to order)
            BLIND RIVET 4.8X10 Genuine Lamborghini - New (to order)
