porsche 2020 (taycan 9j1-1) bumper carrier front crash reinforcement parts diagram

802-401 - Bumper carrier front Crash reinforcement

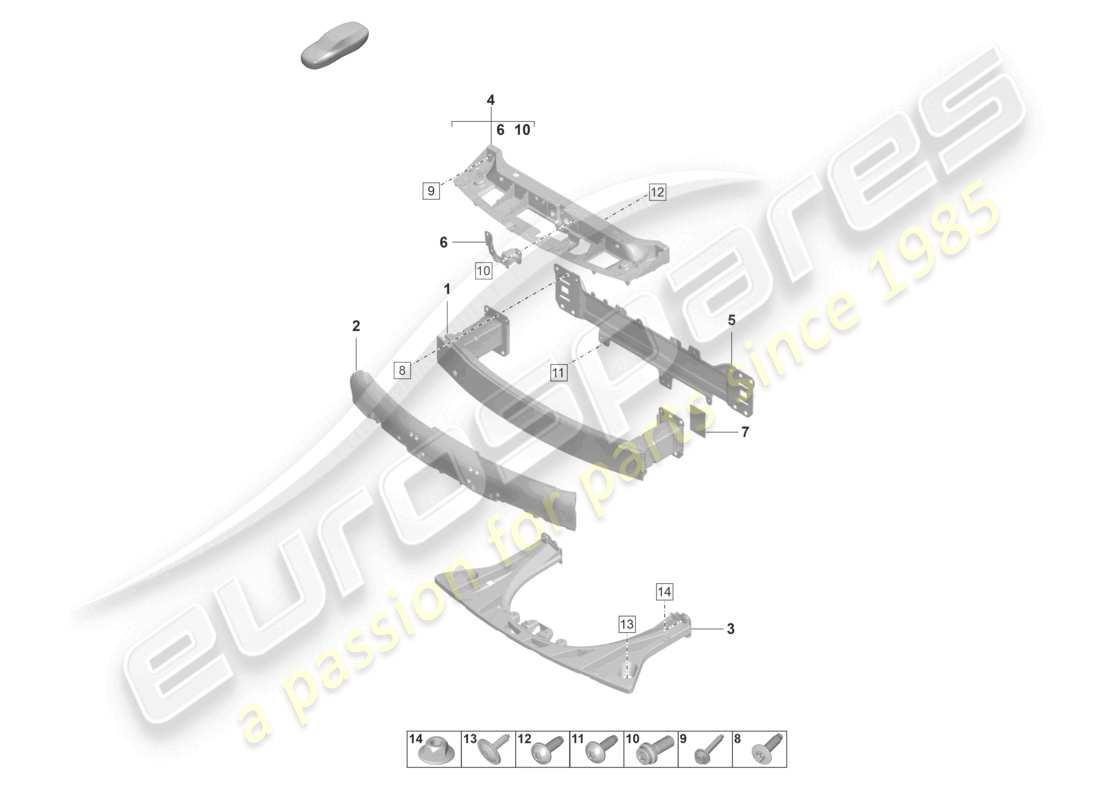

Porsche 2020 (Taycan 9J1-1) Bumper carrier front Crash reinforcement Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 9J1805241B
                          Cross Member Front
                          PK8D (Wagon/Avant) | PK8S (Sports sedan)
                          from £286.79
                          from £286.79
                          CROSS MEMBER Genuine Porsche Part - New (to order)
                          # 1
                          MPN: 9J0805241A
                          Cross Member Front
                          PK8X (Avant allroad)
                          from £296.41
                          from £296.41
                          CROSS MEMBER Genuine Porsche Part - New (to order)
                          # 2
                          MPN: 9J1 807 549 D
                          PLASTIC FOAM STRIP
                          PK8S (Sports sedan) | PVL0 (Fußgängerschutzmaßnahmen Standard)
                          PLASTIC FOAM STRIP Genuine Porsche Part - New (to order)
                          # 2
                          MPN: 9J0807549
                          PLASTIC FOAM STRIP
                          PK8X (Avant allroad)
                          from £28.52
                          from £28.52
                          PLASTIC FOAM STRIP Genuine Porsche Part - New (to order)
                          # 3
                          MPN: 9J1 807 333
                          Support lower
                          Support lower Genuine Porsche Part - New (to order)
                          # 4
                          MPN: 9J1805015A
                          LOCK CARRIER
                          from £156.51
                          from £156.51
                          LOCK CARRIER Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 9J1805353
                          PULL STRAP
                          from £82.71
                          from £82.71
                          PULL STRAP Genuine Porsche Part - New (to order)
                          # 6
                          MPN: 9J1805360A
                          REINFORCEMENT FRONT LID LOCK
                          from £20.48
                          from £20.48
                          REINFORCEMENT Genuine Porsche Part - New (to order)
                          # 7
                          MPN: 9J1805230
                          SEAL
                          from £2.59
                          from £2.59
                          SEAL Genuine Porsche Part - New (to order)
                          # 8
                          MPN: 9A700744300
                          HEXAGON HEAD BOLT M10X40
                          from £1.97
                          from £1.97
                          HEXAGON HEAD BOLT Genuine Porsche Part - New In stock
                          # 9
                          MPN: N 10810301

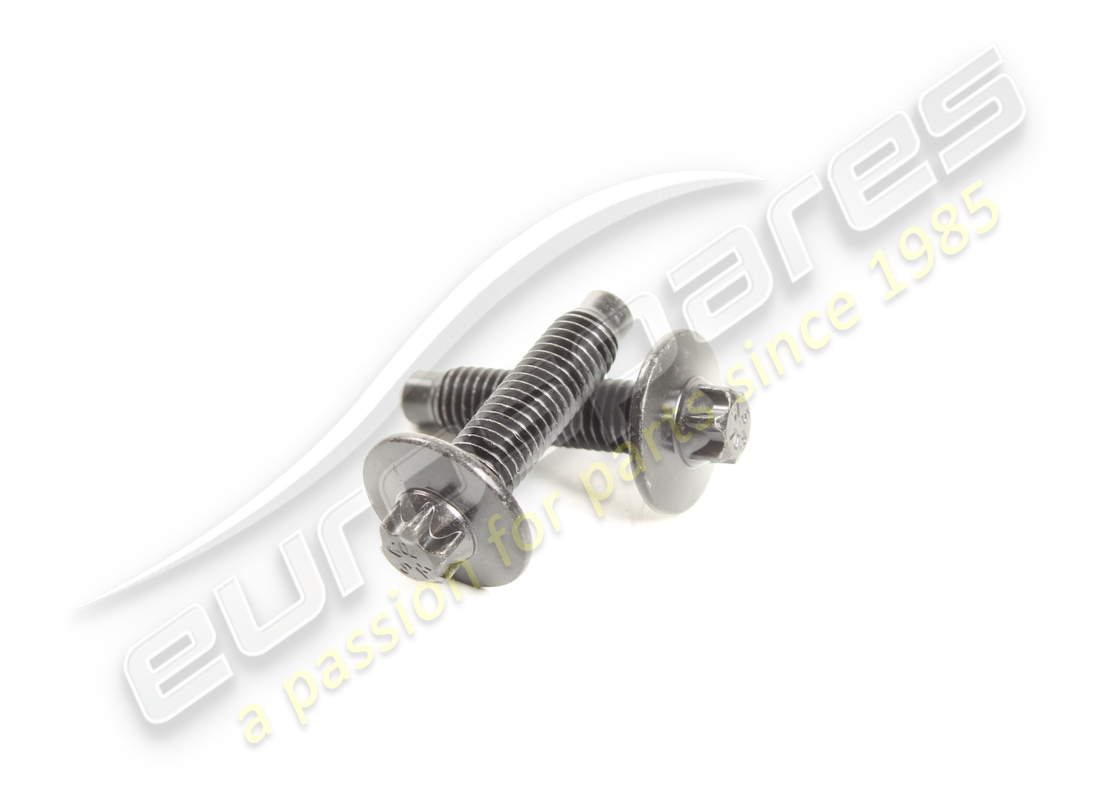

                          HEXAGON COLLARED BOLT WITH M8X60 MULTI-POINT SOCKET HEAD (DUO)
                          from £1.67
                          from £1.67
                          HEX BOLT WITH INTERNAL TORX Genuine Porsche Part - New (to order)
                          DUO BOLT W.WASHER M8X60-S22-L Genuine Lamborghini - New (to order)
                          # 10
                          MPN: N 91197601
                          HEXAGON SOCKET HEAD M8X20 BOLT (COMBI)
                          from £1.86
                          from £1.86
                          hexagon socket head Genuine Porsche Part - New (to order)
                          # 11
                          MPN: N 10632102
                          OVAL HEXAGON SOCKET HEAD BOLT M6X25
                          from £0.72
                          from £0.72
                          OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                          HEXALOBULAR SOCKETM6X25 Genuine Lamborghini - New (to order)
                          # 12
                          MPN: N 10725401
                          HEXAGON SOCKET HEAD COLLARED M6X20 BOLT, THREAD FORMING
                          from £0.80
                          from £0.80
                          HEXAGON SOCKET HEAD COLLARED Genuine Porsche Part - New In stock
                          HEXALOBULAR SOCKETM6GFX20 Genuine Lamborghini - New (to order)
                          # 13
                          MPN: 9A700769800
                          PANEL SCREW ST4.8X16-C
                          from £0.78
                          from £0.78
                          This part replaces part number 99907323109 - and 2 more. Click to view details
                          tapping screw Genuine Porsche Part - New In stock
                          # 14
                          MPN: N 90887703
                          HEXAGON FLANGE NUT, M6 SELF-LOCKING
                          from £1.15
                          from £1.15
                          HEXAGON FLANGE NUT, Genuine Porsche Part - New (to order)
                          PREV.TORQUE TYPE M6 Genuine Lamborghini - New In stock
