porsche 2020 (taycan 9j1-1) air conditioning condenser parts diagram

814-100 - AIR CONDITIONING CONDENSER

Porsche 2020 (Taycan 9J1-1) Air conditioning Condenser Parts Diagram

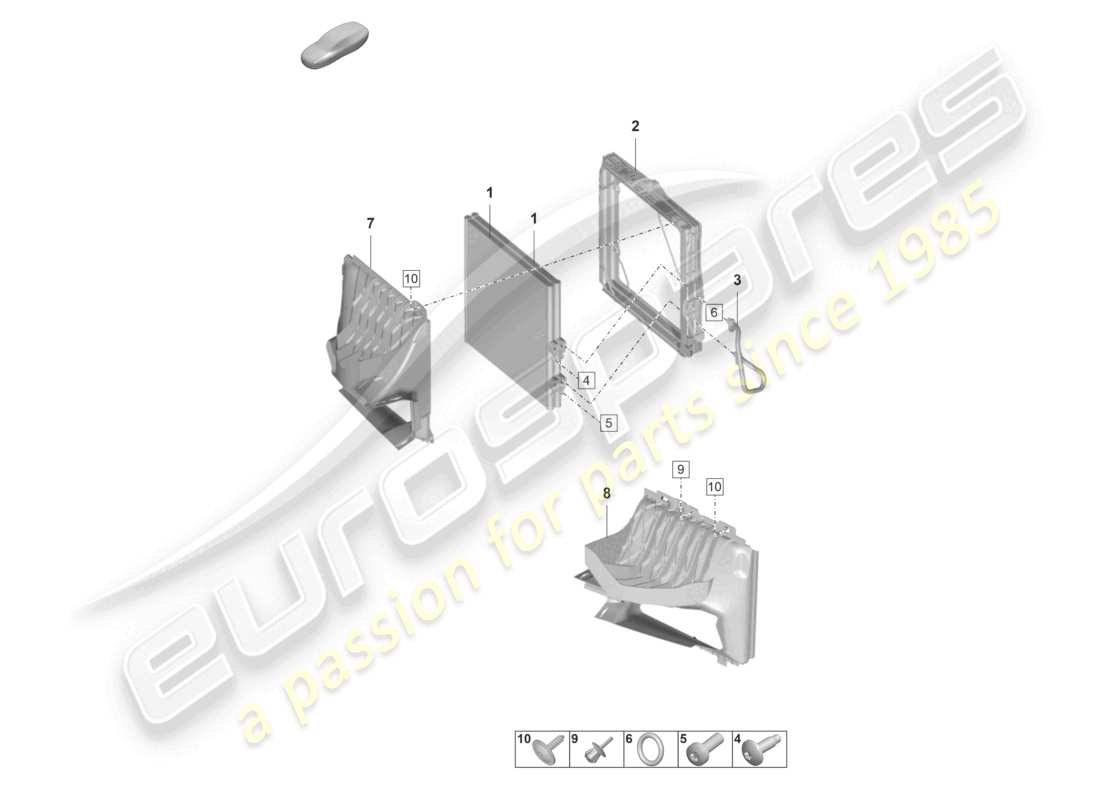

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 9J1 260 403
                    A/C CONDENSER
                    A/C CONDENSER
                    A/C CONDENSER Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 9J1260403A
                    A/C CONDENSER
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 2
                    MPN: 9J1122356A
                    Frame
                    from £58.12
                    from £58.12
                    FRAME RIGHT Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 9J1260245
                    REFRIGERANT LINE
                    from £27.36
                    from £27.36
                    REFRIGERANT LINE Genuine Porsche Part - New (to order)
                    # 4
                    MPN: PAF909757
                    ROUND HD. SCREW M5X16
                    from £0.53
                    from £0.53
                    ROUND HD. SCREW Genuine Porsche Part - New (to order)
                    # 5
                    MPN: N 10124304
                    OVAL HEXAGON SOCKET HEAD BOLT M6X20
                    from £0.84
                    from £0.84
                    OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                    HEXALOBULAR SOCKET M6 X 20 Genuine Lamborghini - New In stock
                    # 6
                    MPN: 95557374901
                    O-RING
                    from £4.36
                    from £4.36
                    O-RING Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 9J1121334A OK1
                    AIR GUIDE SIDE, RIGHT - MATT BLACK
                    from £58.30
                    from £58.30
                    AIR GUIDE MATT BLACK Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 9J1121333A OK1
                    AIR GUIDE SIDE, LEFT - MATT BLACK
                    from £58.30
                    from £58.30
                    AIR GUIDE MATT BLACK Genuine Porsche Part - New (to order)
                    # 9
                    MPN: PAF038549
                    Spreader rivet A-8X12
                    from £0.47
                    from £0.47
                    This part replaces part number N 0385494
                    SPREADER RIVET Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 9A700769800
                    PANEL SCREW ST4.8X16-C
                    from £0.78
                    from £0.78
                    This part replaces part number 99907323109 - and 2 more. Click to view details
                    tapping screw Genuine Porsche Part - New In stock
