porsche 2020 (taycan 9j1-1) electrics standard seat parts diagram

817-505 - Electrics Standard seat

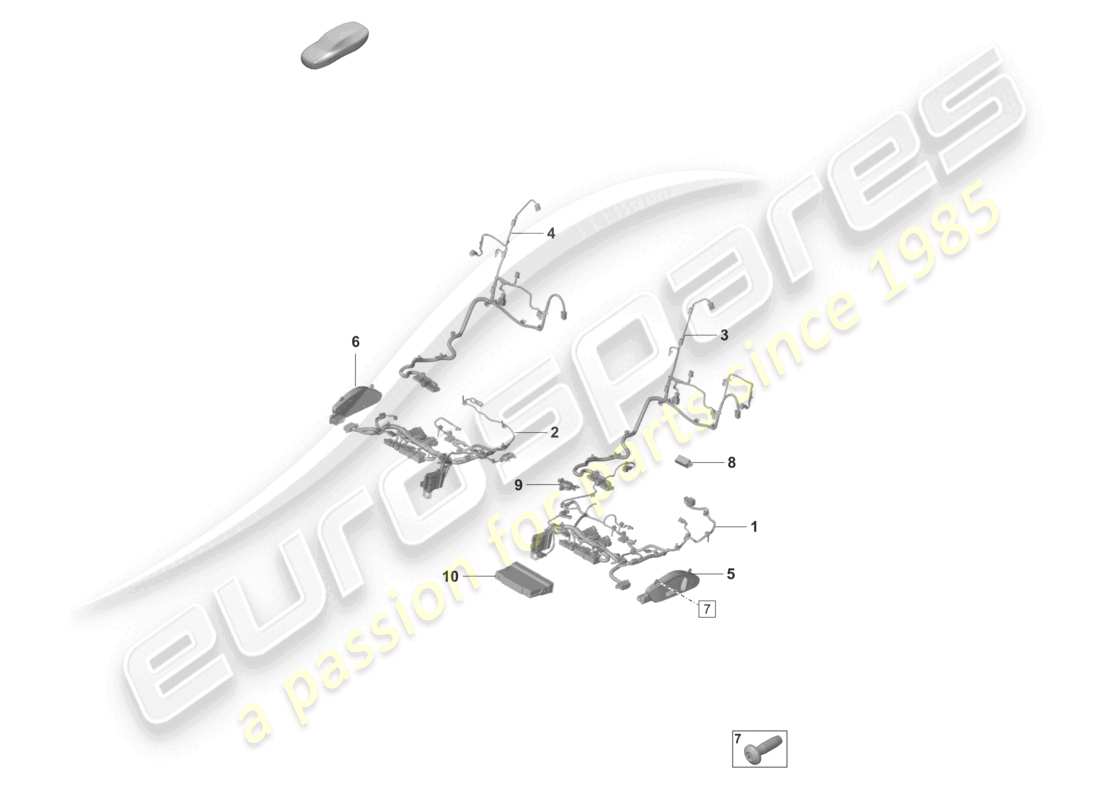

Porsche 2020 (Taycan 9J1-1) Electrics Standard seat Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 1
      MPN: 9JA971365AD
      WIRING HARNESS FOR LEFT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P3L6 (Power seats in front, driver seat with memory feature) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £69.18
      from £69.18
      # 1
      MPN: 9JA971365AE
      WIRING HARNESS FOR LEFT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P3L6 (Power seats in front, driver seat with memory feature) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £69.18
      from £69.18
      # 1
      MPN: 9JA971365AF
      WIRING HARNESS FOR LEFT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P3L6 (Power seats in front, driver seat with memory feature) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £69.18
      from £69.18
      # 1
      MPN: 9JA971365AG
      WIRING HARNESS FOR LEFT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P3L6 (Power seats in front, driver seat with memory feature) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £69.18
      from £69.18
      # 1
      MPN: 9JA971365BD
      WIRING HARNESS FOR LEFT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P3L6 (Power seats in front, driver seat with memory feature) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £76.80
      from £76.80
      # 1
      MPN: 9JA971365BE
      WIRING HARNESS FOR LEFT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P3L6 (Power seats in front, driver seat with memory feature) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £76.80
      from £76.80
      # 1
      MPN: 9JA971365BF
      WIRING HARNESS FOR LEFT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P3L6 (Power seats in front, driver seat with memory feature) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £76.80
      from £76.80
      # 1
      MPN: 9JA971365BG
      WIRING HARNESS FOR LEFT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P3L6 (Power seats in front, driver seat with memory feature) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £76.80
      from £76.80
      # 2
      MPN: 9JA971366AD
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £78.49
      from £78.49
      # 2
      MPN: 9JA971366AE
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £78.49
      from £78.49
      # 2
      MPN: 9JA971366AF
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £78.49
      from £78.49
      # 2
      MPN: 9JA971366AG
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £78.49
      from £78.49
      # 2
      MPN: 9JA971366T
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L6 (Power seats in front, driver seat with memory feature) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £69.20
      from £69.20
      # 2
      MPN: 9JA971366AA
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L6 (Power seats in front, driver seat with memory feature) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £69.20
      from £69.20
      # 2
      MPN: 9JA971366AB
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L6 (Power seats in front, driver seat with memory feature) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £78.49
      from £78.49
      # 2
      MPN: 9JA971366AC
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L6 (Power seats in front, driver seat with memory feature) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £78.49
      from £78.49
      # 2
      MPN: 9JA971366BD
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £73.40
      from £73.40
      # 2
      MPN: 9JA971366BE
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £73.40
      from £73.40
      # 2
      MPN: 9JA971366BF
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £73.40
      from £73.40
      # 2
      MPN: 9JA971366BG
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £73.40
      from £73.40
      # 2
      MPN: 9JA971366CD
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L6 (Power seats in front, driver seat with memory feature) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £73.40
      from £73.40
      # 2
      MPN: 9JA971366CE
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L6 (Power seats in front, driver seat with memory feature) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £73.40
      from £73.40
      # 2
      MPN: 9JA971366CF
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ0 (Without add. lights (interior lighting)) | PQ1G (Standard seats in front) | P3L6 (Power seats in front, driver seat with memory feature) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £73.40
      from £73.40
      # 2
      MPN: 9JA971366CG
      WIRING HARNESS FOR RIGHT ELECTRICALLY ADJUSTABLE SEAT
      PL0R (Right-hand drive) | PQQ1 (Ambient Interor Lighting) | PQ1G (Standard seats in front) | P3L6 (Power seats in front, driver seat with memory feature) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £73.40
      from £73.40
      # 3
      MPN: 9J1971369
      WIRING HARNESS FOR BACKREST LEFT ADJUSTMENT
      PQ1G (Standard seats in front) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £62.26
      from £62.26
      # 3
      MPN: 9J1971369A
      WIRING HARNESS FOR BACKREST LEFT ADJUSTMENT
      PQ1G (Standard seats in front) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £62.24
      from £62.24
      # 3
      MPN: 9J1971369F
      WIRING HARNESS FOR BACKREST LEFT ADJUSTMENT
      PQ1G (Standard seats in front) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £57.18
      from £57.18
      # 3
      MPN: 9J1971369G
      WIRING HARNESS FOR BACKREST LEFT ADJUSTMENT
      PQ1G (Standard seats in front) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £96.11
      from £96.11
      # 4
      MPN: 9J1971370
      WIRING HARNESS FOR BACKREST RIGHT ADJUSTMENT
      PQ1G (Standard seats in front) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £54.61
      from £54.61
      # 4
      MPN: 9J1971370A
      WIRING HARNESS FOR BACKREST RIGHT ADJUSTMENT
      PQ1G (Standard seats in front) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WT (MirrorLink)
      from £62.24
      from £62.24
      # 4
      MPN: 9J1971370F
      WIRING HARNESS FOR BACKREST RIGHT ADJUSTMENT
      PQ1G (Standard seats in front) | P4A0 (Without seat heater) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £57.18
      from £57.18
      # 4
      MPN: 9J1971370G
      WIRING HARNESS FOR BACKREST RIGHT ADJUSTMENT
      PQ1G (Standard seats in front) | P4A3 (Seat heater for front seats separately controlled) | P4A4 (Seat heater for front and rear seats separately controlled) | P4D0 (Without seat ventilation/massage seat) | P9WU (Mirror Link and RSE (preparation)) | P9WY (Mirror Link plus Wireless App plus RSE (preparation))
      from £62.26
      from £62.26
      # 5
      MPN: 9J1959747 TM0
      SWITCH MODULE FOR SEAT LEFT SEAT ADJUSTER D >>- 03.10.2021 - BLACK
      PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P3L6 (Power seats in front, driver seat with memory feature)
      from £195.63
      from £195.63
      # 5
      MPN: 971959747BA1E0
      SWITCH MODULE FOR SEAT LEFT SEAT ADJUSTER D - 04.10.2021>>- BLACK
      PQ1G (Standard seats in front) | P3L5 (Both front seats power-adjustable ) | P3L6 (Power seats in front, driver seat with memory feature)
      from £218.30
      from £218.30
      # 5
      MPN: 9J1959747A TM0
      SWITCH MODULE FOR SEAT LEFT SEAT ADJUSTER D >>- 03.10.2021 - BLACK
      PQ1G (Standard seats in front) | P3L4 (Power seats in front, driver seat with memory feature) | P3PN (Power seat adjustment for both front seats with memory feature)
      from £195.63
      from £195.63
      # 5
      MPN: 971959747BB1E0
      SWITCH MODULE FOR SEAT LEFT SEAT ADJUSTER D - 04.10.2021>>- BLACK
      PQ1G (Standard seats in front) | P3L4 (Power seats in front, driver seat with memory feature) | P3PN (Power seat adjustment for both front seats with memory feature)
      from £218.30
      from £218.30
      # 6
      MPN: 9J1959748 TM0
      SWITCH MODULE FOR SEAT RIGHT SEAT ADJUSTER D >>- 03.10.2021 - BLACK
      PQ1G (Standard seats in front) | P3L4 (Power seats in front, driver seat with memory feature) | P3L5 (Both front seats power-adjustable )
      from £195.63
      from £195.63
      # 6
      MPN: 971959748BA1E0
      SWITCH MODULE FOR SEAT RIGHT SEAT ADJUSTER D - 04.10.2021>>- BLACK
      PQ1G (Standard seats in front) | P3L4 (Power seats in front, driver seat with memory feature) | P3L5 (Both front seats power-adjustable )
      from £218.30
      from £218.30
      # 6
      MPN: 9J1959748A TM0
      SWITCH MODULE FOR SEAT RIGHT SEAT ADJUSTER D >>- 03.10.2021 - BLACK
      PQ1G (Standard seats in front) | P3L6 (Power seats in front, driver seat with memory feature) | P3PN (Power seat adjustment for both front seats with memory feature)
      from £195.63
      from £195.63
      # 6
      MPN: 971959748BB1E0
      SWITCH MODULE FOR SEAT RIGHT SEAT ADJUSTER D - 04.10.2021>>- BLACK
      PQ1G (Standard seats in front) | P3L6 (Power seats in front, driver seat with memory feature) | P3PN (Power seat adjustment for both front seats with memory feature)
      from £218.30
      from £218.30
      # 7
      -
      PANEL SCREW 4,2X9,5 INCLUDED IN ILLUSTRATION, POSITION: 817-100,5
      # 8
      MPN: PAD947415
      LED LIGHT
      from £19.73
      from £19.73
      # 9
      MPN: 992963553A
      SEAT OCCUPIED SENSOR
      PL0R (Right-hand drive) | P9P2 (Seat belt reminder India) | P9P3 (Seat belt reminder, electric contact in buckle) | P9P6 (Seat belt reminder, electric contact in buckle)
      from £54.34
      from £54.34
      # 10
      MPN: PAB959760D
      CONTROL UNIT FOR SEAT ADJUSTMENT
      PQ1G (Standard seats in front) | P3L4 (Power seats in front, driver seat with memory feature) | P3L6 (Power seats in front, driver seat with memory feature)
      from £416.12
      from £416.12
