porsche 2022 (taycan 9j1-1) underbody lower rear parts diagram

806-200 - Underbody lower rear

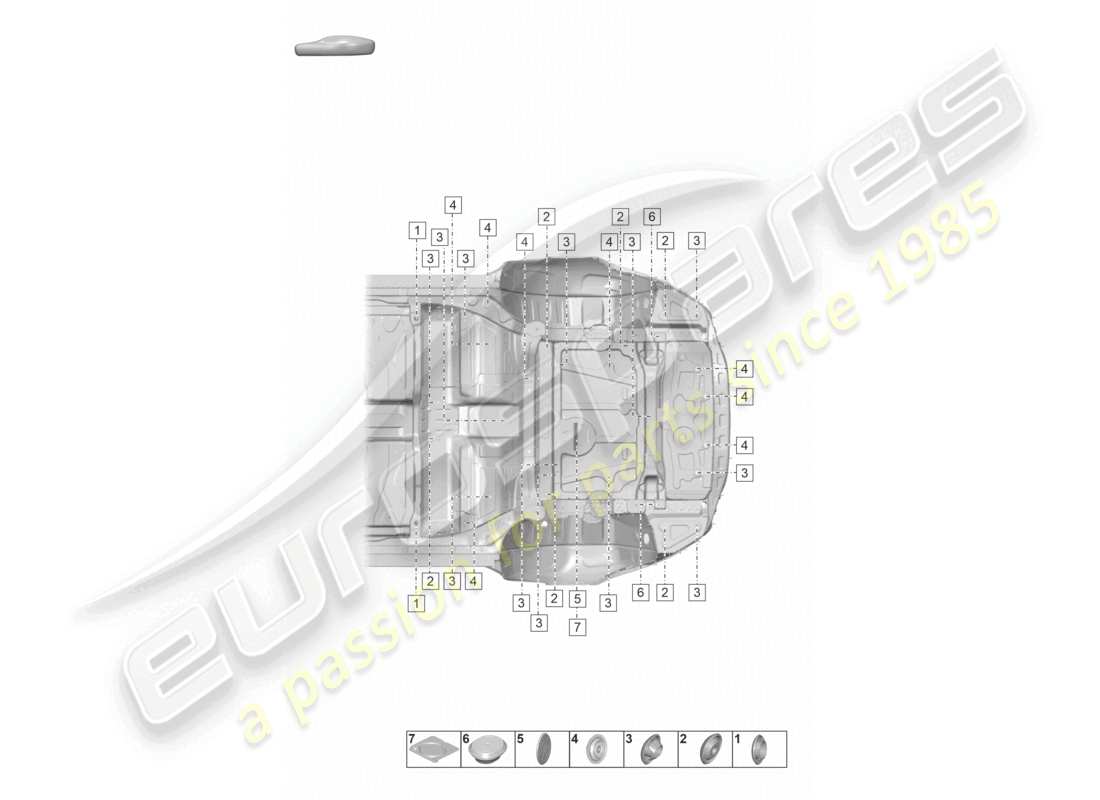

Porsche 2022 (Taycan 9J1-1) Underbody lower rear Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: PAF89918300
              BUNGS DIAMETER: 30 D >>- 09.01.2020
              from £1.42
              from £1.42
              PLUG Genuine Porsche Part - New (to order)
              # 1
              MPN: PAF010040
              STICKY PAD DIAMETER: 33 D - 10.01.2020>>
              from £0.51
              from £0.51
              STICKY PAD Genuine Porsche Part - New (to order)
              # 2
              MPN: PAA899182
              BUNGS DIAMETER: 15 D >>- 09.01.2020
              from £0.94
              from £0.94
              PLUG Genuine Porsche Part - New (to order)
              # 2
              MPN: PAF010040
              STICKY PAD DIAMETER: 33 D - 10.01.2020>>
              from £0.51
              from £0.51
              STICKY PAD Genuine Porsche Part - New (to order)
              # 3
              MPN: 95550418500
              BUNGS DIAMETER: 15X20 D >>- 09.01.2020
              from £1.12
              from £1.12
              PLUG Genuine Porsche Part - New (to order)
              # 3
              MPN: PAF010040
              STICKY PAD DIAMETER: 33 D - 10.01.2020>>
              from £0.51
              from £0.51
              STICKY PAD Genuine Porsche Part - New (to order)
              # 4
              MPN: 95550418300
              BUNGS DIAMETER: 20 D >>- 09.01.2020
              BUNGS DIAMETER: 20 D >>- 09.01.2020
              PLUG Genuine Porsche Part - New (to order)
              # 4
              MPN: 95550418301
              BUNGS DIAMETER: 20 D >>- 09.01.2020
              from £2.74
              from £2.74
              PLUG Genuine Porsche Part - New (to order)
              # 4
              MPN: PAF010040
              STICKY PAD DIAMETER: 33 D - 10.01.2020>>
              from £0.51
              from £0.51
              STICKY PAD Genuine Porsche Part - New (to order)
              # 5
              MPN: 298201063
              COVER SEAT WELL
              from £5.99
              from £5.99
              COVER Genuine Porsche Part - New (to order)
              # 6
              MPN: 9A700812100
              END CAP DIAMETER: 25X30
              from £5.45
              from £5.45
              SEALING CAP Genuine Porsche Part - New (to order)
              # 7
              MPN: 9J1899194
              STICKY PAD HEAT INSULATION TO BE USED FOR ITEM: 5 D >>- 01.12.2022
              from £10.59
              from £10.59
              STICKY PAD Genuine Porsche Part - New (to order)
              # 7
              MPN: PAD864665
              DAMPING HEAT INSULATION TO BE USED FOR ITEM: 5 D - 02.12.2022>>
              from £10.59
              from £10.59
              DAMPING Genuine Porsche Part - New (to order)
