porsche 2023 (taycan 9j1-1) disc brake 18 front axle red parts diagram

602-005 - Disc brake 18 Front axle red

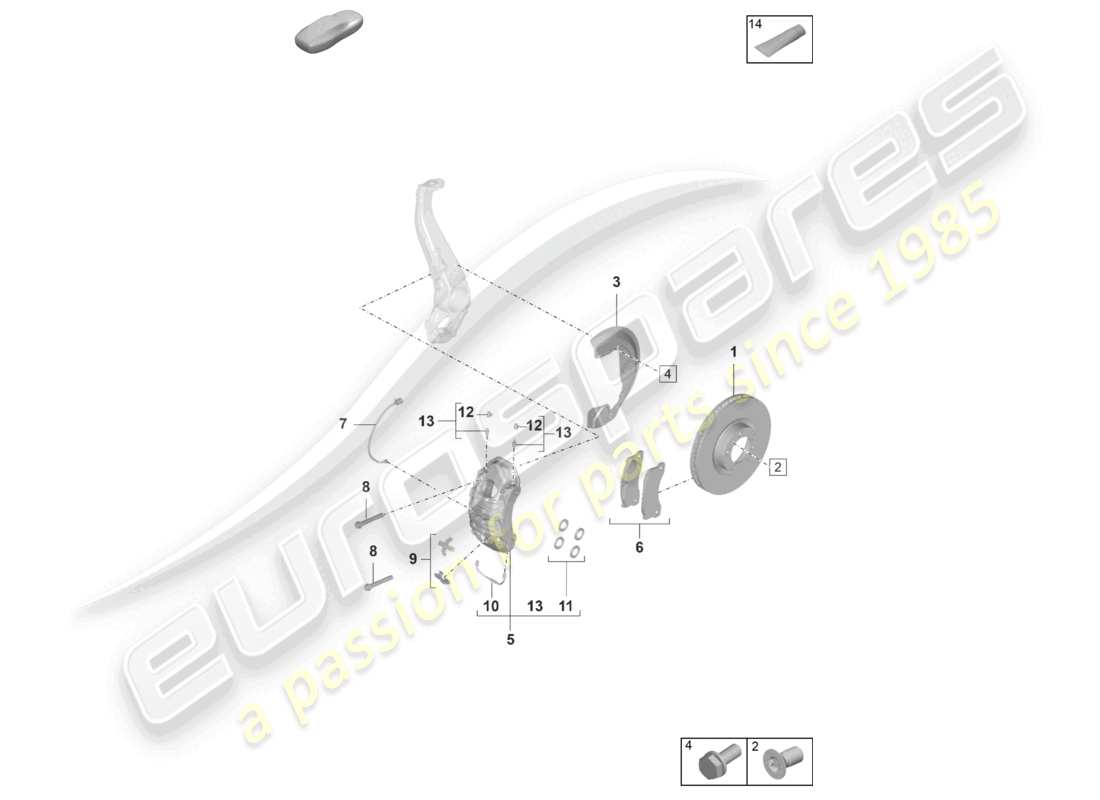

Porsche 2023 (Taycan 9J1-1) Disc brake 18 Front axle red Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # -
                        -
                        AIR DUCT FOR BRAKE COOLING SEE ILLUSTRATION: 802-100
                        # 1
                        MPN: 9Y0615301Q
                        BRAKE DISC LEFT FRONT ALSO USE: 1X 9Y0 615 302 Q ADDITIONALLY TO BE USED ITEMS: 1X 6
                        PE0W (Special edition)
                        from £259.57
                        from £259.57
                        BRAKE DISC Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 9Y0615302Q
                        BRAKE DISC RIGHT FRONT ALSO USE: 1X 9Y0 615 301 Q ADDITIONALLY TO BE USED ITEMS: 1X 6
                        PE0W (Special edition)
                        from £259.57
                        from £259.57
                        BRAKE DISC Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 9J1615301A
                        BRAKE DISC LEFT FRONT ALSO USE: 1X 9J1 615 302 A ADDITIONALLY TO BE USED ITEMS: 1X 6
                        PE0A (No special edition)
                        from £216.78
                        from £216.78
                        BRAKE DISC Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 9J1615302A
                        BRAKE DISC RIGHT FRONT ALSO USE: 1X 9J1 615 301 A ADDITIONALLY TO BE USED ITEMS: 1X 6
                        PE0A (No special edition)
                        from £271.43
                        from £271.43
                        BRAKE DISC Genuine Porsche Part - New (to order)
                        # 2
                        MPN: N 10456004
                        Hexagon socket head bolt, M6X12 self-locking
                        from £0.47
                        from £0.47
                        HEXAGON SOCKET HEAD BOLT, Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 9J1615311
                        COVER PLATE LEFT FRONT
                        from £15.74
                        from £15.74
                        COVER PLATE Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 9J1615312
                        COVER PLATE RIGHT FRONT
                        from £15.74
                        from £15.74
                        COVER PLATE Genuine Porsche Part - New (to order)
                        # 4
                        MPN: PAF100829
                        HEXAGON HEAD BOLT (COMBI) M6X16
                        from £0.61
                        from £0.61
                        This part replaces part number N 10082913
                        BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New In stock
                        # 5
                        MPN: 9J1615123J
                        CALIPER WITHOUT BRAKE PADS LEFT RED 2X WHT 004 572 ALSO USE: 2X 9A7 698 269 00
                        PA8F (Sports equipment) | P1LS (Disc brakes in front, with integrated brake carrier) | PE0A (No special edition)
                        from £411.28
                        from £411.28
                        CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 9J1615124J
                        CALIPER WITHOUT BRAKE PADS RIGHT RED ALSO USE: 2X WHT 004 572 2X 9A7 698 269 00
                        PA8F (Sports equipment) | P1LS (Disc brakes in front, with integrated brake carrier) | PE0A (No special edition)
                        from £411.28
                        from £411.28
                        CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 9J1615123D
                        CALIPER WITHOUT BRAKE PADS LEFT BLACK ANODISED ALSO USE: 2X WHT 004 572 2X 9A7 698 269 00
                        PA8F (Sports equipment) | P1LR (Disc brakes in front, with integrated brake carrier) | PE0A (No special edition)
                        from £629.26
                        from £629.26
                        CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 9J1615124D
                        CALIPER WITHOUT BRAKE PADS RIGHT BLACK ANODISED ALSO USE: 2X WHT 004 572 2X 9A7 698 269 00
                        PA8F (Sports equipment) | P1LR (Disc brakes in front, with integrated brake carrier) | PE0A (No special edition)
                        from £629.26
                        from £629.26
                        CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 9J1615123L
                        CALIPER WITHOUT BRAKE PADS LEFT RED ALSO USE: 2X WHT 004 572 2X 9A7 698 269 00
                        PA8F (Sports equipment) | P1LS (Disc brakes in front, with integrated brake carrier) | PE0W (Special edition)
                        from £425.26
                        from £425.26
                        CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 9J1615124L
                        CALIPER WITHOUT BRAKE PADS RIGHT RED ALSO USE: 2X WHT 004 572 2X 9A7 698 269 00
                        PA8F (Sports equipment) | P1LS (Disc brakes in front, with integrated brake carrier) | PE0W (Special edition)
                        from £427.70
                        from £427.70
                        CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 9J1615123M
                        CALIPER WITHOUT BRAKE PADS LEFT BLACK ALSO USE: 2X WHT 004 572 2X 9A7 698 269 00
                        PA8F (Sports equipment) | P1LR (Disc brakes in front, with integrated brake carrier) | PE0W (Special edition)
                        from £694.82
                        from £694.82
                        CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 9J1615124M
                        CALIPER WITHOUT BRAKE PADS RIGHT BLACK ALSO USE: 2X WHT 004 572 2X 9A7 698 269 00
                        PA8F (Sports equipment) | P1LR (Disc brakes in front, with integrated brake carrier) | PE0W (Special edition)
                        from £694.82
                        from £694.82
                        CALIPER WITHOUT BRAKE PADS Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 9J1698151
                        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE ALSO USE: 4X WHT 004 572 4X 9A7 698 269 00 ADDITIONALLY TO BE USED ITEMS: 7
                        from £243.22
                        from £243.22
                        1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                        # 6
                        MPN: 9J1698151J
                        1 SET OF BRAKE PADS FOR FRONT DISK BRAKE ALSO USE: 4X WHT 004 571 4X 9A7 698 269 00 ADDITIONALLY TO BE USED ITEMS: 7
                        from £252.97
                        from £252.97
                        1 SET OF BRAKE PADS FOR DISK BRAKE Genuine Porsche Part - New (to order)
                        # 7
                        MPN: 971907253
                        SENDER WIRE (PAD WEAR INDICATOR)
                        from £24.80
                        from £24.80
                        This part replaces part number 9A790763700
                        SENDER WIRE (BRAKE PAD WEAR SENSOR) Genuine Porsche Part - New In stock
                        # 7
                        MPN: 9J1907637
                        SENDER WIRE (PAD WEAR INDICATOR)
                        from £24.98
                        from £24.98
                        SENDER WIRE (PAD WEAR INDICATOR) Genuine Porsche Part - New (to order)
                        # 8
                        MPN: WHT004571
                        Socket head collared bolt with M14X1,5X115 inner multipoint head
                        Socket head collared bolt with M14X1,5X115 inner multipoint head
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 8
                        MPN: PAF004571
                        Socket head collared bolt with M14X1,5X115 inner multipoint head Fixed calliper
                        from £7.30
                        from £7.30
                        This part replaces part number WHT004571
                        SCREW Genuine Porsche Part - New (to order)
                        # 8
                        MPN: WHT004572
                        Socket head bolt with M14X1,5X135 inner multipoint head
                        Socket head bolt with M14X1,5X135 inner multipoint head
                        from £6.71
                        from £6.71
                        Genuine Porsche Part (no longer available to order)
                        HEXALOBULAR SOCKET99907346101 Genuine Lamborghini - New (to order)
                        # 8
                        MPN: PAF004572
                        Socket head bolt with M14X1,5X135 inner multipoint head
                        from £7.79
                        from £7.79
                        This part replaces part number WHT004572
                        SCREW Genuine Porsche Part - New In stock
                        # 9
                        MPN: 9A769826900
                        RETAINING SPRING
                        from £22.02
                        from £22.02
                        RETAINING SPRING Genuine Porsche Part - New (to order)
                        # 10
                        MPN: 7P5615701B
                        Connecting line left
                        Connecting line left
                        from £25.79
                        from £25.79
                        connecting line Genuine Porsche Part - New (to order)
                        # 10
                        MPN: 9J1615701B
                        Connecting line left
                        from £25.79
                        from £25.79
                        connecting line Genuine Porsche Part - New (to order)
                        # 10
                        MPN: 7P5615702B
                        Connecting line right
                        Connecting line right
                        from £25.12
                        from £25.12
                        connecting line Genuine Porsche Part - New (to order)
                        # 10
                        MPN: 9J1615702B
                        Connecting line right
                        from £25.79
                        from £25.79
                        connecting line Genuine Porsche Part - New (to order)
                        # 11
                        MPN: 95535191520
                        GASKET SET FOR FIXED CALLIPER 1 SET PROTECTIVE CAPS
                        from £42.29
                        from £42.29
                        repair kit Genuine Porsche Part - New (to order)
                        # 12
                        MPN: 211611483
                        DUST CAP CONTAINS: 20 PC
                        from £3.60
                        from £3.60
                        dust cap - D >> - MJ 1983 Genuine Porsche Part - New (to order)
                        DUST CAP Genuine Lamborghini - New (to order)
                        # 13
                        MPN: 8A0615273
                        1 SET BLEEDER VALVES WITH DUST CAP
                        from £8.25
                        from £8.25
                        BLEEDER VALVE Genuine Porsche Part - New (to order)
                        BLEEDER SCREW Genuine Lamborghini - New (to order)
                        # 14
                        MPN: 00004330508
                        ASSEMBLY PASTE 1 TUBE 100 GRAM
                        from £17.99
                        from £17.99
                        This part replaces part number 00004302000
                        ASSEMBLY PASTE Genuine Porsche Part - New (to order)
