PL0L (Left-hand drive) | PL0R (Right-hand drive)
porsche 2025 (taycan 9j1-2) brake line front front end parts diagram

604-010 - Brake line front Front end

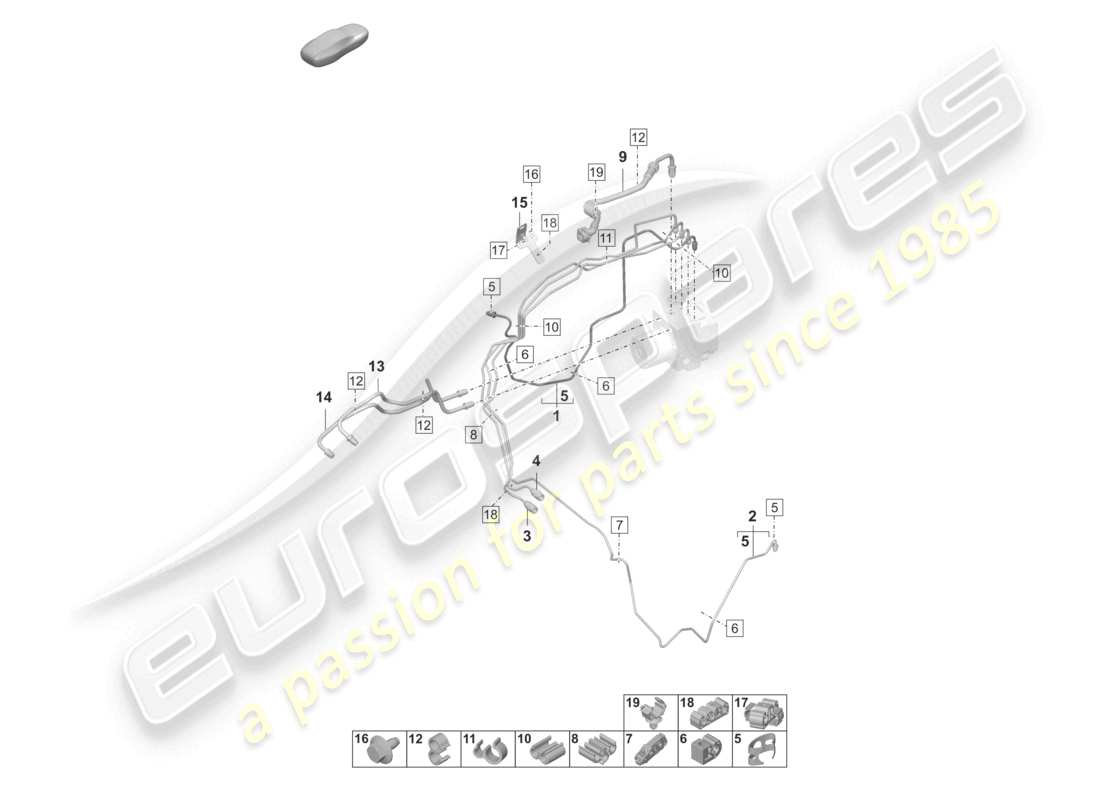

Porsche 2025 (Taycan 9J1-2) Brake line front Front end Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 9J1614717D
                          BRAKE LINE CONTAINS: 8K0 611 715
                          from £34.18
                          from £34.18
                          brake line Genuine Porsche Part - New (to order)
                          # 2
                          MPN: 9J1614721G
                          BRAKE LINE CONTAINS: 8K0 611 715
                          from £37.90
                          from £37.90
                          brake line Genuine Porsche Part - New (to order)
                          # 3
                          MPN: 9J1614723E
                          brake line
                          from £34.18
                          from £34.18
                          brake line Genuine Porsche Part - New (to order)
                          # 4
                          MPN: 9J1614725E
                          brake line
                          from £34.18
                          from £34.18
                          brake line Genuine Porsche Part - New (to order)
                          # 5
                          MPN: 8K0611715
                          RETAINING SPRING
                          from £0.55
                          from £0.55
                          RETAINING SPRING Genuine Porsche Part - New (to order)
                          RETAINING SPRING Genuine Lamborghini - New In stock
                          # 6
                          MPN: PAB611797
                          BRAKE LINE BRACKET 2 POINT
                          from £0.90
                          from £0.90
                          BRAKE LINE BRACKET Genuine Porsche Part - New (to order)
                          # 7
                          MPN: 9A761179700
                          BRAKE LINE BRACKET 3 POINT
                          from £2.18
                          from £2.18
                          HOLDER FOR BREAK PIPE Genuine Porsche Part - New (to order)
                          # 8
                          MPN: 6Q0611797K
                          RETAINER FOR BRAKE PIPE 3 POINT
                          from £0.48
                          from £0.48
                          RETAINER FOR BRAKE PIPE Genuine Porsche Part - New (to order)
                          # 9
                          MPN: 9J1614724D
                          Brake pipe from hydro unit to coolant expansion tank
                          PL0L (Left-hand drive)
                          from £34.18
                          from £34.18
                          BRAKE PIPE Genuine Porsche Part - New (to order)
                          # 9
                          MPN: 9JA614724
                          Brake pipe from hydro unit to coolant expansion tank
                          PL0R (Right-hand drive)
                          from £34.18
                          from £34.18
                          BRAKE PIPE Genuine Porsche Part - New (to order)
                          # 10
                          MPN: PAA108234
                          DOUBLE CLIP PRESSURE LINE
                          from £1.84
                          from £1.84
                          DOUBLE CLIP Genuine Porsche Part - New (to order)
                          # 11
                          MPN: 4S0611797G
                          BRACKET
                          PL0L (Left-hand drive)
                          from £2.47
                          from £2.47
                          BRACKET Genuine Porsche Part - New (to order)
                          BRACKET MSS Genuine Lamborghini - New (to order)
                          # 12
                          MPN: N 10588701
                          SPACER HOLDER 8X8 PRESSURE LINE
                          PL0R (Right-hand drive)
                          from £0.89
                          from £0.89
                          SPACER HOLDER Genuine Porsche Part - New (to order)
                          # 13
                          MPN: 9J1614727D
                          Brake pipe from brake master cylinder to hydraulics Brake line
                          PL0L (Left-hand drive)
                          from £32.85
                          from £32.85
                          BRAKE PIPE Genuine Porsche Part - New (to order)
                          # 13
                          MPN: 9JA614739B
                          Brake pipe from brake master cylinder to hydraulics Brake line
                          PL0R (Right-hand drive)
                          from £38.85
                          from £38.85
                          BRAKE PIPE Genuine Porsche Part - New (to order)
                          # 14
                          MPN: 9J1614739D
                          Brake pipe from brake master cylinder to hydraulics Brake line
                          PL0L (Left-hand drive)
                          from £32.85
                          from £32.85
                          BRAKE PIPE Genuine Porsche Part - New (to order)
                          # 14
                          MPN: 9JA614727B
                          Brake pipe from brake master cylinder to hydraulics Brake line
                          PL0R (Right-hand drive)
                          from £38.85
                          from £38.85
                          BRAKE PIPE Genuine Porsche Part - New (to order)
                          # 15
                          MPN: 9J1614514
                          BRACKET BRAKE LINE
                          from £8.34
                          from £8.34
                          BRACKET Genuine Porsche Part - New (to order)
                          # 16
                          MPN: N 10814001
                          Hex collared bolt M6X12
                          from £0.58
                          from £0.58
                          BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                          HEXAGON FLANGE M6X12 Genuine Lamborghini - New (to order)
                          # 17
                          MPN: 8K0611797B
                          BRACKET 2 POINT
                          PL0R (Right-hand drive)
                          from £10.91
                          from £10.91
                          BRACKET Genuine Porsche Part - New (to order)
                          BRACKET 2SPURIG Genuine Lamborghini - New (to order)
                          # 18
                          MPN: 8K0611797F
                          BRACKET 3 POINT LINE HOLDER
                          from £1.37
                          from £1.37
                          HOLDER FOR BREAK PIPE Genuine Porsche Part - New (to order)
                          BRACKET 3 SPURIG Genuine Lamborghini - New (to order)
                          # 19
                          MPN: N 10507901
                          CABLE HOLDER CONNECTION CABLE
                          PL0R (Right-hand drive)
                          from £1.13
                          from £1.13
                          CABLE HOLDER Genuine Porsche Part - New (to order)
