porsche 2025 (taycan 9j1-2) wheel housing liner accessories parts diagram

801-760 - Wheel housing liner Accessories

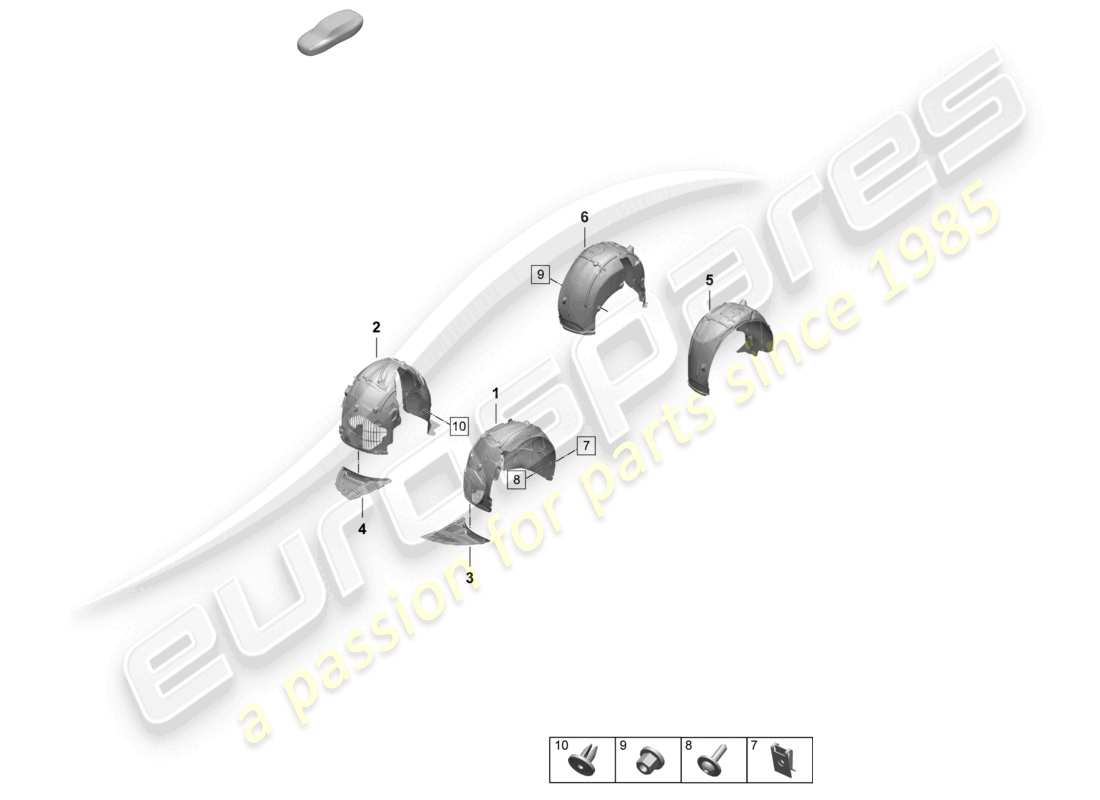

Porsche 2025 (Taycan 9J1-2) Wheel housing liner Accessories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Price
                      # 1
                      MPN: 9J1810907H
                      WHEEL HOUSING LINER LEFT FRONT
                      from £158.86
                      from £158.86
                      # 1
                      MPN: 9J1810907J
                      WHEEL HOUSING LINER LEFT FRONT
                      from £158.86
                      from £158.86
                      # 2
                      MPN: 9J1810908H
                      WHEEL HOUSING LINER RIGHT FRONT
                      from £158.86
                      from £158.86
                      # 2
                      MPN: 9J1810908J
                      WHEEL HOUSING LINER RIGHT FRONT
                      from £158.86
                      from £158.86
                      # 3
                      MPN: PAD809957B
                      WHEEL HOUSING LINER LEFT LOWER LOWER PART
                      from £59.46
                      from £59.46
                      # 3
                      MPN: PAD809957C
                      WHEEL HOUSING LINER LEFT LOWER LOWER PART
                      from £80.24
                      from £80.24
                      # 4
                      MPN: PAD809958B
                      Wheel housing liner right lower Lower part
                      from £59.46
                      from £59.46
                      # 4
                      MPN: PAD809958C
                      Wheel housing liner right lower Lower part
                      from £80.24
                      from £80.24
                      # 5
                      MPN: 9J1810969A
                      WHEEL HOUSING LINER LEFT REAR
                      from £113.81
                      from £113.81
                      # 6
                      MPN: 9J1810970A
                      WHEEL HOUSING LINER RIGHT REAR
                      from £113.81
                      from £113.81
                      # 7
                      MPN: N 91242501
                      CLAMPING NUT 4.8X22X18
                      from £0.87
                      from £0.87
                      This part replaces part number 99950730902 - and 2 more. Click to view details
                      # 8
                      MPN: 9A700769800
                      PANEL SCREW 4,8X16
                      from £0.78
                      from £0.78
                      This part replaces part number 99907323109 - and 2 more. Click to view details
                      # 9
                      MPN: PAF008768
                      PLASTIC NUT T6
                      from £0.47
                      from £0.47
                      # 10
                      MPN: N 10516801
                      EXPANDING NUT 5X14,4
                      from £0.78
                      from £0.78
