814-450 - Air conditioning Refrigerant line

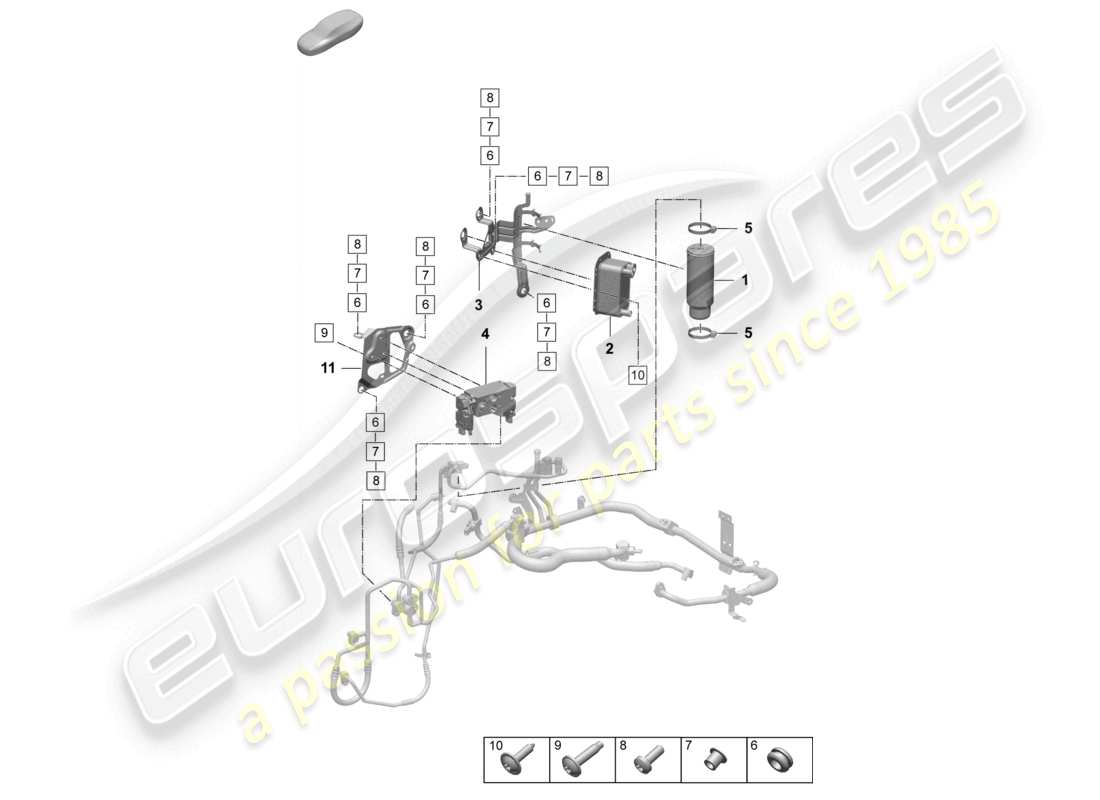

Porsche 2025 (Taycan 9J1-2) Air conditioning Refrigerant line Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 992820077 Y
                        DRIER
                        from £103.98
                        from £103.98
                        RECEIVER DRIER Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 9J1816412
                        CONDENSER HIGH PRESSURE
                        from £380.13
                        from £380.13
                        CONDENSER Genuine Porsche Part - New (to order)
                        # 3
                        MPN: 9J1816594B
                        BRACKET
                        from £59.25
                        from £59.25
                        BRACKET Genuine Porsche Part - New (to order)
                        # 4
                        MPN: PAD816102
                        VALVE BLOCK
                        from £398.18
                        from £398.18
                        VALVE BLOCK Genuine Porsche Part - New (to order)
                        # 5
                        MPN: N 0245226
                        CLAMP 60-80X9X0,5
                        from £2.86
                        from £2.86
                        CLAMP Genuine Porsche Part - New (to order)
                        HOSE CLAMP Genuine Lamborghini - New In stock
                        # 6
                        MPN: PAE131887
                        GROMMET
                        from £4.66
                        from £4.66
                        GROMMET Genuine Porsche Part - New (to order)
                        # 7
                        MPN: PAB129734A
                        SPACER SLEEVE
                        from £5.58
                        from £5.58
                        SPACER SLEEVE Genuine Porsche Part - New (to order)
                        # 8
                        MPN: N 10632102
                        OVAL HEXAGON SOCKET HEAD BOLT M6X25 FILLISTER HD. BOLT
                        from £0.72
                        from £0.72
                        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                        HEXALOBULAR SOCKETM6X25 Genuine Lamborghini - New (to order)
                        # 9
                        MPN: N 90737107
                        OVAL HEXAGON SOCKET HEAD BOLT M6X12
                        from £0.61
                        from £0.61
                        FILLISTER HD. SCREW WITH Genuine Porsche Part - New (to order)
                        HEXALOBULAR SOCKET Genuine Lamborghini - New (to order)
                        # 10
                        MPN: N 91096801
                        HEXAGON SOCKET FLAT B25X36X30 HEAD BOLT
                        from £0.87
                        from £0.87
                        HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                        HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
                        # 11
                        MPN: PAD816575
                        BRACKET
                        from £9.92
                        from £9.92
                        BRACKET Genuine Porsche Part - New (to order)
