porsche 2026 (taycan 9j1-2) wheel carrier parts diagram

501-020 - wheel carrier

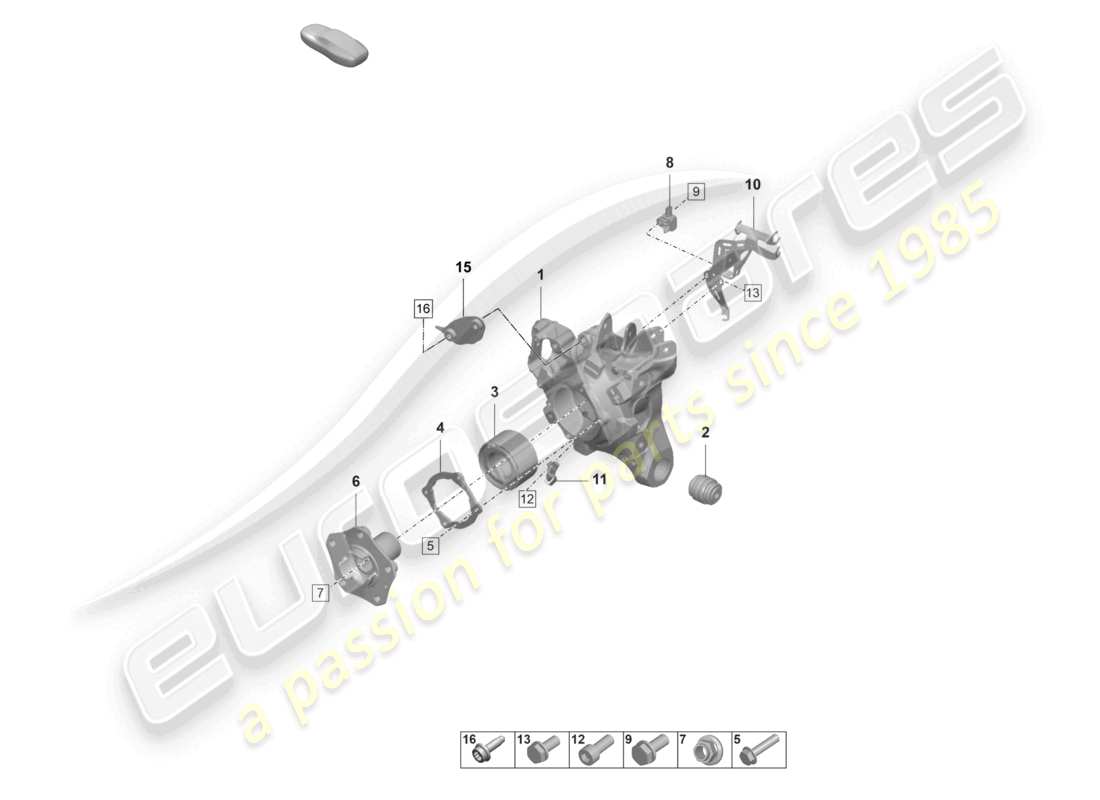

Porsche 2026 (Taycan 9J1-2) Wheel carrier Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 971505435J
                          Wheel bearing housing left Wheel carrier
                          PK8S (Sports sedan) | PK8D (Wagon/Avant)
                          from £439.37
                          from £439.37
                          This part replaces part number 971505435F
                          WHEEL BEARING HOUSING Genuine Porsche Part - New (to order)
                          # 1
                          MPN: 971505435J
                          Wheel bearing housing left Wheel carrier
                          P1P8 (Comfort suspension) | PK8X (Avant allroad)
                          from £439.37
                          from £439.37
                          This part replaces part number 971505435F
                          WHEEL BEARING HOUSING Genuine Porsche Part - New (to order)
                          # 1
                          MPN: 9J0505435B
                          WHEEL CARRIER LEFT
                          P1P0 (Standard suspension) | PK8X (Avant allroad)
                          from £495.04
                          from £495.04
                          wheel carrier Genuine Porsche Part - New (to order)
                          # 1
                          MPN: 971505436J
                          WHEEL BEARING HOUSING RIGHT WHEEL CARRIER
                          PK8S (Sports sedan) | PK8D (Wagon/Avant)
                          from £439.37
                          from £439.37
                          WHEEL BEARING HOUSING Genuine Porsche Part - New (to order)
                          # 1
                          MPN: 971505436J
                          WHEEL BEARING HOUSING RIGHT WHEEL CARRIER
                          P1P8 (Comfort suspension) | PK8X (Avant allroad)
                          from £439.37
                          from £439.37
                          WHEEL BEARING HOUSING Genuine Porsche Part - New (to order)
                          # 1
                          MPN: 9J0505436B
                          WHEEL CARRIER RIGHT
                          P1P0 (Standard suspension) | PK8X (Avant allroad)
                          from £495.04
                          from £495.04
                          wheel carrier Genuine Porsche Part - New (to order)
                          # 2
                          MPN: 9J1501341
                          BEARING BUSH
                          from £74.42
                          from £74.42
                          This part replaces part number 298501341
                          BEARING BUSH Genuine Porsche Part - New (to order)
                          # 3
                          MPN: PAE501287
                          ANGULAR BALL BEARING
                          from £118.11
                          from £118.11
                          ANGULAR BALL BEARING Genuine Porsche Part - New (to order)
                          # 4
                          MPN: 971501375A
                          PLATE
                          from £15.78
                          from £15.78
                          PLATE Genuine Porsche Part - New (to order)
                          # 5
                          MPN: N 10806301
                          Hex collared bolt M8X35
                          from £0.90
                          from £0.90
                          BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                          # 6
                          MPN: PAE407615
                          WHEEL HUB
                          PE0A (No special edition)
                          from £228.93
                          from £228.93
                          WHEEL HUB Genuine Porsche Part - New (to order)
                          # 6
                          MPN: PAD407615
                          WHEEL HUB
                          PE0B (Black Edition) | PE4E (Silver Edition) | PE8A (Turbo S)
                          from £269.14
                          from £269.14
                          WHEEL HUB Genuine Porsche Part - New (to order)
                          # 7
                          MPN: WHT007021
                          HEX. NUT, SELF-LOCKING WITH M22X1.5 WASHER
                          from £7.88
                          from £7.88
                          HEX. NUT, SELF-LOCKING WITH WASHER, M22 X 1.5 Genuine Porsche Part - New (to order)
                          # 8
                          MPN: 95C907656
                          Accelerator sensor Wheel carrier
                          from £60.32
                          from £60.32
                          ACCELERATOR SENSOR Genuine Porsche Part - New (to order)
                          # 9
                          MPN: PAF10063604
                          HEXAGON BOLT
                          from £1.41
                          from £1.41
                          SCREW, HEX. HD Genuine Porsche Part - New (to order)
                          # 10
                          MPN: 9J1971005
                          CABLE HOLDER LEFT WHEEL CARRIER
                          from £9.70
                          from £9.70
                          CABLE HOLDER Genuine Porsche Part - New (to order)
                          # 10
                          MPN: 9J1971006
                          CABLE HOLDER RIGHT WHEEL CARRIER
                          from £9.70
                          from £9.70
                          CABLE HOLDER Genuine Porsche Part - New (to order)
                          # 11
                          MPN: 9J1927807
                          SPEED SENSOR
                          from £75.60
                          from £75.60
                          SPEED SENSOR Genuine Porsche Part - New (to order)
                          # 12
                          MPN: N 01474011
                          Socket head bolt with M6X16 hexagon socket head
                          from £1.26
                          from £1.26
                          bolt, with hex. socket - hd. - M 6 X 16 - F 94-MS400 096>> - F 94-MS430 324>> Genuine Porsche Part - New In stock
                          PAN HEAD BOLT M6X16 Genuine Lamborghini - New In stock
                          # 13
                          MPN: PAF100829
                          HEXAGON HEAD BOLT (COMBI) M6X16
                          from £0.61
                          from £0.61
                          This part replaces part number N 10082913
                          BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New In stock
                          # 14
                          -
                          WIRE SET SEE ILLUSTRATION, ITEM: 903-500,3
