Tubi 355 Tubi Exhausts Parts Diagram

001 - Tubi Exhausts

Tubi 355 Tubi Exhausts Parts Diagram

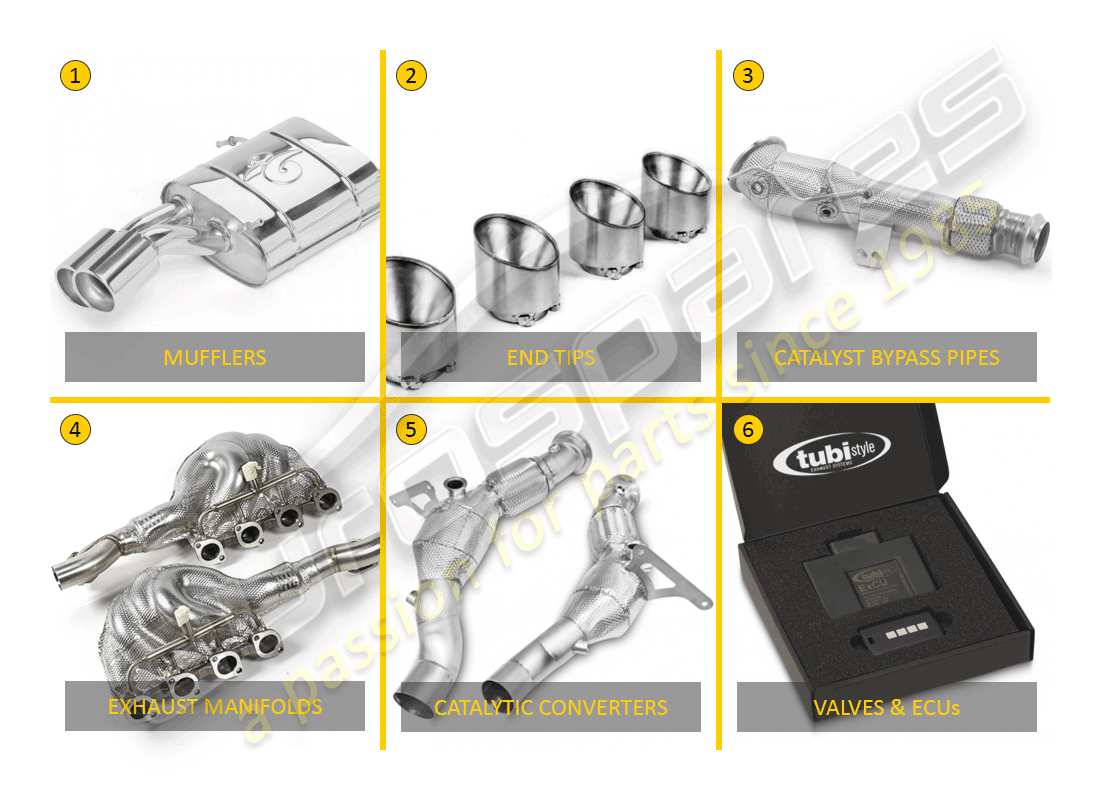

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price

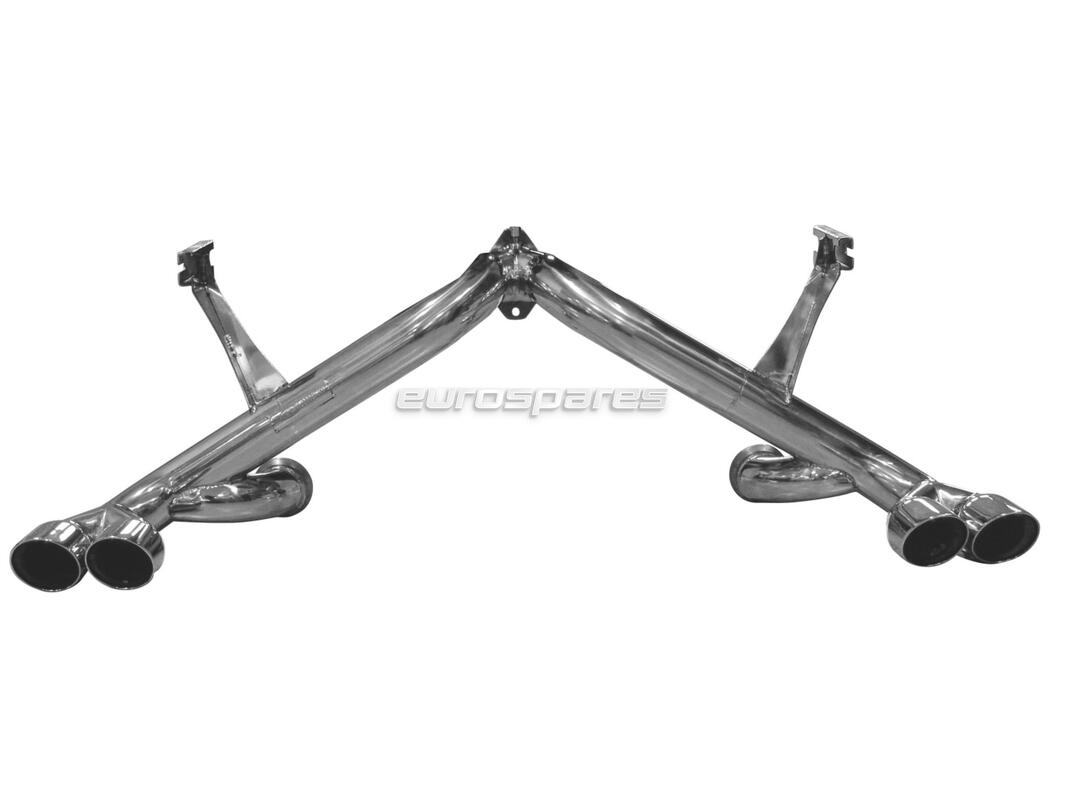

      # 1
      MPN: 01059761000
      F355 & 355 F1 STRAIGHT PIPES EXHAUST
      valid for: 355 & 355 f1 motronic 5.2 (1996-1999) | this component fits both on the f355 with motronic software 2.7 and on the f355 and 355 f1 with motronic software 5.2. | racetrack use only | straight pipe | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip finish = polished |
      from £2,029.31
      from £2,029.31
      # 1
      MPN: 01059761000
      F355 & 355 F1 STRAIGHT PIPES EXHAUST
      valid for: 355 motronic 2.7 (1994-1999) | this component fits both on the f355 with motronic software 2.7 and on the f355 and 355 f1 with motronic software 5.2. | racetrack use only | straight pipe | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip finish = polished |
      from £2,029.31
      from £2,029.31

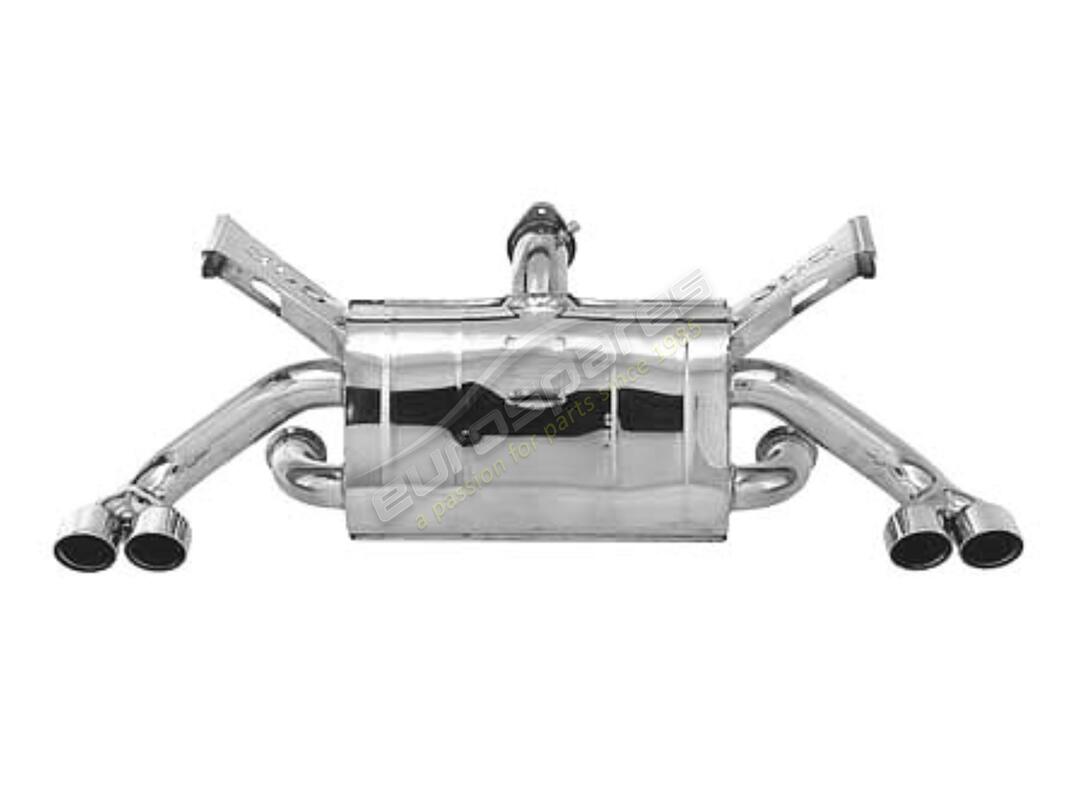

      # 1
      MPN: 01059791000

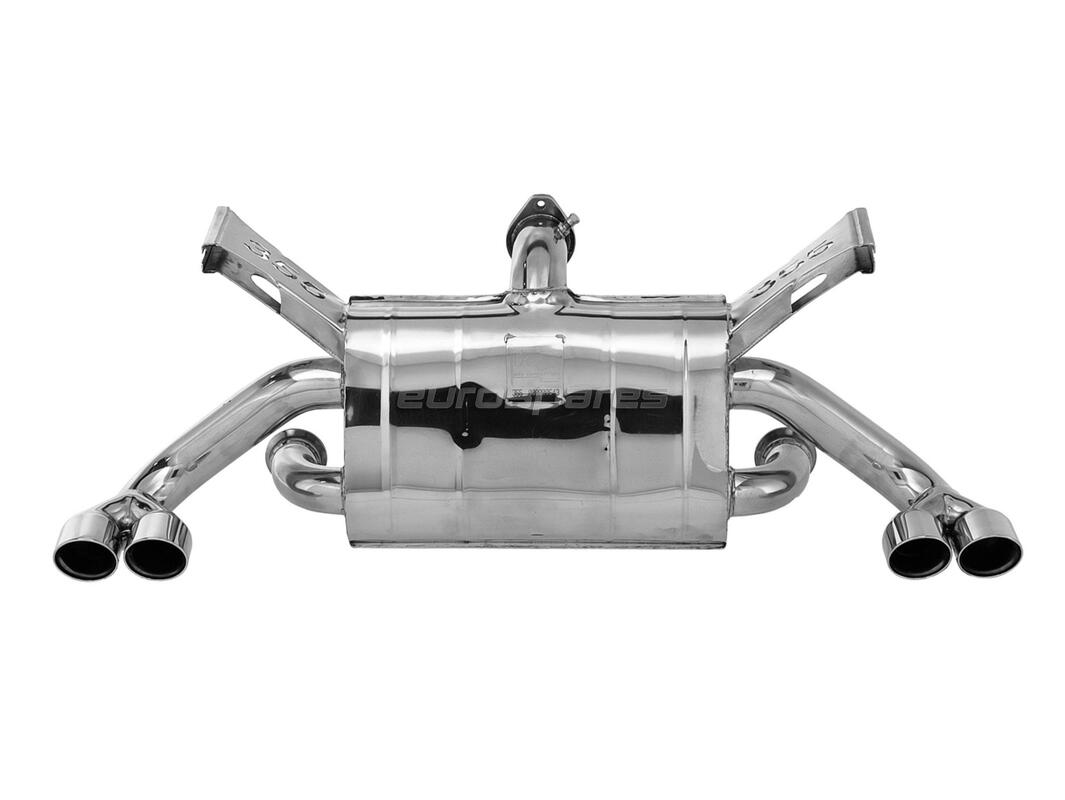

      F355 & 355 F1 EXHAUST
      valid for: 355 & 355 f1 motronic 5.2 (1996-1999) | this component fits both on the f355 with motronic software 2.7 and on the f355 and 355 f1 with motronic software 5.2. | racetrack use only | Tubi sound | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip finish = polished |
      from £2,582.76
      from £2,582.76
      # 1
      MPN: 01059791000
      F355 & 355 F1 EXHAUST
      valid for: 355 motronic 2.7 (1994-1999) | this component fits both on the f355 with motronic software 2.7 and on the f355 and 355 f1 with motronic software 5.2. | racetrack use only | Tubi sound | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip finish = polished |
      from £2,582.76
      from £2,582.76
      # 1
      MPN: 01059791000R
      F355 & 355 F1 LOUDER EXHAUST
      valid for: 355 & 355 f1 motronic 5.2 (1996-1999) | this component fits both on the f355 with motronic software 2.7 and on the f355 and 355 f1 with motronic software 5.2. | racetrack use only | + rumore | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip finish = polished |
      from £2,582.76
      from £2,582.76
      # 1
      MPN: 01059791000R
      F355 & 355 F1 LOUDER EXHAUST
      valid for: 355 motronic 2.7 (1994-1999) | this component fits both on the f355 with motronic software 2.7 and on the f355 and 355 f1 with motronic software 5.2. | racetrack use only | + rumore | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip finish = polished |
      from £2,582.76
      from £2,582.76
      # 1
      MPN: TSFE355C94.000.A
      F355 & 355 F1 2008 EVOLUTION EXHAUST
      valid for: 355 & 355 f1 motronic 5.2 (1996-1999) | this component fits both on the f355 with motronic software 2.7 and on the f355 and 355 f1 with motronic software 5.2. | racetrack use only | Tubi sound | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip size = d70 | end tip finish = polished |
      from £2,582.76
      from £2,582.76
      # 1
      MPN: TSFE355C94.000.A
      F355 & 355 F1 2008 EVOLUTION EXHAUST
      valid for: 355 motronic 2.7 (1994-1999) | this component fits both on the f355 with motronic software 2.7 and on the f355 and 355 f1 with motronic software 5.2. | racetrack use only | Tubi sound | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip size = d70 | end tip finish = polished |
      from £2,582.76
      from £2,582.76
      # 2
      -
      NOT AVAILABLE FOR THIS MODEL

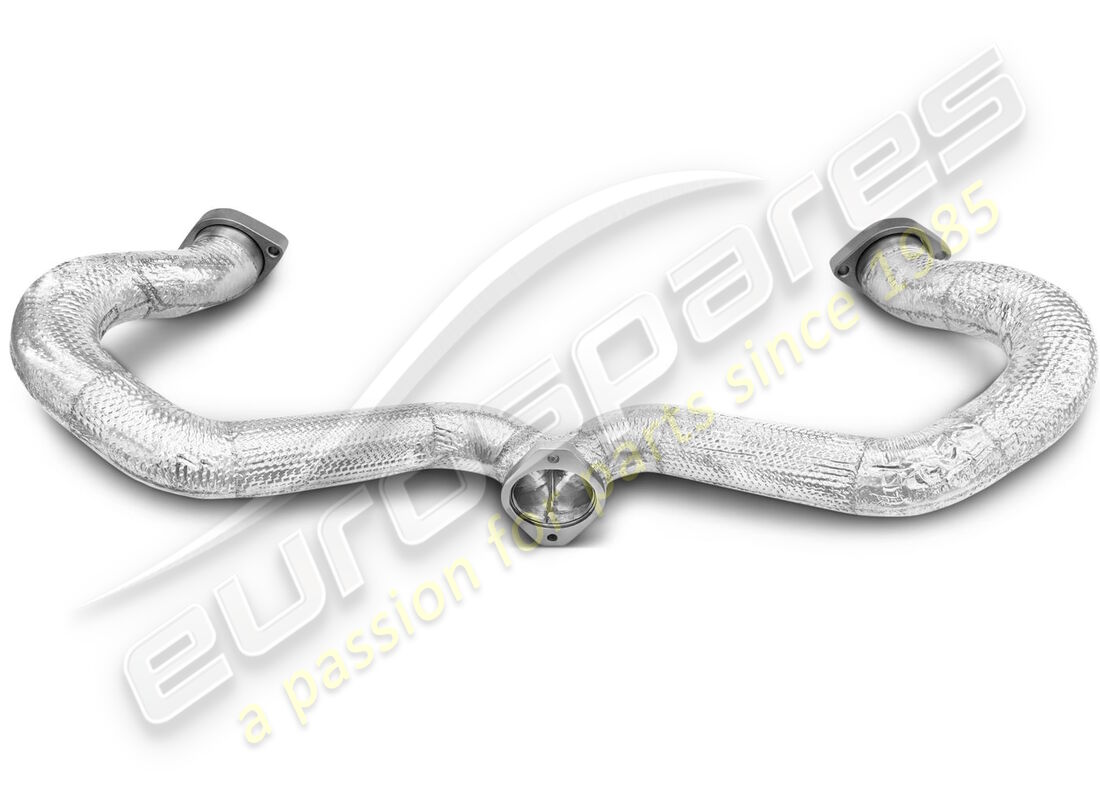

      # 3
      MPN: TSFE355C96.000.ANK
      F355 & F355 F1 BYPASS PIPE
      from £1,014.66
      from £1,014.66

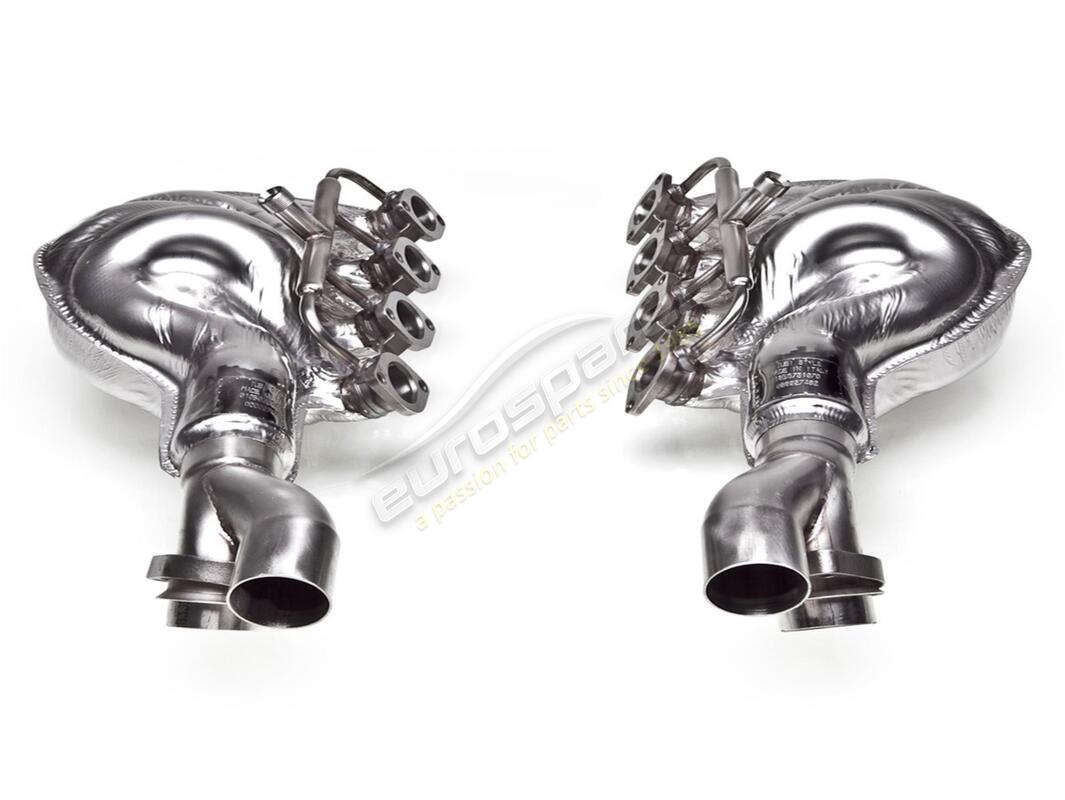

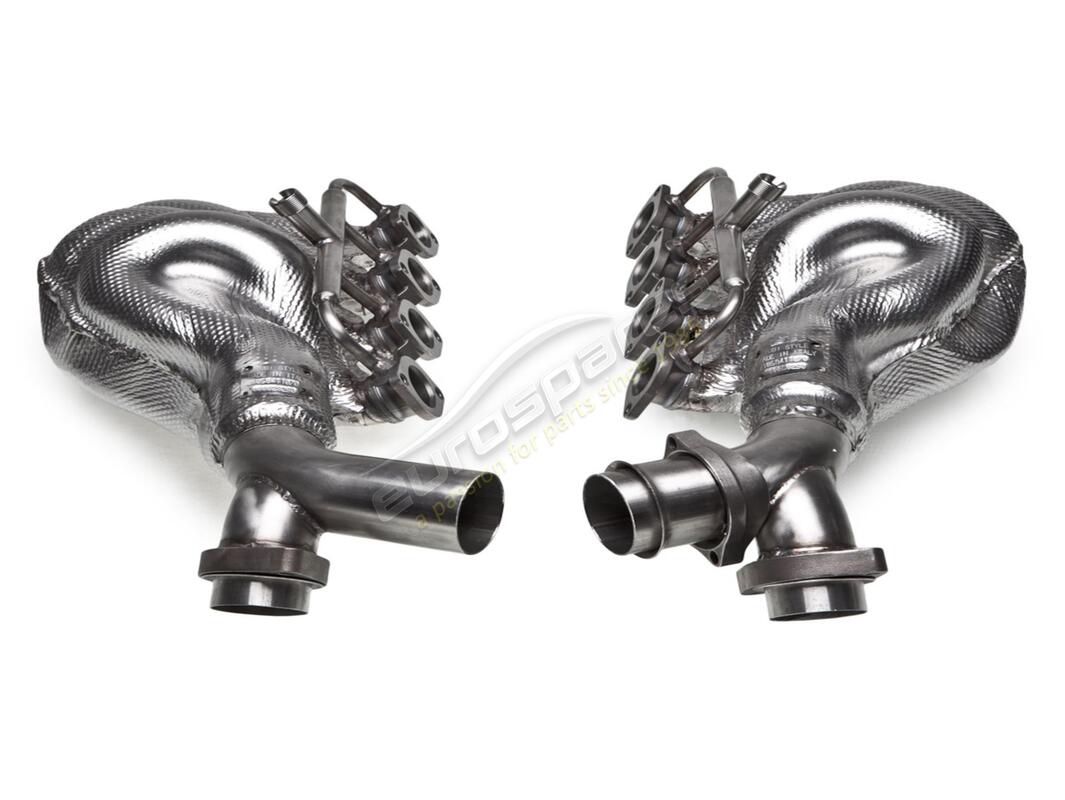

      # 4
      MPN: 01059411070C
      F355 2.7 MANIFOLDS KIT
      valid for: 355 motronic 2.7 (1994-1999) | between 1995 and 1996, the Ferrari f355 received an upgrade of the motronic software from 2.7 to 5.2. this update also involved a modification of the exhaust headers and catalytic converters. this mea | aisi 304 stainless steel | includes heat shield |
      from £4,058.62
      from £4,058.62
      # 4
      MPN: 01059791070C
      F355 5.2 AND 355 F1 HEAT SHIELDED MANIFOLDS KIT
      valid for: 355 & 355 f1 motronic 5.2 (1996-1999) | between 1995 and 1996, the Ferrari f355 received an upgrade of the motronic software from 2.7 to 5.2. this update also involved a modification of the exhaust headers and catalytic converters. this mea | aisi 304 stainless steel | includes heat shield |
      from £4,058.62
      from £4,058.62

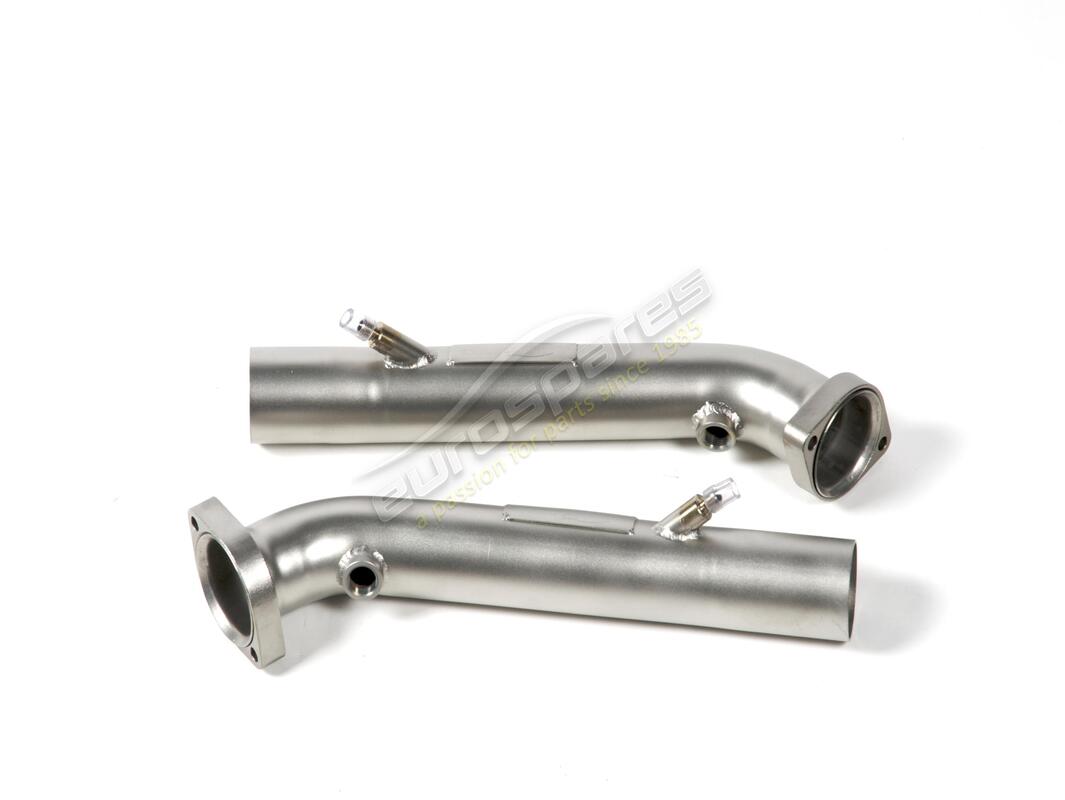

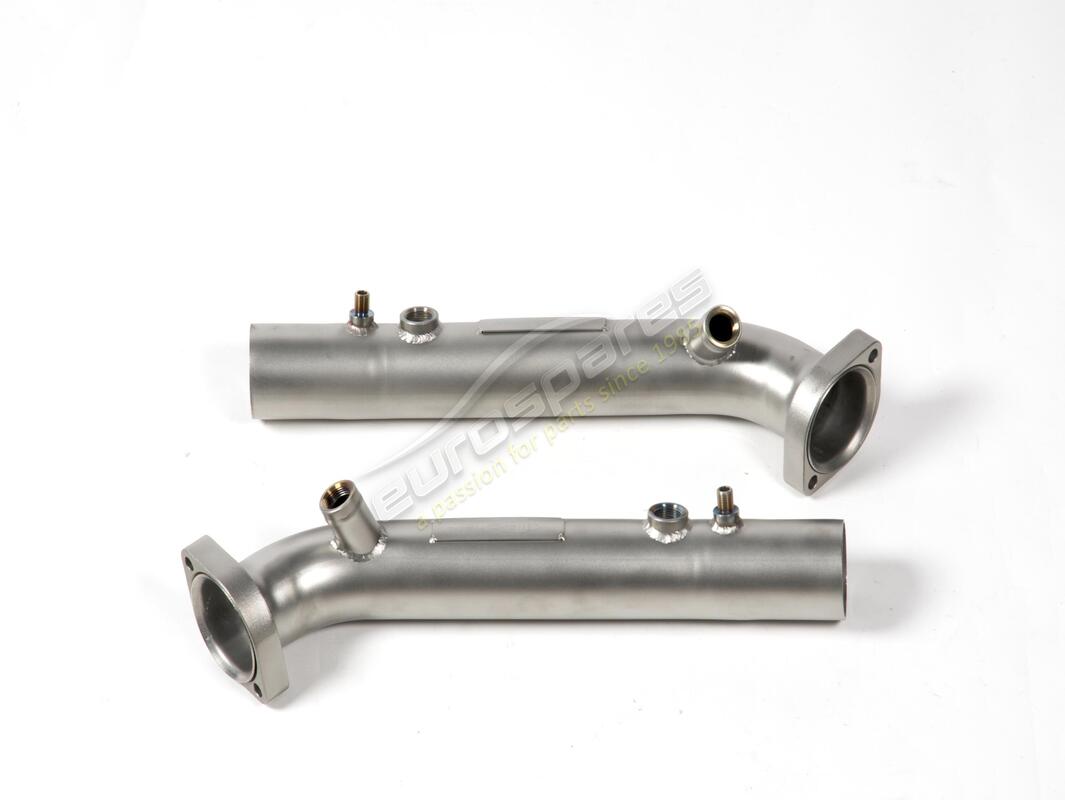

      # 5
      MPN: 01059411010
      F355 2.7 CAT BYPASS HIGH FLOW PIPES KIT
      valid for: 355 motronic 2.7 (1994-1999) | between 1995 and 1996, the Ferrari f355 received an upgrade of the motronic software from 2.7 to 5.2. due to this upgrade, exhaust headers and catalytic converters were changed. this means that the pa | racetrack use only | aisi 304 stainless steel | catalytic converter removal |
      from £599.56
      from £599.56
      # 5
      MPN: 01059611010
      F355 5.2 AND 355 F1 CAT BYPASS HIGH FLOW PIPES KIT
      valid for: 355 & 355 f1 motronic 5.2 (1996-1999) | between 1995 and 1996, the Ferrari f355 received an upgrade of the motronic software from 2.7 to 5.2. this update also involved a modification of the exhaust headers and catalytic converters. this mea | racetrack use only | aisi 304 stainless steel | catalytic converter removal |
      from £599.56
      from £599.56

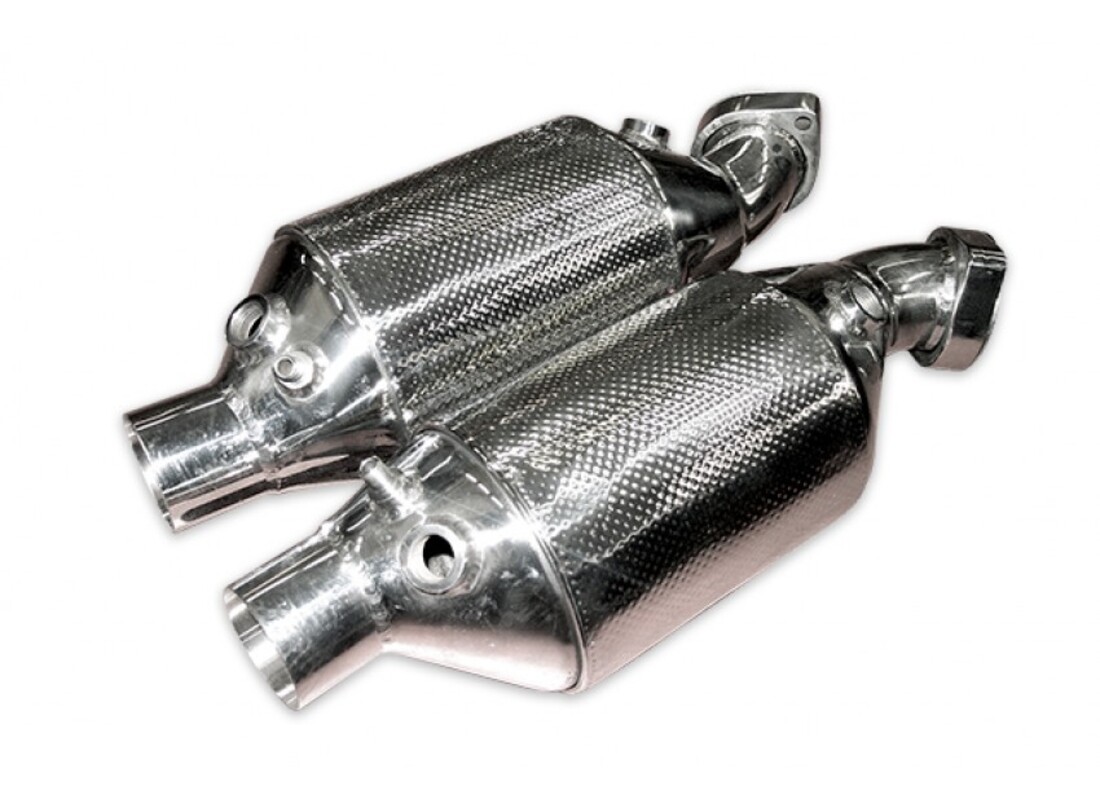

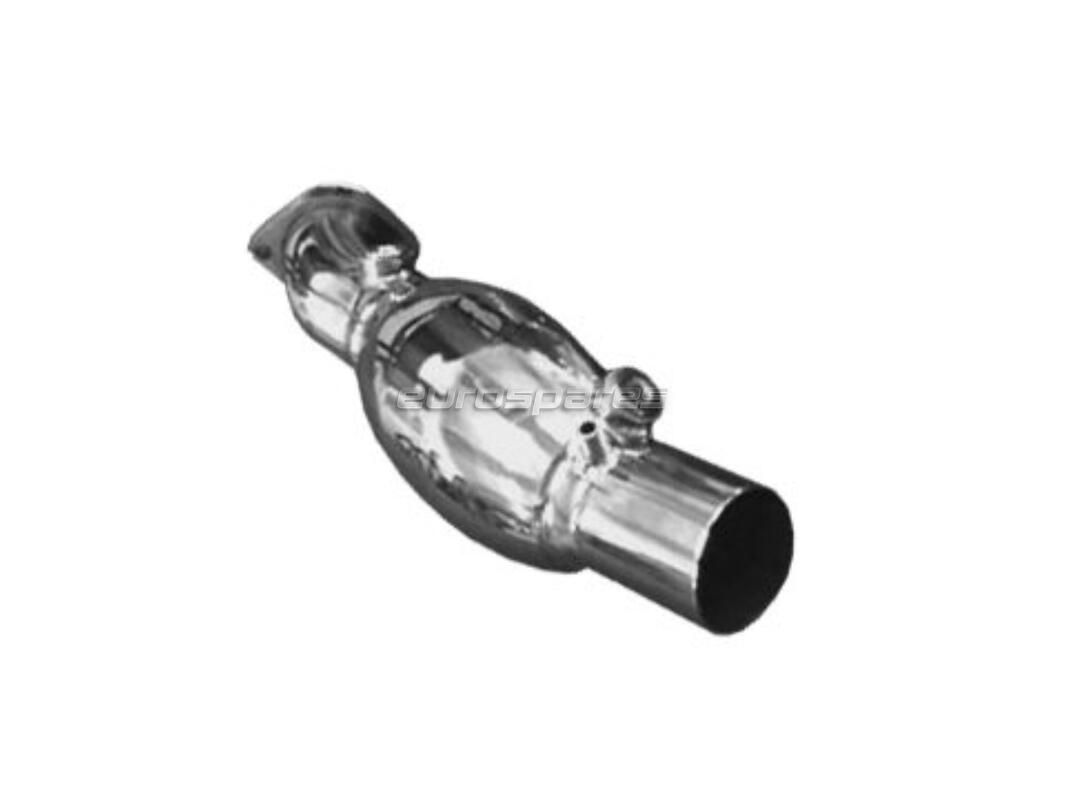

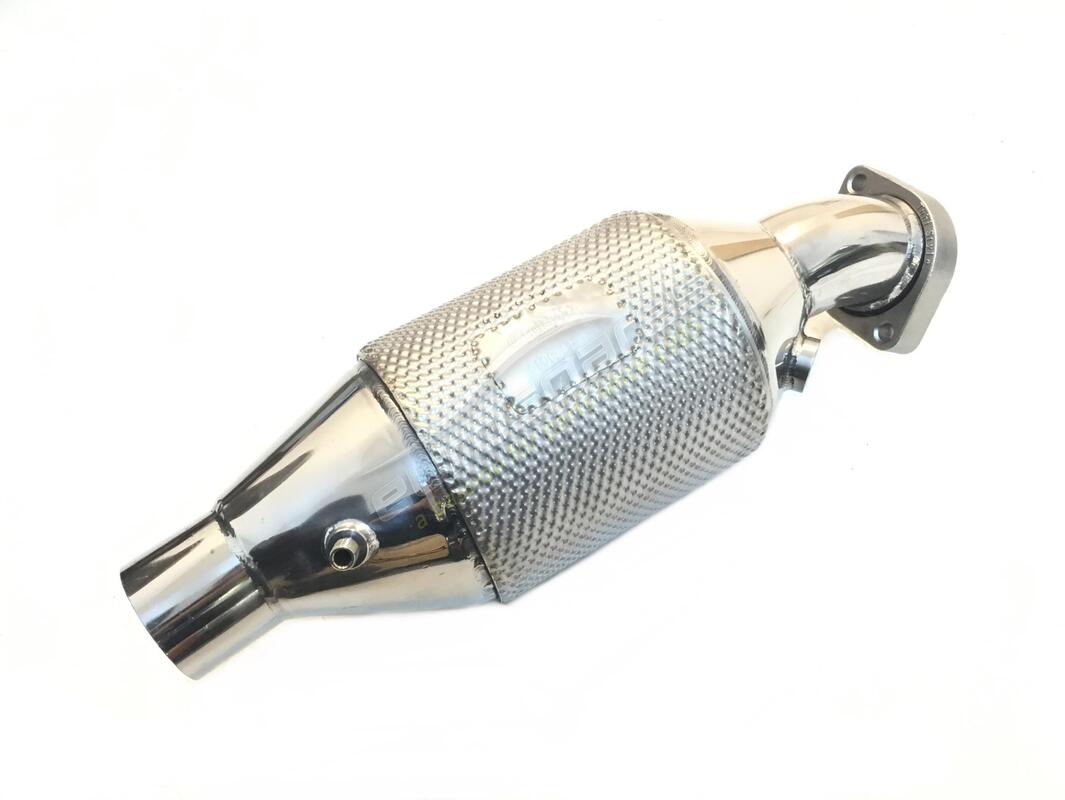

      # 5
      MPN: 01059691301
      F355 5.2 AND 355 F1 RIGHT 200 CELLS RACE CATALYTIC CONVERTER
      valid for: 355 & 355 f1 motronic 5.2 (1996-1999) | between 1995 and 1996, the Ferrari f355 received an upgrade of the motronic software from 2.7 to 5.2. this update also involved a modification of the exhaust headers and catalytic converters. this mea | racetrack use only | aisi 304 stainless steel | 200 cell catalyst |
      from £1,844.83
      from £1,844.83
      # 5
      MPN: 010596913011
      RIGHT CATALYST 355 2.7
      valid for: 355 motronic 2.7 (1994-1999) | between 1995 and 1996, the Ferrari f355 received an upgrade of the motronic software from 2.7 to 5.2. this update also involved a modification of the exhaust headers and catalytic converters. this mea | racetrack use only | aisi 304 stainless steel | 200 cell catalyst |
      from £1,798.70
      from £1,798.70

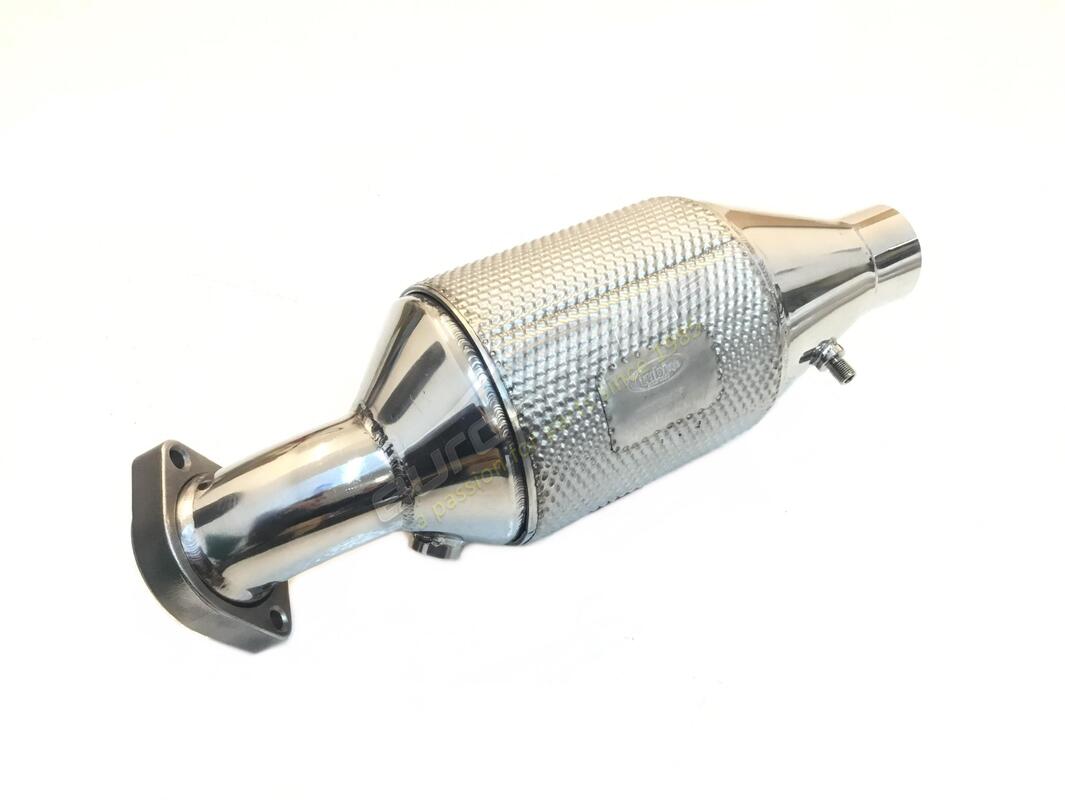

      # 5
      MPN: 01059691302
      F355 5.2 AND 355 F1 LEFT 200 CELLS RACE CATALYTIC CONVERTER
      valid for: 355 & 355 f1 motronic 5.2 (1996-1999) | between 1995 and 1996, the Ferrari f355 received an upgrade of the motronic software from 2.7 to 5.2. this update also involved a modification of the exhaust headers and catalytic converters. this mea | racetrack use only | aisi 304 stainless steel | 200 cell catalyst |
      from £1,844.83
      from £1,844.83
      # 5
      MPN: 010596913021
      LEFT CATALYST 355 2.7
      valid for: 355 motronic 2.7 (1994-1999) | between 1995 and 1996, the Ferrari f355 received an upgrade of the motronic software from 2.7 to 5.2. this update also involved a modification of the exhaust headers and catalytic converters. this mea | racetrack use only | aisi 304 stainless steel | 200 cell catalyst |
      from £1,798.70
      from £1,798.70
      # 5
      MPN: TSFE355B94.303.A
      CATALYST KIT 355 2.7
      valid for: 355 motronic 2.7 (1994-1999) | between 1995 and 1996, the Ferrari f355 received an upgrade of the motronic control unit software from 2.7 to 5.2. this update also involved a modification of the exhaust headers and catalytic convert | racetrack use only | aisi 304 stainless steel | 200 cell catalyst |
      from £3,597.41
      from £3,597.41

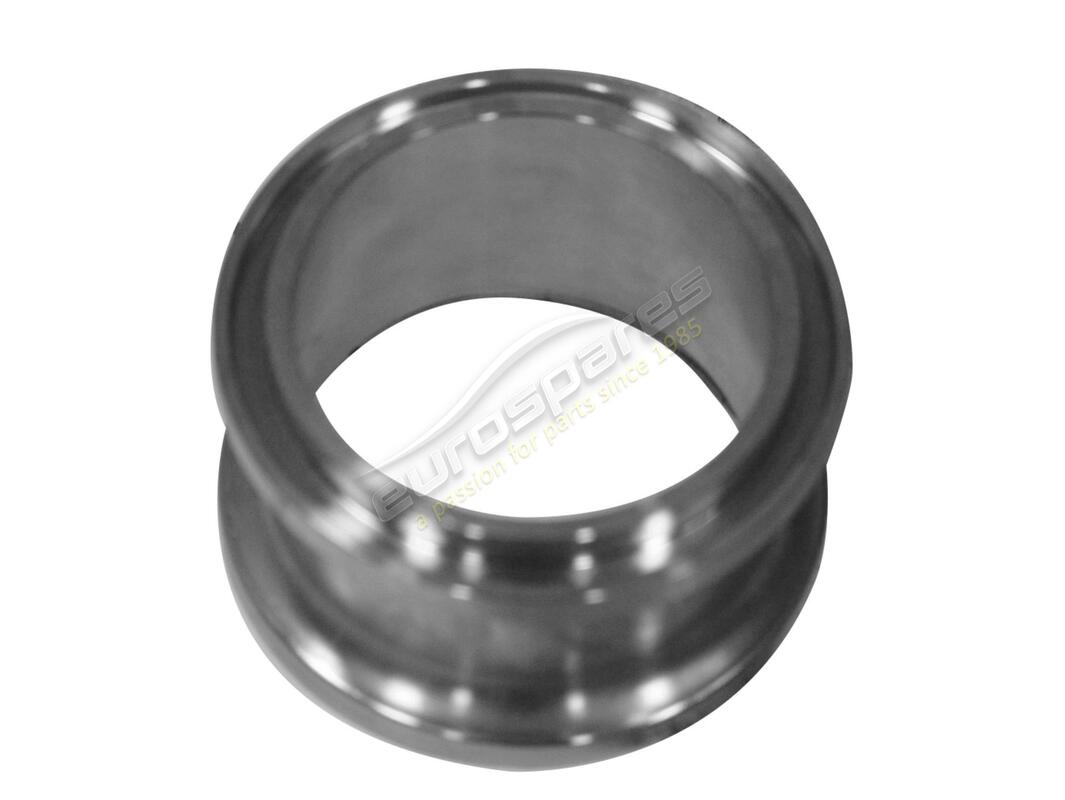

      # 6
      MPN: 01059411090
      F355 & 355 F1 EXHAUST FLAP VALVE BYPASS
      valid for: 355 & 355 f1 motronic 5.2 (1996-1999) | the sleeve must be fitted in place of the oe pneumatic exhaust valve. | specialist fitting required | racetrack use only | aisi 304 stainless steel | no valve included |
      from £202.94
      from £202.94
      # 6
      MPN: 01059411090
      F355 & 355 F1 EXHAUST FLAP VALVE BYPASS
      valid for: 355 motronic 2.7 (1994-1999) | the sleeve must be fitted in place of the oe pneumatic exhaust valve. | specialist fitting required | racetrack use only | aisi 304 stainless steel | no valve included |
      from £202.94
      from £202.94
