Tubi F50 Tubi Exhausts Parts Diagram

001 - Tubi Exhausts

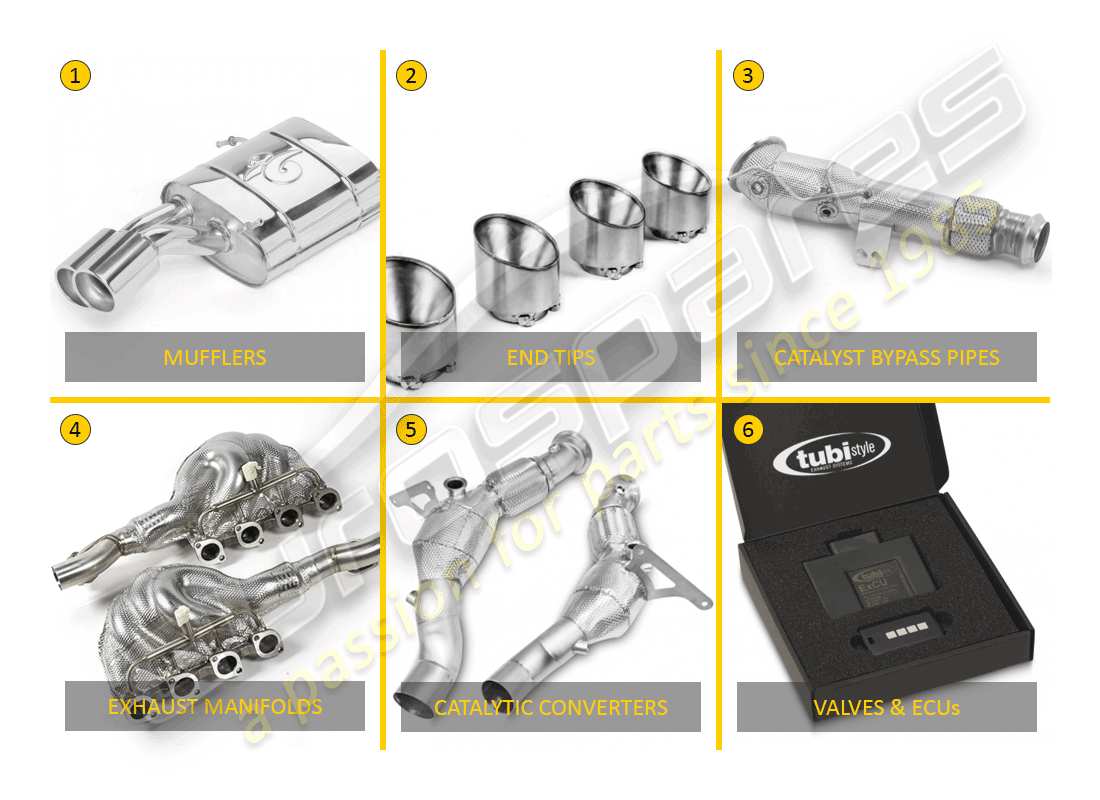

Tubi F50 Tubi Exhausts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 1
      MPN: 01029511041

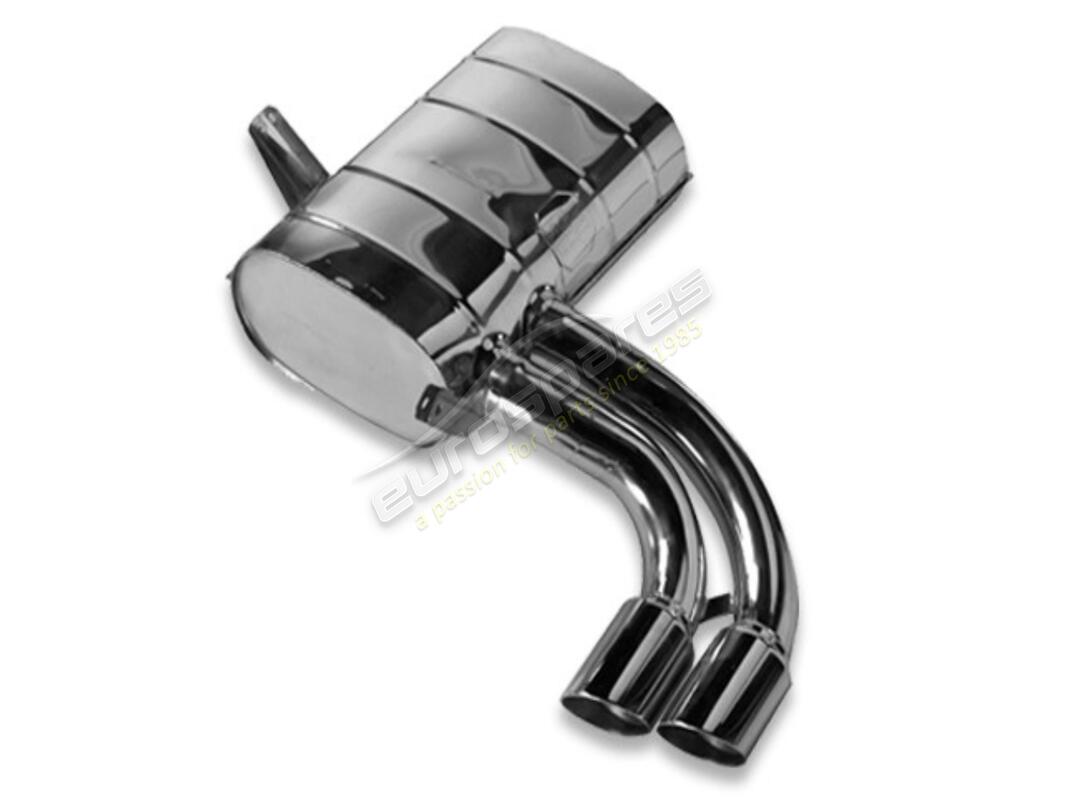

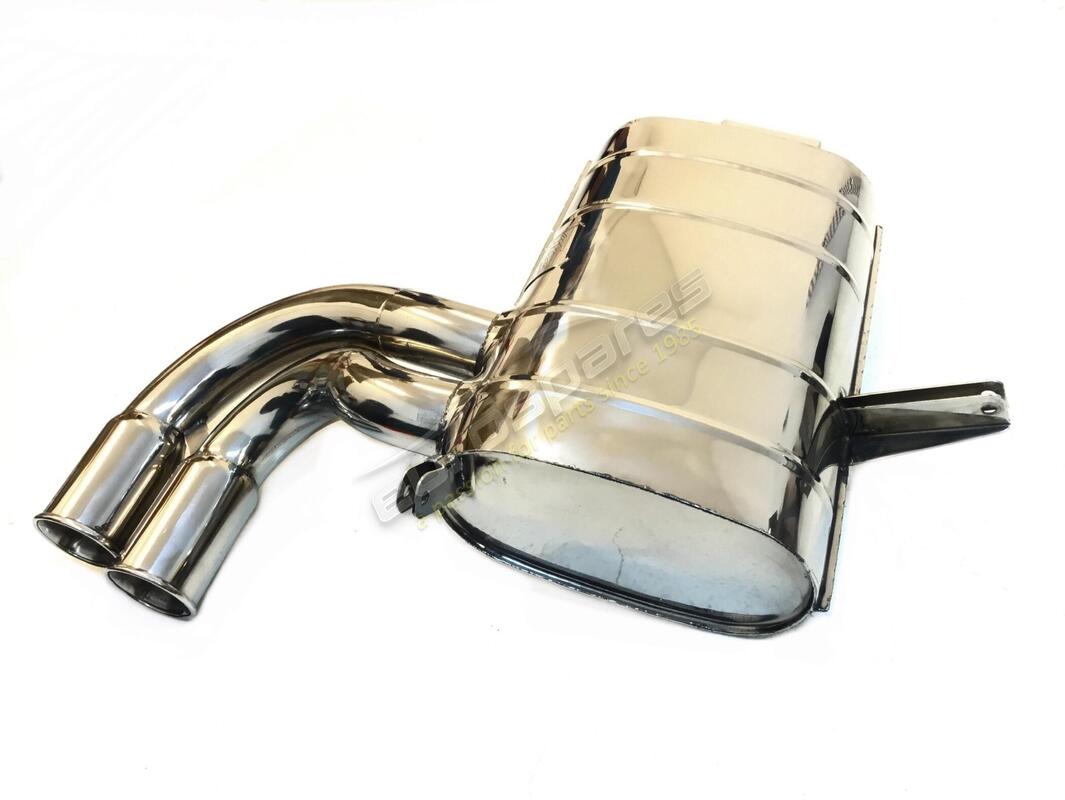

      F50 REAR RIGHT MUFFLER
      valid for: f50 (1995-1997) | racetrack use only | Tubi sound | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip size = d80 | end tip finish = polished |
      from £3,163.48
      from £3,163.48
      # 1
      MPN: 01029511041R
      F50 REAR RIGHT LOUDER MUFFLER
      valid for: f50 (1995-1997) | racetrack use only | + rumore | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip size = d80 | end tip finish = polished |
      from £3,163.48
      from £3,163.48
      # 1
      MPN: 01029511042

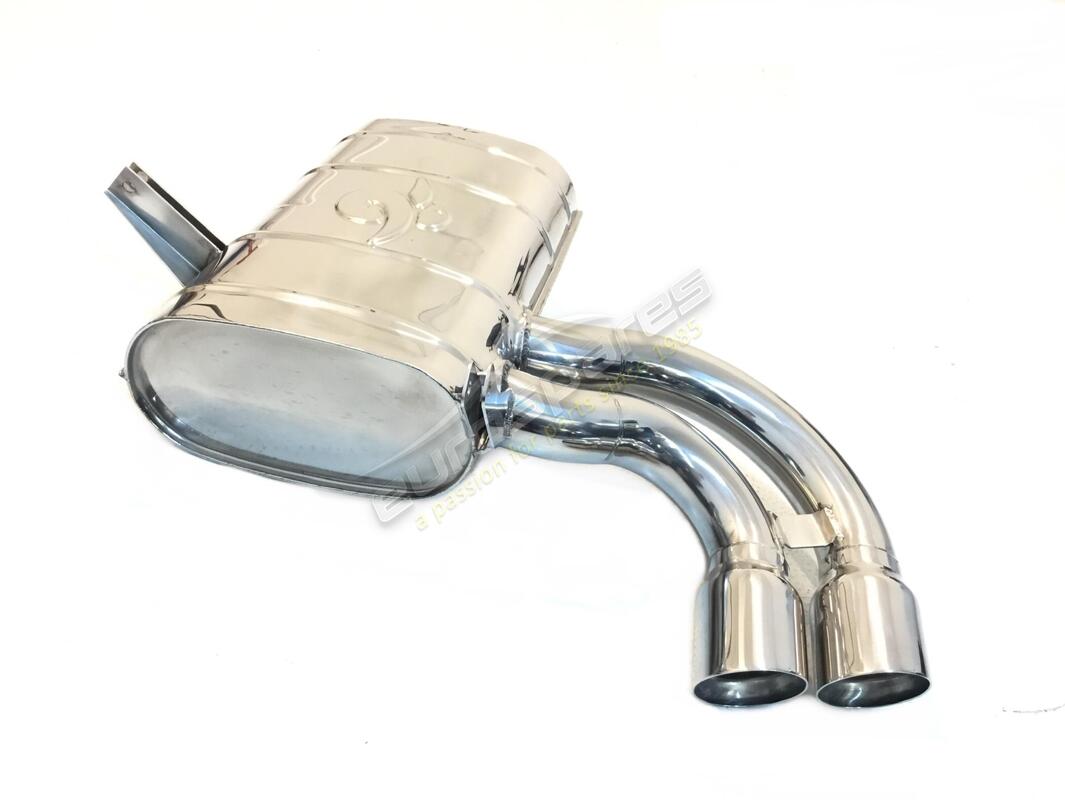

      F50 REAR LEFT MUFFLER
      valid for: f50 (1995-1997) | racetrack use only | Tubi sound | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip size = d80 | end tip finish = polished |
      from £3,163.48
      from £3,163.48
      # 1
      MPN: 01029511042R
      F50 REAR LEFT LOUDER MUFFLER
      valid for: f50 (1995-1997) | racetrack use only | + rumore | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip size = d80 | end tip finish = polished |
      from £3,163.48
      from £3,163.48
      # 1
      MPN: 01029561041

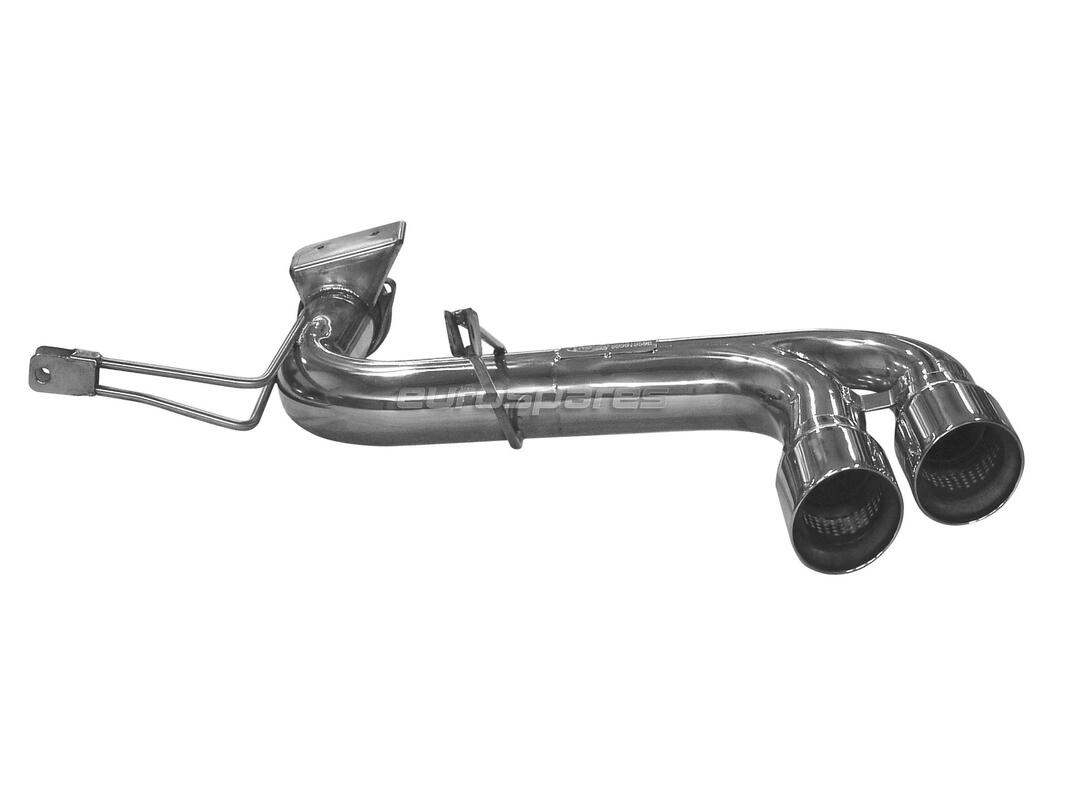

      F50 REAR RIGHT STRAIGHT PIPE MUFFLER
      valid for: f50 (1995-1997) | racetrack use only | straight pipe | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip size = d80 | end tip finish = polished |
      from £2,884.35
      from £2,884.35
      # 1
      MPN: 01029561042

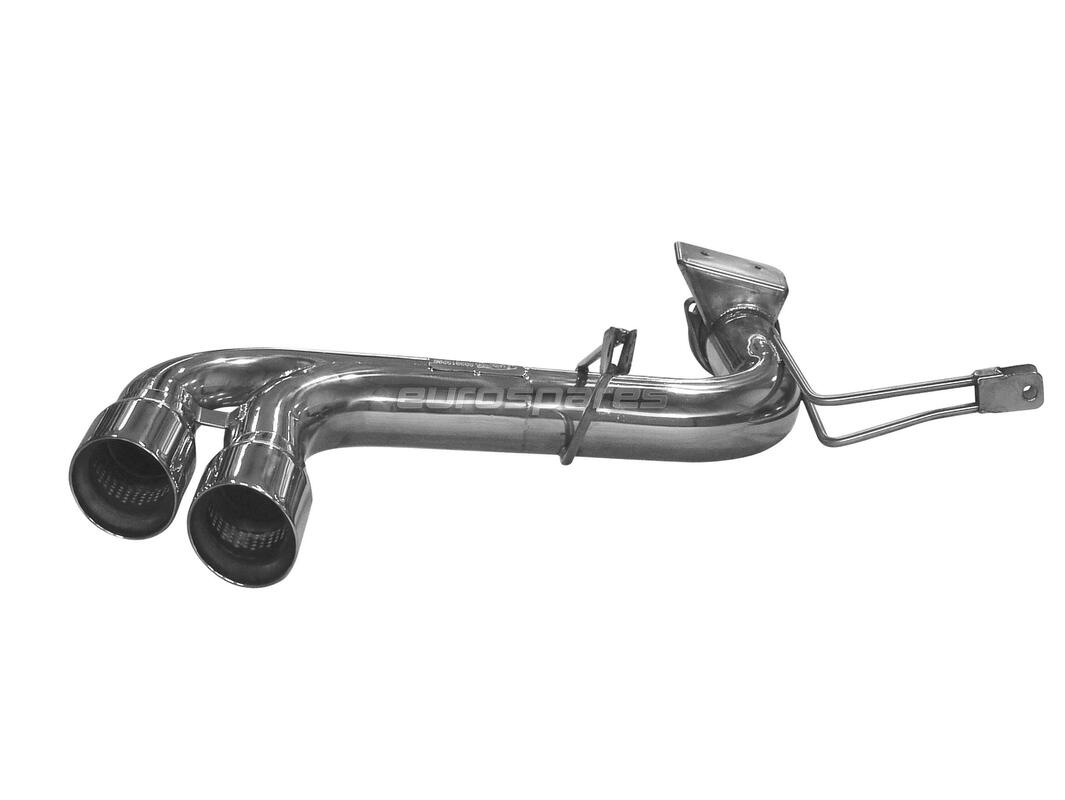

      F50 REAR LEFT STRAIGHT PIPE MUFFLER
      valid for: f50 (1995-1997) | racetrack use only | straight pipe | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip size = d80 | end tip finish = polished |
      from £2,884.35
      from £2,884.35
      # 2
      -
      NOT AVAILABLE FOR THIS MODEL
      # 3
      MPN: TSFEF50S95.810.I

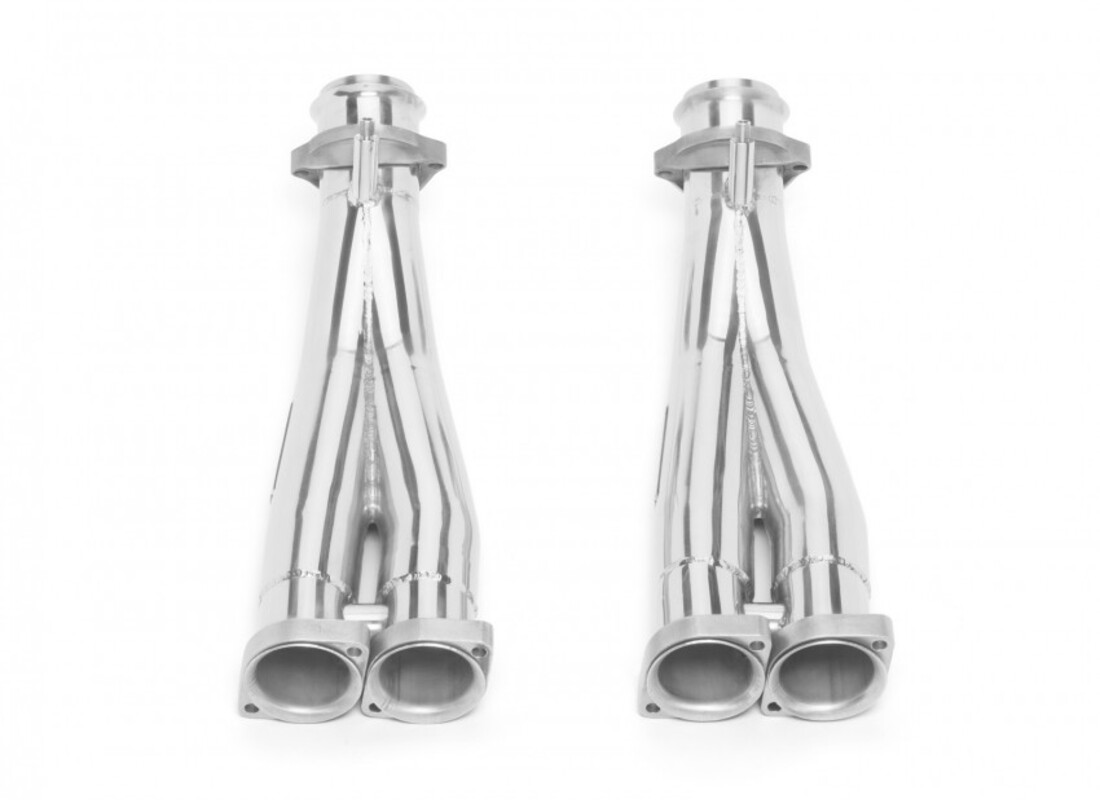

      F50 MARANELLO INCONEL CAT BYPASS HIGH FLOW PIPES Y SHAPED KIT
      valid for: f50 (1995-1997) | racetrack use only | inconel 625 | catalytic converter removal | end tip finish = brushed |
      from £4,000.87
      from £4,000.87
      # 3
      MPN: TSFEF50S95.830.I
      F50 MARANELLO INCONEL CAT BYPASS HIGH FLOW PIPES S SHAPED KIT
      valid for: f50 (1995-1997) | racetrack use only | inconel 625 | catalytic converter removal | end tip finish = brushed |
      from £2,419.13
      from £2,419.13
      # 4
      MPN: 01029511070

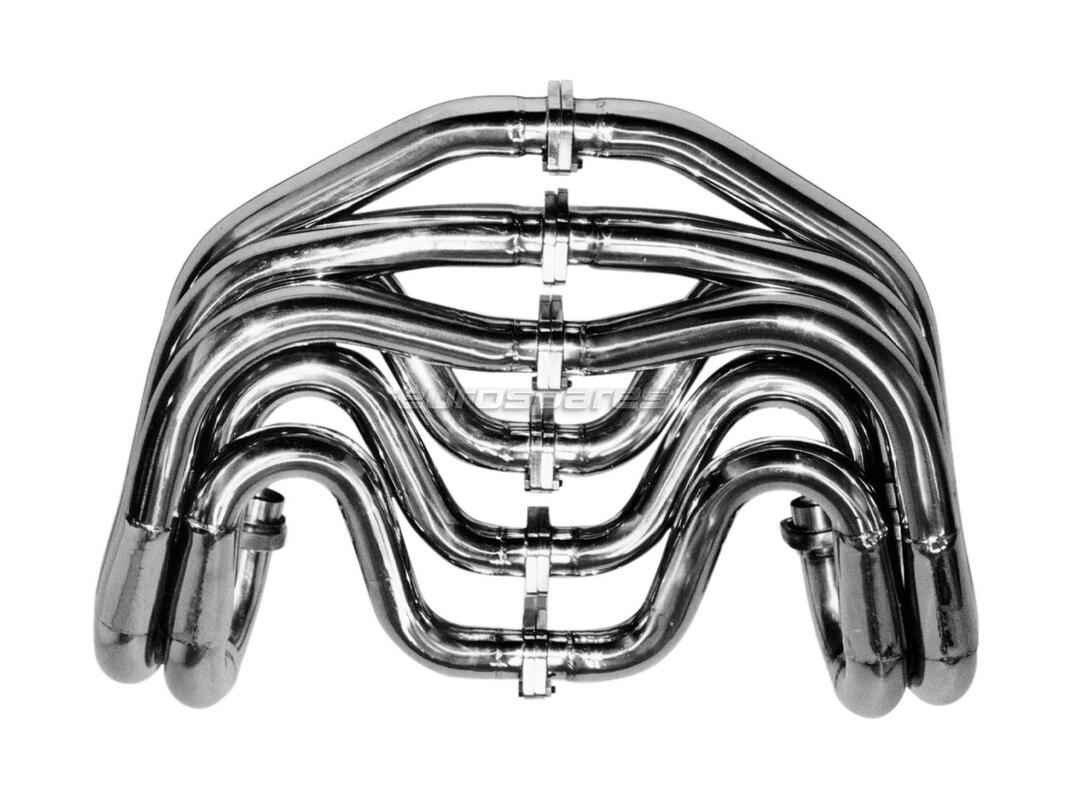

      MANIFOLD F.50
      valid for: f50 (1995-1997) | aisi 304 stainless steel |
      from £13,026.08
      from £13,026.08
      # 5
      MPN: 01029511010

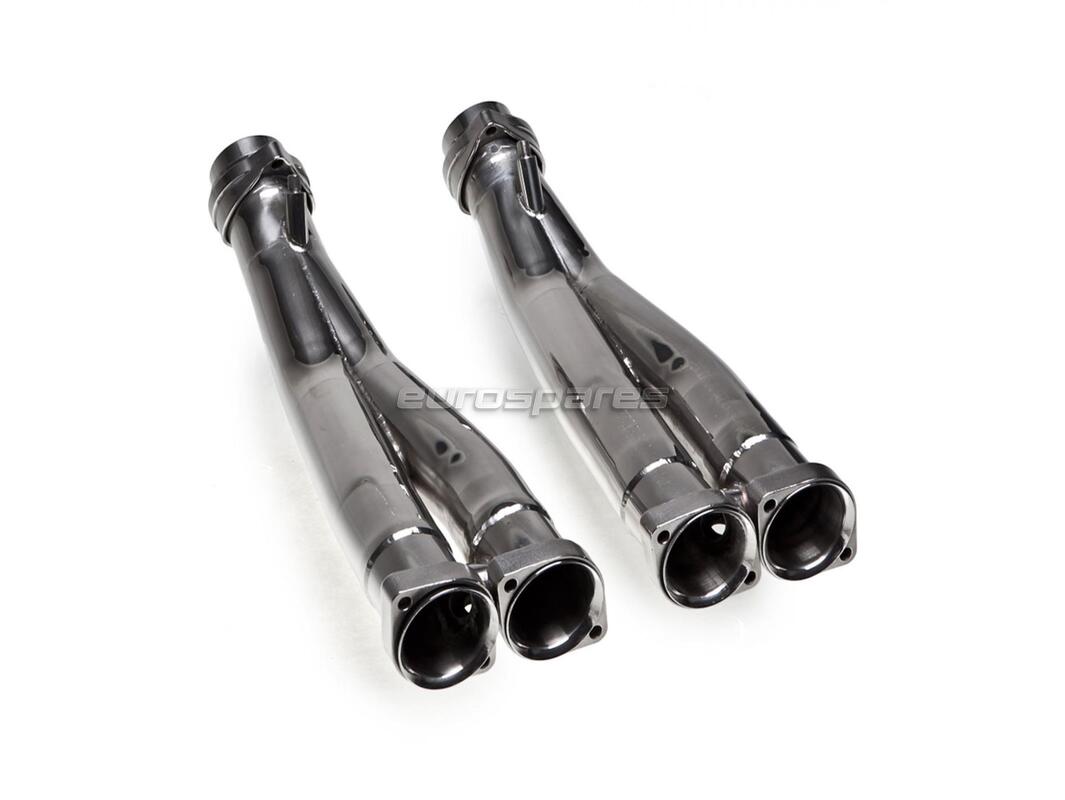

      F50 Y CAT BYPASS HIGH FLOW PIPES Y SHAPED KIT
      valid for: f50 (1995-1997) | racetrack use only | catalytic converter removal |
      from £2,419.13
      from £2,419.13
      # 5
      MPN: 01029511130

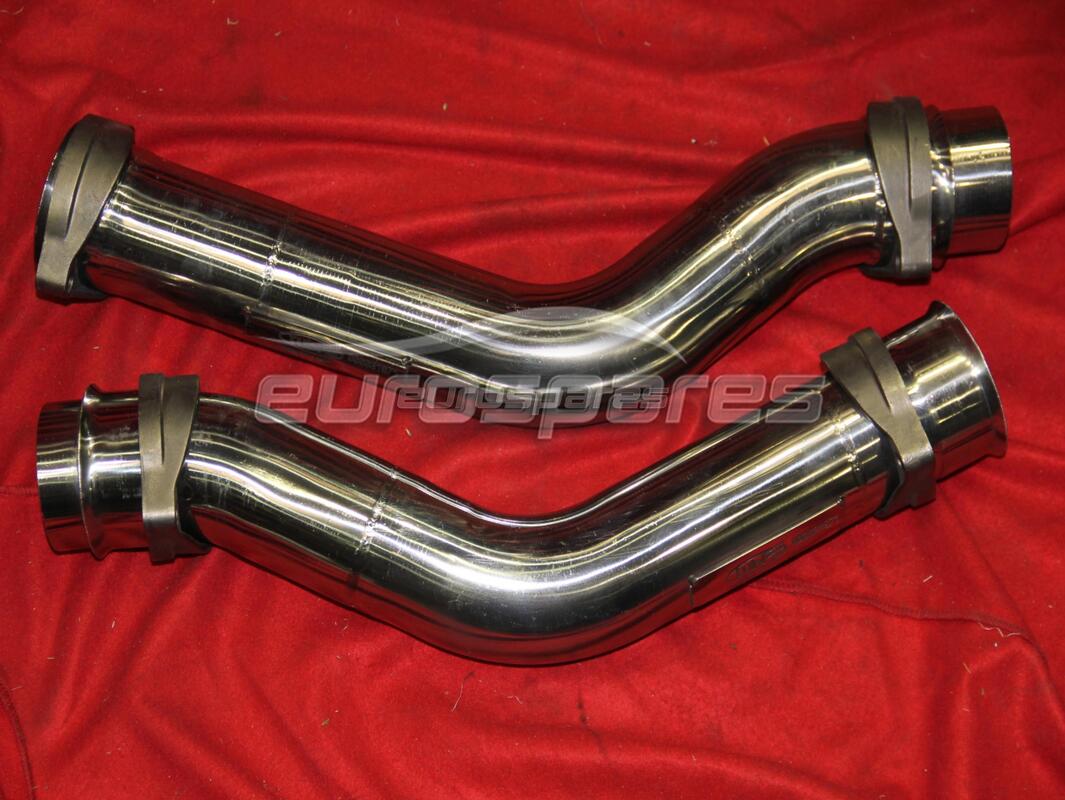

      F50 CAT BYPASS HIGH FLOW PIPES S SHAPED KIT
      valid for: f50 (1995-1997) | racetrack use only | aisi 304 stainless steel | catalytic converter removal | ecu reprogramming required | end tip finish = polished |
      from £1,674.79
      from £1,674.79
      # 6
      -
      NOT AVAILABLE FOR THIS MODEL
