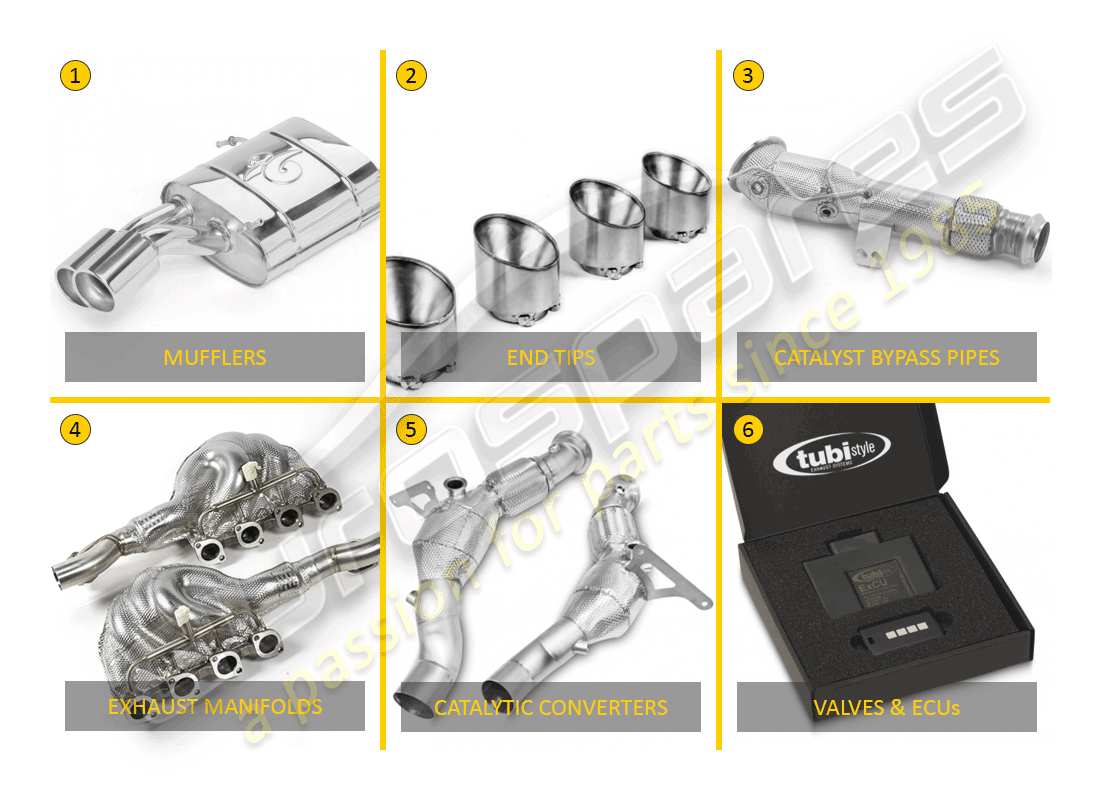

Tubi DIABLO Tubi Exhausts Parts Diagram

001 - Tubi Exhausts

Tubi DIABLO Tubi Exhausts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 1
        MPN: 02020011000

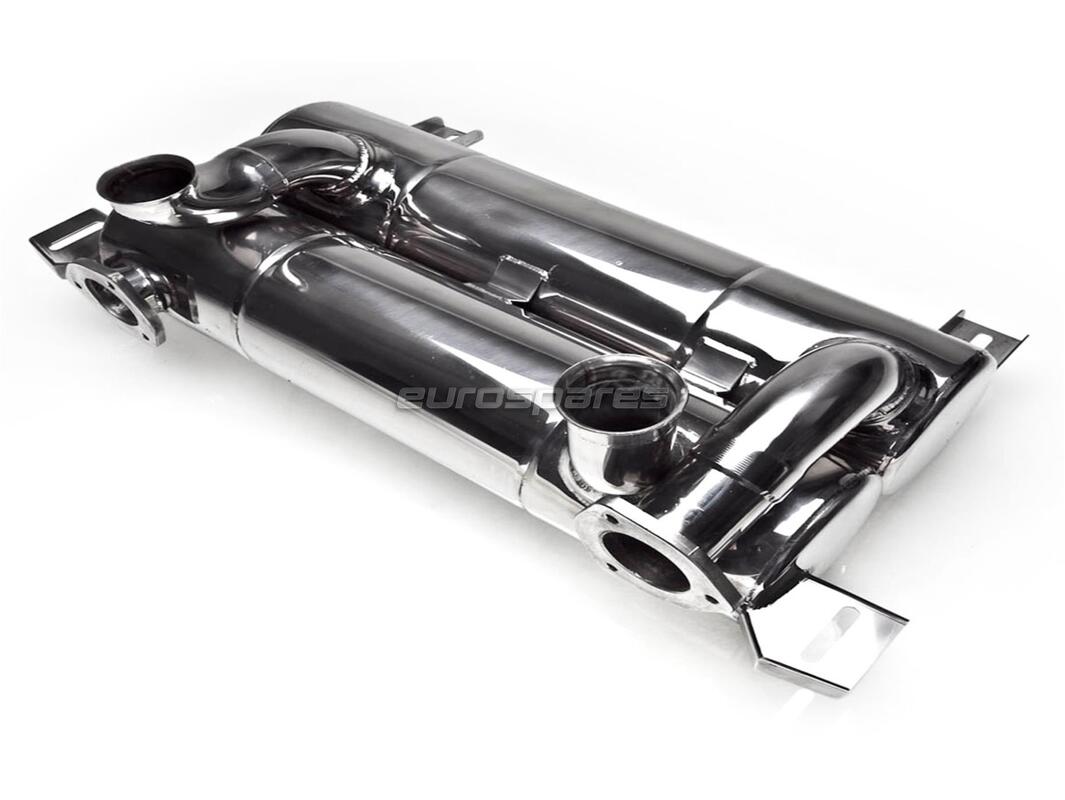

        DIABLO EXHAUST
        valid for: diablo (1990-2001) | racetrack use only | Tubi sound | aisi 304 stainless steel | end tip finish = polished |
        from £2,977.39
        from £2,977.39
        # 1
        MPN: 02020011000R

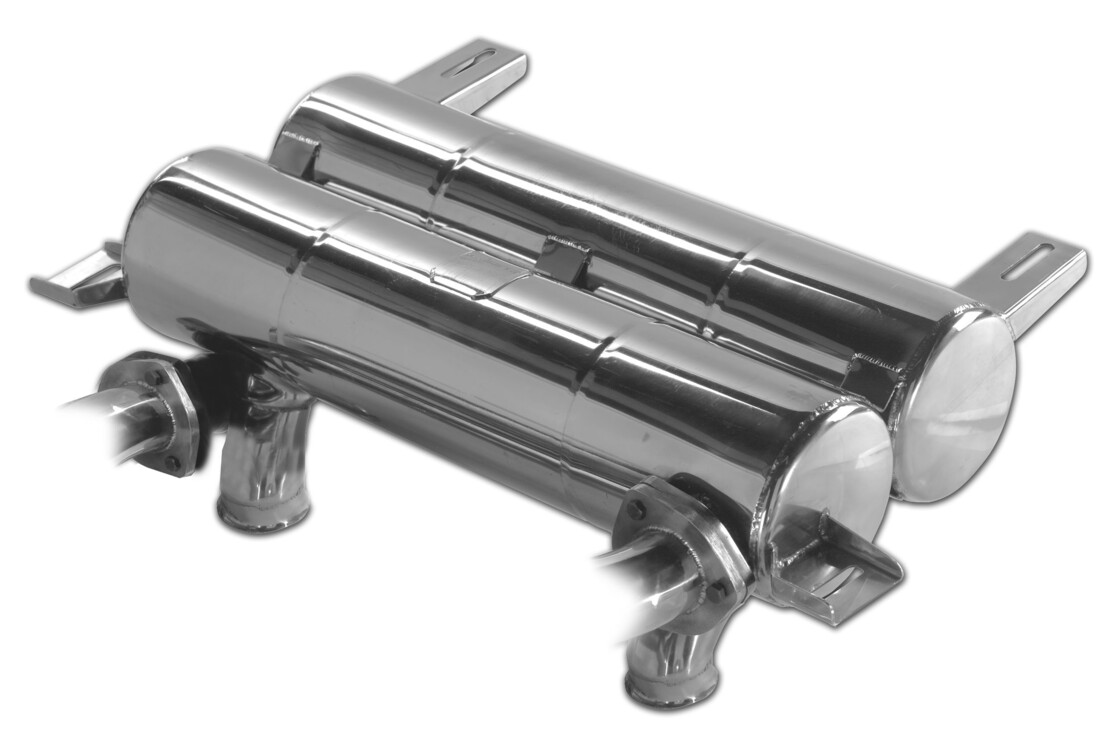

        DIABLO LOUDER EXHAUST
        valid for: diablo (1990-2001) | racetrack use only | + rumore | aisi 304 stainless steel | end tip finish = polished |
        from £2,977.39
        from £2,977.39
        # 2
        MPN: 02020011020

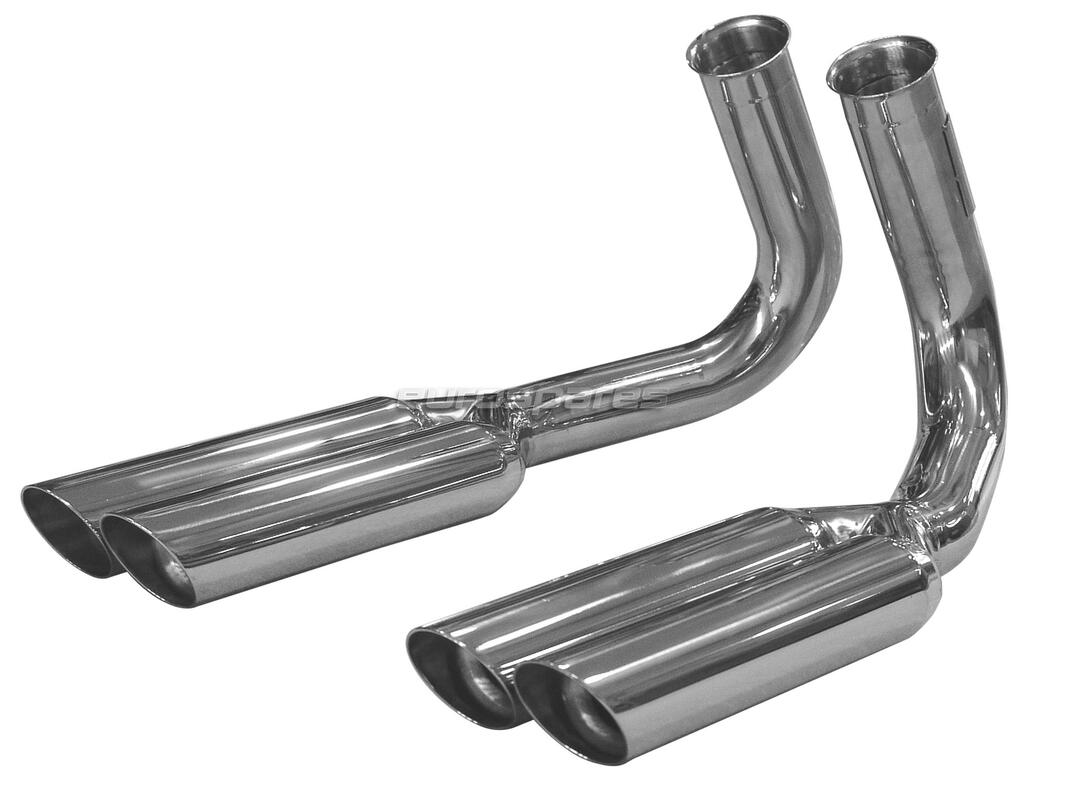

        DIABLO 70X4 ROUND END TIPS KIT
        valid for: diablo (1990-2001) | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip size = d70 | end tip finish = polished |
        from £1,860.87
        from £1,860.87
        # 2
        MPN: 020200110201
        DIABLO 110X2 ROUND END TIPS KIT
        valid for: diablo (1990-2001) | aisi 304 stainless steel | exit pipes = 1 + 1 at the sides | end tip design = rolled lip | end tip size = d110 | end tip finish = polished |
        from £1,860.87
        from £1,860.87
        # 2
        MPN: 020200110202
        DIABLO VT 6.0 70X4 END TIPS KIT
        valid for: diablo (1990-2001) | aisi 304 stainless steel | exit pipes = 2 + 2 at the sides | end tip design = oblique cut | end tip size = d70 | end tip finish = polished |
        from £1,860.87
        from £1,860.87
        # 2
        MPN: 02020011020O

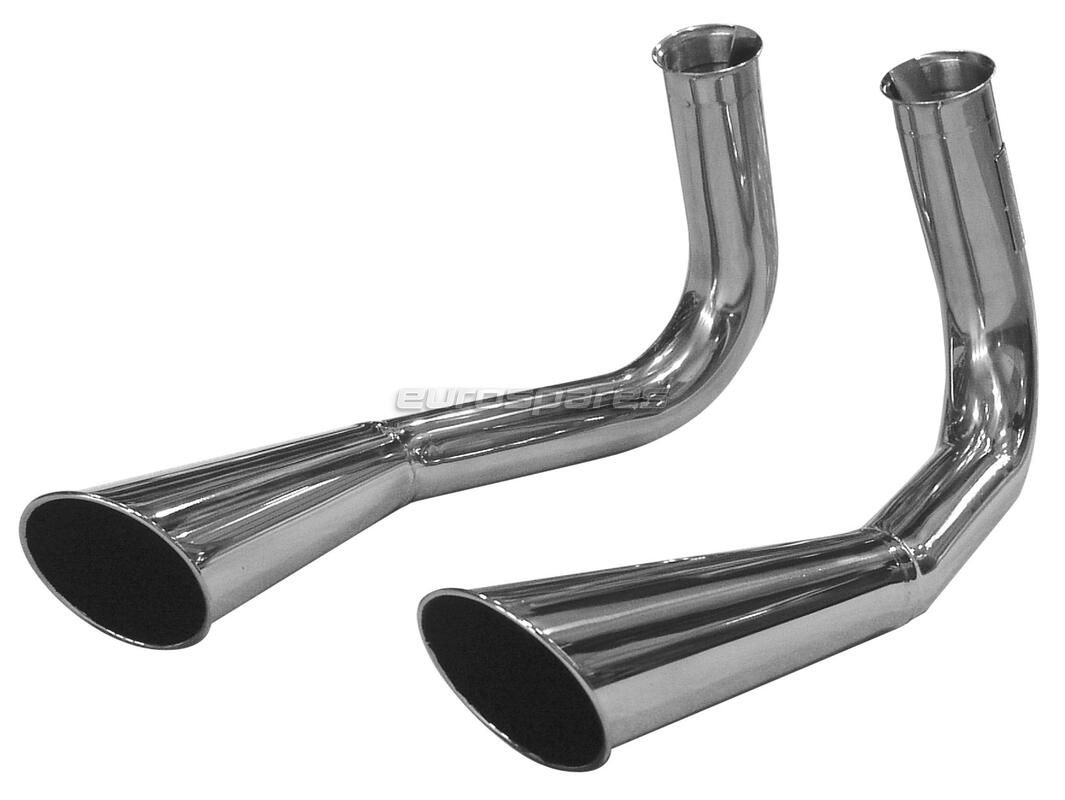

        DIABLO OVAL END TIPS KIT
        valid for: diablo (1990-2001) | aisi 304 stainless steel | exit pipes = 1 + 1 at the sides | end tip design = oval | end tip finish = polished |
        from £1,860.87
        from £1,860.87
        # 3
        -
        NOT AVAILABLE FOR THIS MODEL
        # 4
        -
        NOT AVAILABLE FOR THIS MODEL
        # 5
        MPN: 02020011010

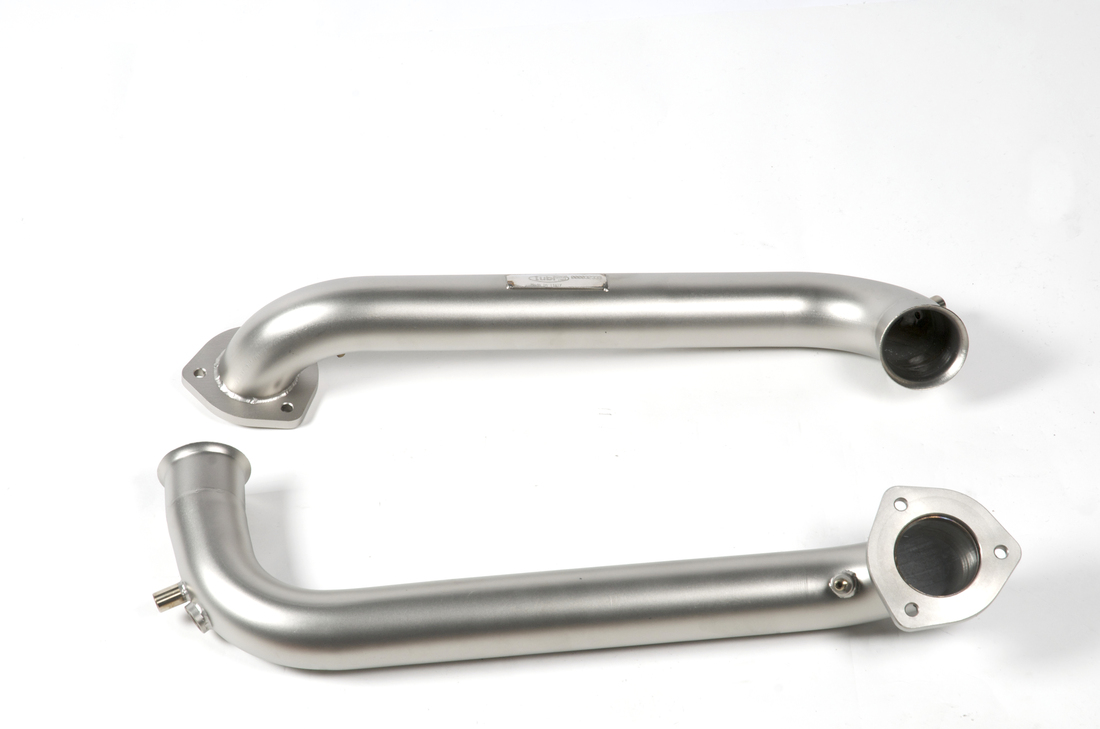

        DIABLO CAT BYPASS HIGH FLOW PIPES KIT
        valid for: diablo (1990-2001) | racetrack use only | aisi 304 stainless steel |
        from £1,395.65
        from £1,395.65
        # 6
        -
        NOT AVAILABLE FOR THIS MODEL
