maserati mc20 (2023) gearbox housings parts diagram

03.10.1 - gearbox housings

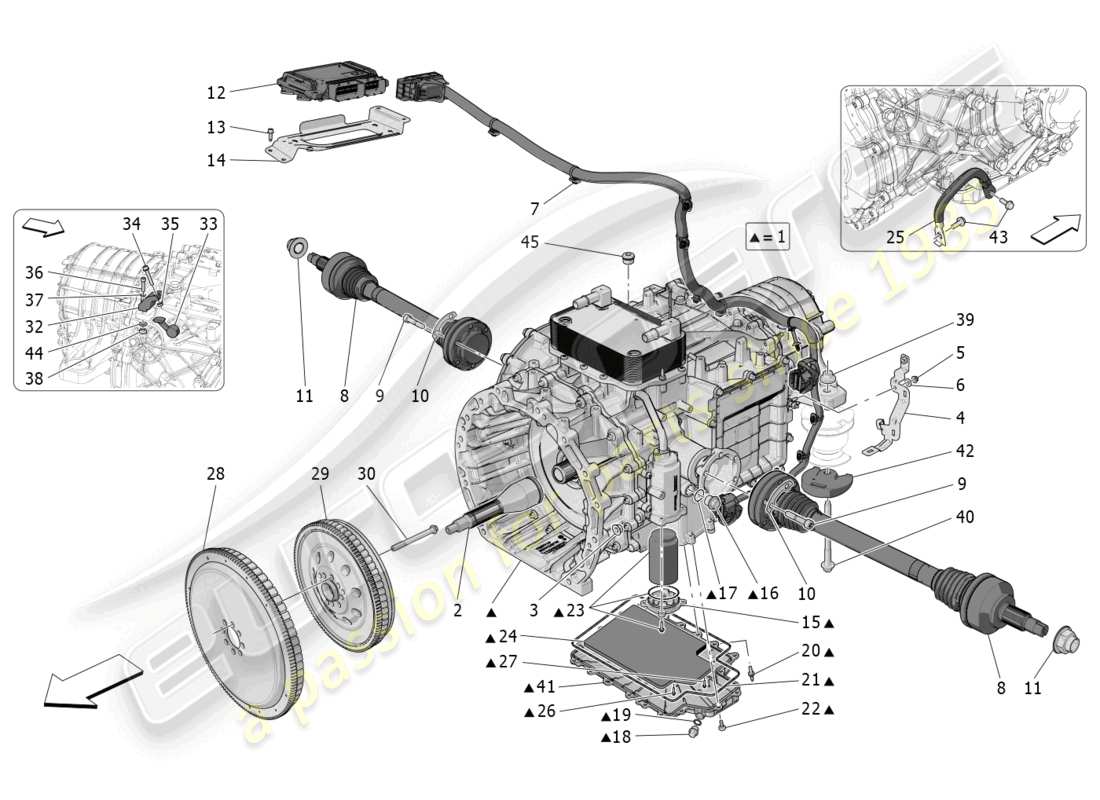

Maserati MC20 (2023) GEARBOX HOUSINGS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 670299315
AUTOMATIC GEARBOX ASSEMBLY
Valid from assembly: 7001514. Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
from £18,672.52
from £18,672.52
This part replaces part number 670222423
AUTOMATIC GEARBOX ASSEMBLY Genuine Maserati Part - New (to order)
# 001
MPN: 670299316
AUTOMATIC GEARBOX ASSEMBLY
Valid from assembly: 7001514. Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL. Not for cars with: REAR ELECTRONIC DIFFERENTIAL.
from £17,365.44
from £17,365.44
CAMBIO AUTOMATICO CPL Genuine Maserati Part - New (to order)
# 002
MPN: 670181842
SHAFT
from £731.38
from £731.38
EXTERNAL MAIN SHAFT Genuine Maserati Part - New (to order)
# 003
MPN: 675001210
NUT
from £1.02
from £1.02
DADO FLANGIATO M10 Genuine Maserati Part - New (to order)
# 004
MPN: 670160120
BRACKET
from £19.19
from £19.19
STAFFA SOSTEGNO CAVI DI PREC Genuine Maserati Part - New (to order)
# 005
MPN: 670175151
NUT
from £1.10
from £1.10
DADO ESAG. FLANGIATO Genuine Maserati Part - New (to order)
# 006
MPN: 670175146
WASHER
from £1.66
from £1.66
This part replaces part number 670302664
WASHER WASHER Genuine Maserati Part - New (to order)
# 007
MPN: 670212968
AUTOMATIC GEARBOX WIRING HARNESS
from £147.69
from £147.69
CABLAGGIO KIT CAMBIO AUTOMAT Genuine Maserati Part - New (to order)
# 008
MPN: 670219393
Rear axle shaft
Supersession
Supersession
This part replaces part number 670156098
Genuine Maserati Part (no longer available to order)
# 009
MPN: 670160302
SCREW
Supersession
Supersession
Genuine Maserati Part (no longer available to order)
# 010
MPN: 670002408
PLATE
from £1.26
from £1.26
PIASTRINA PER VITE FISS.ALBE Genuine Maserati Part - New (to order)
PIASTRINA PER VITE FISS.ALBE Genuine Maserati Part - Used In stock
# 011
MPN: 675000138
NUT
from £5.68
from £5.68
NUT Genuine Maserati Part - New In stock
# 012
MPN: 670214553
CONTROL UNIT GEARBOX
from £2,391.29
from £2,391.29
This part replaces part number 670179758
GEARBOX CONTROL UNIT Genuine Maserati Part - New (to order)
# 013
MPN: 675001384
SCREW
from £1.43
from £1.43
VITE TC M6X20 Genuine Maserati Part - New (to order)
# 014
MPN: 670161898
CONTROL UNIT BRACKET
from £28.11
from £28.11
STAFFA Genuine Maserati Part - New (to order)
# 015
MPN: 673011251
COVER FILTER
from £146.23
from £146.23
TRANSMISSION FILTER COVER Genuine Maserati Part - New (to order)
# 016
MPN: 673011243
OIL LEVEL PLUG
from £21.16
from £21.16
TRANS OIL FILL PLUG (17MM) Genuine Maserati Part - New (to order)
# 017
MPN: 673011244
O.R. GASKET
from £7.34
from £7.34
TRANS FLUID FILL PLUG O-RING Genuine Maserati Part - New (to order)
# 018
MPN: 673011245
PLUG
from £18.48
from £18.48
TRANS OIL DRAIN PLUG (13MM) Genuine Maserati Part - New (to order)
# 019
MPN: 673011246
O.R. GASKET
from £5.68
from £5.68
TRANS OIL DRAIN PLUG O-RING Genuine Maserati Part - New (to order)
# 020
MPN: 673011571
PIN
from £20.91
from £20.91
PERNO Genuine Maserati Part - New (to order)
# 021
MPN: 673011569
GASKET
Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL. Not for cars with: REAR ELECTRONIC DIFFERENTIAL.
from £78.96
from £78.96
GEARBOX OIL PAN GASKET Genuine Maserati Part - New (to order)
# 021
MPN: 673011569
GASKET
Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
from £78.96
from £78.96
GEARBOX OIL PAN GASKET Genuine Maserati Part - New (to order)
# 021
MPN: 673014161
GASKET #IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152#
Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL. Not for cars with: REAR ELECTRONIC DIFFERENTIAL.
GASKET #IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152# Genuine Maserati Part - New (to order)
# 021
MPN: 673014161
GASKET #IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152#
Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
GASKET #IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152# Genuine Maserati Part - New (to order)
# 022
MPN: 673011570
SCREW
from £8.76
from £8.76
VITE Genuine Maserati Part - New (to order)
# 023
MPN: 673011242
FILTER KIT
from £120.51
from £120.51
GEARBOX OIL FILTER KIT Genuine Maserati Part - New In stock
# 024
MPN: 673011566
FILTER
from £123.83
from £123.83
GEARBOX OIL PAN FILTER Genuine Maserati Part - New (to order)
# 025
MPN: 670181161
GROUND CABLE
from £24.50
from £24.50
GEARBOX EARTH CABLE Genuine Maserati Part - New (to order)
# 026
MPN: 673011567
SCREW
from £8.05
from £8.05
VITE M5X16 Genuine Maserati Part - New (to order)
# 027
MPN: 673011568
SCREW
from £4.42
from £4.42
VITE M5X25 Genuine Maserati Part - New (to order)
# 028
MPN: 670182513
ADAPTER
from £1,061.38
from £1,061.38
ADATTATORE CAMBIO Genuine Maserati Part - New (to order)
# 029
MPN: 670182512
engine flywheel
from £1,681.54
from £1,681.54
VOLANO MOT. P.CAMBIO MECC. Genuine Maserati Part - New (to order)
# 030
MPN: 670182510
SCREW
from £32.69
from £32.69
VITE(SPECIALE) M10 X 1.25 Genuine Maserati Part - New (to order)
# 032
MPN: 670181908
BRACKET
from £30.40
from £30.40
PARKING HAND RELEASE BRACKET Genuine Maserati Part - New (to order)
# 033
MPN: 670181910
LEVER
from £39.96
from £39.96
LEVA PARKING Genuine Maserati Part - New (to order)
# 034
MPN: 670182068
SCREW
from £1.66
from £1.66
VITE Genuine Maserati Part - New (to order)
# 035
MPN: 675001208
NUT
from £1.02
from £1.02
NUT Genuine Maserati Part - New (to order)
# 036
MPN: 675001206
SCREW
from £0.63
from £0.63
SCREW Genuine Maserati Part - New (to order)
# 037
MPN: 675001428
WASHER
from £0.63
from £0.63
WASHER Genuine Maserati Part - New (to order)
# 038
MPN: 670181913
NUT
from £10.51
from £10.51
DADO Genuine Maserati Part - New (to order)
# 039
MPN: 675000127
NUT [M12]
from £1.10
from £1.10
NUT M12X1 75 Genuine Maserati Part - New In stock
# 040
MPN: 675001431
SCREW
from £11.05
from £11.05
VITE(SPECIALE) M12 X 1.75 Genuine Maserati Part - New (to order)
# 041
MPN: 673013152
GEARBOX OIL SUMP #FOR CARS WITH TRANSMISSION SERIAL<1349079 WITH THE FIRST REPLACEMENT OF THE OIL PAN PN 673013152 ALSO ORDER THE GASKET PN 673011569#
Suitable for cars with: REAR ELECTRONIC DIFFERENTIAL. Not for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL.
from £386.77
from £386.77
GEARBOX OIL PAN M240 Genuine Maserati Part - New (to order)
# 041
MPN: 673013152
GEARBOX OIL SUMP #FOR CARS WITH TRANSMISSION SERIAL<1350072 WITH THE FIRST REPLACEMENT OF THE OIL PAN PN 673013152 ALSO ORDER THE GASKET PN 673011569#
Suitable for cars with: MECHANICAL LIMITED-SLIP DIFFERENTIAL. Not for cars with: REAR ELECTRONIC DIFFERENTIAL.
from £386.77
from £386.77
GEARBOX OIL PAN M240 Genuine Maserati Part - New (to order)
# 042
MPN: 670213358
MASS DAMPER
from £170.00
from £170.00
DAMPING MASS Genuine Maserati Part - New (to order)
# 043
MPN: 675001211
SCREW
from £5.06
from £5.06
VITE TESTA ES.FLG. Genuine Maserati Part - New (to order)
# 044
MPN: 670181914
WASHER
from £16.98
from £16.98
ROSETTA SPECIALE Genuine Maserati Part - New (to order)
# 045
MPN: 673014040
TRANSMISSION OIL DELIVERY CAP WITH O-RING
from £9.16
from £9.16
TRANS OIL FILL PLUG + O-RING Genuine Maserati Part - New (to order)
