aston martin db7 vantage (2004) door latch mechanism parts diagram

7.1F - Door Latch Mechanism

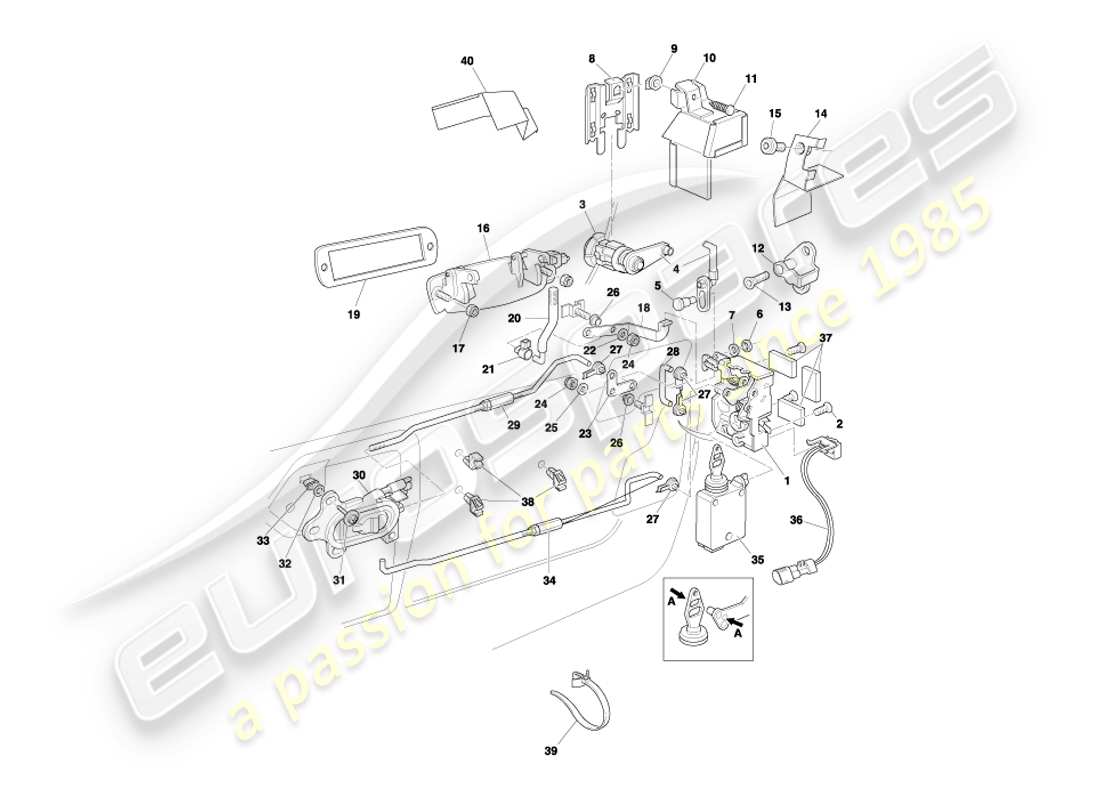

Aston Martin DB7 Vantage (2004) Door Latch Mechanism Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 65-82263
LATCH ASSEMBLY, DOOR - RH
Refer to Parts Bulletin PSB.2018.413
from £209.73
from £209.73
LATCH ASSY-DOOR RH Genuine Aston Martin - New (to order)
# 1
MPN: 65-82264
LATCH ASSEMBLY, DOOR - LH
Refer to Parts Bulletin PSB.2018.413
from £209.73
from £209.73
LATCH ASSY-DOOR LH Genuine Aston Martin - New (to order)
# 2
MPN: 697471
SCREW M6X16 SKT HD
from £0.47
from £0.47
SCREW M6 X 16 SOCKET HD Genuine Aston Martin - New (to order)
# 3
MPN: 65-82268
PAD, DOOR LOCK
from £0.49
from £0.49
PAD DOOR LOCK Genuine Aston Martin - New (to order)
# 4
MPN: 65-82272
DOOR LOCK ASSEMBLY, COMPLETE - RH
Up to (V) 302252
from £66.77
from £66.77
LOCK ASSY-DOOR RH Genuine Aston Martin - New (to order)
# 4
MPN: 78-124239-AA/N
DOOR LOCK ASSEMBLY, COMPLETE - RH
From (V) 302253
from £185.70
from £185.70
LOCK ASSY-RH(NUMBER) Genuine Aston Martin - New (to order)
# 4
MPN: 65-82273
DOOR LOCK ASSEMBLY, COMPLETE - LH
Up to (V) 302252
from £66.77
from £66.77
LOCK ASSY-DOOR LH Genuine Aston Martin - New (to order)
# 4
MPN: 78-124240-AA/N
DOOR LOCK ASSEMBLY, COMPLETE - LH
From (V) 302253
from £185.70
from £185.70
LOCK ASSY-LH(NUMBER) Genuine Aston Martin - New (to order)
# -
-
HANDLE, DOOR EXTERIOR, RH PAINTED RHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, RH RHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, LH PAINTED RHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, LH RHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, RH PAINTED LHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, RH LHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, LH PAINTED LHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, LH LHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, CHROME FLAP, PAINTED RH RHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, CHROME FLAP, PAINTED LH RHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, CHROME FLAP, PAINTED RH LHD
Zagato/DBAR1
# -
-
HANDLE, DOOR EXTERIOR, CHROME FLAP, PAINTED LH LHD
Zagato/DBAR1
# 5
MPN: 65-82283
PIVOT LOCK LINK
from £6.34
from £6.34
PIVOT LOCK LINK Genuine Aston Martin - New (to order)
# 6
MPN: 697290
PUSH ON FIX
from £0.47
from £0.47
PUSH ON FIXER-M3 Genuine Aston Martin - New (to order)
# 7
MPN: 697465
WASHER, PLAIN M4
from £0.47
from £0.47
WASHER M4 PLAIN FM A Genuine Aston Martin - New (to order)
# 8
MPN: 65-82288
CLIP, DOOR LOCK RETENTION
from £1.88
from £1.88
CLIP DOOR LOCK RET'N Genuine Aston Martin - New (to order)
# 9
MPN: 65-82291
NUT EXPANDING
from £0.78
from £0.78
NUT EXPANDING Genuine Aston Martin - New (to order)
# 10
MPN: 65-90346
LOCKGUARD WITH EDGE PROTECTORS, RH
LOCKGUARD+E/PROTEC R Genuine Aston Martin - New (to order)
# 10
MPN: 65-90347
LOCKGUARD WITH EDGE PROTECTORS, LH
from £24.13
from £24.13
LOCKGUARD+E/PROTEC L Genuine Aston Martin - New (to order)
# 11
MPN: 697582
SCREW NO.10
from £0.47
from £0.47
SCREW NO10 PAN HD ST Genuine Aston Martin - New (to order)
# 12
MPN: 65-111702-AA
STRIKER ASSEMBLY, DOOR LOCK
from £73.25
from £73.25
STRIKER ASSY-DR LOCK Genuine Aston Martin - New (to order)
# -
-
LOCKSET
Up to (V) 302252
# -
-
LOCKSET
From (V) 302253
# -
-
KEY ASSEMBLY, DOOR LOCK (BLANK)
Up to (V) 302252
# -
-
Key assembly, door lock (cut to key number)
Up to (V) 302252
# -
-
KEY ASSEMBLY, DOOR LOCK, CHROME
From (V) 302253
# -
-
KEY SURROUND, CHROME
From (V) 302253
# -
-
TRUNK LID LOCK ASSEMBLY, COMPLETE
# -
-
LOCK ASSEMBLY, GLOVEBOX
# -
-
LOCK BARREL, IGNITION
# 13
MPN: 698692
SCREW, TORX HD, M8X23
from £0.47
from £0.47
M8 X 23 TORX SCREW Genuine Aston Martin - New (to order)
# 14
MPN: 65-84399
SHIELD, RH
from £12.27
from £12.27
SHIELD-LK LINKAGE RH Genuine Aston Martin - New (to order)
# 14
MPN: 65-84400
SHIELD, LH
from £11.90
from £11.90
SHIELD-LK LINKAGE LH Genuine Aston Martin - New (to order)
# 15
MPN: 697454
SCREW, TORX HD
from £0.47
from £0.47
SCREW M6 X 16 PAN HD Genuine Aston Martin - New (to order)
# 16
MPN: 65-82269
HANDLE ASSEMBLY, OUTER DOOR - RH
from £195.92
from £195.92
HANDLE ASSEMBLY OUTER RH Genuine Aston Martin - New (to order)
# 16
MPN: 65-82270
HANDLE ASSEMBLY, OUTER DOOR - LH
from £195.92
from £195.92
HANDLE ASSEMBLY OUTER LH Genuine Aston Martin - New (to order)
# 17
MPN: 699127
NUT, NYLOC, THIN, M6
from £0.47
from £0.47
NUT M6 NYLOC THIN -T Genuine Aston Martin - New (to order)
# 18
MPN: 65-123360-AC
BELCRANK O/S HANDLE - RH
from £5.92
from £5.92
BELLCRANK RH Genuine Aston Martin - New (to order)
# 18
MPN: 65-123361-AC
BELCRANK O/S HANDLE - LH
from £5.92
from £5.92
BELLCRANK LH Genuine Aston Martin - New (to order)
# 19
MPN: 65-82271
GASKET, HANDLE OUTER
from £11.08
from £11.08
GASKET-HANDLE OUTER Genuine Aston Martin - New (to order)
# 20
MPN: 65-82267
LINK
from £36.53
from £36.53
LINK Genuine Aston Martin - New (to order)
# -
-
WASHER, M6, LARGE OD
Zagato
# 21
MPN: 65-82287
CLIP LINKAGE
from £0.47
from £0.47
CLIP, LINKAGE Genuine Aston Martin - New (to order)
# 22
MPN: 697466
WASHER, PLAIN M5
from £0.47
from £0.47
WASHER M5 PLAIN FM A Genuine Aston Martin - New (to order)
# 23
MPN: 65-82277
BELLCRANK I/S HANDLE
from £5.77
from £5.77
BELLCRANK I/S HANDLE Genuine Aston Martin - New (to order)
# 24
MPN: 697470
NUT, NYLOC M5
from £0.47
from £0.47
NUT, NYLOC, M5, CENTRAL HIGH MOUNTED STOP LIGHT ATTACH Genuine Aston Martin - New (to order)
# 25
MPN: 697466
WASHER, PLAIN M5
from £0.47
from £0.47
WASHER M5 PLAIN FM A Genuine Aston Martin - New (to order)
# 26
MPN: 65-82284
BUSH PIVOT BELLCRANK
from £4.90
from £4.90
BUSH Genuine Aston Martin - New (to order)
# 27
MPN: 697469
CLIP
from £0.78
from £0.78
CLIP Genuine Aston Martin - New (to order)
# 28
MPN: 65-82285
LINK
from £8.17
from £8.17
LINK Genuine Aston Martin - New (to order)
# 29
MPN: 65-82278
LINK ASSEMBLY - RH
from £17.30
from £17.30
LINK ASSEMBLY RH Genuine Aston Martin - New (to order)
# 29
MPN: 65-82279
LINK ASSEMBLY - LH
from £17.30
from £17.30
LINK ASSEMBLY LH Genuine Aston Martin - New (to order)
# 30
MPN: 65-82274
HANDLE ASSEMBLY, INNER DOOR - RH
Up to (V) 302252
from £30.88
from £30.88
HANDLE ASSEMBLY INNER RH Genuine Aston Martin - New (to order)
# 30
MPN: 65-124174-AB
HANDLE, DOOR INTERIOR, RH
From (V) 302253
from £256.55
from £256.55
INTERIOR D/HANDLE RH Genuine Aston Martin - New (to order)
# 30
MPN: 65-82275
HANDLE ASSEMBLY, INNER DOOR - LH
Up to (V) 302252
from £30.88
from £30.88
HANDLE ASSEMBLY INNER LH Genuine Aston Martin - New (to order)
# 30
MPN: 65-124173-AB
HANDLE, DOOR INTERIOR, LH
From (V) 302253
from £291.54
from £291.54
INTERIOR D/HANDLE LH Genuine Aston Martin - New (to order)
# 31
MPN: 697468
SCREW/WASHER, SELF TAP
from £0.47
from £0.47
SCREW/WASHER, NO.8X19 Genuine Aston Martin - New (to order)
# -
-
SCREW, FLG, M5X8 DOOR HANDLE ATTACH
Zagato
# 32
MPN: 78-82424
WASHER, SPACING
from £0.60
from £0.60
WASHER SPACING 2 MM Genuine Aston Martin - New (to order)
# 33
MPN: 697571
NUT, LOKUT PLASTIC
from £0.47
from £0.47
NUT LOKUT Genuine Aston Martin - New (to order)
# 34
MPN: 65-82280
LINK ASSEMBLY - RH
from £229.67
from £229.67
LINK ASSEMBLY RH Genuine Aston Martin - New (to order)
# 34
MPN: 65-82281
LINK ASSEMBLY - LH
from £25.73
from £25.73
LINK ASSEMBLY LH Genuine Aston Martin - New (to order)
# 35
MPN: 37-82282
ACTUATOR, DOOR LOCK
from £57.77
from £57.77
ACTUATOR-DOOR LOCK Genuine Aston Martin - New (to order)
# 36
-
SWITCH, DOOR AJAR - RH
See 6.6C.2
# 36
-
SWITCH, DOOR AJAR - LH
See 6.6C.2
# 37
MPN: 77-83351
SEAL, DOOR LATCH
Cut to length
from £5.16
from £5.16
SEAL-E/CHANNEL 35MM Genuine Aston Martin - New (to order)
# 38
MPN: 65-82286
CLIP, LINKAGE GUIDE
from £0.77
from £0.77
CLIP - LINKAGE GUIDE Genuine Aston Martin - New (to order)
# 39
MPN: 697398
WIRE CLIP
from £0.87
from £0.87
TIESTRAP-RELEASEABLE Genuine Aston Martin - New (to order)
# 40
MPN: 65-84397
SHIELD ASSEMBLY, DOOR LOCK - RH
from £19.04
from £19.04
SHIELD ASSY-DR LK RH Genuine Aston Martin - New (to order)
# 40
MPN: 65-84398
SHIELD ASSEMBLY, DOOR LOCK - LH
from £17.63
from £17.63
SHIELD ASSY-DR LK LH Genuine Aston Martin - New (to order)
# -
-
BUFFER, DOOR SLAM
On B post
# -
-
LOCK SET, RHD
Zagato
# -
-
LOCK SET, LHD
Zagato
# -
-
LOCK SET, RHD
DBAR1
# -
-
LOCK SET, LHD
DBAR1
# -
-
DROP LINK, DOOR HANDLE, RH
Zagato/DBAR1
# -
-
DROP LINK, DOOR HANDLE, LH
Zagato/DBAR1
# -
-
DOOR LOCK LINKAGE ASSEMBLY, RHD
Zagato/DBAR1
# -
-
DOOR LOCK LINKAGE ASSEMBLY, LHD
Zagato/DBAR1
# -
-
CIRCLIP, LOCK LINKAGE
Zagato/DBAR1
