P573 (Air conditioner)
porsche 2019 (991-2 r/gt3/rs) refrigerant circuit front d >>- mj 2017 parts diagram

813-020 - refrigerant circuit front D >>- MJ 2017

Porsche 2019 (991-2 R/GT3/RS) refrigerant circuit front D >>- MJ 2017 Parts Diagram

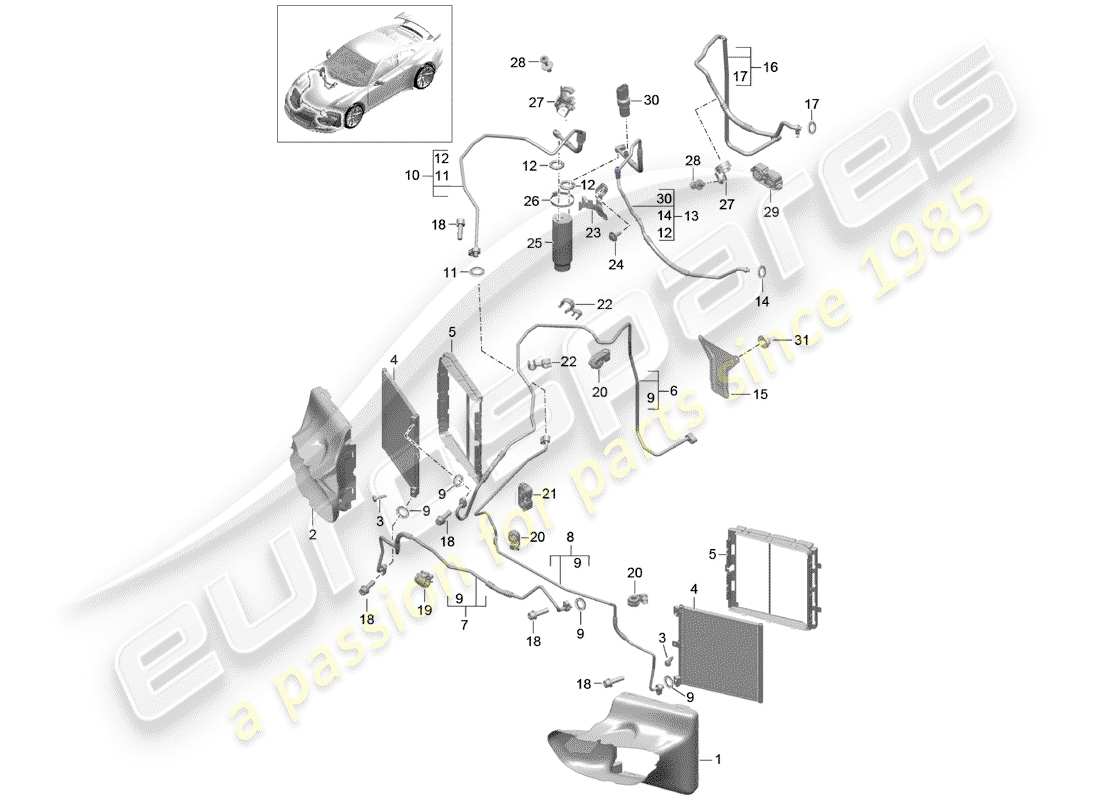

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Key
                                                          Price
                                                          # 1
                                                          MPN: 991575321901E0
                                                          AIR GUIDE SIDE, LEFT - BLACK
                                                          from £173.19
                                                          from £173.19
                                                          This part replaces part number 99157532190
                                                          AIR GUIDE BLACK Genuine Porsche Part - New (to order)
                                                          # 2
                                                          MPN: 991575322901E0
                                                          AIR GUIDE SIDE, RIGHT - BLACK
                                                          from £173.19
                                                          from £173.19
                                                          This part replaces part number 99157532290
                                                          Black Genuine Porsche Part - New (to order)
                                                          # 3
                                                          MPN: 90007534001
                                                          BOLT WITH WASHER M6X22
                                                          from £2.86
                                                          from £2.86
                                                          BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                                          # 4
                                                          MPN: 99157311104
                                                          CONDENSER
                                                          from £290.42
                                                          from £290.42
                                                          capacitor Genuine Porsche Part - New (to order)
                                                          # 5
                                                          MPN: 99157371104
                                                          SEALING FRAME
                                                          from £62.83
                                                          from £62.83
                                                          SEALING FRAME Genuine Porsche Part - New (to order)
                                                          # 6
                                                          MPN: 99157309401
                                                          PRESSURE LINE FRONT UNDERBODY CONDENSER
                                                          Supersession
                                                          Supersession
                                                          Genuine Porsche Part (no longer available to order)
                                                          # 6
                                                          MPN: 99157309491
                                                          PRESSURE LINE FRONT UNDERBODY CONDENSER
                                                          from £143.88
                                                          from £143.88
                                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                                          # 7
                                                          MPN: 99157310380
                                                          Pressure line Condenser
                                                          from £355.96
                                                          from £355.96
                                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                                          # 8
                                                          MPN: 99157310580
                                                          PRESSURE LINE LEFT CONDENSER WHEEL HOUSING
                                                          from £355.96
                                                          from £355.96
                                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                                          # 9
                                                          MPN: 99970755741
                                                          O-RING
                                                          from £2.29
                                                          from £2.29
                                                          O-RING - 11.00X2.50 Genuine Porsche Part - New In stock
                                                          # 10
                                                          MPN: 99157310801
                                                          PRESSURE LINE DRIER
                                                          from £247.44
                                                          from £247.44
                                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                                          # 10
                                                          MPN: 99157310891
                                                          PRESSURE LINE DRIER
                                                          from £426.36
                                                          from £426.36
                                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                                          # 11
                                                          MPN: 99970755641
                                                          O-RING
                                                          from £2.29
                                                          from £2.29
                                                          O-RING - 9,50X2,50 Genuine Porsche Part - New In stock
                                                          # 12
                                                          MPN: 99970766040
                                                          O-RING
                                                          from £4.52
                                                          from £4.52
                                                          This part replaces part number 99970726240
                                                          O-RING Genuine Porsche Part - New In stock
                                                          # 13
                                                          MPN: 99157310906
                                                          PRESSURE LINE LHD DRIER
                                                          P098 (Left-hand drive version)
                                                          from £194.46
                                                          from £194.46
                                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                                          # 13
                                                          MPN: 99157310907
                                                          PRESSURE LINE RHD DRIER
                                                          P099 (Right-hand drive version)
                                                          from £235.95
                                                          from £235.95
                                                          PRESSURE LINE Genuine Porsche Part - New (to order)
                                                          # 14
                                                          MPN: 99970765240
                                                          O-RING
                                                          from £7.32
                                                          from £7.32
                                                          O-RING Genuine Porsche Part - New (to order)
                                                          # 15
                                                          MPN: 99157330380
                                                          BRACKET FOR PRESSURE LINE
                                                          from £35.34
                                                          from £35.34
                                                          BRACKET FOR PRESSURE LINE Genuine Porsche Part - New (to order)
                                                          # 16
                                                          MPN: 99157309300
                                                          SUCTION LINE LHD EXPANSION VALVE UNDERBODY
                                                          P098 (Left-hand drive version)
                                                          from £206.10
                                                          from £206.10
                                                          SUCTION PIPE Genuine Porsche Part - New (to order)
                                                          # 16
                                                          MPN: 99157309302
                                                          SUCTION LINE RHD EXPANSION VALVE UNDERBODY
                                                          P099 (Right-hand drive version)
                                                          from £206.10
                                                          from £206.10
                                                          SUCTION PIPE Genuine Porsche Part - New (to order)
                                                          # 17
                                                          MPN: 99970755841
                                                          O-RING
                                                          from £4.52
                                                          from £4.52
                                                          O-RING - 13,70X2,50N Genuine Porsche Part - New In stock
                                                          # 18
                                                          MPN: N 10414402
                                                          Socket head bolt with M8X28 hexagon socket head
                                                          from £1.36
                                                          from £1.36
                                                          BOLT, WITH HEX. SOCKET Genuine Porsche Part - New (to order)
                                                          SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD Genuine Bentley Part - New (to order)
                                                          HEXALOBULAR SOCKETM8X28-S10-N Genuine Lamborghini - New In stock
                                                          # 19
                                                          MPN: 99157383901
                                                          BRACKET
                                                          BRACKET Genuine Porsche Part - New (to order)
                                                          # 20
                                                          MPN: 99157383700
                                                          BRACKET
                                                          P099 (Right-hand drive version)
                                                          Supersession
                                                          Supersession
                                                          Genuine Porsche Part (no longer available to order)
                                                          # 21
                                                          MPN: 99157384100
                                                          BRACKET
                                                          from £6.74
                                                          from £6.74
                                                          BRACKET Genuine Porsche Part - New (to order)
                                                          # 22
                                                          MPN: 99950796940
                                                          HOSE BRACKET 12,0/12,0
                                                          from £1.45
                                                          from £1.45
                                                          bracket for hose - 12,0 / 12,0 - Mount - suction pipe - and - Pressure line - power steering Genuine Porsche Part - New (to order)
                                                          # 23
                                                          MPN: 99157345101
                                                          BRACKET FOR DRIER
                                                          from £10.13
                                                          from £10.13
                                                          BRACKET FOR DRIER Genuine Porsche Part - New (to order)
                                                          # 24
                                                          MPN: 90007551001
                                                          BOLT WITH WASHER M6X20-PA-S1-L
                                                          from £0.91
                                                          from £0.91
                                                          BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                                          # 25
                                                          MPN: 94457314301
                                                          DRIER
                                                          Supersession
                                                          Supersession
                                                          Genuine Porsche Part (no longer available to order)
                                                          # 26
                                                          MPN: 99951234901
                                                          HOSE CLAMP A50-70/9
                                                          from £4.52
                                                          from £4.52
                                                          This part replaces part number 99951234902
                                                          Hose Clamp - SGT 50-70/9 Genuine Porsche Part - New (to order)
                                                          # 27
                                                          MPN: 99157382701
                                                          BRACKET
                                                          from £5.14
                                                          from £5.14
                                                          BRACKET Genuine Porsche Part - New (to order)
                                                          # 28
                                                          MPN: 99950749740
                                                          SPREADER RIVET 8,0X14,0
                                                          from £0.59
                                                          from £0.59
                                                          rivet - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                                          # 29
                                                          MPN: 99157384300
                                                          BRACKET
                                                          BRACKET Genuine Porsche Part - New (to order)
                                                          # 30
                                                          MPN: 95561313703
                                                          PRESSURE SENSOR
                                                          from £88.34
                                                          from £88.34
                                                          This part replaces part number 95561313702
                                                          PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                                          # 31
                                                          MPN: 99908422201
                                                          HEXAGON NUT M6
                                                          from £0.82
                                                          from £0.82
                                                          HEX. NUT Genuine Porsche Part - New (to order)
