006 - Belts and Pulley

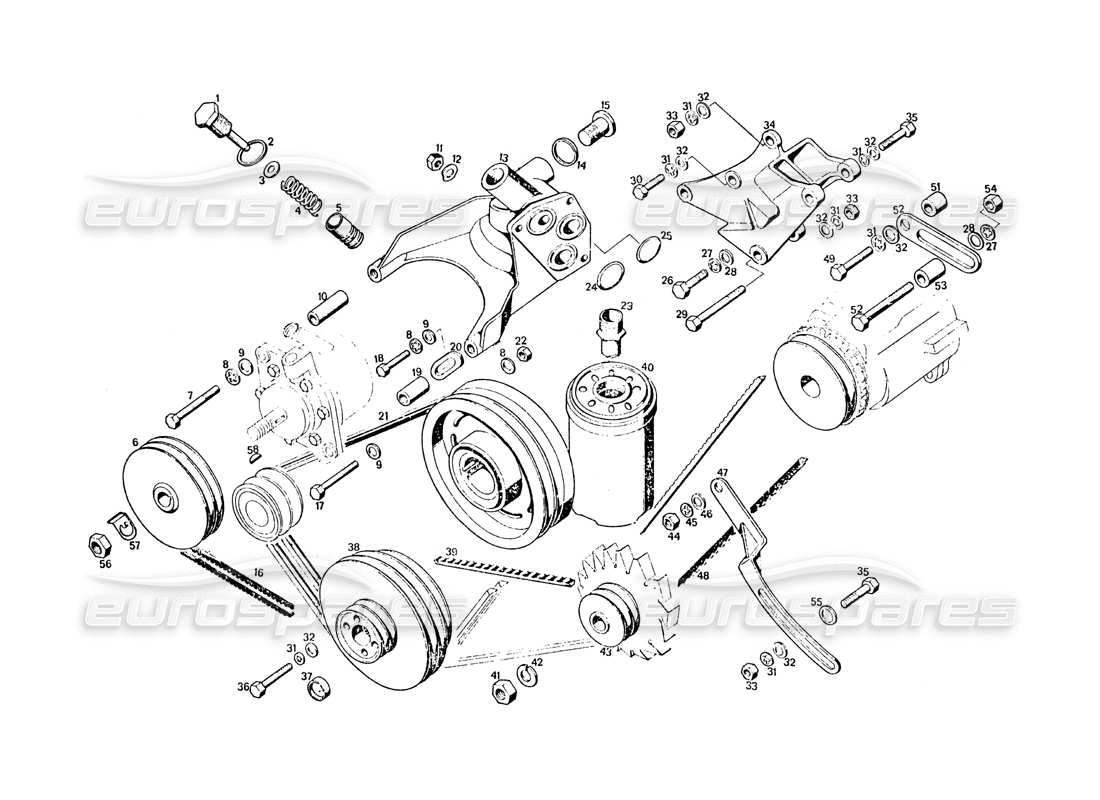

Maserati Khamsin Belts and pulley Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
115 ML 63315
CAP WITH GUIDE PIN FOR OIL PRESSURE VALVE SPRING
Supersession
Supersession
#
002
MPN:
GN46637
GASKET OR SEAL
from
£2.16
from
£2.16
#
003
MPN:
RN 51581
WASHER
#
004
MPN:
C.114/1 ML 70289
SPRING
#
005
MPN:
107/3 ML 68316
VALVOLINA REGOLAZIONE PRESSIONE OLIO
#
006
MPN:
117 Fl 76122
Pulley for high pressure oil pump
#
007
MPN:
BNT 76657
BOLT
#
008
MPN:
RDI 60333
WASHER
#
009
MPN:
RNT47210
WASHER
#
010
MPN:
120 Fl 74751
Spacer between high pressure pump and support
#
011
MPN:
DNT 66854
NUT
#
012
MPN:
RAT/45680
WASHER
#
013
MPN:
115/07 ML 74739
OIL FILTER BODY AND SUPPORT
#
013
MPN:
120 ML 120.225
Complete oil filter body and support
from
£1,298.70
from
£1,298.70
#
014
MPN:
GN48059
GASKET OR SEAL
#
015
MPN:
TN 57589
Cap Ø 24 X 1,5 X 14 to close the hole on the oil filter body
#
016
MPN:
CTR 70527
CINGHIA TP. GATES-POLIFLEX 7M-650 PER COMANDO POMPA FRENI
from
£118.62
from
£118.62
#
017
MPN:
BNT 79344
BOLT
#
018
MPN:
BNT 76634
BOLT
#
019
MPN:
120 Fl 74752
SPACER BETWEEN HIGH PRESSURE PORNPA AND SUPPORT
#
020
MPN:
120 FL 74753
BELT TENSIONER FOR HIGH PRESSURE PUMP
#
021
MPN:
CTR 55480
Belt driving water pump and alternator
#
022
MPN:
DNT 47080
NUT
#
023
MPN:
107/3 ML 07117
PIVOT
#
024
MPN:
GOM 54022
RUBBER Ø 34,59 X 39,7 X 2,62 ON THE OIL FILTER BODY
#
025
MPN:
GOM 67774
RUBBER Ø 33,49 X 28,25 X 2,62 ON THE OIL FILTER BODY
from
£6.06
from
£6.06
#
026
MPN:
BNT 55,117
BOLT
#
027
MPN:
RDI54211
WASHER
#
028
MPN:
RNT 47087
WASHER
#
029
MPN:
BNT 58749
BOLT
#
030
MPN:
BNT 47017
BOLT
#
031
MPN:
RDI55990
WASHER
#
032
MPN:
RNT 74163
WASHER
#
033
MPN:
DNT 76120
NUT
#
034
MPN:
120 CP 76233
SUPPORT FOR ALTERNATOR AND AIR PUMP
#
035
MPN:
BNT 54081
BOLT
#
037
MPN:
107/07 MM 73350
Cap on the front pulley
#
038
MPN:
115/07 MM 81861
PUIEGGIA ANTERIORE
#
039
MPN:
CTR 76243
CINGHIA 11 M/710 GATES PER TRASCINAMENTO ALTERNATORE
#
040
MPN:
107/3 ML 66523

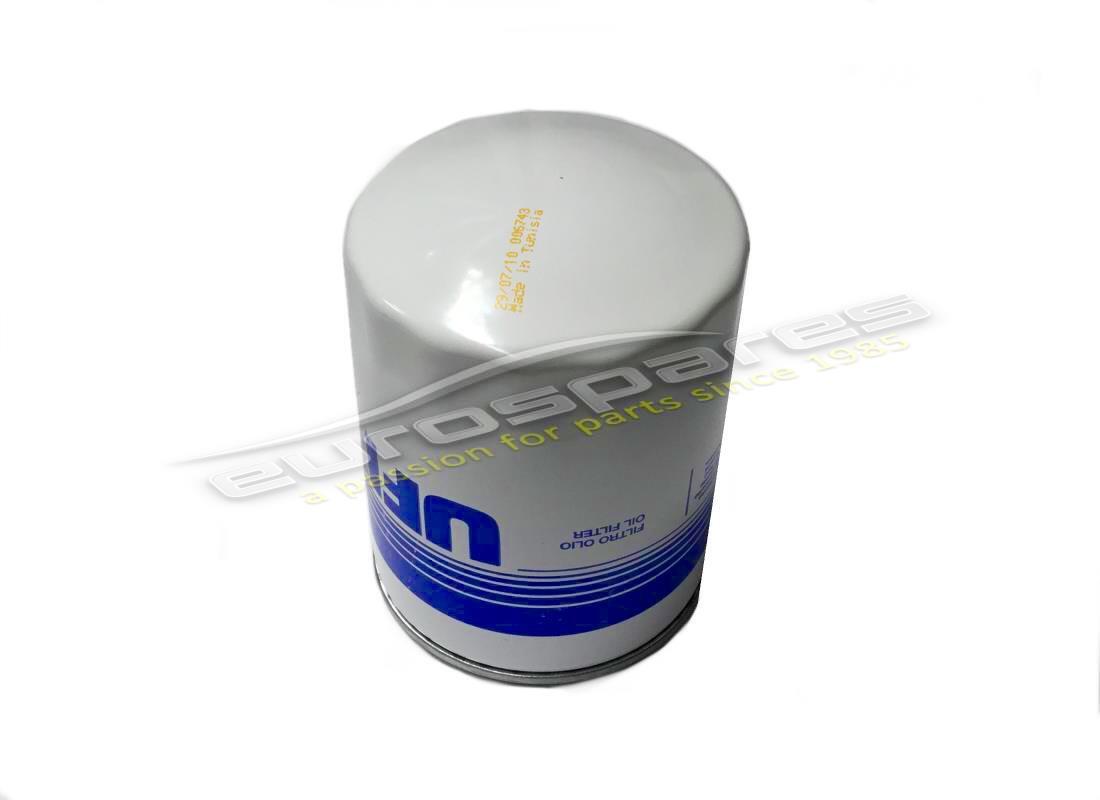

FILTRO OLIO
#
041
MPN:
DN 32721
NUT
#
043
MPN:
115/07 ME 76235
CONRANDO ALTERNATOR PULLEY AND AIR PUMP
#
044
MPN:
DST/48102
NUT
#
045
MPN:
RDI53899
WASHER
#
046
MPN:
RNT 6701,1
WASHER
#
047
MPN:
115 ME 65852
Puntalino tendicatena alternatore
#
048
MPN:
CTR 72620
AIR PUMP DRIVING BELT
from
£157.58
from
£157.58
#
049
MPN:
BNT/47014
BOLT
#
050
MPN:
120 CP 76232
Puntalino tendicinghia pompa aria
#
051
MPN:
120 CP 76231
SPACER BETWEEN CYLINDER HEAD AND AIR PUMP FUEL
#
052
MPN:
BN 75852
BOLT
#
053
MPN:
117 CP 75813
Spacer between tip and air pump
#
054
MPN:
DNT 68093
NUT
#
055
MPN:
RN 73530
WASHER
#
056
MPN:
D 391 - 76
NUT
#
057
MPN:
D 391 - 77
High pressure pump pulley fastening nut retainer
#
058
MPN:
A 151 - S
Key Ø 3 X 3,7 X 10 on the high pressure pump shaft
