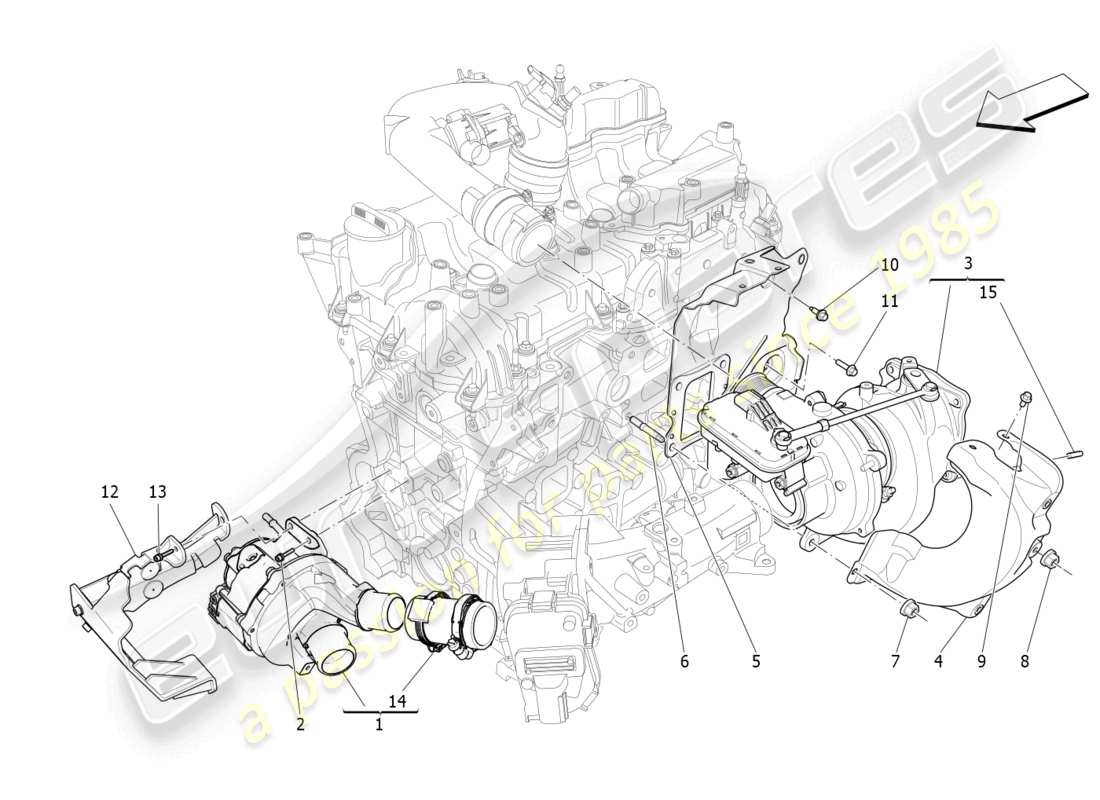

01.30.4 - turbocharging system: equipments
Maserati Ghibli Fragment (2022) TURBOCHARGING SYSTEM: EQUIPMENTS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
670053899
E-BOOSTER
Valid from engine: 1559065. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
Supersession
Supersession
This part replaces part number 670053930
#
001
MPN:
670053930
E-BOOSTER #IF STOCK = 0, FOR MOTORS WITH MOTOR SERIAL<1559065 WITH THE FIRST REPLACEMENT OF THE COMPRESSOR WITH PN 670053899 ALSO ORDER THE E-BOOST WATER PIPE 670053898#
Valid from engine: 0 - 1559064. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
Supersession
Supersession
#
002
MPN:
670051108
SCREW
Valid from engine: 0 - 1641475. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£1.69
from
£1.69
#
002
MPN:
675001989
SCREW
Valid from engine: 1641476. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£1.30
from
£1.30
#
003
MPN:
670053599
Turbocharger
Valid from engine: 0 - 1452564. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
Supersession
Supersession
#
003
MPN:
670053882
Turbocharger
Valid from engine: 1452565. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£323.11
from
£323.11
This part replaces part number 670053599
- and 1 more. Click to view details
#
004
MPN:
670053592
HEAT SHIELD
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
Supersession
Supersession
#
005
MPN:
670053540
HEAT SHIELD WITH GASKET
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
Supersession
Supersession
This part replaces part number 675001181
#
005
MPN:
675001181
HEAT SHIELD WITH GASKET
Valid from engine: 0 - 1452564. (valid for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | *AUSTRALIA,*JAPAN,*JAPAN (RH DRIVE),*UNITED KINGDOM,ITALY)
Supersession
Supersession
#
005
MPN:
675001181
HEAT SHIELD WITH GASKET
Valid from engine: 0 - 1452564. Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
Supersession
Supersession
#
006
MPN:
675000883
STUD
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£7.93
from
£7.93
#
007
MPN:
675000962
NUT
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£0.81
from
£0.81
#
008
MPN:
675000966
NUT
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£0.91
from
£0.91
#
009
MPN:
675000965
SCREW
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£2.86
from
£2.86
#
010
MPN:
675000967
SCREW
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£0.95
from
£0.95
#
011
MPN:
675000968
SCREW
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£0.95
from
£0.95
#
012
MPN:
670053839
E-BOOSTER HEAT SHIELD
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£203.94
from
£203.94
#
013
MPN:
675000548
SCREW
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£1.30
from
£1.30
#
014
MPN:
670053704
SLEEVE
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£69.77
from
£69.77
#
015
MPN:
673013906
STUD
Suitable for: AUTOMATIC | 2.0 T4 2WD 330 HP MHEV | AUSTRALIA, ITALY, JAPAN, JAPAN (RH DRIVE), UNITED KINGDOM
from
£9.84
from
£9.84
